| Prod Model: |
SW100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Load Weight: |
200kgx1 |
| Power Consume: |
100W |
| Operating Voltage: |
DC 24V |
| Input Voltage: |
Input AC210V to 230V |
| Certificate: |
ISO9001, ISO14001, Rosh, SGS |
| Structure: |
Crank Arm |
| Driving Type: |
Electromechanical |
| Electric Current Type: |
AC |
| Brand: |
Caterly |
Product Description

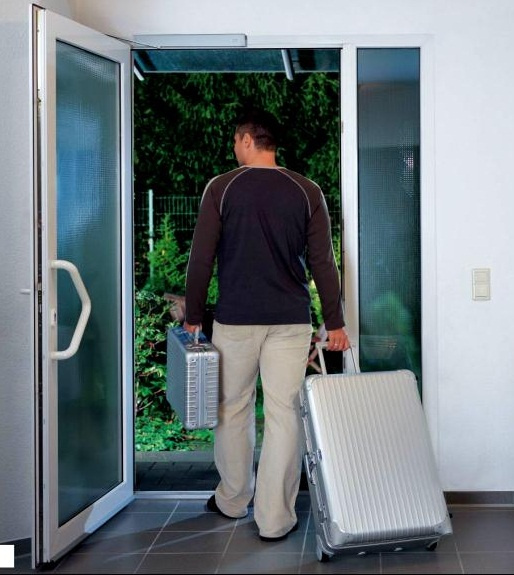

Grogshop automatic swing door closer
Specifications
Automatic swing door,automatic swing door operator & swing door system / auto swing door / swing door opener / door opener Automatic swing door
Swing door operator,automatic door operator system
Designed for Business shops, hotels, restaurants: for free, unhindered transport of goods
Old age and nursing homes: easy access; ideal for bed transport Banks, insurance companies, administrations: best monitoring of existing and new doors by integration into building management systems
In private areas and for handicapped people: for the easement of the daily life
Security gates, singling out people: for access control
Advanced software
1. Push & open function(can be turn off if needed, such as windy environment).
2. Auto reverse when an obstacle is encountered either in closing direction or opening direction.
3. Various opening modes: remote control, card reader, motion sensor, opening button etc.
4. Having interfaces to connect fire alarm signal, backup battery and electric lock.
5. Digitally change some parameters if needed, by adjustor.
Adjustable parameters
1. Opening speed and closing speed: 3s~10s
2. Hold-Open time adjustable: 1-10s
3. Creep speed for opening adjustable
4. Creep speed for closing adjustable
5. Push & open angle adjustable
Simple and reliable structure
1. It consists of some modules, such as controller board, motor, easy to replace.
2. The motor transmission is simple and stable. Adopting worm and worm gear decelerator, super silence, no abrasion.
3. It is easy to open and close the cover for check.
4. Easy installation (first, install one mount plate on the wall, then use the screw to install whole automatic door opener on the mount plate)
5. Sliding arm and articulated arm both available, can open inside or outside.
6. Excellent reliability, over more than 2 million cycles durability tests.
7. Application: hospitals, office buildings, hotels and restaurants, places with the old and the disabled
automatic swing door
1. Push & open
2. Auto reverse
3. Easy to reaplce
3. Easy installation
TECHNICAL DATA:
Performance
Leaf weight | 1*00kg single leaf / 2*100kg double leaf |
| Opening speed | max. 0.8m/s |
| Closing speed | max. 0.8m/s |
| Opening force | 10 to 150 N (adjustable) |
| Closing orce | 10 to 150 N (adjustable) |
| Hold open time | 1 to 5 sec |
Mechanical
Installation | Surface Applied / Between walls / Against Posts |
| Structure | Aluminium |
| Casing |
With cover 170H * 110W
Without cover 150H * 110W |
Clear opening |
300 - 1000 mm single leaf
500 - 2000 mm double leaf |
Clearance height | max. 3100 mm |
Electrical
Power supply | AC 220V 5A 50Hz / AC 230V 60Hz |
| External power supply | 24 V DC / 2A |
| Power Consumption | 100W |
| Sensor power | DC 24V |
| Temperature range | -20 to +50 c |
| Relative humidity | 5 to 95% |
Function Programs
Off |
| Automatic |
| Permanent Open |
| Half Open / Partial Opening |
| Locked |
Emergency Functions
Emergency opening in case of power failure / Fail-safe |
| Obstacle detection with automatic return mechanism |
| Self monitoring light barriers |
| Slow speed search for obstruction |
