| Prod Model: |
30110003 |
| Size: |
6mm,7mm,8mm,9mm,10mm |
| Brand Name: |
Ostartools or OEM |
| Application: |
Metal Drilling |
| Art Number: |
30110003 |
| Surface Finishing: |
Titanium Coated |
| Surface: |
Black,White,Black&White,Tin-Coated,Coffee |
| Sharpening: |
118 Degree, 135 Degree Split Point,etc |
| Process: |
Fully Ground,Roll&Forged,Roll&Polished |
| Standarder: |
DIN338,DIN1897,DIN340,DIN1869,DIN345,DIN333 |
Product Description

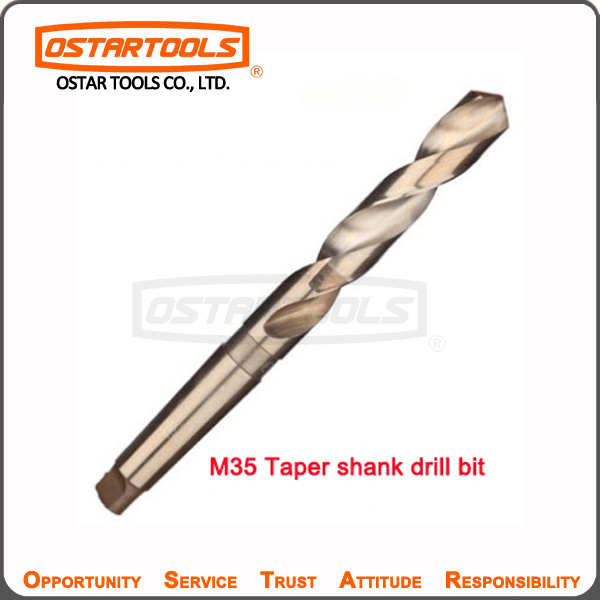

1.Product Information: Description: Hss Twist Drill bit
Materials: high speed steel M35/4341#/6542#(M2)/608#/4241#
Point angle: 135° split point 118degree.
Shank: straight, taper .
Process:Fully Ground. Roll Forged. Milled.pressing
2.Packaging Detail: Many kinds of packing are available, such as PVC pouch, plastic square tube, hard plastic box, also can do as customers request
3.Applications: fixed on head of machine tool, table drill and electric hand drill
It can be used to drill the following materials:
Easy Cutting Steels,Stainless Steel,Cast iron,Aluminium alloy,Copper alloy,Graphite,wood,GFRP
4.Features:a.Titanium coating facilitates faster penetration with less effort.
b.High Speed Steel (HSS)Bits also known as"twist"drill bits,these bits are the most common of the many drill bit types and are ideal for everyday drilling through metal,wood and plastics.They will normally have a cylindrical shank,but some will be modified to feature a hex shank.This shank also allows tools such as cordless screwdrivers and impact drivers to perform small drilling tasks.
c.Vorite of both the DIY and industrial markets. The general purpose, 118 degree point, ideal for portable and machine drilling. Designed to perform in low and medium carbon steel, cast iron and wood. The 135 degree split point is self-centering and reduces thrust. Ideal for portable or machine drilling of low tensile strength alloy material, stainless steel, and other medium duty applications. Available in bright finish, black oxide, titanium nitride coated, bronze color oxide. More choices for consumer.
Warning:All drill bits are subject to breakage during use
Beware of flying fragments
To minimise the risk of serious bodily injury:
Always wear approved eye protection
Keep hands away from drilling area
Read and understand drill machine owners manual
Failure to heed all instructions and warnings may result in serious bodily injury
Metric system |
| Diameter | Overall length | Shank diameter | Art number | | 3.0 | 60 | 3 | 30204030 | | 4.0 | 75 | 4 | 30204040 | | 5.0 | 85 | 5 | 30204050 | | 5.5 | 85 | 5.5 | 30204055 | | 6.0 | 100 | 6 | 30204060 | | 6.5 | 100 | 6.5 | 30204065 | | 7.0 | 120 | 7 | 30204070 | | 8.0 | 120 | 8 | 30204080 | | 9.0 | 120 | 9 | 30204090 | | 10.0 | 120 | 10 | 30204100 | | 11.0 | 150 | 10 | 30204110 | | 12.0 | 150 | 10 | 30204120 | | 13.0 | 150 | 10 | 30204130 |
|
|
| British system |
| Diameter | Overall length | Shank diameter | Art number | | 1/8" | 2-23/64" | 1/8" | 30205008 | | 5/32" | 2-61/64" | 5/32" | 30205010 | | 3/16" | 3-11/64" | 3/16" | 30205012 | | 7/32" | 3-11/32" | 7/32" | 30205014 | | 1/4" | 3-15/16" | 1/4" | 30205016 | | 9/32" | 3-15/16" | 9/32" | 30205018 | | 5/16" | 4-47/64" | 5/16" | 30205020 | | 11/32" | 4-47/64" | 11/32" | 30205022 | | 3/8" | 4-47/64" | 3/8" | 30205024 | | 13/32" | 4-47/64" | 3/8" | 30205026 | | 7/16" | 5-29/32" | 3/8" | 30205028 | | 15/32" | 5-29/32" | 3/8" | 30205030 | | 1/2" | 5-29/32" | 3/8" | 30205032 |
|
FAQ
Q1:Do you have your own brand?
A1:Yes, the brand name is ostartools, we can provide oem and odm services to our customers as well.
Q2:What are the main application fields of your products?
A2:Widely used in ship building, power generation, gardening, and other industries such as cutting various metal plate, aluminum alloy, plastic materials, laminate, wood, stone, and cement products.
Q3:What are the characteristics of the product?
A3:Our main products are electric tools and accessories, especially for people who like repair by themselves.
Q4:What is your product positioning?
A4:Our products are mainly for high-end consumers.Our price falls into average level among similar products.In the future, we will try to develop products for the low-income groups.
Q5:What's your target market?
A5:We mainly focus on european market right now.Our next step is to launch new products and expand our market to north america, south america and the middle east.
Q6:What is your target customer?
A6:Mainly for large supermarkets, chain stores, the network shopping, tv shopping and other customers.
Q7:What is the biggest advantage compared to the rivals?
A7:We are one of the earliest domestic multi-purpose saw blades supplier.We are proud of our wide product range, strict quality control and stable customer relationships.
Q8:How can you guarantee the quality?
A8:We employ several experienced inspectors to strictly monitor the whole production process:Raw material-production-finished products-packing.There are appointed staff responsible for each procedure.
