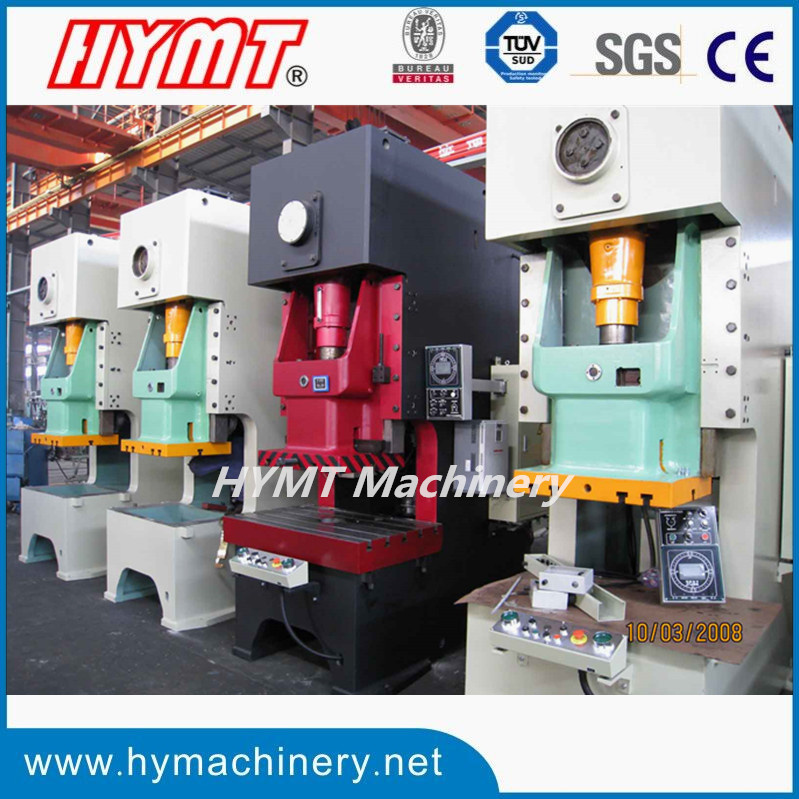

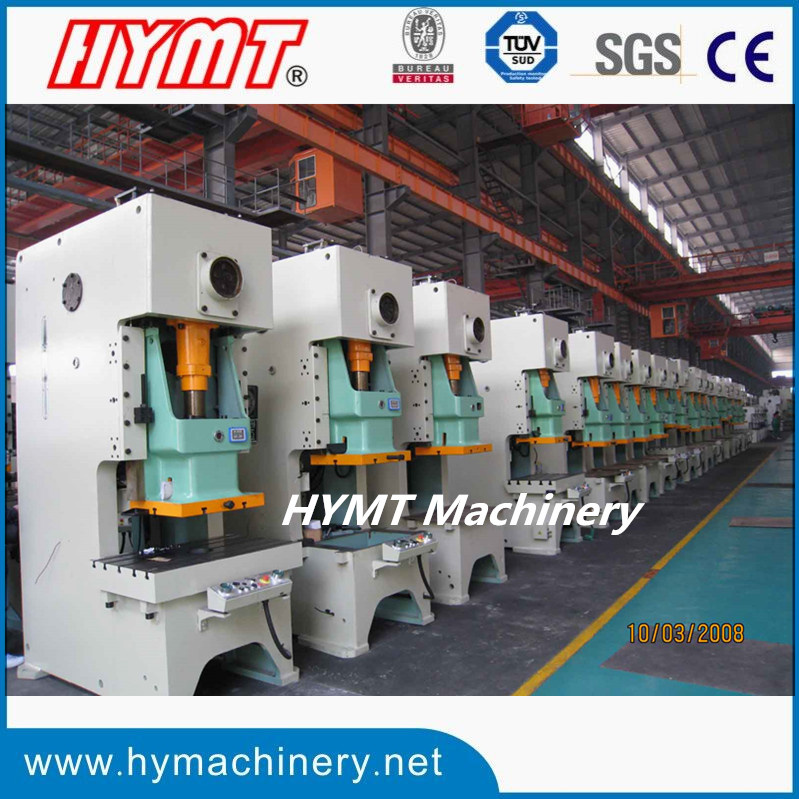

JH21 series of pneumatic friction clutch high-performance press
Use: 1. Suitable for various cold stamping process :blanking, punching, molding, bending,
pulling and stretching etc.
2. Widely used in the field of electrical appliances, vehicles, agricultural machinery, tractors,
mining machinery, hardware and tools, machinery manufacturing, and other industrial

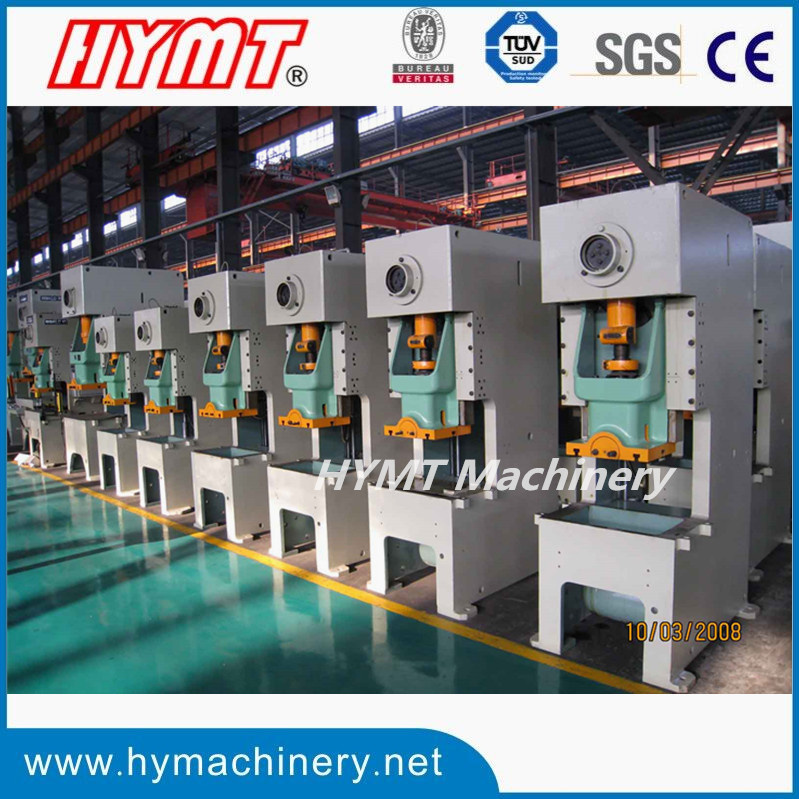

Structure: 1. Welded body with steel plate ,higher stiffness and accuracy.
2.Adopts longitudinally placed crankshaft, compact structure and handsome
appearance.
3. Achieves die height adjustment electrically with digital display.
4.Slider ,square figure long guide with six frictions and bronze liner ,which is higher
precision.
5. Adopts combined frication clutch and brake ,engages stably and runs sensitively
6. Fixed with the slide,the mechanical overload protector will be damaged to protect
the machine from overloading.
7.Lift balance cylinder, makes the slider rod balance
Feature:
1. Slider can inch, stop emergency movement, operate safely
2.Safety duplex valve is adopted, and is marked with quick response, ensuring the reliable control of the clutch.
Our services:
1.Standardization of Service "212"
2: response in 2 hours
1: provide solution in 1 day
2: solve complaint in 2 days
2.Installation Service
Installation Services are available with all HYMT machines. We dispatch technician to customer's
factory for installation and preoperation of machines.
3.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you
may send your technician to our company to learn how to operate machines.
4.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
Type Specification | Unit | JH21- 63ton | JH21- 80ton | JH21- 100ton | JH21- 125ton | JH21- 160ton | JH21- 200ton | JH21- 250ton | JH21- 315ton | JH21- 400ton |
Nominal force | KN | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 |
Stroke under nominal force | mm | 4 | 4.5 | 5 | 5 | 6 | 6 | 6 | 6 | 6 |
Slide block stroke | mm | 100 | 120 | 140 | 160 | 180 | 200 | 200 | 220 | 220 |
Number of stroke | times/min | 50 | 50 | 50 | 50 | 45 | 40 | 40 | 38 | 38 |
Max die set height | mm | 270 | 300 | 320 | 370 | 400 | 450 | 450 | 500 | 500 |
Die set height adjustment | mm | 70 | 80 | 90 | 100 | 110 | 110 | 110 | 120 | 120 |
Distance from slide block center to the frame | mm | 270 | 300 | 350 | 360 | 390 | 430 | 450 | 480 | 480 |
Workable dimensions(F·B×L·R) | mm | 470*750 | 570*860 | 650*1000 | 700*1100 | 760*1200 | 840*1400 | 880*1500 | 940*1700 | 940*1850 |
Dimensions of worktable | mm | Φ160 | Φ160 | Φ160 | Φ160 | Φ180 | Φ200 | Φ250 | Φ250 | Φ250 |
Thickness of bolster | mm | 80 | 90 | 110 | 120 | 150 | 180 | 180 | 200 | 200 |
Dimensions of slide block(F·B×L·R) | mm | 400*480 | 430*560 | 480*580 | 520*620 | 580*700 | 650*880 | 700*930 | 720*1000 | 720*1000 |
Dimensions of slide block(F·B×L·R) | mm | Φ50*60 | Φ60*80 | Φ65*80 | Φ70*80 | Φ70*100 | Φ70*100 | Φ70*100 | Φ70*100 | Φ70*100 |
Distance between columns of body | mm | 560 | 590 | 640 | 640 | 660 | 820 | 950 | 1050 | 1050 |
Motor | Type | | Y132S-4 | Y132M-4 | Y132M-4 | Y160L-6 | Y180L-6 | Y200L1-6 | Y200L2-6 | Y250M-6 | Y250M-6 |
Power | kw | 5.5 | 7.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 |
Outline dimension(F·B×L·R×H) | mm | 1615* 1200 *2570 | 1915* 1385 *2820 | 2100*1390 *3000 | 1900* 1300 *3300 | 2040*1360 *3300 | 2370*1600 *3900 | 2690* 1630 *3900 | 3400*1950 *4100 | 3800*2200 *4300 |
Net weight | kg | 5500 | 7500 | 8500 | 9800 | 13200 | 19500 | 22000 | 34700 | 43000 |
Xi'an Huayue Machinery and Equipment Co., Ltd is a specialized exporter and manufacturer of metal forming machine and machine tools since 2001 year.
Our main products range including hydraulic press brake, shearing machine, rolling machine, hydraulic press machine, power press, lathe machine, milling machine, drilling machine, grinding machine, shaping machine, sawing machine, woodworking machine etc.
We have exported our machines to our clients with high quality, good service and reasonable price. Until now, we have exported our machines more than 30 countries, such as Germany, U. S. A, Spain, France, England, Greece, Finland, Norway, Canada, south America, Middle East, Australia, Africa and southeast Asia, Brazil, Venezuela, Argentina etc. We have quality control term who will carefully inspect every machine in workshop before packing.
You are Welcome to visit our website and contact us. We will give you quick response upon any of your requirement. Also we will supply our good quality machine completed with reasonable price, hope I have chance to serve you.
