Prod Model: |
ATS series |
Formula: |
Resin,Pigment,Dispersing Agent,Additives |
Cutting Way: |
Strands Pelletizing,Under-Water Cutting,Water Ring |
Output Capacity: |
40~500kg/H |
L/D: |
36~44 |
Electric Components: |
ABB,Schneider,Ls,Omron, or Customized |
Raw Material: |
PE |
Screw: |
Double-Screw |
Automation: |
Automatic |
Computerized: |
Computerized |
Certification: |
ISO9001:2008 |
Product Description

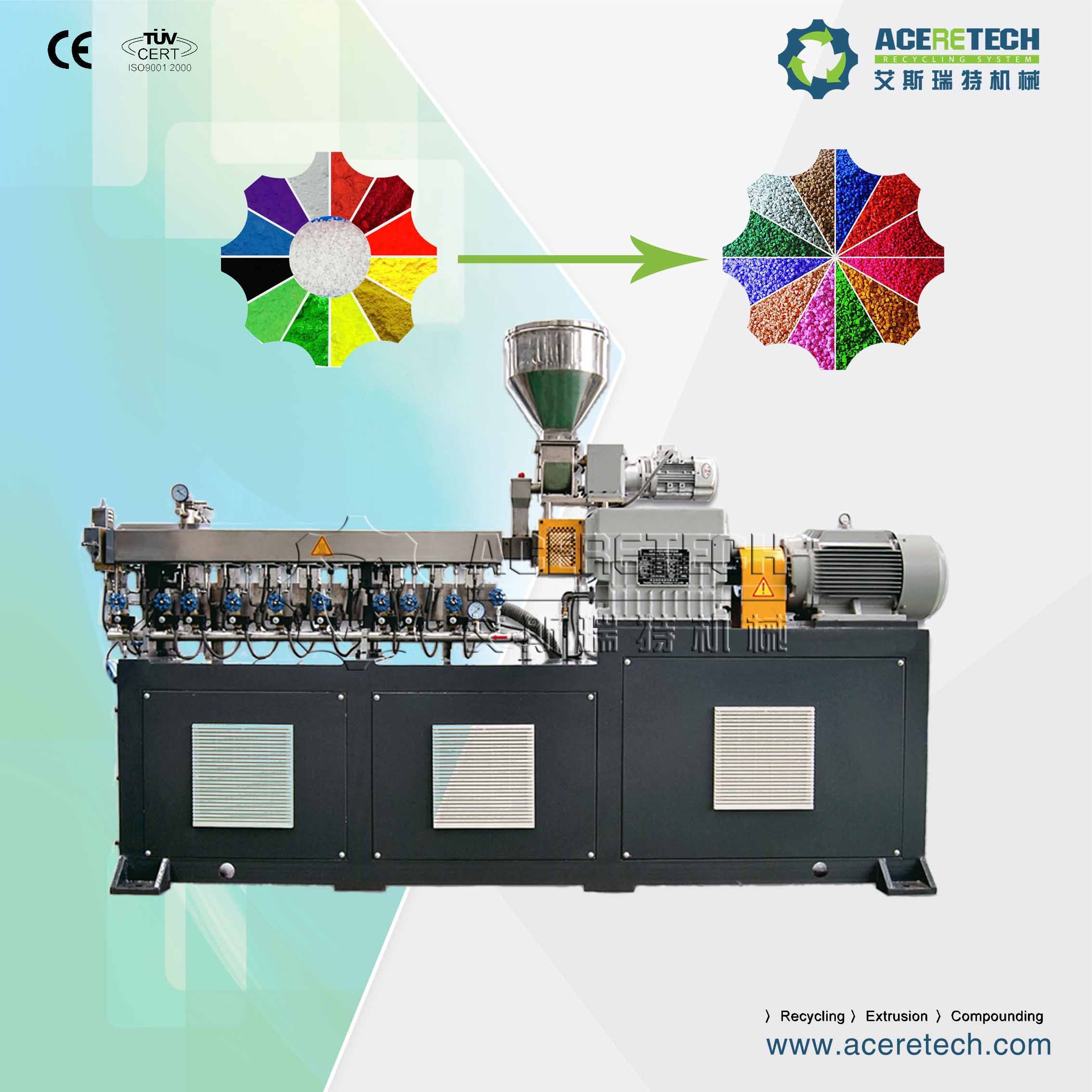

Twin Screw PE Color Masterbatch Making Machine
Product description:
Definition of color master batch:
By the high proportion of additives, thermoplastic resin, pigments or the good dispersion of plastic colorants, it chooses the resin of colorants that have good wetting and dispersing effect and good compatibility with being shaded material. It can be explained like: PP/PE/PET/PVC carrier + pigment + additives = color master batch.

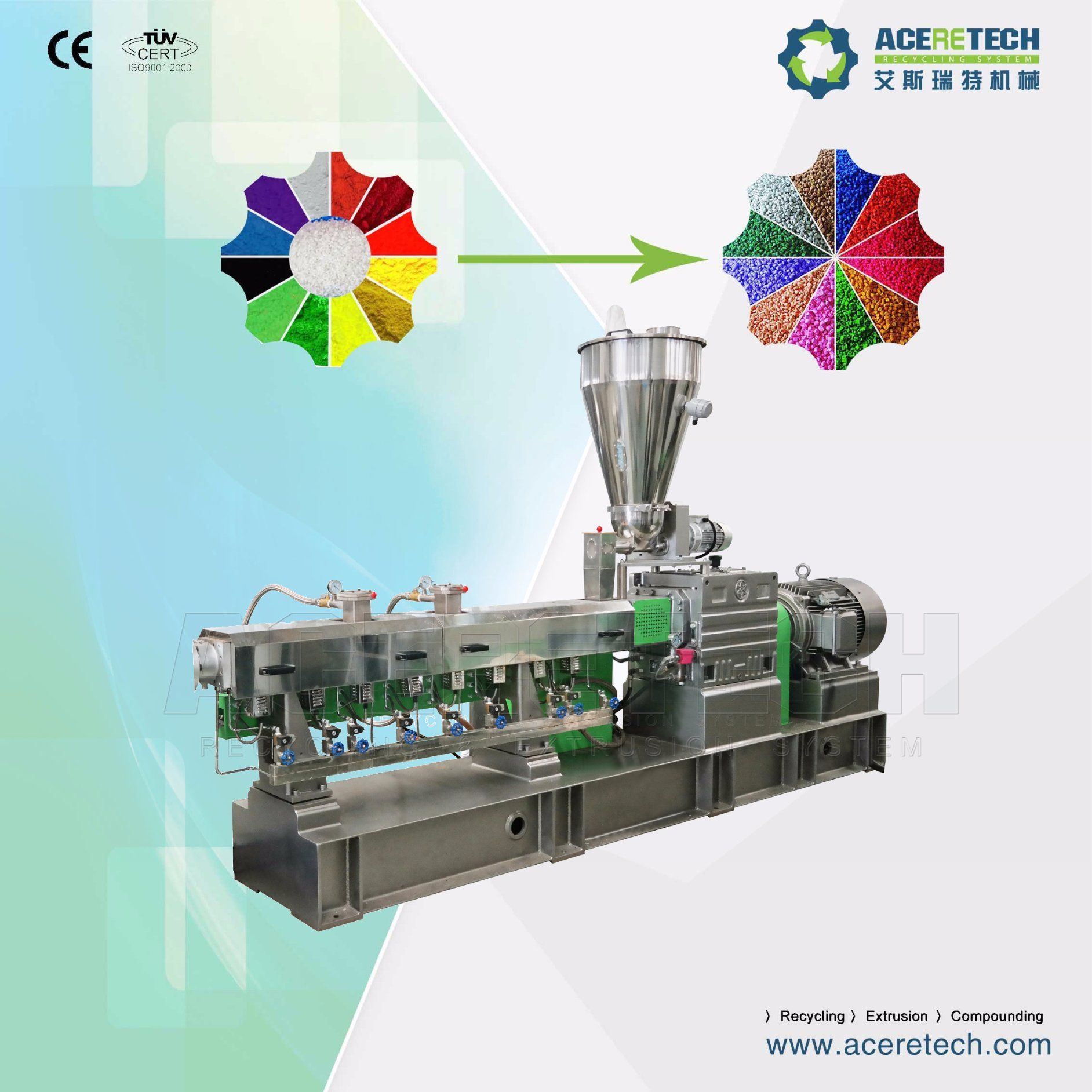

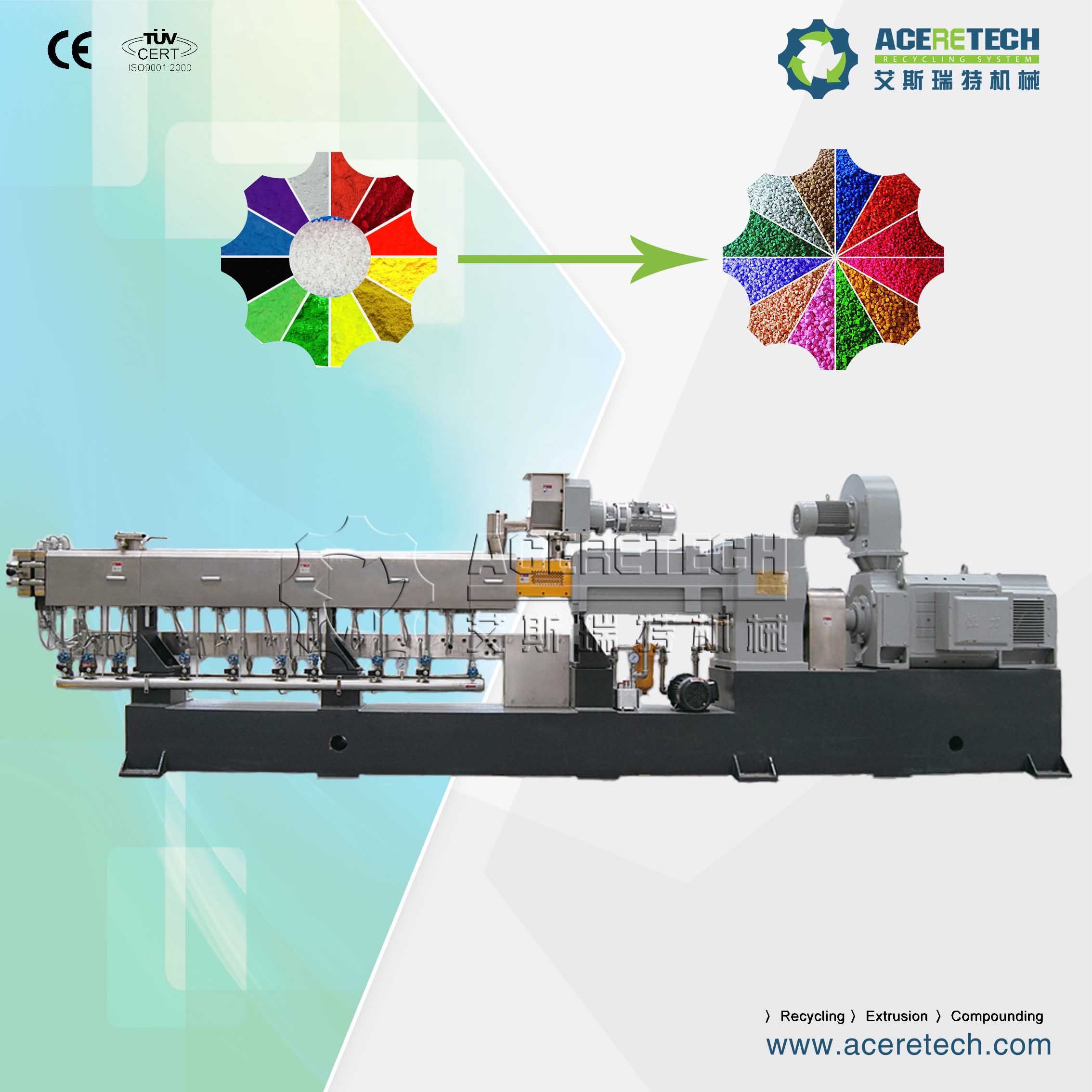

Generally, we use the special type of extruder to produce this kind of color master batch: ATE Twin Screw Extruder. ATE Series Co-rotating Parallel Twin Screw Extruder consists of motor drive, torque distribution gearbox, processing section, temperature controlling units, die section and down-stream pelletizing system, etc
Specification:
1.ATE Series Compounding and Granulating line for Color Master Batch
Process | Color master batch compounding and granulating |
Application | 50-60%PP/PE/PVC/PET, 40%pigment, 8%additives Color Master batch: pigment +additives+ PE/PP/PVC/PET carrier |
Output | 40-500kg/h, depending on the condition of raw Material, formulation and processing, etc. |
2.Main machines included in production line
NO. | Name |
1 | SHR500A High Speed Mixer |
2 | Screw Loader |
3 | Main feeder |
4 | ATE series Twin Screw Extruder |
5 | Electric Control System(cabinet) |
6 | Strands Pelletizing System/ Under-water Pelletizing System |
7 | Vibrating screen |
8 | Product hopper |
Introduction of parts of ATE Twin Screw Extruder
ATE Twin Screw Extruder adopts modular design principle, component standardization manufacturing, which can present stable and reliable performance. Thanks to the modular principle, ATE extruders can provide highly customizable solutions according to customers' process and special requirements. Based on different output torque grade, ATE series extruders have basic type and efficiency type.
Process section includes barrels, screw shafts, screw elements, individual temperature heating and cooling unit. Barrels and screw elements are designed in block principle.
Block structure allows the screw elements combine and sequence optimized to realize the process:
Conveying-Plasticization- Compounding & Dispersion- Homogenization- Degassing- Pressure building
Also Block structure allows the barrels adjust freely to the fit the process requirement.
Based on different process position, ATE extruders have different barrels type: feeding barrel, side feeding barrel, close barrel, open on top barrel, vacuum vent barrel, etc. According to the different jobs' requirement, barrels' materials can be nitride steel or bimetallic steel.
Multiple cutting systems can be combined with ATE Twin Screw Extruder, such as strands pelletizing, hot-face cutting and under-water pelletizing, etc.
Both Instrument control and PLC control are available to apply in the ATE electrical controlling system. All the key electrical parts adopt European brands to guarantee the controlling system with significant and stable performance.
Main technical specification
Machine Size | Screw Diameter(mm) | L/D | Screw Speed Max.(rpm) | Motor power(Kw) | Torque per shaft(Nm) | Specific torque T/A3 | Throughput rate(kg/h) |
ATE35 | 35.6 | 36-44 | 600 | 15 | 115 | 4.2 | 40-80 |
ATE52 | 51.4 | 36-44 | 600 | 55 | 415 | 5.2 | 120-150 |
ATE65 | 62.4 | 36-44 | 600 | 90 | 675 | 4.8 | 250-350 |
ATE75 | 71 | 36-44 | 600 | 132 | 990 | 4.6 | 350-500 |
Advantages of color master batch:
1. High concentration of pigment
2. Excellent dispersion, good heat-resistant, high color fastness, stable performance and shows bright color
3. Non-toxic, environmental-friendly
4. Compatible with various material PE/PP/PS/ABS/HIPS/PVC/TPR etc.5. Wide application: blow moulding, blowing film, injection moulding, extrusion,
5. Wide application: blow moulding, blowing film, injection moulding, extrusion, spin-dyeing, cable sheathing, etc.
6. Range of industrial application: office automation, household appliances, film and packing material, textile, sheet, pipe, medical appliances, toys and so on.
Advantages of the production line
1.It can produce high-quality, high-quantity filler master batch
2.It works with high efficiency
3.It's computerized with high automation
In addition: We provide the machine of good quality (Strict quality control, good reputation in the market) and the good service, we deliver the products on time.
ACERETECH is a creative company, focusing on the technology R&D of Plastics recycling and
Providing the equipments and solutions for Plastics recycling, washing and re-granulation.
Thanks to the R&D ability and well-understanding industries's experience, ACERETECH can provide
The customized Plastics recycling solutions to customers, our products covering:
--- Shredder&Crusher
--- PP/PE film/bags/flakes recycling washing system
--- PET bottle recycling washing system
--- PP/PE/PA/EPS compacting and pelletizing system
--- PP/PE/PC/ABS single screw recycling pelletizing system
--- PET flakes recycling pelletizing system
--- Twin screw compounding pelletizing system
Typical productions ACERETECH'S can provide are: High capacity performance Plastics
Agglomerating and Re-granuling line for film recycling and pelletizing process, single screw
Extrusion and pelletizing line with diameter-reducing screw structure for regular capacity but energy-
Saving demands, single screw extrusion and pelletizing line for rigid waste plastics recycling and the
Line of crushing, washing for waste and impurity plastics pre-processing.
