Prod Model: |
MDL-135H |
Application: |
Anchoring Hole of Deep Basement Foundation |
Hole Depth: |
100-140m |
Product Description
MDL-135H Hydraulic Anchor Drilling Rig
---------------------------------------------------------
Quick Detail:
1. MDL-135H drilling rig is a kind of full hydraulic multifunctional power head crawler drilling rig, which is designed and produced by Jiangsu Wuxi Mineral Exploration Machinery General Factory Co., Ltd.
2. It is mainly applied in drilling work of the anchoring hole of deep basement foundation,urban subway,slope supporting, tunnel,high building,airport,geothermal construction,pipe shed and so on.
3.MDL-135H crawler drilling rig has level system (drill arm) is able to adjust mast in different angle and height without moving drilling rig, This can adjust to the max level of 3.3m.
4. The big arm like excavator with double cylinders has the stability of any lifting conditi
Description:
1..MDL-135H drilling rig is a kind of full hydraulic multifunctional power head crawler drilling rig. It is mainly applied in drilling work of the anchoring hole of deep basement foundation,urban subway,slope supporting, tunnel,high building,airport,geothermal construction,pipe shed and so on.
2. The route of shaft bracket is 3.4 meters, so the 135H crawler anchor drilling rig can have complex rod & casing drill for 3 meters. The rig is applicable to rod boring, casing drilling and complex rod & casing drilling.
3. MDL-135H crawler drilling rig has level system (drill arm) is able to adjust mast in different angle and height without moving drilling rig, This can adjust to the max level of 3.3m.
4. The big arm like excavator with double cylinders has the stability of any lifting condition.
5. The crawler from the ground space is so large to adapt for bad environment construction.
6. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work.
Applications:
1. Urban subway, buildings, airport, ground source heat pump and other deep foundation pit for anchoring.
2. Jet grouting and dewatering.
3. This engineering drill rig can be used for drilling geothermal hole and well.
4. The blast hole,the anti-floating anchoring hole .
Specifications:
Hole depth | 100-140m |
Hole diameter | 150-250mm |
Hole angle(°) | 0-90° |
Output rotary speed of power head | 10/20/25/40/50/60/70/100/120/140r/min |
Stroke of power head | 3400mm |
Output torque of power head | 6800N.m |
Stroke of slide frame | 900mm |
Lifting force of power head | 65KN |
Feeding force of power head | 33kN |
Power | Electric motor: | 55+18.5+2.2KW |
Weight | 6000KG |
Dimensions (L×W×H) | 5400×2100×2000mm |

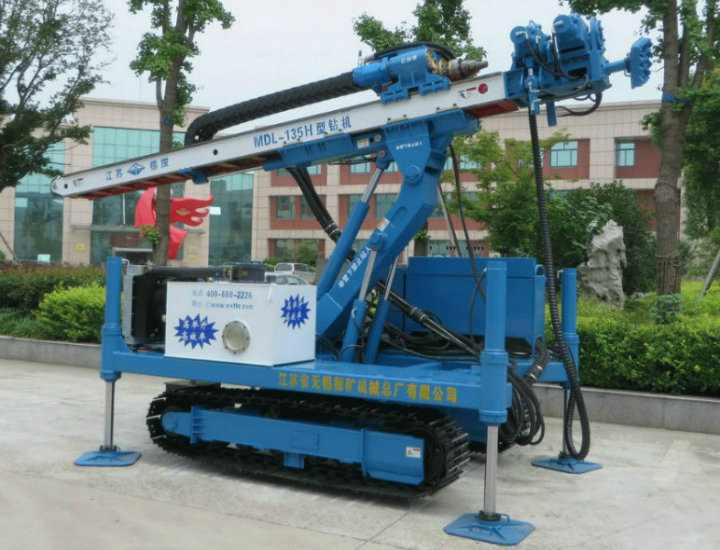

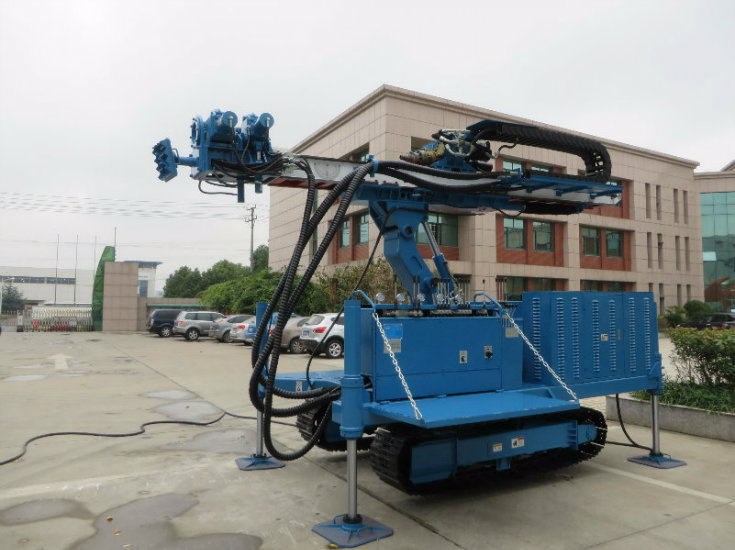

Photos:

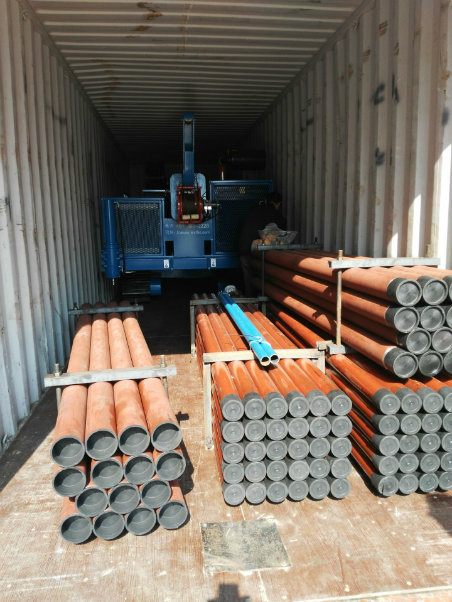

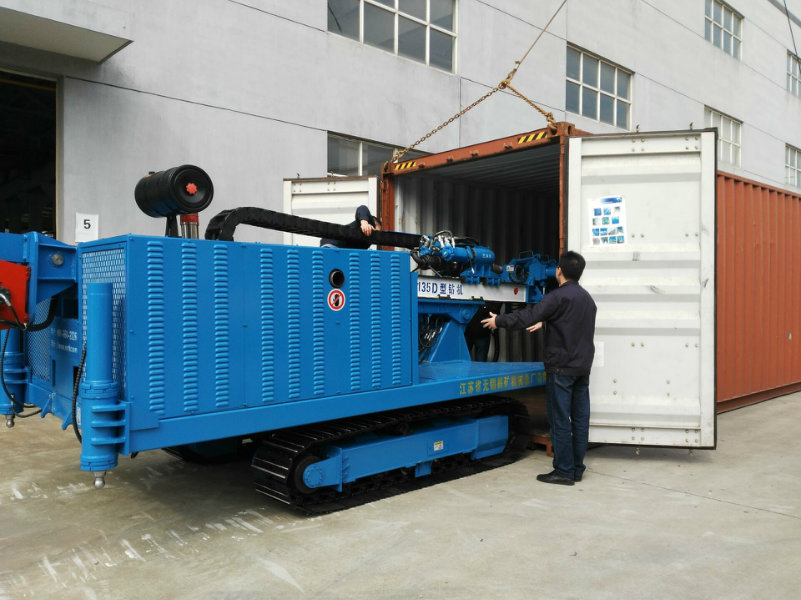

Package:40"HP container
