Prod Model: |
DC-053 |
P/N: |
DC-031A |
Application: |
Mobile Phone, PCB, Integrated IC, Cable, Computer, |
Installation Mode: |
Rotary Jack |
Cards Support: |
Single Card |
Working Frequency: |
Low Frequency |
Interface Type: |
Zif |
Shape: |
Bar |
Feature: |
Fire/Flame Retardant |
Product Description
1.0mm Pitch SMT DC socket DC Power Jack(DC-053)-- It is widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.SPECIFICATION:AdvantageNO.1 | Good quality! |
NO.2 | 10 years manature! |
NO.3 | Many types of circuit breaker switch we can supply |
NO.4 | High quality, competitive price, great service! |
NO.5 | The best indicator light at the best price! |
Technical ParametersItem | 1.3MM DC Power Jack |
Mterial | PBT PPA |
Rating | 0.3A30VDC |
Packing | Carton |
Contact Resistance | ≤0.03Ω |
Insulation Resistance | ≥100mΩ |
Temperature | -20-70Degree |
Withstand Voltage | AC 500V(50Hz)/min |
Type | 1.3mm dc power Plug |
Elactric life | 10000 Cycles |
Terminals & Mid pins | Copper with silver plated |
Main Technical ParametersExperimental Current | Starting Condition | Experimental Time | Expect Result |
1In | Cold Start | 1h | Not Trip |
1.5In | Followed The Experiment | t<=1h | Trip |
2In | Cold Start | (t1)2s≤t≤60s(t2) | Trip |
6In | Cold Start | (t3)0.1s≤t≤2ss(t4) | Trip |
10In | Cold Start | (t5)0.02s≤t≤0.5s(t6) | Trip |

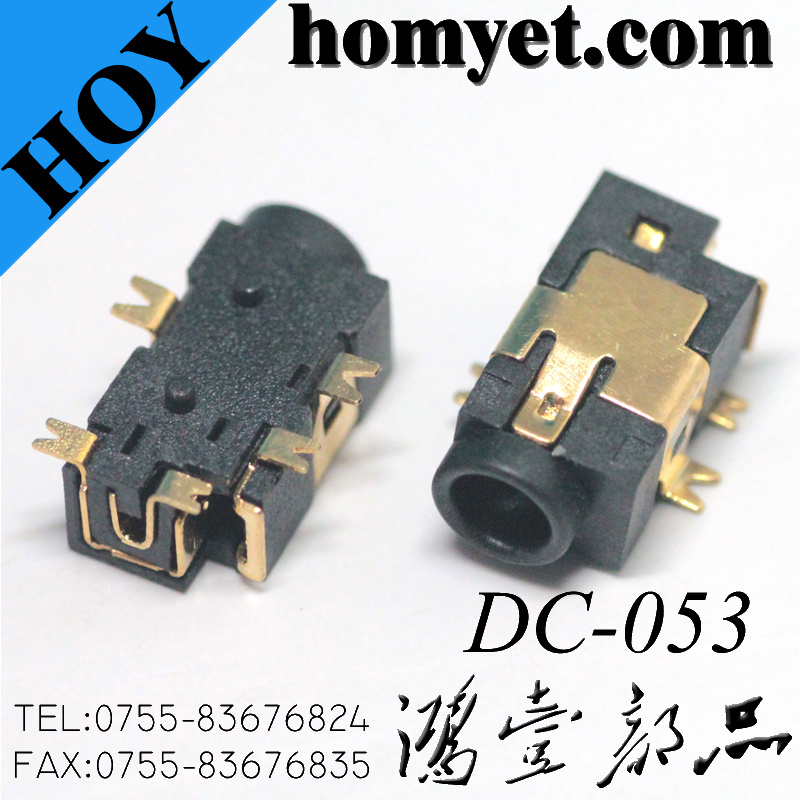

PRODUCT SHOW

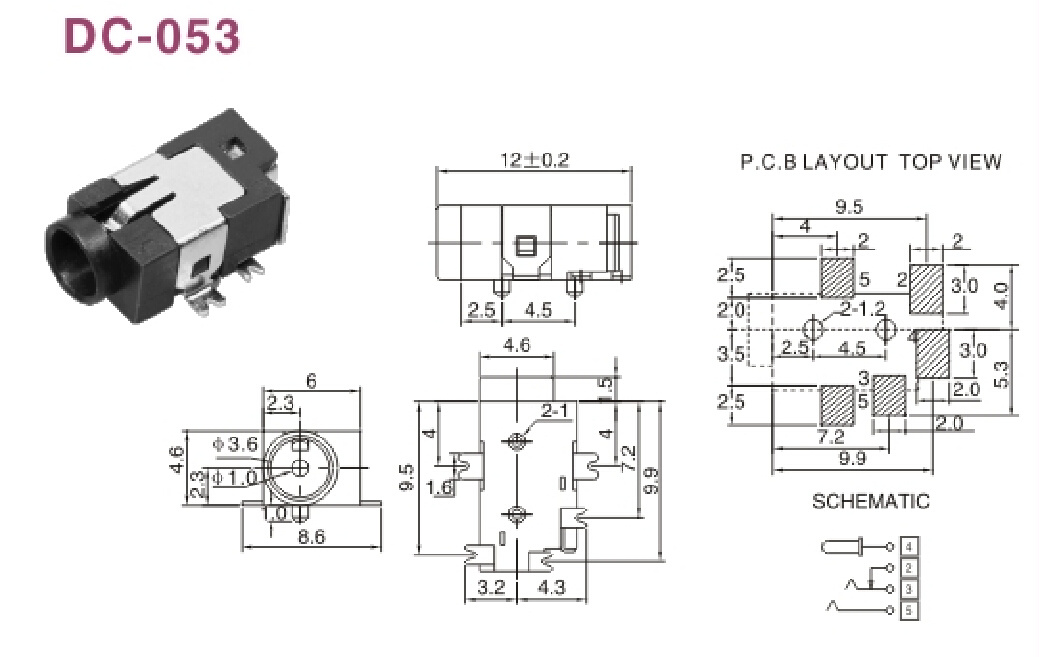

PRODUCT DATASHEET:
APPLICATION RANGE:
1. Audio / Video product
2. Digital devices: digital camera, digital video
3. Remote control: Vehicle, rolling door, Home security products
4. Communication products: mobiles, car telephone, telephone, building equipment, PDA
5.Household Appliances: TV, microwave oven, electric cooker, electric hair drier, electronic scale, Body Fat &Water Scale, Kitchen Scale.
6. Security Products: Videophone, Monitor etc.
7. Toy: electronic toy etc.
8. Computer products: Camera, recording pen etc.
9. Fitness equipment: running machine, massage chair, timer etc.
10. Medical Equipment: sphygmomanometer, thermometer, the hospital call system and other similar products.

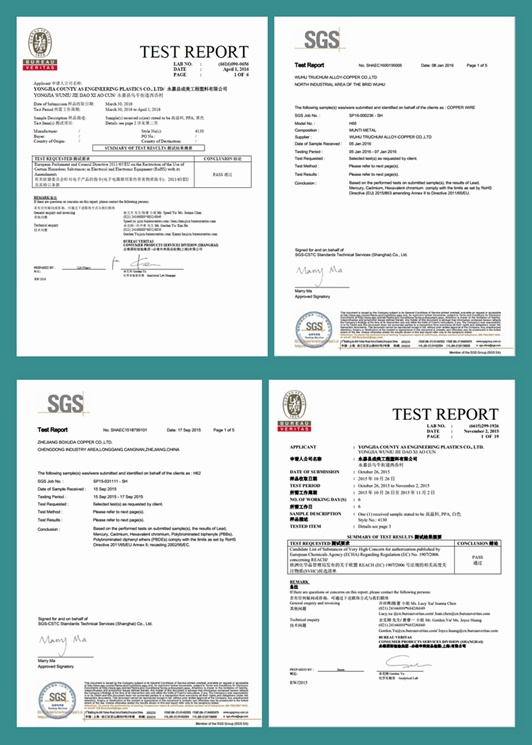

PRODUCT CERTIFICATION:
PAYMENT&SHIPPMENT
PACKING&CONTACT:

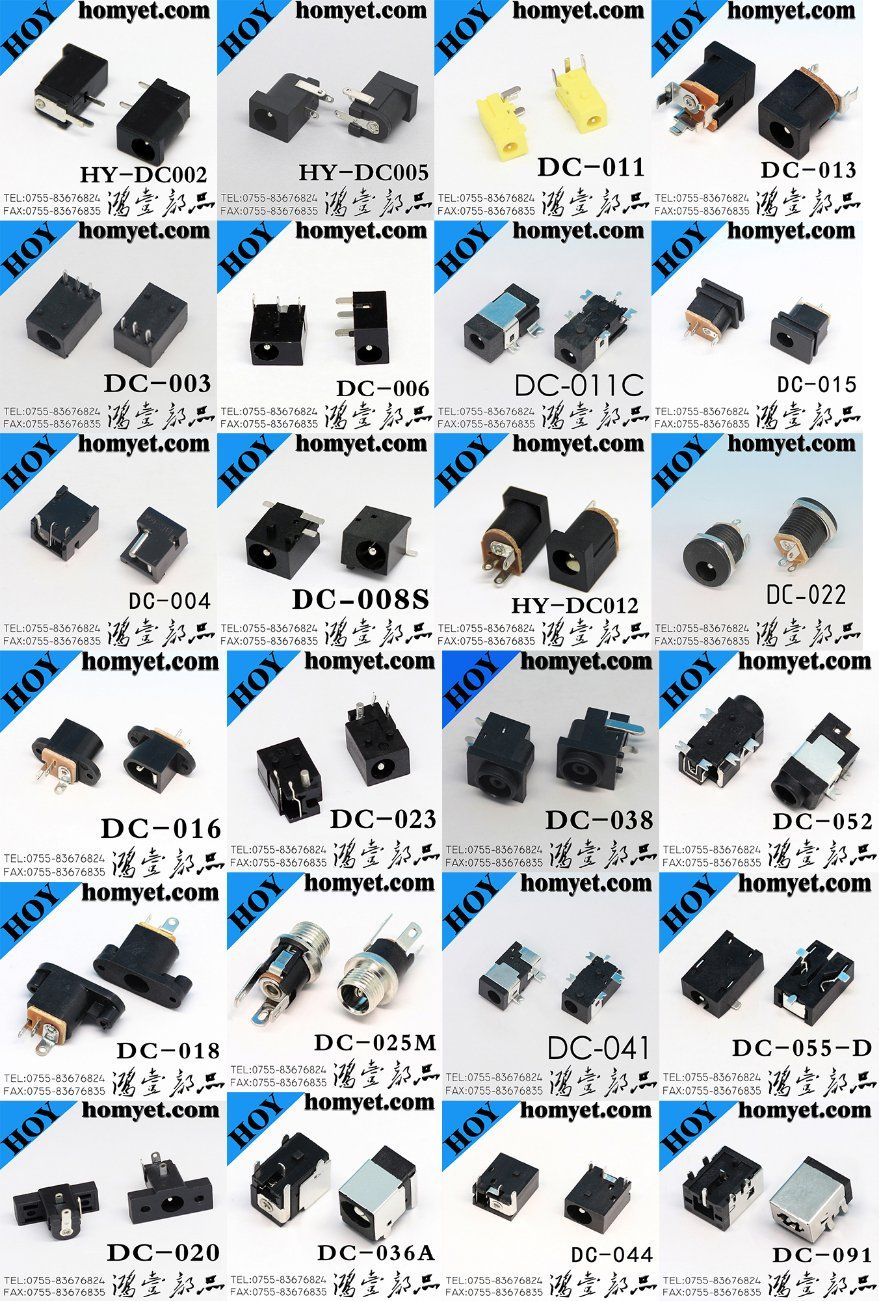

RELATED PRODUCTS:
OTHERS:
Please kindly inform us which items you are interested, and the best price will be provided you upon receipt of your new enquiry ASAP.
Any questions about more items, please feel free to contact us.
We are sincerely looking forward to establish cooperative relationship with you.
Free sample is available!
If you need any parts, please kindly send us your drawing or sample for quotation.
