| Prod Model: |
HYJ 003 |
| Weight: |
500kg |
| Speed: |
200PCE Per Min. |
| Power: |
1.1kw |
| Main Die Size: |
20*35 |
| Certification: |
SGS |
Product Description

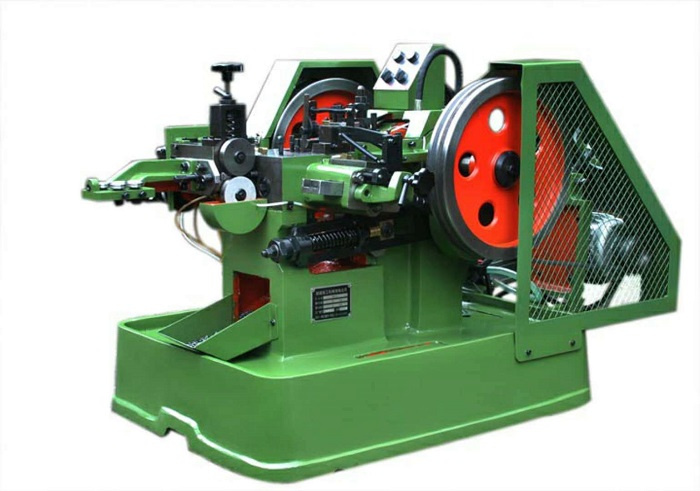

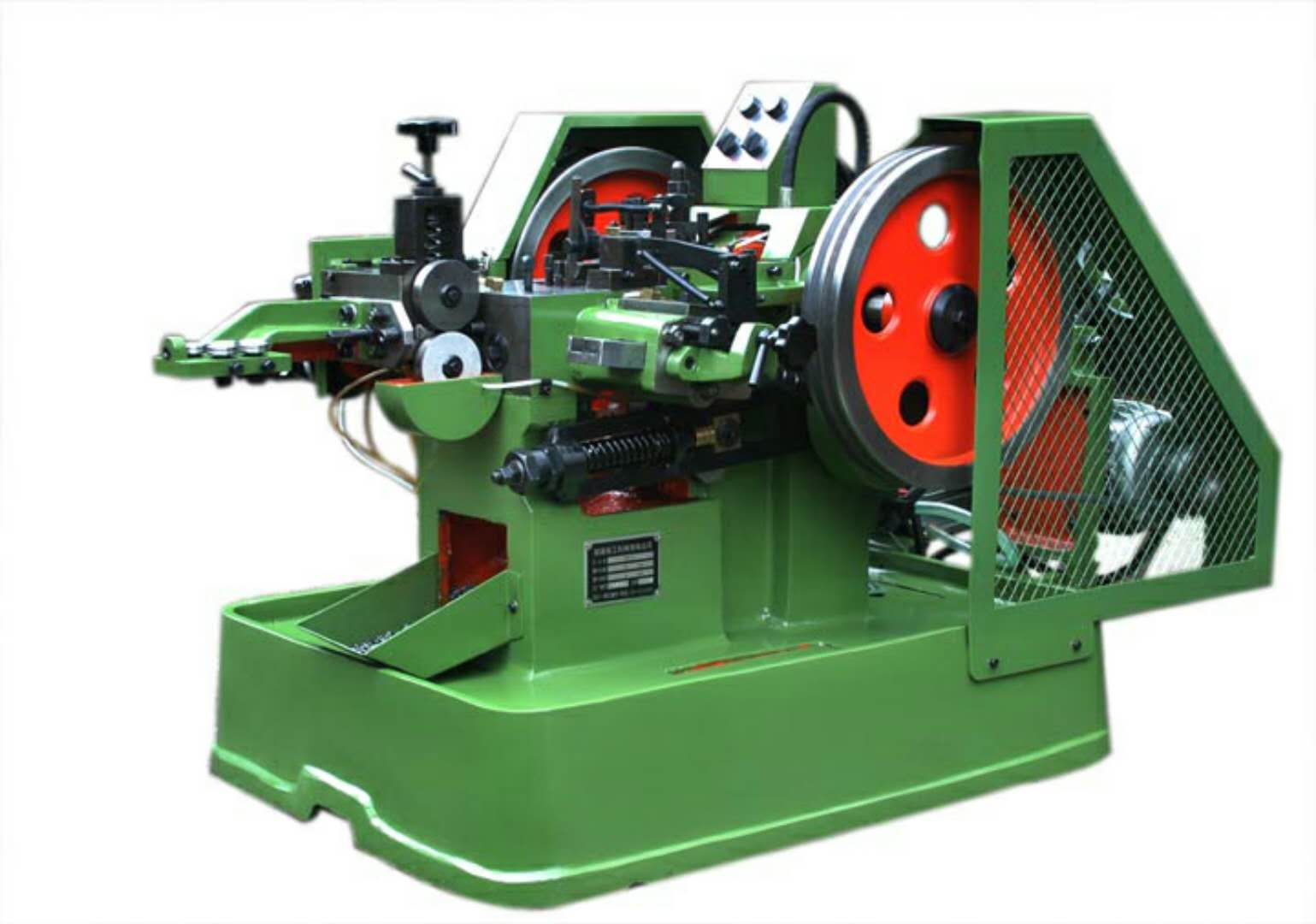

TX-5 high-speed automatic 1- die-2 blow screw cold head machine Screw diameter :1.0-3.0mmScrew lenght:24mm Power:1.1kwWeight:500kgSpeed:170-200pce /min1400*750*850cm
| Model description | Max cut-off diameter | Max cut-off length
| Stroke | Pcs/min | Main Die
Diameter | Cut-off
Dia | Punch
Die(1st) | Punch
Die(2nd) | Main
motor | Pump | Size | Net Weigh |
| 0# Cold Head Machine | 3mm | 24mm | 38mm | 170-200 | 20mm | 13.5mm | 18mm | 18mm | 1HP | 1/4HP | 137*84*102 | 500kg |
| 0# Cold Head Machine-plus | 3mm | 30mm | 50mm | 150-200 | 20mm | 13.5mm | 18mm | 18mm | 1HP | 1/4HP | 155*35*110 | 650kg |
| 1/8 Cold Head Machine | 4mm | 32mm | 58mm | 150-180 | 30mm | 15mm | 24mm | 20mm | 2HP | 1/4HP | 165*105*120 | 1050kg |
| 3/16 Cold Head Machine | 5mm | 64mm | 92mm | 150-180 | 34.5mm | 19mm | 31mm | 31mm | 3HP | 1/4HP | 189*107*111 | 1750kg |
| 3/16 Cold Head Machine-plus | 5mm | 76mm | 120mm | 130-160 | 34.5mm | 19mm | 31mm | 31mm | 3HP | 1/4HP | 210*110*112 | 1900kg |
| 1/4 Cold Head Machine | 6mm | 76mm | 124mm | 90-110 | 45mm | 25mm | 36mm | 36mm | 5HP | 1/4HP | 240*145*150 | 2750kg |
| 1/4 Cold Head Machine-plus | 6mm | 102mm | 160mm | 65-90 | 45mm | 25mm | 36mm | 36mm | 5HP | 1/4HP | 315*135*129 | 3700kg |
| 5/16 Cold Head Machine | 8mm | 150mm | 220mm | 65-85 | 60mm | 32mm | 38mm | 38mm | 10HP | 1/4HP | 350*151*135 | 5500kg |
| 3/8 Cold Head Machine | 10mm | 152mm | 230mm | 52-60 | 80mm | 40mm | 50mm | 50mm | 15HP | 1/4HP | 445*174*151 | 7000kg |
Dongguan Zhongjun Machine is a professional company, focusing on manufacturing automatic combination machines, such as full automatic washers and screws assembly machine
(spring washer machine and meson machine ), packaging machine, vibration plate and nailing selecting machine.
Over years' R&D, our products are achieving to the top level in China, so we could meet all customers' requirement,any interesting,pls don't hesitation to contact us now.!Why choose us1. Create value for our valuable customers
we always provide good quality and nice design products to meet the needs of the customers, we are the leader in this field and we always provide good products and service to our valuable customers.
2. Better quality and service with lower price
we always supply the better price on the same quality level, and try our best to save the client's every cent.
3. Dare to innovation.
every year, our company will develop the new products to meet the market need.FAQ
Q: what's the packing of the machine?
A.In wooden pallet, In plastic film, the spare parts and cabinet packed by wooden box.
Q: What's the payment term?
A.Usually by T/T ( 30% in advance, the balance shoud be paid shipping before)
Q: Can I change the motor as my local voltage?
A.We can change the voltage as your requirement, and there's no extra charge.
Q: How do your control quality?
A.W have an inspection team to check the products at all stages of the production process.
Q:What parameter is necessary?
A.The nail diameter, nail length ect are mainly needed, detailed information would be appreciated, Special requirement can be discussed.
Q:How long will it take to deliver goods?
A:We will deliver the goods within 10 days for spare parts, other goods maybe take a little more times to test and prepare, we will deliver the goods within the deadline which both parties agreehainiud.
Dongguan Zhongjun Machine will do the best to provide the best quality products and first-class service to the customers,looking forward to cooperating with you!
ZhongJunMachine is a professional factory specializing in fully automatic Fastener machine, such as screw making machine( cold heading machine, thread rolling machine, self-drilling screw forming machines, washer assembly machines ), nut tapping machine, counting-packing machines, vibrating feeders, screw sorting machines and other automatic equipments.
After years of researching and developing, the products become more mature. We strictly control material purchasing and production management, continuous innovating, treat customer's demand as the most important thing. Strict and sophisticated craftsmanship, stable and reliable quality, high-quality after-sales services and reasonable prices are widely praised by the users. We use systematic service model, we could supply high- quality design and finished products according to customers' screw specification or sample, reduce your overall cost, improve the production efficiency, create enormous benefits, truly reach "you specify, We solve". Welcome all to visit Our company.
