| Prod Model: |
21611.21641.21691 |
| Product Name: |

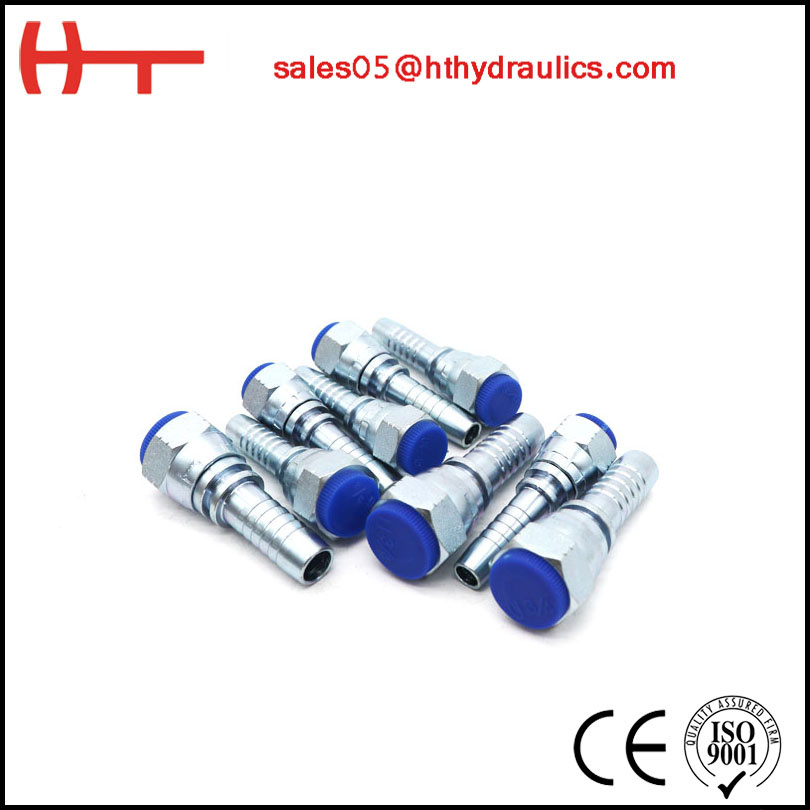

Hydraulic Hose/Pipe Fitting/Hydraulic Fitting |
| Type: |
Coupling |
| Application: |
Hydraulic Systems Gas, Oil, Water |
| Color: |
White, Yellow |
| Thread: |
DIN, Jic, BSPP, BSPT, NPT |
| Brand Name: |
Hua Tai |
| Service: |
OEM ODM Service |
| Main Port: |
Tianjin, Ningbo, Guangzhou, Shanghai |
| Business Type: |
Manufacture |
| Salt Spray Testing: |
72hours |
| Standard: |
BSW |
| Material: |
Medium Carbon Steel |
| Connection: |
Female |
Product Description
Product Description
| Product name | Hydraulic Hose Fitting |
| 1.Raw Material | Carbon Steel & Stainless Steel available |
| 2.Standard Plating | Trivalent Zinc Plating ( Cr3 / Cr6 Chrome Free ), Silver & Yellow |
| 3.Salt Spray Test | > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours ) |
| 4.Packing | Products are protected with the plastic caps and then packed in carton box. |
| 5.OEM Service | Available.Customer only need to provide the product drawing or samples. |
| 6.Sample | Free sample. |
| 7.Payment term | L/C, T/T |
| 8. Certification | ISO9001 ,CE |
| PART NO. | tdREAD E | HOSE BORE | DIMENSIONS |
| DN | DASH | A | B | S2 |
| P21611-04-04 | 1/4"X18 | 6 | 04 | 22 | 4.6 | 19 |
| P21611-04-06 | 1/4"X18 | 10 | 06 | 22 | 4.6 | 19 |
| P21611-06-04 | 3/8"X18 | 6 | 04 | 23 | 6 | 22 |
| P21611-06-05 | 3/8"X18 | 8 | 05 | 23 | 6 | 22 |
| P21611-06-06 | 3/8"X18 | 10 | 06 | 23 | 6 | 22 |
| P21611-08-08 | 1/2a"X14 | 12 | 08 | 23.5 | 7.5 | 27 |
| P21611-12-10 | 3/4"X14 | 16 | 10 | 27 | 8.9 | 32 |
| P21611-12-12 | 3/4"X14 | 20 | 12 | 27 | 8.9 | 32 |
| P21611-16-12T | 1"X11.5 | 20 | 12 | 25 | 10.5 | 41 |
| P21611-16-16 | 1"X11.5 | 25 | 16 | 28.5 | 10.5 | 41 |
| P21611-20-20W | 1.1/4"X11.5 | 32 | 20 | 29.5 | 11.2 | 50 |
| P21611-24-20T | 1.1/2"X11.5 | 32 | 20 | 29.5 | 11.2 | 55 |
| P21611-24-24W | 1.1/2"X11.5 | 40 | 24 | 31.5 | 11.2 | 55 |
| P21611-32-32W | 2"X11.5 | 50 | 32 | 31 | 11.2 | 70 |
| Note: 1.For ues with braided hoses. 2.If use with spiral hoses,hose fitting series number is 21612-XX-XX. |
| Number: Hydraulic Fitting 21641 | | | | | | | |
| Name:45° NPSM Female 60°Cone SAE J514 | | | | | | | |
| Description: | | | | | | | |
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS |
| DN | DASH | A | B | H | S2 |
| 21641-04-04 | 1/4"X18 | 6 | 4 | 45.1 | 4.6 | 23 | 19 |
| 21641-06-06 | 3/8"X18 | 10 | 6 | 47.2 | 6 | 24.9 | 22 |
| 24641-08-08 | 1/2"X14 | 12 | 8 | 62.7 | 7.5 | 27.7 | 27 |
| 24641-12-12 | 3/4"X14 | 20 | 12 | 81.4 | 8.9 | 34 | 32 |
| 24641-16-16 | 1"X11.5 | 25 | 16 | 89.2 | 10.5 | 35 | 41 |
| 24641-20-20W | 1.1/4"X11.5 | 32 | 20 | 99.8 | 11.2 | 39.3 | 50 |
| 24641-24-24W | 1.1/2"X11.5 | 40 | 24 | 115.1 | 11.2 | 44.4 | 55 |
| 24641-32-32W | 2"X11.5 | 50 | 32 | 136.4 | 11.2 | 63.4 | 70 |
| Note: 1.For ues with braided hoses. 2.If use with spiral hoses,hose fitting series number is 21642-XX-XX. |
| Number:21691 | | | | | | | |
| Name:90° NPSM Female 60°Cone SAE J514 | | | | | | | |
| Description: | | | | | | | |
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS |
| DN | DASH | A | B | H | S2 |
| 21691-04-04 | 1/4"X18 | 6 | 4 | 30 | 4.5 | 40.5 | 19 |
| 21691-06-04 | 3/8"X18 | 6 | 4 | 30 | 6 | 37.7 | 22 |
| 21691-06-05 | 3/8"X18 | 8 | 5 | 34 | 6 | 40.7 | 22 |
| 21691-06-06 | 3/8"X18 | 10 | 6 | 35.3 | 6 | 45.3 | 22 |
| 21691-08-08 | 1/2"X14 | 12 | 8 | 41 | 7.5 | 53.2 | 27 |
| 21691-12-10 | 3/4"X14 | 16 | 10 | 56.5 | 8.9 | 53.5 | 32 |
| 21691-12-12 | 3/4"X14 | 20 | 12 | 65.5 | 8.9 | 69.1 | 32 |
| 21691-16-12T | 1"X11.5 | 20 | 12 | 65.5 | 10.5 | 64.5 | 41 |
| 21691-16-16 | 1"X11.5 | 25 | 16 | 76.7 | 10.5 | 75 | 41 |
| 21691-20-20W | 1.1/4"X11.5 | 32 | 20 | 91.5 | 11.2 | 86 | 50 |
| 21691-24-20T | 1.1/2"X11.5 | 32 | 20 | 91.5 | 11.2 | 83.5 | 55 |
| 21691-24-24W | 1.1/2"X11.5 | 40 | 24 | 109.4 | 11.2 | 101.5 | 55 |
| 21691-32-32W | 2"X11.5 | 50 | 32 | 131.8 | 11.2 | 124.5 | 70 |
| Note: 1.For ues with braided hoses. 2.If use with spiral hoses,hose fitting series number is 21692-XX-XX. |
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS |
| DN | DASH | A | C | S2 |
| 24211-04-04 | 9/16"X18 | 6 | 4 | 22.5 | 8.5 | 19 |
| 24211-04-05 | 9/16"X18 | 8 | 5 | 22.5 | 8.5 | 19 |
| 24211-04-06 | 9/16"X18 | 10 | 6 | 22.5 | 8.5 | 19 |
| 24211-06-06 | 11/16"X16 | 10 | 6 | 23.5 | 10 | 22 |
| 24211-06-08 | 11/16"X16 | 12 | 8 | 26 | 10 | 22 |
| 24211-08-08 | 13/16"X16 | 12 | 8 | 28 | 11 | 27 |
| 24211-08-10 | 13/16"X16 | 16 | 10 | 29 | 11 | 27 |
| 21211-10-10 | 1"X14 | 16 | 10 | 33.5 | 13.5 | 30 |
| 24211-10-12 | 1"X14 | 20 | 12 | 33.5 | 13.5 | 30 |
| 24211-12-12 | 1.3/16"X12 | 20 | 12 | 35 | 15 | 36 |
| 24211-12-16 | 1.3/16"X12 | 25 | 16 | 36 | 15 | 36 |
| 24211-16-20 | 1.7/16"X12 | 32 | 20 | 39.5 | 14.8 | 41 |
| 24211-06-04T | 11/16"X16 | 6 | 4 | 23.5 | 10 | 22 |
| 24211-06-05T | 11/16"X16 | 8 | 5 | 23.5 | 10 | 22 |
| 24211-08-05T | 13/16"X16 | 8 | 5 | 25 | 11 | 27 |
| 24211-08-06T | 13/16"X16 | 10 | 6 | 25 | 11 | 27 |
| 24211-10-08T | 1"X14 | 12 | 8 | 29.5 | 13.5 | 30 |
| 24211-12-08T | 1.3/16"X12 | 12 | 8 | 30.5 | 15 | 36 |
| 24211-12-10T | 1.3/16"X12 | 16 | 10 | 31.5 | 15 | 36 |
| 24211-16-12T | 1.7/16"X12 | 20 | 12 | 35 | 14.8 | 41 |
| 24211-16-14T | 1.7/16"X12 | 22 | 14 | 34 | 14.8 | 41 |
| 24211-16-16T | 1.7/16"X12 | 25 | 16 | 35 | 14.8 | 41 |
| 24211-20-16T | 1.11/16"X12 | 25 | 16 | 35 | 15 | 50 |
| 24211-24-20T | 2"X12 | 32 | 20 | 36 | 14.8 | 60 |
| 24211-24-24T | 2"X12 | 40 | 24 | 36 | 14.8 | 60 |
| 24211-20-20W | 1.11/16"X12 | 32 | 20 | 39.5 | 15 | 50 |
| 24211-20-24W | 1.11/16"X12 | 40 | 24 | 39.5 | 15 | 50 |
| Note: 1.For ues with braided hoses. 2.If use with spiral hoses,hose fitting series number is 24212-XX-XX. |
| Description: | | | | | | | |
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS |
| DN | DASH | A | H | C | S2 |
| 24241-04-04 | 9/16"X18 | 6 | 4 | 45.5 | 23.4 | 8.5 | 19 |
| 24241-04-05 | 9/16"X18 | 8 | 5 | 47.6 | 24.3 | 8.5 | 19 |
| 24241-04-06 | 9/16"X18 | 10 | 6 | 49.2 | 24.9 | 8.5 | 19 |
| 24241-06-06 | 11/16"X16 | 10 | 6 | 51.7 | 27.4 | 10 | 22 |
| 24241-06-08 | 11/16"X16 | 12 | 8 | 63.9 | 29 | 10 | 22 |
| 24241-08-08 | 13/16"X16 | 12 | 8 | 65.3 | 30.4 | 11 | 27 |
| 24241-08-10 | 13/16"X16 | 16 | 10 | 76.5 | 31.7 | 11 | 27 |
| 24241-10-10 | 1"X14 | 16 | 10 | 79.7 | 34.9 | 13.5 | 30 |
| 24241-10-12 | 1"X14 | 20 | 12 | 86.5 | 38.4 | 13.5 | 30 |
| 24241-12-12 | 1.3/16"X12 | 20 | 12 | 87.6 | 39.5 | 15 | 36 |
| 24241-12-16 | 1.3/16"X12 | 25 | 16 | 95.3 | 41 | 15 | 36 |
| 24241-16-20 | 1.7/16"X12 | 32 | 20 | 103.8 | 46.1 | 14.8 | 41 |
| 24241-06-04T | 11/16"X16 | 6 | 4 | 39.5 | 17.4 | 10 | 22 |
| 24241-06-05T | 11/16"X16 | 8 | 5 | 42.3 | 19 | 10 | 22 |
| 24241-08-06T | 13/16"X16 | 10 | 6 | 44.6 | 20.3 | 11 | 27 |
| 24241-10-08T | 1"X14 | 12 | 8 | 58.2 | 23.3 | 13.5 | 30 |
| 24241-12-08T | 1.3/16"X12 | 12 | 8 | 58.2 | 23.3 | 15 | 36 |
| 24241-12-10T | 1.3/16"X12 | 16 | 10 | 69.4 | 24.6 | 15 | 36 |
| 24241-16-12T | 1.7/16"X12 | 20 | 12 | 74 | 29.6 | 14.8 | 41 |
| 24241-16-14T | 1.7/16"X12 | 22 | 14 | 78.7 | 28.5 | 14.8 | 41 |
| 24241-16-16T | 1.7/16"X12 | 25 | 16 | 84.1 | 29.7 | 14.8 | 41 |
| 24241-20-16T | 1.11/16"X12 | 25 | 16 | 80.9 | 32.7 | 15 | 50 |
| 24241-24-20T | 2"X12 | 32 | 20 | 94.5 | 33.8 | 14.8 | 60 |
| 24241-24-24T | 2"X12 | 40 | 24 | 108.5 | 37.7 | 14.8 | 60 |
| 24241-20-20W | 1.11/16"X12 | 32 | 20 | 111.2 | 49 | 15 | 50 |
| 24241-20-24W | 1.11/16"X12 | 40 | 24 | 123.6 | 52.9 | 15 | 50 |
| Note: 1.For ues with braided hoses. 2.If use with spiral hoses,hose fitting series number is 24242-XX-XX. |
| PART NO. | Thread E | DN | A | C | H | S2 |
| 24291-04-04 | 9/16"X18 | 6 | 30 | 41 | 8.5 | 19 |
| 24291-04-05 | 9/16"X18 | 8 | 33 | 44 | 8.5 | 19 |
| 24291-04-06 | 9/16"X18 | 10 | 35.5 | 46.3 | 8.5 | 19 |
| 24291-06-05T | 11/16"x16 | 8 | 33 | 37.5 | 10 | 22 |
| 24291-06-06 | 11/16"x16 | 10 | 35.5 | 49.8 | 10 | 22 |
| 24291-06-08 | 11/16"x16 | 12 | 41 | 55 | 10 | 22 |
| 24291-08-06T | 11/16"x16 | 10 | 35.3 | 39.8 | 11 | 27 |
| 24291-08-08 | 11/16"x16 | 12 | 41 | 57 | 11 | 27 |
| 24291-08-10 | 11/16"x16 | 16 | 56.5 | 61.5 | 11 | 27 |
| 24291-10-08T | 1"x14 | 12 | 41 | 46 | 13.5 | 30 |
| 24291-10-10 | 1"x14 | 16 | 56.5 | 66 | 13.5 | 30 |
| 24291-10-12 | 1"x14 | 20 | 65.5 | 75.5 | 13.5 | 30 |
| 24291-12-10T | 1.3/16"x12 | 16 | 56.5 | 51.5 | 15 | 36 |
| 24291-12-12 | 1.3/16"x12 | 20 | 65.5 | 77 | 15 | 36 |
| 24291-12-16 | 1.3/16"x12 | 25 | 75.7 | 83.5 | 15 | 36 |
| 24291-16-12T | 1.7/16"x12 | 20 | 65.5 | 63 | 14.8 | 41 |
| 24291-16-14T | 1.7/16"x12 | 22 | 71.2 | 63 | 14.8 | 41 |
| 24291-16-16T | 1.7/16"x12 | 25 | 76.9 | 67.5 | 14.8 | 41 |
| 24291-16-20 | 1.7/16"x12 | 32 | 91.5 | 96 | 14.8 | 41 |
| 24291-20-16T | 1.11/16"x12 | 25 | 76.7 | 67.5 | 15 | 50 |
| 24291-20-20W | 1.11/16"x12 | 32 | 93 | 100 | 15 | 50 |
| 24291-20-24W | 1.11/16"x12 | 40 | 109.4 | 113.5 | 15 | 50 |
| 24291-24-20T | 2"x12 | 32 | 91.5 | 78.5 | 14.8 | 60 |
| 24291-24-24T | 2"x12 | 40 | 109.4 | 92 | 14.8 | 60 |
| Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 24292-xx-xx; |
Jingxian Huatai Hydraulic Rubber Products Co.,LTD
Jingxian Huatai Hydraulic Rubber Co., Ltd is located in Jingxian, Hebei Province which is well known as the hometown of hydraulic hose and tube. The company enjoys a superior geographical location, 300km far from the capital city Beijing and 1 hour by high speed rail train; 1000km far from Shanghai and 4 hours by high speed rail train. Moreover, the location is close to Tianjin and Qingdao ports and convenient for import and export.

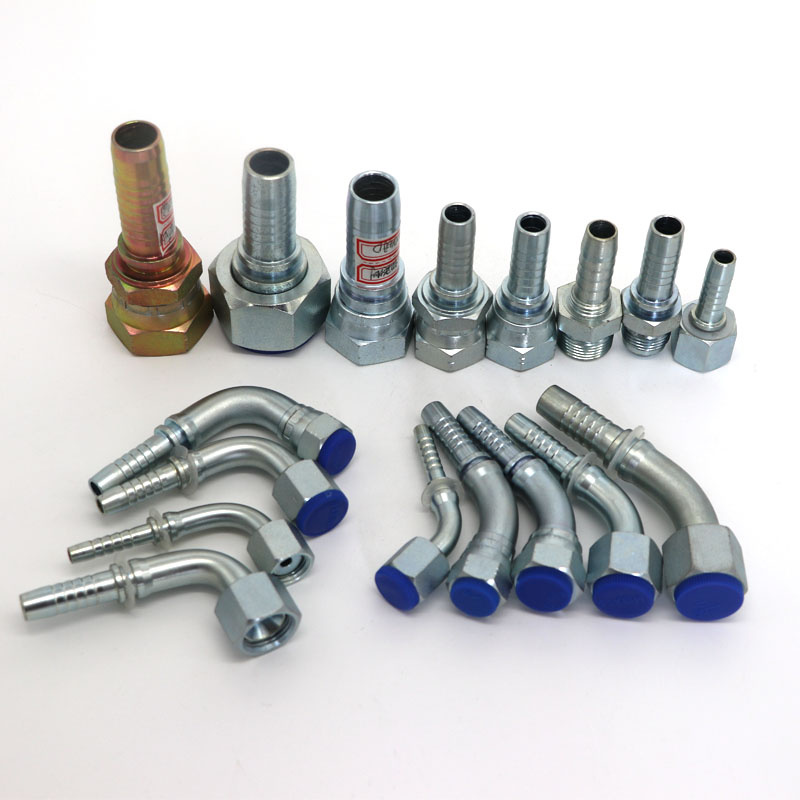

We specialized in making Hydraulic fittings, Hydraulic adapters, Hydraulic couplings, Hydraulic hose fittings, Hydraulic ferrule, Hydraulic flange and so on, with high quality and the best price.
Our products are used in precision parts,machinery accessories,truck and auto parts,industral parts,mining accessories,off-shore applicances,agricultral facilities and construction material ect…
Other standard hose fittings are available according to customer's requirements.If you have any questions about our products , please contact me any time. Any suggestion about our factory or our products is appreciated!

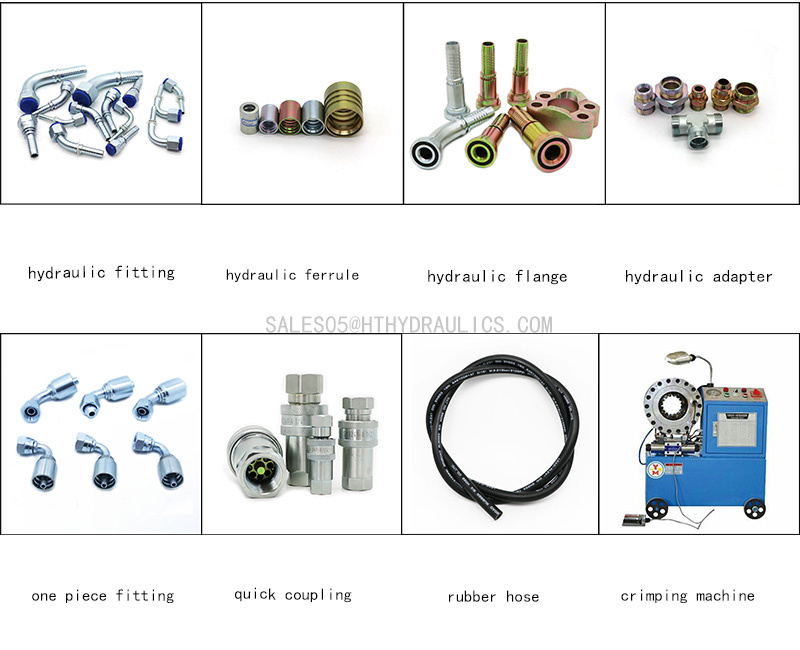

Main Product
| 1.Hydraulic Ferrule | HYDRAULIC FERRULE for SAE 100R1AT/EN853 1SN HOSE |
| HYDRAULIC FERRULE for SAE 100R1A EN853 1ST HOSE |
| HYDRAULIC FERRULE for SAE 100R2AT/DIN20022 2SN HOSE |
| HYDRAULIC FERRULE for SAE 100R2A/EN853 2SN HOSE |
| HYDRAULIC FERRULE for SAE 100R1AT- R2AT,EN853 1SN-2SN and EN 857 2SC |
| HYDRAULIC FERRULE for 4SP,4SH/10-16,R12-06-16 HOSE |
| HYDRAULIC FERRULE for 4SH,R12/32 HOSE |
| 2.Hydraulic Swaged Metric Fitting | Mertic Flat Seal Hydraulic Fitting. |
| Metric Multiseal hydraulic Fitting |
| Metric 60°Cone Seal hydraulic Fitting |
| Metric 74°Cone Seal hydraulic Fitting |
| Metric 24°Cone O-RING Seal L.T.hydraulic Fitting |
| Metric 24°Cone O-RING Seal H.T.hydraulic Fitting |
| Metric Standpipe Straight hydraulic Fitting |
| JIS Metric 60°Cone Seal hydraulic Fitting |
| 3.Swaged British Hydraulic Fittings | BSP O-RING Seal hydraulic Fitting |
| BSP Flat Seal hydraulic Fitting |
| BSP Multiseal Hydraulic Fitting |
| BSP 60°Cone Seal Hydraulic Fitting |
| BSPT Hydraulic Fittings |
| JIS BSP 60°Cone Seal Hydraulic Fitting |
| 4.Swaged American Hydraulic Fittings | SAE O-RING Seal Hydraulic Fitting |
| ORFS Flat Seal Hydraulic Fitting |
| NPSM 60°Cone Seal Hydraulic Fitting |
| JIC 74°Cone Seal Hydraulic Fitting |
| NPT Fittings SAE Flange L.T. Hydraulic Fittiing |
| SAE Flange H.T.Hydraulic Fitting |
| 5.Staplelok Hydraulic Fitting | Banjo Double connection |
| Interlock Hose Fittings |
| 6.Metric Hydraulic Adapters | Metric Thread O-RING Face Seal Hydraulic Adapters |
| Metric Thread Bite Type Tube Hydraulic Adapters |
| JIS Metric Thread 60°Cone Hydraulic Adapters |
| Metric Thread 74°Cone Flared Tube Hydraulic Adapters |
| 7. British Hydraulic Adapters | BSP Thread 60°Cone Hydraulic Adapters |
| JIS BSP Thread 60°Cone Hydraulic Adapters |
| BSPT Thread Hydraulic Adapters |
| 8.American Hydraulic Adapters | ORFS Adapters JIC 74°Cone Flared Tube Hydraulic Adapters |
| NPT Thread Adapters. |
Certificate
Packing and Delivery
| Volume | 0.022m³ for one carton |
| Weight | According to your order |
| Packaging Details | The normal package is carton box(Size:L*W*H).
The carton can hold 300 big size ferrules and 500 small size ferrules.
Or we can pack it according to customers special request. |
| Shipping Service | 1.Orders will be dispatched in 30 days after payment, depending on quantities.
2.We Always choose the most economical and reliable shipping company to make sure you receive the goods in time.
3.The tracking number will be offered once the consignment is shipped.
4.Professional customer service to answer your questions regarding you |
FAQ| Q: Are you trading company or manufacturer ? |
| A: We are factory. |
| Q: How long is your delivery time? |
| A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. |
| Q: Do you provide samples ? is it free or extra ? |
| A: Yes, we could offer the sample for free charge but do not pay the cost of freight. |
| Q: What is your terms of payment ? |
| A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. |
| Q:Is it stainless steel fitting? |
| A:Carbon steel.If you need stainless steel 304 or 316, we can produce as your requirement |
If you have another question, pls feel free to contact us as below:
