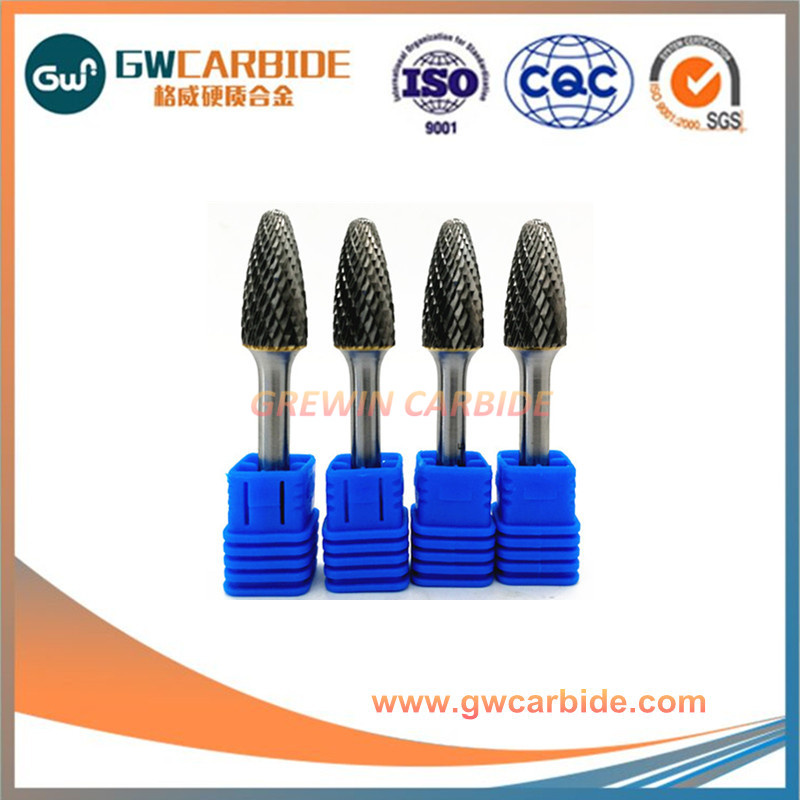

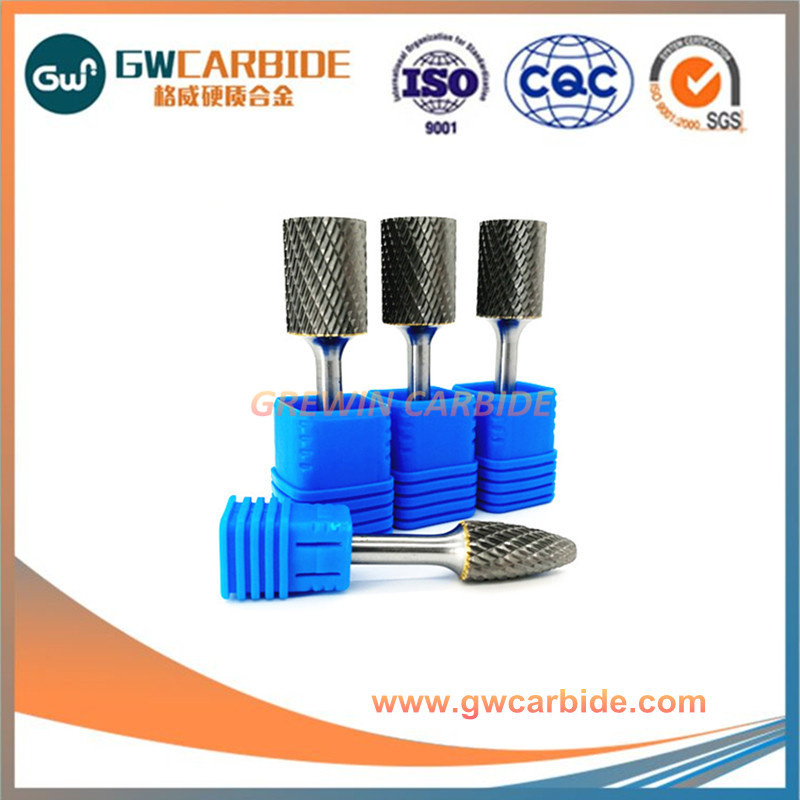

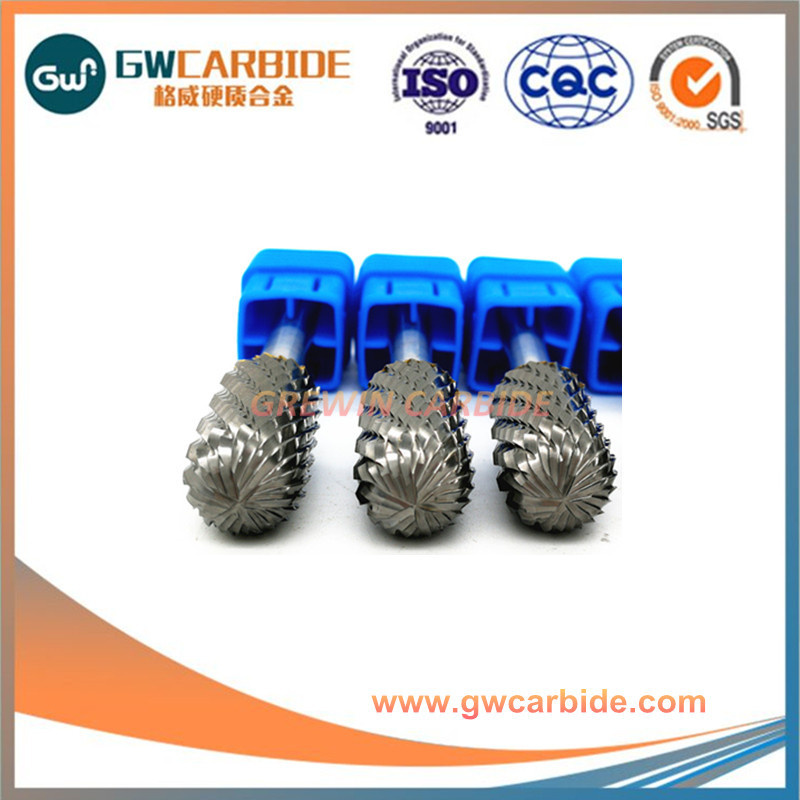

1/4" Inch Shank Diameter Tungsten Carbide Ratory Burr Diamond Cut
| Price: |
US $ 1.13/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
SF-5, SF-1, SG-5, SC-3, SA-7, SD-3, SM-4, SM-5, et |
| Types: |
Sf-5, Sf-1, Sg-5, Sc-3, SA-7, SD-3, Sm-4, Sm-5 |
| Features: |
Good Wear Resistance,High Precision |
| CNC Fully Ground: |
Different Teeth Available |
| OEM: |
Free |
| Brand: |
Gw |
| Cutting Material: |
Steel, Aluminium, Light Alloy, Brass, Copper, Zinc |
| Cutting Types: |
Medium Cut, Fine Cut, Double Cut, Aluminum Cut |
| Shape: |
Tree Radius Nose, Ball, Pointed Cone, etc |
| Quality: |
High Quality, Customised Available |
| Sample: |
Free |
Product Description
1.Introduction of carbide burrs
Carbide Rotary Files/Tungsten Carbide Burrs is a new tape milling cutter with high efficiency, instead of grinding wheel bur with handle. It can cut and process various kinds of metal(including hardened steel)and nonmetal(such as marble)with hardness up to HRC less then 70.
2.Details of carbide burrs
| Product Name | Tungsten Carbide Rotary Burrs |
| Material | Carbide |
| Tooth Types | Single Cut/Double Cut |
| Sizes | Shank dia:3mm,4mm,6mm;blade dia/blade length/overall length: standard/as request |
| Applications | Using Carbide Rotary Burrs is a effective way to realize mechanization in hand works operations. In the industries of airplane, ship building automobile, machinery, chemistry etc. Carbide Rotary Burrs can be widely used in machining iron, steel casting, carbon steel, alloy steel, stainless steel, hardened steel, copper, Aluminium etc. |
| Advantage | high productivity, good processing quality, high finish, can be used to process a variety of high economic efficiency. |

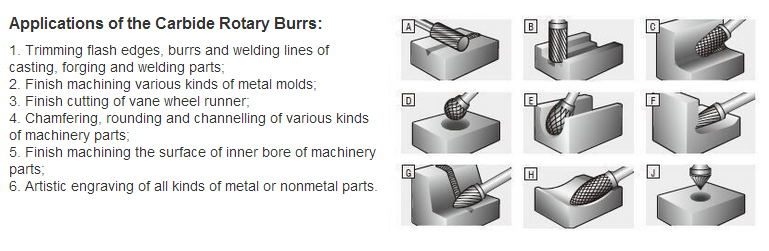

3.Shapes of for carbide burrs| Shapes of carbide burrs | 1.Cylindrical (Plain End)-Shape A;

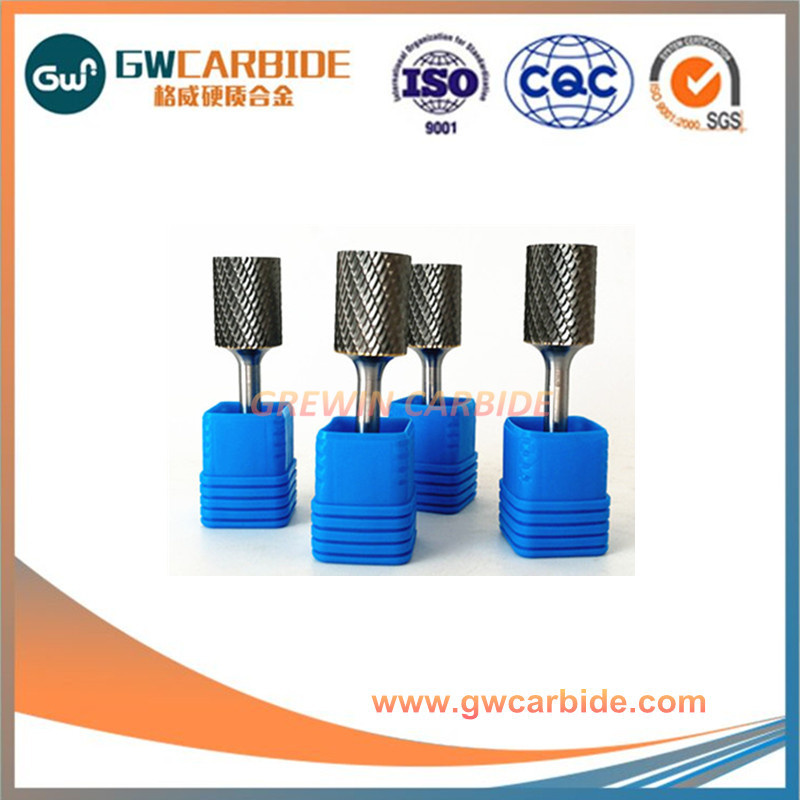

2.Cylindrical (End Cut)_Shape B;
3.Cylindrical (Radius End)-Shape C;
4.Ball-Shape D;
5.Oval-Shape E;
6.Tree (Radius End)-Shape F;
7.Tree (Pointed Ends)-Shape G;
8.Flame-Shape H;
9. 60°Cone-Shape J;
10.Taper (Radius End)-Shape L;Conical Round Nose-Shape L;
11. Cone -Shape M;
12. 90°Cone-Shape K;
13.Inverted Cone-Shape N;
14.Disc Type with arc edge_Shape W;
15.Disc Type-Shape X;
16.Dics type with 90°Angle-Shape Y |
Company Introduction
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products, main products include: carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc
The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, middle east, south America, etc.
The company is dedicated to " WE GROW, WE WIN". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
