| Price: | US $ 3500-4000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P |
| Prod Model: | HC221 |
|---|---|

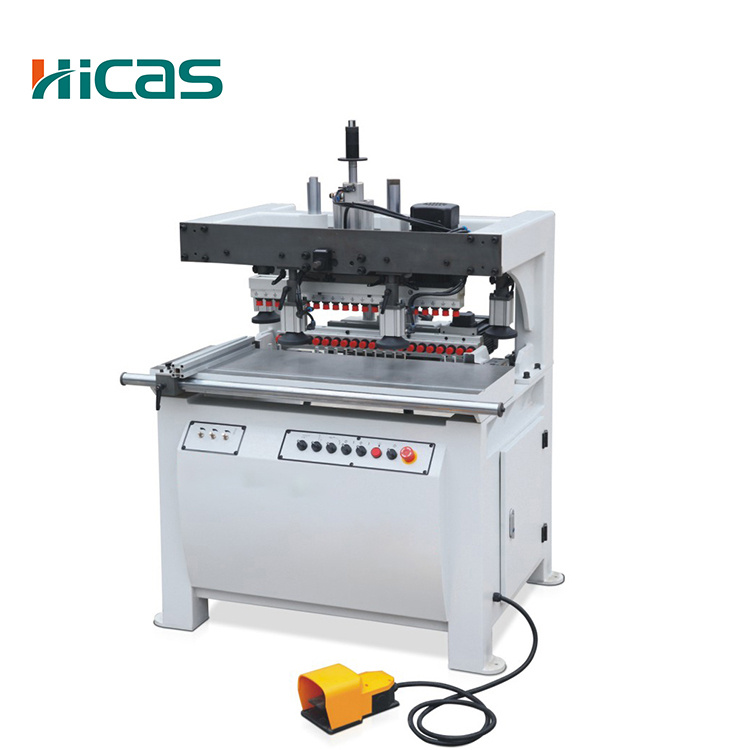

| Name: | Wood Drilling Machine |
| Brand: | Hicas |
| Usage: | Drilling Holes |
| Horizontal Boring Power: | 1.5kw |
| Vertical Boring Power: | 1.5kw |
| Max. Depth Of Horizontal Boring Head: | 40mm |
| Max. Thickness Of Panels: | 80mm |
| Dimension Of Machine: | 1200*1000*1550mm |
| Packing Dimension: | 1300*1100*1650mm |
| Precision: | High Precision |
| Structure: | Vertical and Horizontal Boring Machine |
| Layout: | Vertical and Horizontal |
| Controlling Mode: | PLC |
| Number Of Shaft: | Multi |
| Hole Diameter: | as You Demands |
| Automatic Grade: | PLC |

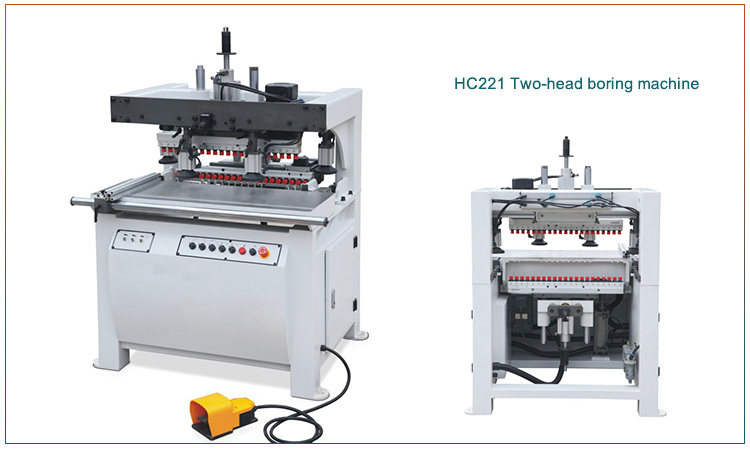

| Technical parameter for boring machine HC221 | |
| Max. distance of two horizontal boring position | 640mm |
| Max. thickness of panels | 80mm |
| Max. depth of horizontal boring head | 40mm |
| Max. depth of vertical boring head | 70mm |
| Rotating speed of boring spindles | 2800rpm (50HZ) |
| Horizontal boring power | 1.5Kw |
| Vertical boring power | 1.5Kw |
| Woorking pressure | 0.6-0.8MPa |
| Dimension of machine | 1200*1000*1550mm |
| Packing dimension | 1300*1100*1650mm |
How to Maintain:
1.Clean up the table after using the machine
2.Clean up wood rails to prevent debris interference, causing the machine card machine in the work process.
3.Regular cleaning of the screw to prevent sticking a foreign body on the screw, screw is the most important equipment, which affects the accuracy of the machine, and screw plays an important role in the transmission process.
4.Regular cleaning of industrial containers, dust is the biggest killer platoon drill.
5.To row drilling weekly slide rail dusted oiling work
Application:
Good Selling Two Line Boring Machine For Woodworking has been widely used at home and aboard. Thanks to its high hardness, reliable precision and long life use, it has ganied good reputation from customers.
Packaging : 1.Stretch film and plastic film for humidity. 2.Standard marine export plywood case.
3.Pallet packing.
Shipping:1.We support maritime and land transport. 2.Shipped in 15-30 working days after payment.
1.Company proflie
Qingdao High-Class Service Import & Export Co., Ltd. is located in the beautiful coastal Qingdao city, which is also famous for woodworking machinery. We are professional in providing Chinese leading woodworking machinery products, whole-factory solutions and excellent services. Now, we are engaged in offering woodworking machinery,
metal working machinery, packing machinery,
WPC machinery and corresponding spares parts and raw materials. Our company has own professional technical team to make sure the perfect import and export service system run well. With years of experience, we have established long and strong business relationships with more than10 professional distributors all over the world. We are the sole buying agent of customers from Russia, the Middle East, South Africa and Brazil. We always welcome partners to join us and develop the business together. Under the guideline of "High Class Service", we would like to continue providing the best service for customers who need machinery. In accordance with the principle of mutual benefit, we are going to have a pleasant corporation.
2.Our service
Pre-sale services
1> Provide the free consultation of the equipment
2> Provide the standard device and the flow chart
3> According to the clients' special requirement, we offer the reasonable plan
and free design helping to selecthe equipment.
4> Welcome to visit our factory
Services during the sales
1> Inspect the machine before leaving the factory.
2> Oversea instal and debug the equipment.
3> Train the first-line operator.
After sale services
1> 24 hours online service
2> Provide the VIDEO with Install and debug the equipment
3> Provide technical exchanging
3.FAQ
1) Q: What's the MOQ?
A: MOQ is one set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can provide custom machine for clients.
3) Q: What's the payment terms?
A: T/T 30% in advance and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company. HICAS is our brand.
5) Q: How long is the warranty period?
A: One year warranty period except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.
