1.6t Portable Hand Winch with Ce Certificate
Price: |
US $ 55-60/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
WRP-A |
Material: |
Aluminum or Stainless Steel |
Max Capacity(T): |
10.125 |
Standard Wire Rope Length(M): |
20m |
Color: |
Steel or Yellow |
Overall Structure Breaking Strength: |
4xwll |
Wire Rope Length: |
OEM |
Product Description

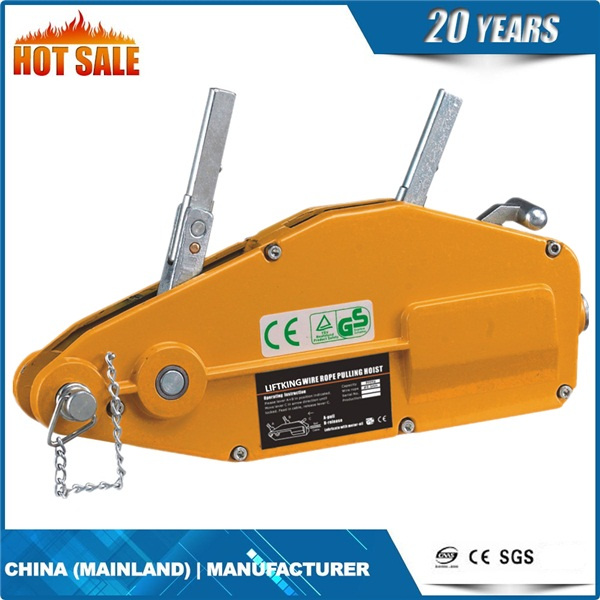

Cable Winch Introduction : Brand : LIFTKING
Model : WRP
Capacity : 0.8T , 1.6T , 3.2T , 5.4T
Standard wire rope length : 20m
Body : aluminium material
Certificate : CE
SpecificationsModel | WRP-A |
Lifting Capacity (kg) | 800 | 1600 | 3200 | 5400 |
Pulling Capacity (kg) | 1300 | 2800 | 6000 | 10125 |
Tested (kg) | 1500 | 3000 | 6000 | 10125 |
Steel Wire Rope Dia. (mm) | 8.3 | 11 | 16 | 20 |
Breaking Strength of Wire Rpoe (kg) | 5430 | 9680 | 17200 | 27000 |
Overall Structure Breaking Strength | 4×WLL | 4×WLL | 4×WLL | 4×WLL |
Net Weight (without wire rope) (kg) | 6.4 | 12 | 23 | 28 |

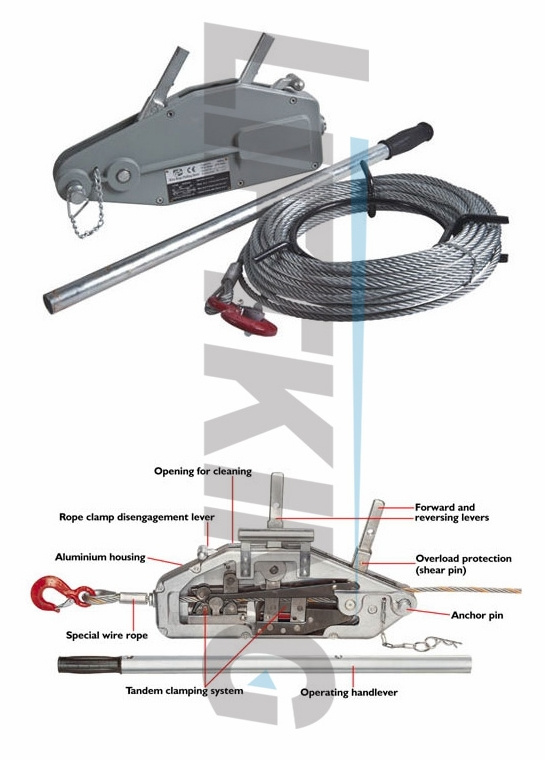

Technical parameters :A. Adjustable handle
B. Backward lever and forward lever.Placed in tandem providing a slim design and assuring power transfer along the center.
C. Rope clamp system .Easily disengaged with a lever allowing smooth installation of the wire rope.
D. Built-In-shearing pin,prevent overload. If functions at approx. 50% overload and the pins can be replaced without removing the load.
E. Anchor bolt.Offer numerous and versatile connection possibilities with load hoods, sling repos and sling chains.
F. Stamped serial number .For easy identification.
G. High strength cast aluminum alloy body. Light weight, simple to operate. Smooth contour design with large, flat bottom surface for increased stability in horizontal as well as vertical working position.
H. Galv. Steel wire rope mounted on reel. Every rope is all tested to 150% of the rated capacity and issued with an individual test certificate.
All in a word Light, powerful, easy to move and use, these machines make it possible to solve the numerous pulling and lifting problems in a practical and safe manner.
Construction
Dam structures-pulling of frame
Laying of steel or concrete pipe laying
Seat pile pulling
Combine of fume tube
Railway
Pulling of rail
Removal of van or wagon
Laying of track
Shunting and maintenance of rolling stock
Shipbuilding
Man oeuvering of locks
Stowing of cargo
Shipping of dinghies
Transport
Positioning of boiler
Machines
Maintenance
Loading of car
Emergency
Loading and unloading of bulky and heavy packages.
Company profile Our company MORE-SAFE ENTERPRISES is a professinal manufacturer and supplier of lifting equipment with CE certificate , products including : electric chain hoist , electric wire rope hoist , manual hoist , electric trolley , manual trolley , wire rope pulling hoist , hand winch , lifting clamp , slings and ratchet lashings etc.
More-Safe Enterprises was born with the aim to design, produce and sell material lifting equipment, we are a professional manufacturer of electric chain hoist, chain block, lever block&other lifting equipments! Through more than 16 years' dedication, we've been the leading manufacturer of lifting industry in China!
Our company has achieved ISO9001 & CE certifications. Our products have been successfully exported to Europe, America, the Middle East, Africa & Southeast Asia with"LIFTKING"brand. LIFTKING is famous and popular brand all over the world.
We warmly welcome clients from all over the world to cooperate with us&develop worldwide market together! We also hope we can have the chance to establish long-term business relationship with you on the basis of mutual benefits!
Our Factory
Our factory covers a tatal area of 96000Sq. M. Located in Jiangsu Province with more than 10 years' experience in R&D and production. Scientific management system, advanced production technology and strict quality control ensure us to be ahead of the lifting industry.
Our Certifications-What quality we can offer?
In order to meet continuous changing economy and social needs, we have first-class technique, complete managing mechanism, wide marketing channels, and excellent sale servise system. Our activities are governed by our quality system in compliance with the standard ISO 9001, CE Certifications.
