| Prod Model: |
YCQ-2L-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cavity: |
1 |
| Theory Output: |
1000-1200PCS/Hr |
| Max. Volume: |
2L |
| Power: |
43kw |
| Size Of The Machine: |
1.8*1.8*2.0 (M) |
| Weight Of The Machine: |
1700kg |
| Style: |
Plastic Bottle Machine |
| Driven Type: |
Electric |
| PLC: |
Mitsubishi |
| Cyliners: |
SMC |
| Raw Material: |
PET |
| Making Method Of Parison: |
Stretch Blow |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Certification: |
ISO9001:2008 |
Product Description

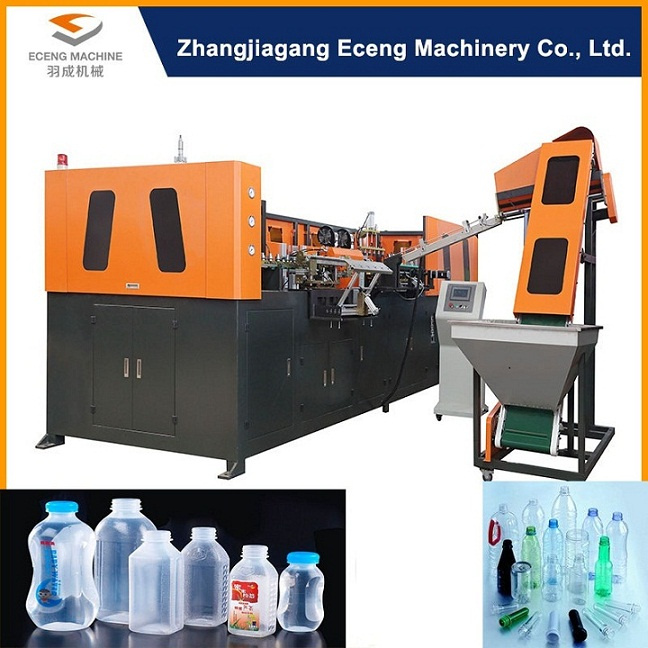

1-cavity automatic blow molding machine
Model:YCQ-2L-1
Features:
A. Stable performance with advanced PLC.
B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
H. Strong clamping force with high pressure and double crank links to lock the mold.
I. Two ways of operating: automatic and manual.
J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
L. Contamination is avoided for the bottle body.
M. Ideal effect of the chilling with the chilling system.
N. Easy installation and starting
O. Low rejection rate: less than 0.3percent.
| Item | YCQ-2L-1E |
| Bottle type specification | Cavity | 1 |
| Theory output | 1200-1500 |
| Max. volume | 2L |
| Bottle mouth maximum overall diameter | 80mm |
| Bottle biggest diameter | 100mm |
| Bottle maximum height | 330mm |
| Power specifications | Light tube quantity | 16pcs |
| Light tube power | 0.75 KW |
| Maximum heating power | 12KW |
| All electric machine installation | 15KW |
| Actual consumption | 4.5KW |
| Air pressure specification | Work pressure | 7-9kg/cm2 |
| Low-pressure gas consumption | 1000L/min |
| Blow bottle pressure | 25-35kg/cm2 |
| Higher -pressure gas consumption | 1000Ltr/min |
| Forzen water specification | Work pressure | 5-6 kg/cm2 |
| Temperature range | 10ºC |
| Consumption | 5000kcal/hr |
| Forzen water flow | 30L/min |
| Machine specification | Size of the machine | 1.85x1.6x1.7 |
| Weight of the machine | 1.7ton |
After-sales service
1.we will provide the bill of load on time to make sure you can get the machine quickly
2.when you finish the Preparation conditions ,our engineer will go to your factory to install the machine ,and give you the operating manual ,and train your employee until they can operate the machine well.
3.we provide one year warranty with spare parts free.
The sample service
1.we can send you the video of the running machine.
2.you are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
3.If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
Customized service
1.we can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on).
2.at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
well-known for its fine quality for plastic bottle blowing machine
After sales service
1> Find our products through www.encengcompany.com Alibaba,GlobalMarket,Made in China,Globalsources,Tradekey.
2>After one year , we can help you to maintain the machine and the accessories are provided only one the cost price.
3>Every 3 year , we can help to overhaul the machine freely(labor).
4>Free production technology and process configuration.
5> We can help you to design the product line , workshop and provide turn-key project.
6>Installation: Experts' team to buyer's country after confirmation that the goods arrived in site and civil works completed get ready for installation. Funds for trip need to be payed by client and extra salary $60/day during the engineer's journey.
7>Warranty: One year from the date from the date of Installation or acceptance of the Plant whichever comes first.
Free Spare Parts : Digital instrument, Sealing, Stretching cylinder seal ring, Mould-adjustment wrench, Furnace temperature table, Furnace heating tube and other relative vulnerable part .
