| Prod Model: |
DN25-B2-C |
| Port Size: |
Valve Manufacturer 1" |
| Product Name: |
Mini Electric Water Valve Manufacturer |
| Torque: |
2n.M |
| Voltage: |
DC5V, DC12V, DC24, DC/AC9-35V(Optional) |
| Certificate: |
Ce, NSF61, RoHS, IP67 |
| Model Number: |
Valve Manufacturer 01 |
| Seal Material: |
EPDM & PTFE |
| Body Material: |
Brass |
| Open/Close Time: |
<=5 Sec |
| Working Current: |
<=800mA |
| Material: |
Brass |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
| Structure: |
Turn off Valve |
Product Description

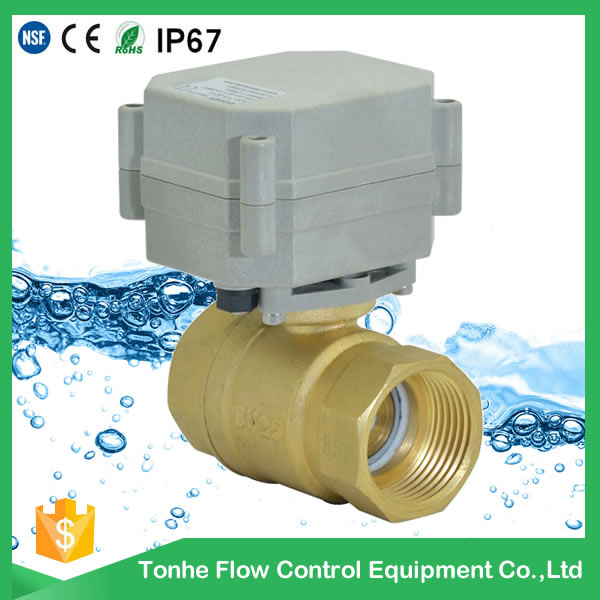

1 inch Brass 12v 24v electric motor small ball valve 2-way for smart home control| Size | NPT/BSP 1/4", NPT/BSP 3/8'', NPT/BSP 1/2'', NPT/BSP 3/4" (Optional )
|
| Material | Brass |
| Fields of applications | Water |
| Maximum working pressure | 1.0MPa |
| Rated Voltage | NPT/BSP 1", NPT/BSP 1-1/4" (Optional) |
| Packaging | Standard export package or Customized |
| Payment | L/C,D/P,T/T |
| Delivery | Ningbo Port,3-20 days after payment |
Technical Parameters:
Model: T25-B2-A
Size: NPT/BSP 1/4", NPT/BSP 3/8'', NPT/BSP 1/2'', NPT/BSP 3/4"
Internal diameter: 25mm
Rated Voltage: DC5V, DC12V, DC24V, AC/DC9-35V(Optional)
Working current: less than 500MA
Open/close time: less than 5S
Wiring control: CR2-01
Life time: 100000 times
Manual override: NO
Indicator: NO
Max. working pressure: 1.0MPa
Actuator material: Engineering Plastics
Sealing material:EPDM & PTFE
Body: BRASS
Max. torque force: 2 Nm
Cable length: 50cm
Actuator rotation: 90 degree
Liquid temperature: 2 Celsius-90 Celsius
Environment temperature: -15 Celsius-50 Celsius
Protection class: IP67
Design feature1 All-copper gear design, high accuracy output torque, especially for multi-channel scaling system.
2 Small size, compact structure.
3 A variety of control methods, either to accept remote valve position control signal, but also the feedback signal in place for computer intelligence unit testing.
4 Good sealing performance.
TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4"~2'').And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.
we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .

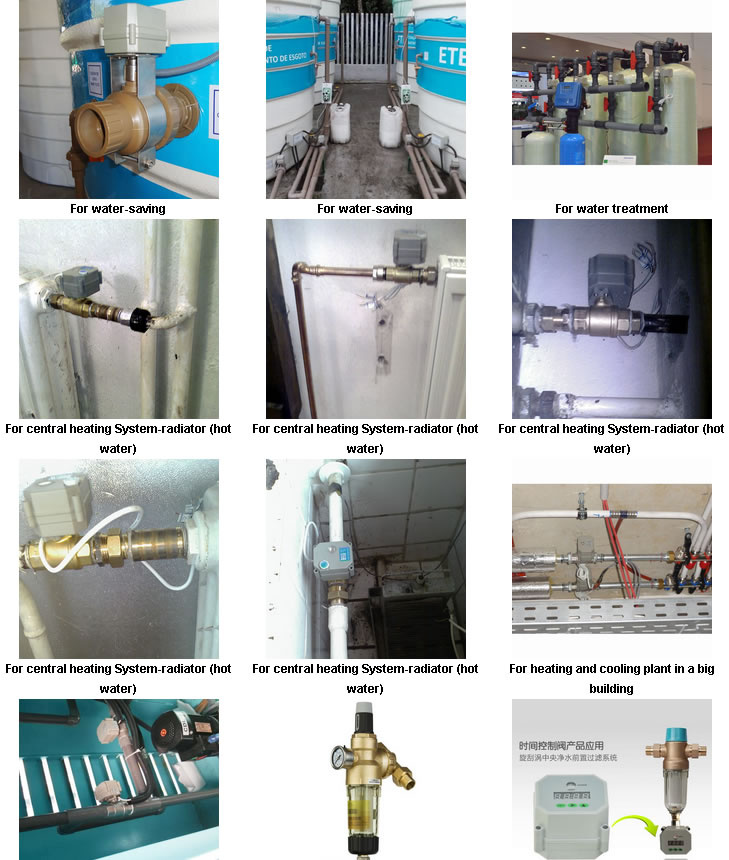

ApplicationWater meter , water leak detection system and water treatment etc equipment
HAV and fire works. Automatic drain system
Irrigation ect small control equipment
Pls confirm the above different versions of actuatorsWhen you inquiry the valve, pls confirm the detail technical data :
1, valve size , materail
2, working voltage
3, wire control
4, valve manual override & indicator ( yes or no)
5, actuator cable length
OUR SERVICPre-sale service1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
After you choose:1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment
3. Email you the tracking no., and help to chase the parcels until it arrive you.
After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.
FAQ
Q. what is your payment term?
A: T/T 30% down payment, balance to be paid before shipment. or L/C.
Q: what is your main market?
A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Q: How about your products and company approved?
A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.
Q: Can I get samples from your factory?
A: Yes, Samples can be provided.
Q: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
TaizhouTonhe Flow Control Equipment Co., Ltd. is a professional manufacturer and exporter of electric control valves from 2008, We always pay high attention to the quality control and new products R&D. Specialized in motorized valves, electric fluid control valves, electric actuator, with intelligent design, manufacture, sales and technical service.
Our main products are Tonhe series straight-through motorized valve, Has compact size with smart shape, Perform reliably, with long life time, intelligent control, high torque actuators, low noise, no leak, and many other features. They are widely used in automatic water pump tanks, automatic watering, heat meter, central air conditioning fan coil, fire sprinkler, water treatment, water efficiency, solar instrument, Agriculture Irrigation equipment, industrial automatic control equipment, and so on.
All along, the research unit, institute strong support and concerted efforts of all colleagues, continually improved products, innovation, and a number of products for thentility model patents, and we will always maintain the idea that the pursuit of perfection to develop more products for the world to intelligent control fluid. Mechanized production lines in operation, to secure stability and excellent product quality to meet customer requirements.
Personnel training, stability, is an important strategy of company' growth and development, we take the talent as our company greatest wealth.
Talent is the fundamental driving force of enterprise development, enterprise is also the cradle of talent, In order to make personal pursuit and enterprise development to be harmonious, we establish long term cooperation with the School of Continuing Education of Tsinghua University, Taiwan Jian-feng MBA Group, and other Group, Every year, we select a number of staff to go to training, learning, in order to achieve growth of employees and enterprise together.
We will uphold the "customer first, forge ahead" business philosophy, adhere to the "customer first" principle, to establish a positive corporate image, enhance corporate cohesion, with a view to alliance with the community to reach a long-term cooperative relations of mutual trust and seeking common development, create brilliant.
