1 Roller Multi-Functional Power Feeder Tool for Copying Shaper Machine Af14
| Price: |
US $ 580/Set |
| Min Order: |
5/Set |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
AF14 |
| Machine Type: |
New |
| Use: |
Automatic Feeding |
| Power: |
0.5 HP |
| Speed: |
8 Speeds |
| Wheels: |
One Wheel |
| MOQ: |
5 Sets |
| Type: |
Automatic |
| Machine Weight: |
39kg |
| Applications: |
Wood Piece Feeding |
| Use Machine: |
Copying Machine etc. |
Product Description
1 roller multi-functional Power Feeder Tool for copying shaper machine AF14
Ideal for circumference profiling or edge-banding,One roller (φ180mm, PU),multi-functional
Power feeders have been the pride and joy of Co-matic for decades, and the AF14 Copying Feeder is the culmination of our experience. We constantly strive to improve the safety and functionality of our feeders, an approach which has yielded us an international reputation for quality and durability. All power feeders are made to meet or exceed the standards that both hobbyist and professional woodworkers have come to expect from our name.
| Summary |
| Power feeders have been the pride and joy of Co-matic for decades, and the AF14 Copying Feeder is the culmination of our experience. |
| Features at a Glance |
| - 1/2 HP motor |
| - 1 Roller |
| - 4 speeds |
| - Forward/reverse feed |

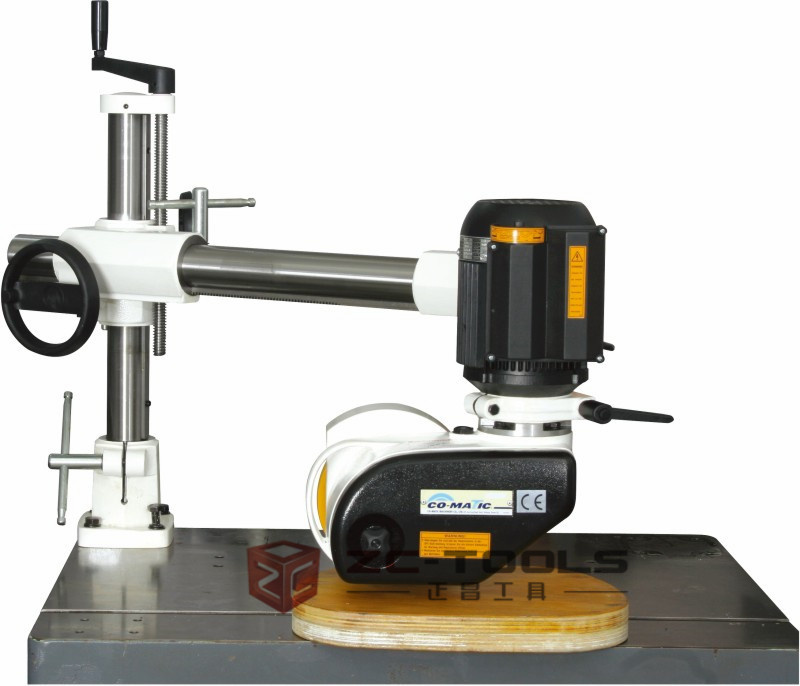

Product View:

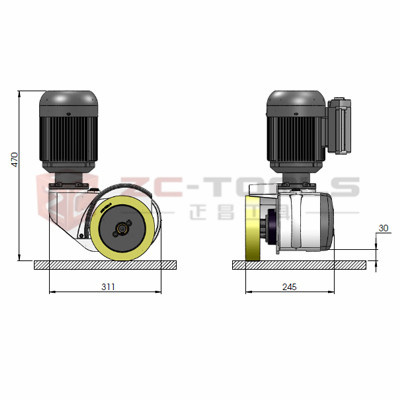

Product Specifications:| Feeding Speeds | (50Hz)2/2.5/4/5/7/9/14/18 M/min
(60Hz)2.5/3/5/6/7.5/10/15/20 M/min |
| Motor | 1/2HP |
| Roller Size | φ180mm×W40mm×1 |
| Roller Suspension | 25 mm |
| Net Weight(Housing + Stand) | 39+33Kgs |
| Gross Weight(Housing + Stand) | 41+35Kgs |
| Package Size(Housing) | 560×540×290 mm |
| Package Size(Stand) | 770x320x290 mm |
| Capacity of 20' Container | 190 Sets |
Features
Unsurpassed Peace of Mind
Safety at Your Fingertips
By keeping your hands away from cutting edges, our AF14 bandsaw and resaw feeder upholds Co-matic's reputation for setting and maintaining high standards in woodworking safety while still remaining easy to use.
Made for Compatibility
This feeder is an all-purpose feeder that may be mounted for use with various fences and wood machinery, the most common of which are shapers. For smaller workpieces, the Track Feeder is recommended. For heavy duty table saw setups, the Saw-Mate, EZ300, or EZ400 is recommended. For bandsaws or resaws, the AF19 and AF110N Resaw Feeders are recommended.
Keep Workpieces Stable
Our roller spring suspension design generates friction and pressure on the workpiece. Workpieces with minor variations in thickness of up to 25mm (1″) are easily compensated via a roller spring left mechanism.
Quality You Can Depend On
Even Feed Rate
A continuous duty 1/2 horsepower motor provides the feed, ensuring that your feed rate is consistent and reliable. Actual feed rates are subject to blade sharpness, cutter rotational direction, and workpiece characteristics.
Variable Speed
Speed settings can easily be adjusted depending on your requirements. With eight rates of feed, the AF14 provides convenience and consistency for your stock feeding.
Reverse Feeding
Reverse direction of the feed at any time. Ensure the utmost care when doing so, as reverse feeding without proper precautions can result in risk of injury or death.
Climb Cutting
Some workpieces require climb-cutting, a risky technique, to reduce tearout for smoother cuts. Although not intended as a safety device for climb-cutting, a power feeder may assist with keeping your hands away from the cutting piece.
Straightforward Operation
Uninterrupted Use
Our motors are designed and engineered so that motor damage through regular use is extremely rare. Solidly built and dependable, these motors ensure that the feeder operates as per your requirements.
Simple Wheel Replacements
The rubber and polyurethane rollers that come with the AF14 can be removed with a minimum of effort. Replacement rollers can be purchased separately, with replacement times dependent on roller material, rate of use, and workpiece material.
Oil Plug
A conveniently placed oil plug allows for easy replacement of oil in the oil-bath gear box. Under standard operation, it is recommended that the oil is replaced every 200 days.
Support You Can Count On
Robust Mount and Stand
Our feeders come equipped with sturdy cast-iron vertical and horizontal support columns and universal joints that feature a "T" or "L" locking mechanisms for securing feeders into horizontal, vertical or angled-feeding positions. (US01 Light Duty Universal Stand, US02 Light/Heavy Duty Universal Stand, US13 Heavy Duty Universal Stand)
Secure Mounting
Fully adjustable support columns are built with large hand wheels, which move feeders horizontally or vertically along columns. Four bolts hold vertical support column to table surface.
Packing:1.Standard Carton CaseGood moisture resistance, high compressive strength and strong enough to protect the products inside.2.Optional Wooden CaseMore safety, strong and durable. Has high compressive performance, easy to handling and stacking by forklift, suitable for the heavy cutters and tools.Shipping:1. Express - sample or small order( DHL, TNT, FEDEX, UPS, EMS)We will choose the most economical and safe express company to ship our products to our customers quickly and safely.2. By Air or by Sea - Large orderWe will choose a proper shipping method for clients according to order quantity. Freight will be updated once we know the destination port. Our Advantages:1. Prompt Reply:Your inquiry will be replied in 24 hours by experienced staffs.
Multiple contact methods: 2. OEM & ODM ServiceWe can provide OEM/ODM service for our customers.3. About OrdersStable quality, competitive price, on-time delivery.We sincerely welcome agents from all over the world.Contact US:
