| Prod Model: |
NUMA100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mining Object: |
Metallic and Non-Metallic Ore Excavator |
| Type: |
Drilling Machine |
Product Description

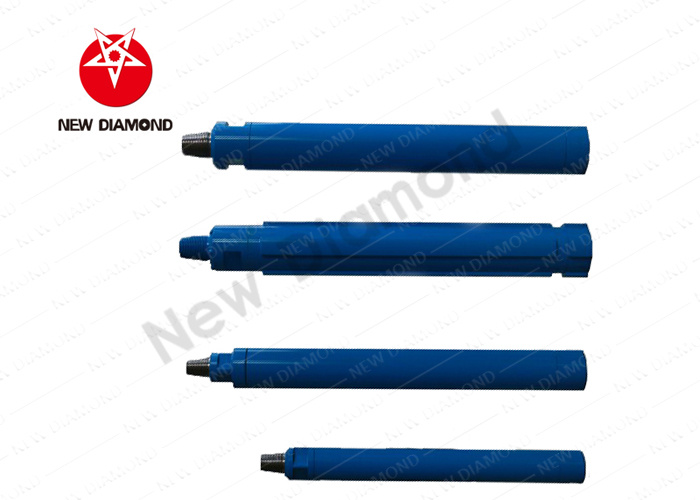

High Air Pressure DTH Hammer
1. Lower energy consumption
2. Higher impact frequency
3. Easy and cheap maintenance
4. Long life, reliable
Faster Drilling Speed and Most Advanced Air DTH Hammer:
1.10 years manufacturing experience;
2. Certificate: ISO9001: 2008
3. Material: Carbide
It is a kind of valveless high air pressure DTH Hammer with foot valve.
It has the following advantages:
1. Valveless air distribution. More reliable.
2. Simple design of the piston, long life.
3. More efficient energy transfer, faster drilling speed, lower air consumption and lower oil consumption.
4. Fewer internal parts, simple structure, longer life, less failure and easier to maintain because all the parts are heat treated.
5. Easy to disassemble because the top sub, the drive chuck and the external cylinder are connected by multi-step thread.
Our advantages:
We have advanced production equipments & talented researchers & technicians & rich experiences in R & D and production.
We use the best quality raw materials.
We adopt advanced production technology & strict testing procedure.
We passed ISO9001 quality management system certification.
We accept OEM manufacturing and produce on your design.
| Length (Without Bit) | Weight (Without Bit) | External diameter | Bit Shank | Hole Range | Connection Thread |
| 1510mm | 288.00kg | Φ226mm | NUMA 100 | Φ254-Φ311 | API6 5/8"Reg |
| Working Pressure | Impact rate at 1.7Mpa | Recommended rotation speed | Air consumption |
| 1.0Mpa | 1.8Mpa | 2.4Mpa |
| 1.0-2.5Mpa | 18HZ | 15-25r/min | 22m³/min | 45m³/min | 60m³/min |
| Item Description | Weight (kg) | Part Number |
1. Top Sub
2. "O" Ring of Top Sub
3. Breakout Ring
4. Check Valve
5. Spring
6. Compression Buffer
7. Air Distributor
8. Internal Cylinder
9. Piston
10. External Cylinder
11. "o" Ring of Stop Ring
12. Stop Ring
13. Breakout Ring
14. Drive Chuck
15. Drill Bit | 59.00
0.03
0.40
1.60
0.30
0.60
11.50
11.00
62.00
112.00
0.03
1.50
0.40
26.00
115.00 | NN10001
NN10002
NN10003
NN10004
NN10005
NN10006
NN10007
NN10008
NN10009
NN10010
NN10011
NN10012
NN10013
NN10014
NN10015 |
Hunan New Diamond Machinery and Equipment Co., Ltd is a modern high-tech enterprise, specialized in researching and manufacturing rock drilling equipments and pneumatic tools.
We mainly produce:
1.1-2" Low-Middle Air Pressure DTH Hammer
2.3-12" High Air Pressure DTH Hammer (with/without Foot Valve)
3. Big Hole High Air Pressure DTH Hammer
4. Reverse Circulation Hammer
5. Down The Hole Bit
6. Overburden Drilling
7. Hole Opener Bit
8. Thread Button Bit
9. The Others (Shank Adapter, Coupling Sleeves, Drill Tube, Adapters etc. )
After 2 years' development, we are now having a production base covers 80 acres, with more than 300 skilled technicians works in. Our products are widely applied to earthmoving engineering, mining exploitation, oil drilling, water well drilling and pile foundation engineering etc. With rich experience in R & D and production, excellent management team, strong innovation creativity and production scale, our company has achieved great success continuously by the excellent quality products, which have been well accepted by end users and the brand has received extensive positive feedback from international markets and products have been exported to the United States, Australia, Brazil, South Africa, South Korea and other countries. Now we become to one of the most famous enterprises in drill industry in China, and we have the most complete product line, the most abundant series, and the most widely types.
