| Prod Model: |
92E |
| Cutting Width: |
920mm |
| Resolution Rate: |
0.01mm |
| Size Of Touch Screen Computer: |
10 Inch |
| Max Cutting Depth: |
930mm |
| Max.Cutting Height: |
130mm |
| Net Weight: |
2700kg |
| Packing Size(L*W*H): |
2250*1400*1950 |
| Classification: |
Single-blade Cutter |
| Driven Type: |
Hydraulic |
| Blade Material: |
Stainless Steel |
| Computerized: |
Computerized |
Product Description

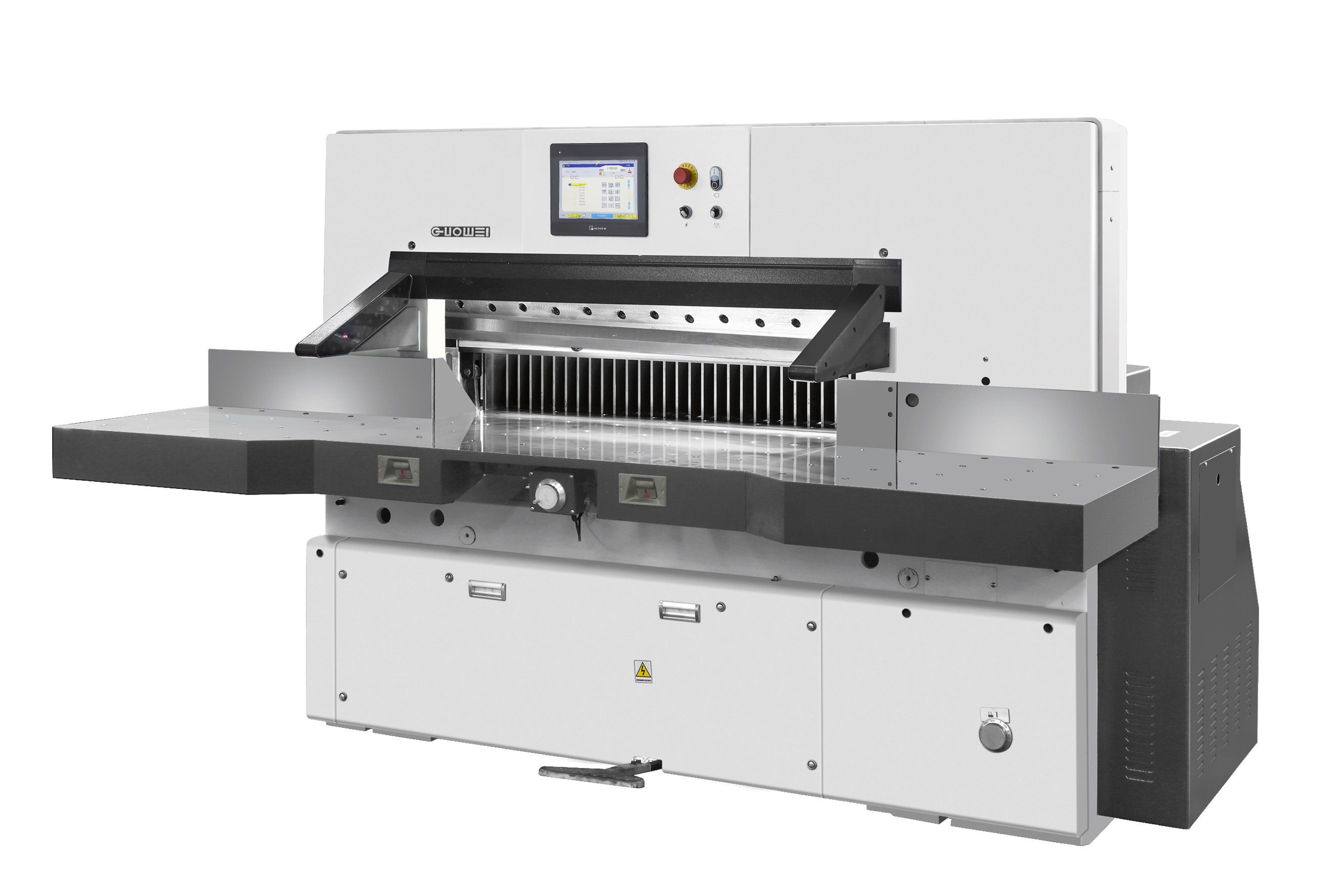

10 Inch Touch Screen Computerized Paper Guillotine/Paper Cutter/Paper Cutting Machine (92E)1.The picture of our machine
2. IntroductionJapan alternative digital servo control technology; 10-inch colorful touching LCD.The data resolution rate is 0.01mm. It has self-diagnostic function of troubles and displays the operating pattern, and has 100 program units, over 10000 different cutting positions,dynamic display of cutting and running, dynamic tracking,max feeding speed 8-20m/min. Powerful computer operating system with more functions and it can store and memorize things.The storage time can be up to 300,000 hours with self-maintenance of the operating system. Hydraulic components are adopted from Italy ,electrical components from France,Germany,Japan,Korea,Taiwan ball lead screw,Linear double guide rails, PLC control system are adopted to monitor all mechanical implementation,Its key parts adopt imported bearing of low maintenance.3.Main Specification
Model / Specifications | 92 |
Cutting width(cm) | 92 |
Max.cutting height without assistance pressing plate(cm) | 13 |
Max.cutting depth(cm) | 93 |
Min cutting depth without assistance pressing plate(cm) | 2.3 |
Extended length of working table(cm) | 65 |
Height of working table(cm) | 86-90 |
Machine width including side working table(cm) | 233 |
Total length of working table(cm) | 198 |
Cutting speed(r/min) | 45 |
Max. Paper pressure(n) | 35000 |
Power of main motor(kw) | 3 |
Motor for paper feeding(kw) | 0.75 |
Air pump(kw) | 0.55 |
Machine weight(kg) | 2800 |
Overall dimension((Length x width x height)cm) | 228x140x195 |
4.The System Of Computer:1.The displaying panel use 10 inch, you can adjust the color by yourself.
2.They have the high quality colors(25600), their storage can reach 100 groups,every group have 100 cut, Its storage time can reach 300,000 hours.
3.There are 8 multi-language operating interface, such as Chinese,English,Spanish...
4.It has colorful touching screen so as to ensure the high stability.
5.The Apparatus Controlled Ssystem:
| No. | Name | Brand Model | Origin |
| 1 | Display screen | 10
WEINVIEW 10 inches color touch screen | Taiwan |
| 2 | Computer | Industrial PC | Japan |
| 3 | Motherboard chip | /Industry chip | America |
| 4 | Control center | PLC/Panasonic PLC | Japan |
| 5 | Knife transmission | Double Enveloping worm reducer |
Sino-US joint venture |
| 6 | Feed servo motor driver |
Panasonic Servo motor control system | Japan |
| 7 | Feed screw | ABBA
ABBA Ball-lead screw | Taiwan |
| 8 | Guide-rail | ABBA
ABBA High-precision linear guide | Taiwan |
| 9 | Worktable |
Slotless chrome platform with air cushion | HT2500
HT2500 Casting |
| 10 | Bearing | NSK/MSK Bearing | Japan |
| 11 | Sensor | OMRON | Japan |
| 12 | Switch | Moeller | Germany |
| 13 | Locating switch | Panasonic | Japan |
| 14 | Low-voltage electrical | Schneider | France |
| 15 | Terminals | Weidmuller | Germany |
| 16 | Bridge rectifier | SEP | Taiwan |
| 17 | Seals | MERKEL | Germany |
| 18 | Hydraulic Pump | Lianli | Shanghai |
| 19 |
Hydraulic Fittings | HONDA | Japan |
| 20 |
Passage control system |
Atos | Italy |
6. The advantage of our company(1) Over 25 years of international leading cutting equipment manufacturer
(2) Applied range including Paper sheet,Plastic sheet,Foil,Honeycomb board,Cardboard,Carbon fiber laminate,Leather,Glassine and Packing sheet ect.
(3)We have a special business mode,which is personalized production.We provide customized service according to each customer's specific way of production with the features of productions.

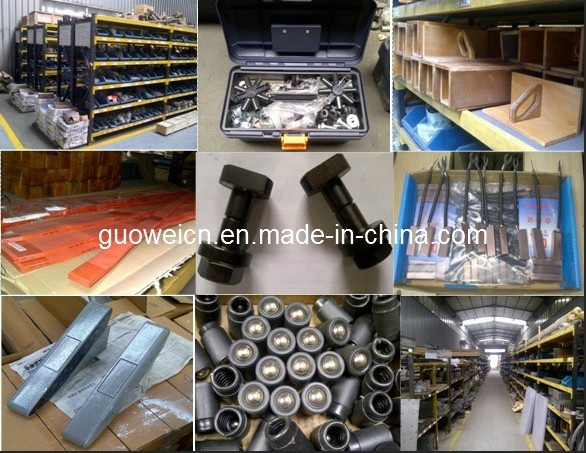

(4)We have our own warehouse to ensure the supply of spare parts at any time.
(5)Strictly follow ISO quality control, competitive price, fast delivery.

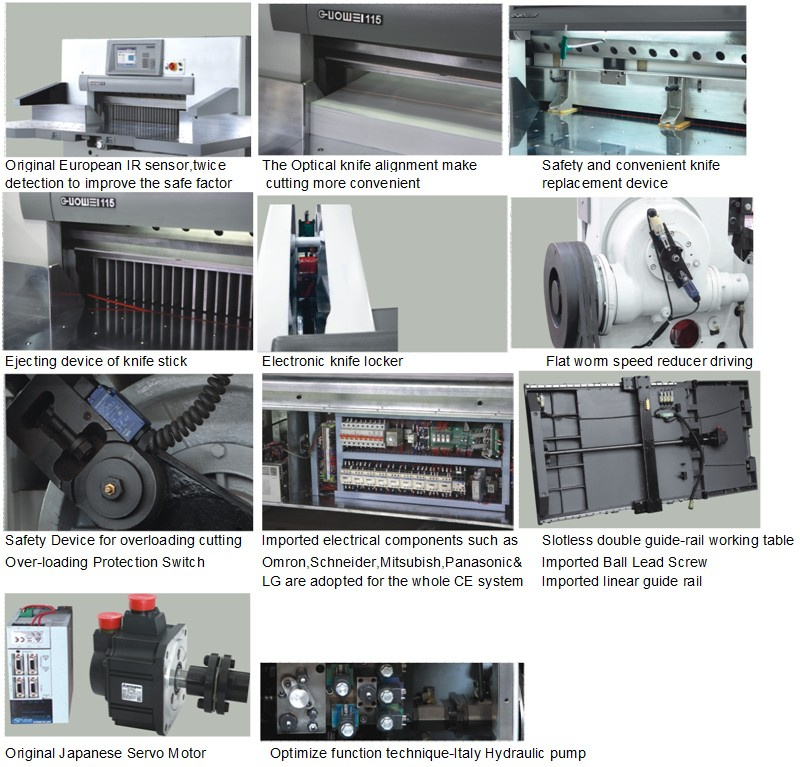

7.The Safety Production Ssystem:1.Imported ball lead screw.
2. IR photoelectric protection and hands operating protection
3. Ejecting device for cutting stick
4. Inside electronic knife locker
5. Safety and convenience knife replacement system
6. Overloading protection device for cutting
7.Flat worm speed reducer transmission.
8.PLC control system
8.The Accessory With Machine:
1. Tool box: 1 set
2. Manual book
3. Guarantee sheet(details in contract)
9.The Payment Terms:
30% TT in advance, balance before shipment.
10.The Delievry Time:
About 25 days after receipt of the deposit.
