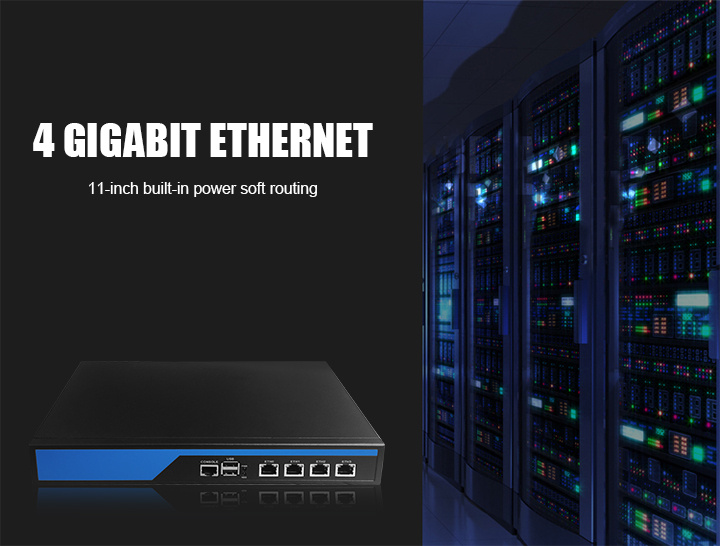

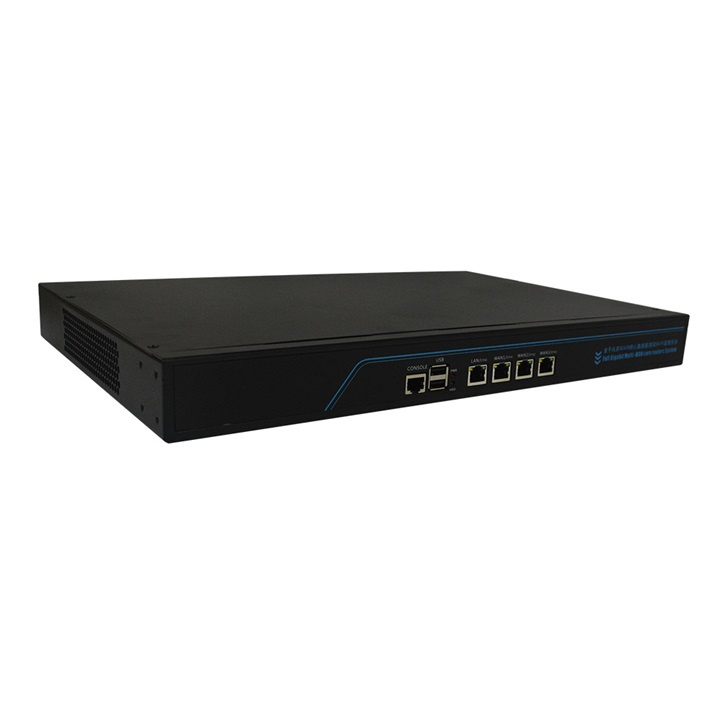

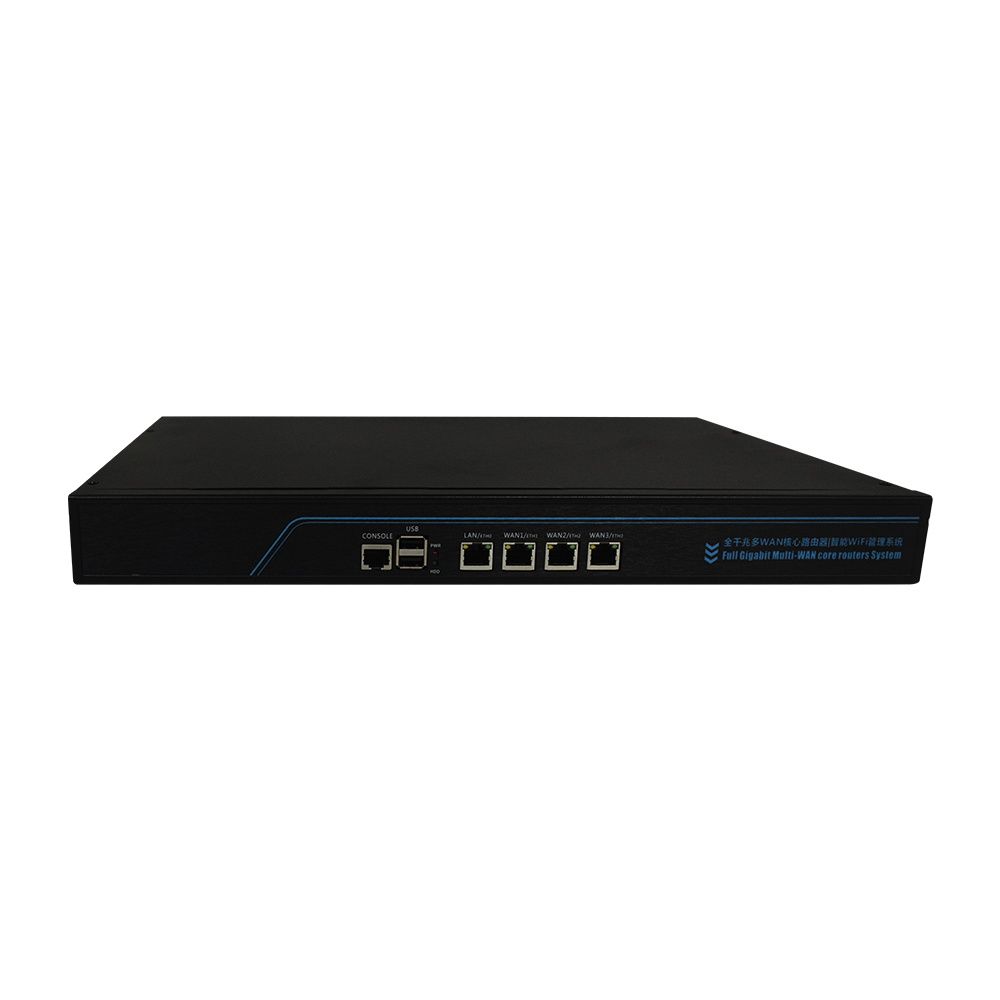

100 / 1000m Adaptive RJ45 WiFi Line-Speed Router Firewall

100 / 1000m Adaptive RJ45 WiFi Line-Speed Router Firewall
Price: US $ 150/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: Router A4L-j1900
Produt Name: Router A4l-J1900
Fiber Port: None
USB Port: 2, USB2.0
VGA Interface: International Standard VGA Interface
Cabinet Ears: 2
Input Voltage Range: AC100V-240V50 / 60Hz
CPU: Four 525, J1800, J1900 Optional
Nic Chip: Intel 82583V Chip
Transmission Media: Five Lines, Ultra-Five Lines, Six Lines
Storage Humidity: 5% to 95% Rh Non-Condensing
Type: Wired
Network Site: Intermediate Node Routers
Transfer Rate: 10/100/1000Mbps
Firewall: Firewall
Ports: ≤4
Port Structure: Not Modular
Application: SOHO
Performance: Line-Rate Router
Network: Custom
Architecture: Custom

Product Description

100 / 1000M adaptive RJ45 wifi line-speed router firewall






Hardware specifications:

Product Name  1U four soft routing seriesVGA Interface1, international standard VGA interface
CPUfour 525, J1800, J1900 optionalSizeStandard 19 inch 1U; 44 * 28 * 4.4cm
MemoryDDR3 notebook memory, up to 8GB (D525 up to 4GB), a memory slotCabinet ears 2
Storage disksupport MSATA (1) support SATA2.5 / 3.5 hard disk, does not support the CF cardInput voltage rangeAC100V-240V 50/60Hz
Industrial motherboardsthe strength of cooperation Factory production, the national solid capacitors, stable, durable, do not restart.Power consumption  D525 about 16-18W power consumption; four J1800, J1900 about 8-9W
 WAN PortThree 100 / 1000M adaptive RJ45 (WAN support set to LAN port)Powerbuilt-in Taiwan Ming Wei power supply; low-end four D525 using domestic power supply
LAN porta 100 / 1000M adaptive RJ45Humidity10% to 95% RH non-condensing
NIC chipIntel 82583v chipOperating temperature 0 ºC -40 ºC
Fiber PortNoneStorage humidity 5% to 95% RH non-condensing
USB port2, USB2.0Storage temperature-40 ºC -70 ºC
Console port1 default baud rate (bits per second) is 115200 data 8 bits, stop bit 1Indicators 2 boot lights and hard disk indicator
Transmission mediafive lines, ultra-five lines, six linesApplicable places: Internet cafes, business, KTV, department stores, cinemas, residential n networks.




Software function:

Internet mode NAT mode, routing modeMulti-line loadload mode supports real-time connections, new connections, real-time traffic, source IP + destination IP, source IP + destination IP + destination port
System Status Intranet monitoring, protocol monitoring, policy monitoring, line monitoring, system monitoring, access recordsDHCP settingssupport for different LAN settings different DHCP, static allocation
Restart shutdownSupport daily, weekly, monthly restart live shutdown settingsStatic routingsupport
Multi LAN settingssupport for multiple network cards different IP or the same IP segment settingsVLAN SettingsSupport
Multi-WAN accesssupport for setting up multi-LAN exchange or not accessFlow control settingssupport manual flow control, intelligent flow control, IP speed, custom protocol
Multi-WAN accesssupport for different operators to access, not limit the number of WanPPPOE serversupport local billing, but also support third-party billing included
Multi-WAN featuresbandwidth superimposed, single-line multi-dial, VLAN dial and so onVPN serverPPTP, L2TP, OpenVPN, IPSec
Timing re-dialsupport redialing at different times or redial interval timeNotification pushSupport real-time push, push regularly, expire reminder, dial expiration notice


Port SwitchingEach network card set to WAN or LAN each otherURL controlsupport URL jump, keyword replacement, parameter replacement
DNS settingssupport for the use of DNS proxy or DNS cache mode; support reverse DNS proxy and multi-line DNSDynamic Domain NameSupport 3322 and peanut shells
Tributary Settingssupport port triage, protocol triage, URL triage, uplink and downlink triageNAT forwardingsupport
Port MappingSupportHijacking PING value Support hijacking game Ping value is 0
UPNP SettingsSupportIntranet DOS attack defensesupport
Port MirroringSupportBehavior ManagementMAC black and white list, URL black and white list, QQ black and white list
ACL accesssupport, and support for different periods of control.Protocol ControlSupport different protocols for different periods of control
ARP bindingsupportDMZ hostsupport
Connection limitsupportBehavioral recordsWeb site browsing records, MI records, the client off the assembly line record
Network remote wake-upsupportIntranet DHCP testsupport for detecting whether there are other DHCP services within the network lead to conflict
SyslogWeb authentication log, intranet dial log, ARP log and so on



Applicable places:

Internet cafes, business, KTV, department stores, cinemas, residential networks.




Product Features:

1. More lan more wan
2. Line diversion
3 only flow control
4 certification billing
Behavioral management
6. Smart AC control
7 love fast cloud platform


Product Advantage:

1. Lightning protection design
2. High-quality power supply
3. Excellent thermal performance
4. Fan quiet and durable
5. NIC performance is excellent






System introduction:

The four-port soft router is based on the X86 architecture and supports four ports of the D525, J1800 and J1900. It is covered from the low end to the high end. Soft routes supporting the X86 architecture can be installed. Currently, the popular Agile, Panabit, , Smart6, Biwei, openwrt, RippleOS Rui Bo AC, etc. can be installed;

Our default installation of love fast seven-layer flow control system allows you to do unlimited things in the limited broadband; no matter how many people download and video games can be opened more than cards, web pages seconds to open, smooth video, truly games , Web pages and videos, download their own way, without affecting each other. Colleagues to support wireless web authentication, mobile phone connected to automatically open the authentication page, is a big business promotion, a good place to promote!






Our Company:

Was established on January 24, 2014. We are fouces on multiple Ethernet Ports machines of soft Router and POE switches.
Based on a service style of "Factualism, Aggressiveness, Innovation, Sincerity ", promises and fulfills service and guidance for users all over the world. The company has an international professional service team focusing on comprehensive professional services.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.





Packaging:

1. All products will be packed in carton , so the product can get effective protection to avoid damage.
2. Packaging according to customer requirement

Shipping:

1. We shipping via DHL FedEx TNT etc for samll orders. You can get your packages in about 3-5 days all over the world.
2. For big order, we will arrange Air cargo  for your shipment, so it will be much cheaper than DHL, UPS etc.
3. You can choose your own shipping agent, we will provide good cooperation for it.

After-Sales Service:

1. We can provide detail documents and remote help for device installation and configuration.
2. Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3. Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it's accessories are complete.
