| Model: |
Vsv23-1.4L |
| Voltage: |
DC24V |
| Action Type: |
Normal Close Direct Acting |
| Orifice: |
1.4mm |
| Working Pressure: |
0~0.7MPa |
| Connection Form: |
Thread |
| Type: |
Pilot Operated |
| Valve Structure: |
Pilot Piston Structure |
| Power Supply: |
DC Solenoid Valve |
| Application: |
Industrial Usage |
Product Description

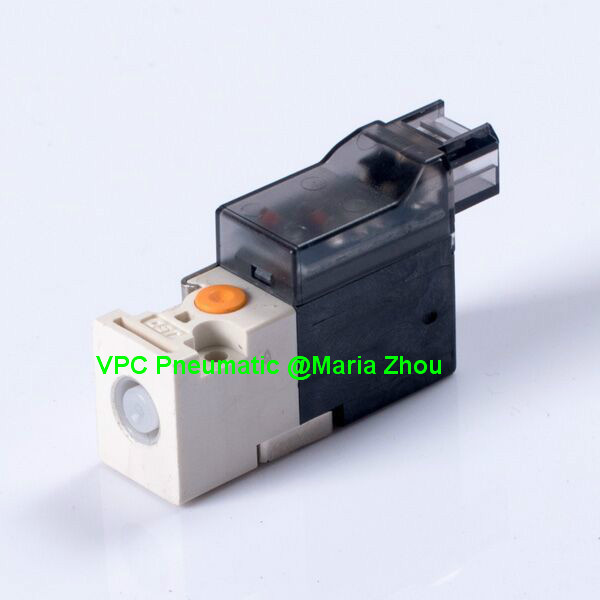

Mini Solenoid Valve, 10mm 15mm Width/for Medical or Socks Knitting Machine/Replacement for Lonati Type ,Mini solenoid Valve 15mm, 3/2 way pin type, DC24V, 2,3W, Normal close
Lonati D4900832 , D4900833
This Electrovalve Assembly is used on Lonati machine.
socks machine parts manufacturer , hosiery knitting machine part manufacturer . circular knitting machine parts manufacturer , seamless underwear knitting machine manufacturer . data 2/3 wire piezoelectric plates for knitting(hosiery) machinery 1) It is used for knitted and hosiery machines to replacing magnetic valve 2) High efficiency, low noise and long working life apply to socks machine , seemless weaving machine, circular weaving machine
Lonati solenoid valve Electrovalve for Knitting Machinery
1)Lonati 10mm mini valve for socks knitting machine
2)3/2way, 2/2way, 24VDC, 12VDC
3)Can work 50 millions times
4)ISO&CE
The solenoid valves are our new self-developed products used in textile rmbroidery, knitting electronices and other equipment. It has the advantages of compact structure and taking little space,conventient installation,sensitiveness,stable performance,and so on. Moreover,it is protected by two potents.
Operating Pressure:- 0~7 bar
Orifice Size: 0.7mm
Kind: 3/2 way
Fluid/ambient temperture: -5 ~+ 50 oC
maximun flow rate at 6bar with p 1bar: 30 NI/min
Exhaust: 50 NI/min
Max number of cycles per minute: 2700/min
Life expectancy: more than 50 Million times
Voltage: 24V DC -15% ~ +10%
Power: 1.3W
Response time when energized: 6 ms
1)Nice replacement for Lonati D4840841 mini valve
2)Low power 0.3W, steady temperature 20-30
3)27L/M
4)3/2way,24VDC
5)ISO CE
BT1023-0-L/M, is our new design mini valve, it is low power only 0.3W, high flow rate: 27L/M. Steady low temperature: 20-30degreee.
They are very popular in textile industry, knitting machine, electronic industry and so on. It can work 50million times without any problems. Low power, high frequency.
1)Port Size: M5
2)10mm, 3/2way
3)Medium: air
4)Working Temperature: -5~50°C
5)Power: 0.3W

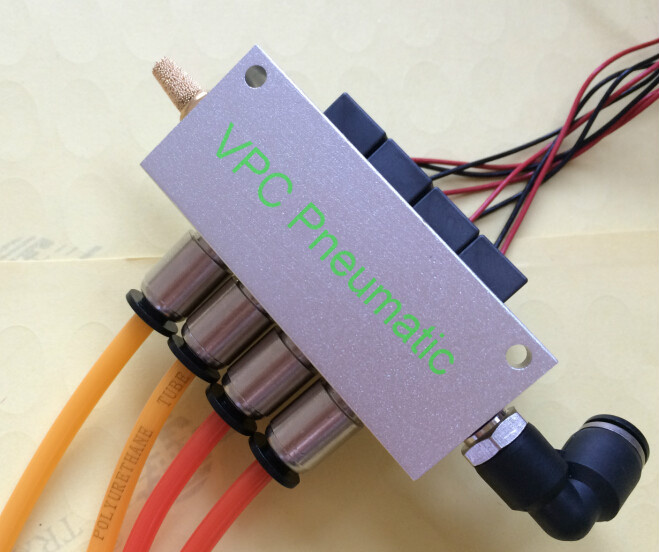

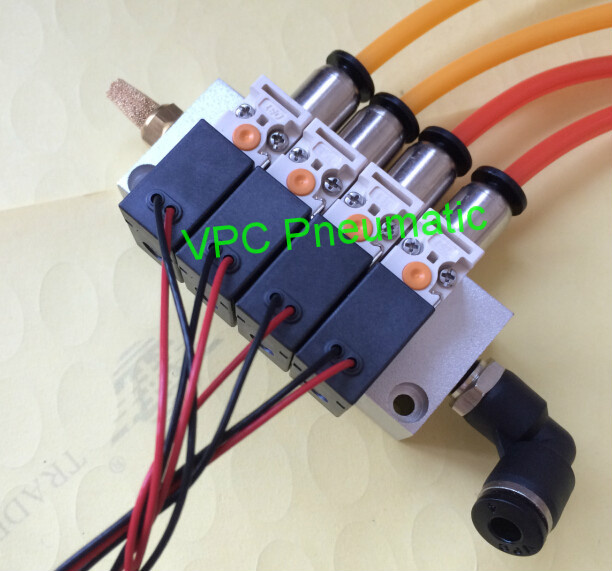

6)Mounting: manifold
7)Voltage: 24VDC, 12VDC, 6VDC
8)Same as Lonati code: D4840841
Response time when de-energized: 8ms
Copper wire isolation chass: F-(155 oC)
lonati socks and seamless underwear machine dedicated large solenoid valve. first-class quality, the scientific test for continuous on-off 50 billion times.
