| Prod Model: |
DM4-SES001 |
| Surface Coated: |
Sandblast, Blue Finished, Bright |
| Hardness: |
58-63 HRC |
| Flute Type: |
Spiral Flute/ Square Flute/Straight Flute |
| Model Of Making: |
Full Ground or Roll Forged |
| Usage: |
Removing Broken, Damaged or Embedded Screws. |
Product Description
A screw extractor is a tool used expressly for removing broken or seized screws.
There are two types;
one has a spiral flut structure, which is commonly known by the trademarked name Easy Out;
the other has a straight flute structure.
The tools are made of very hard, brittle steel; they can break off inside the screw if too much torque is applied, making the removal much more difficult.
1. Spiral flutes are designed to embed themselves deeper into the metal as you turn the tool, so as the fastener resistance increases, the extractor's grip increases
2. Extractor size and recommended drill bit size are etched on each tool.
3. Designed to remove broken studs, bolts, socket screws, and fittings
4. Aggressive left hand spiral design for extra gripping power
5. High speed drill bit ensures fast, clean drilling
Model of Making: Full Ground Or Roll Forged
Material: High Speed Steel or S2
H.S.S Grade |
Chemical Composition(%) |
4241 |
W:1.50-2.50; Mo:0.60-1.20; Cr:3.80-4.40; V:0.50-0.70 |
4341 |
W:3.50-4.50; Mo:2.50-3.50; Cr:.3.80-4.40; V:1.20-1.80 |
99341 |
W:8.50-9.50; Mo:2.70-3.30; Cr:.3.80-4.40; V:1.30-1.70 |
6542(M2) |
W:5.50-6.75; Mo:4.50-5.50; Cr:.3.80-4.40; V:1.75-2.20 |
M35 |
W:6.00-6.70; Mo:4.70-5.20; Cr:.3.80-4.50; V:1.70-2.00; Co:4.50-5.50 |
M42 |
W:1.15-1.85; Mo:9.00-10.0; Cr:.3.50-4.25; V:0.95-1.35; Co:7.75-8.75 |
Usage: Ideal for quickly and easily removing broken, damaged or embedded screws.
Features:
A: Suitable for use with all standard variable speed drills.
B: Removers Philips, Slottet, Pozidrive and many other types of screw-profiles.
?Complete with tough plastic storage case.

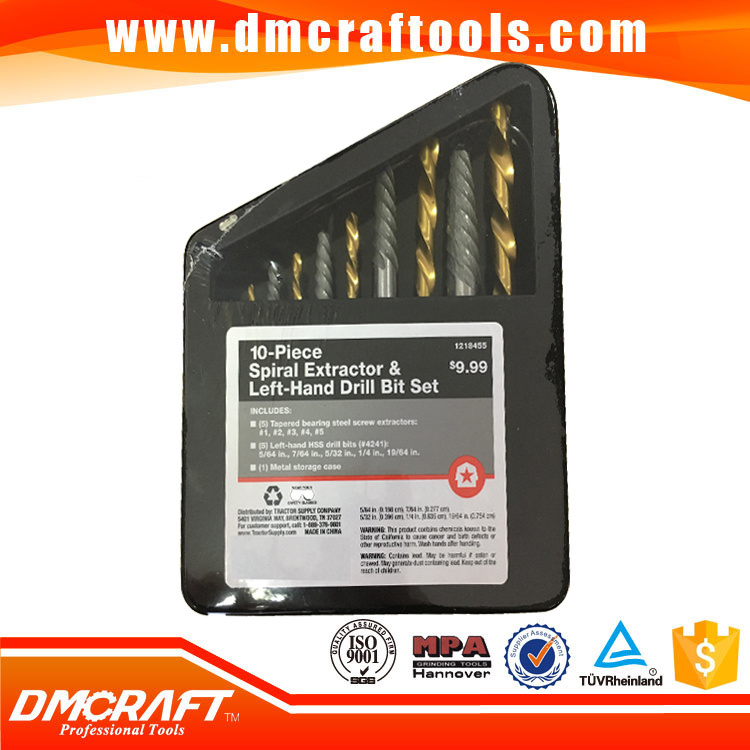

Description:
| Set includes metal index case | | | | |
| | | | | | | |
| Set includes spiral flute screw extractors in sizes: Ex-1, Ex-2, Ex-3, Ex-4, Ex-5, |
| | | | | | | |
| Set includes drill bits in sizes: 5/64", 7/64", 5/32", 1/4" and 19/64" | |
Package
A:In plastic box
B:in white mail box
C:In double blister
D: in double blister then on PVC hanger:
E:in double blister then one dozen in a showing inner box
