| Prod Model: |
DWS-4 |
| Name: |
Diamond Wire Saw |
| Main Material: |
Diamond |
| Brand: |
Jdk |
| Kind: |
Stone Sawing Machine |
| Manufacturing Arts: |
Sinter |
| Usage: |
Stone Quarry and Reinforce Concrete Cutting |
| Saw Blade External Diameter: |
11.5 |
| Keywords: |
Diamond Tool |

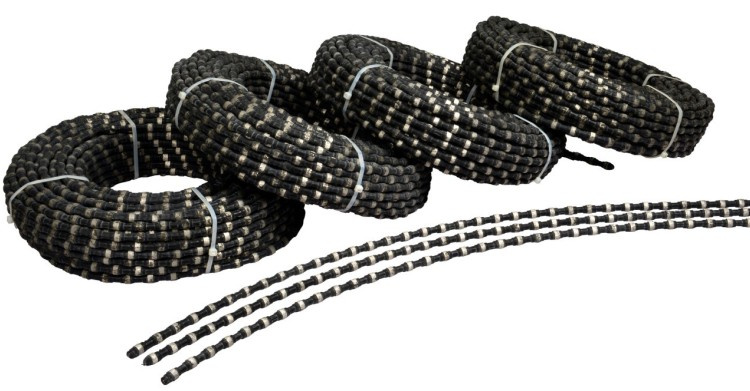

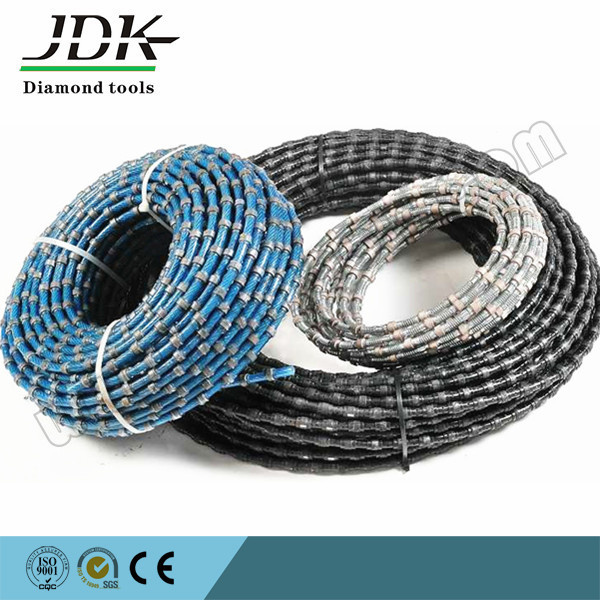

Product Description
Our diamond wire saw for granite/marble quarry is popular in Brazil,Spain,Poland ,India and Iran.
Advantages of rubber wire used in granite quarrying: The rubber and cable sticking together tightly makes good bonding, and this can bear more strikes during the work. The rubber has good temperature resistance, and it can be used when water is not enough. Strong flexibility can reduce the cut-in-one-side problem, and even can be used for smaller curvature radius. Normally wire saw machines with 37-75kw main power are used in granite quarrying, according to the size of cutting area, water supply can be controlled with 25-50L/min.
| Diameter | Application | Fixing methods | Beads/meter |
| 11.5mm | Reinforced concrete cutting | Rubber injection | 40 |
| 11.5mm | Granite quarrying | Rubber injection | 40 |
| 11mm or 10.5mm | Marble quarrying | Rubber injection | 40 |
| 11mm or 10.5mm | Marble quarrying | Spring holding up | 28 |
| 10.5mm | Granite block squaring | Plastic injection | 37 |
| 10.5mm | Marble block squaring | Plastic injection | 33 |
| 7 to 9mm | Granite profiling | Plastic injection | 37 |
| 7 to 8.5mm | Marble profiling | Plastic injection | 33 |
Technology Parameter(quarrying)
| Cutting material | Linear speed(m/s) | Cutting speed(m 2 /h ) | Wire life(m 2 /m ) |
| Hard granite | 20-24 | 1-2 | 5-9 |
| Mid-hard granite | 22-26 | 2-4 | 6-12 |
| Soft granite | 24-28 | 4-8 | 8-18 |
| Hard marble | 28-23 | 4-8 | 20-30 |
| Mid-hard marble | 30-35 | 6-10 | 25-35 |
| Soft marble | 33-38 | 8-12 | 30-45 |
Other specification are available upon request.
Attention:
If you only order diamond segments from us, to get the best performance, we would suggest you use high frequency Silver Welded machine to make the brazing.
Our Feature:
Factory == Own Exporting License == Quality Control == Competitive Price == Own Technology == OEM
Our advantage:
1. Manufactory with more than 15 years experience
2. A great quantity of formula special for all kinds of different stone
3. Approved quality with factory competitive price
4. Long lifespan, good sharpness, stable performance and high cutting efficiency
5. Sandwich, groove type segment with shape straight, trapezia, boatshape, K, V, etc
6. Custom-design can be meet upon request, small trial order available any time, sample for testing can be delivery in very short time.
Payment:
T/T, Western Union, L/C, Cash
Delivery day:
For samples, we can ship them within 3 days after receiving the deposit, for regular order, we need 3-7 days, depends on the quantity of your order.

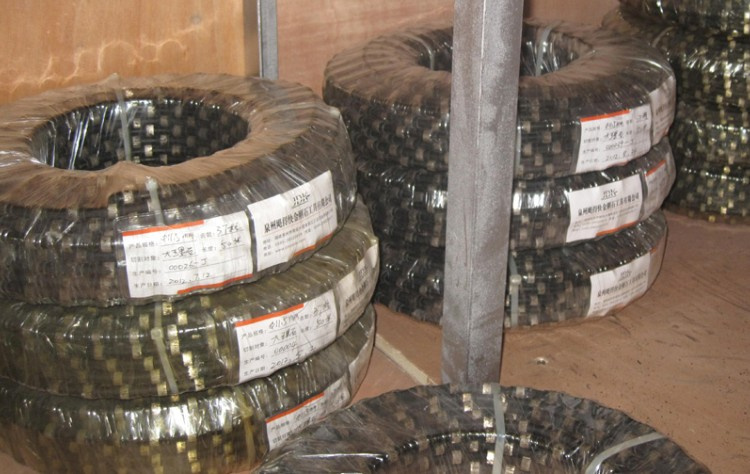

Packaging:
Inner package is carton box, outside package are choose according to the transport way. By air used carton packing to reduce the weight and by sea, use wooden cases for waterproof.
Shipment:
For Less than 45kgs, we would suggest ship them by couriers by DHL, FedEx, UPS, EMS and so on. For 45-200kgs, if you need the cargo urgent, we would suggest ship them by air. And for very heavy and bulky cargo, by sea is our best choice.
Quanzhou JDK Diamond Tools Co., Ltd. is one professional manufacturer of diamond tools in China, specially for the stone working industry. The main products are stone cutting Diamond Saw Blades, Kinds of Diamond Segments, Diamond Abrasives, etc...For over 12 years development with the support of JDK's Customers, suppliers and Staffs, now JDK is supplying big range stone cutting, Grinding & Polishing tools to the world.
JDK was established in 1995, initially JDK was producing and selling diamond tools products to China domestic market. Since 2000 year JDK is aiming at the world market and started to design and produce superior performance diamond tools to meet kinds of requirements of customers from all over the world. with these years export experiences now JDK is exporting his diamond tools products to over 30 countries which is in Europe, Middle East, Asia, America, etc...
JDK's experienced Engineer and R&D team are providing customers quality stone tools for cutting, grinding, polishing, milling, drilling, such as diamond saw blade, diamond segments, Diamond Wire Saw, Diamond abrasives, Flexible Polishing Pads, Grinding Cup Wheels, Core Drill Bits, ...
