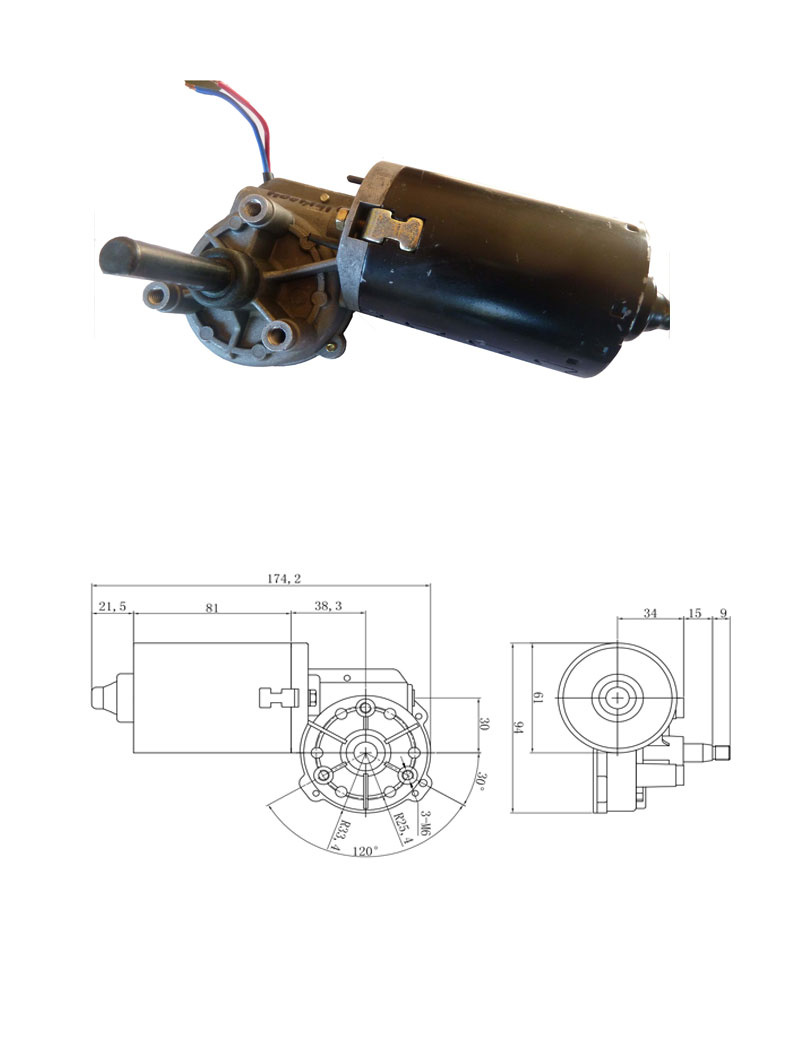

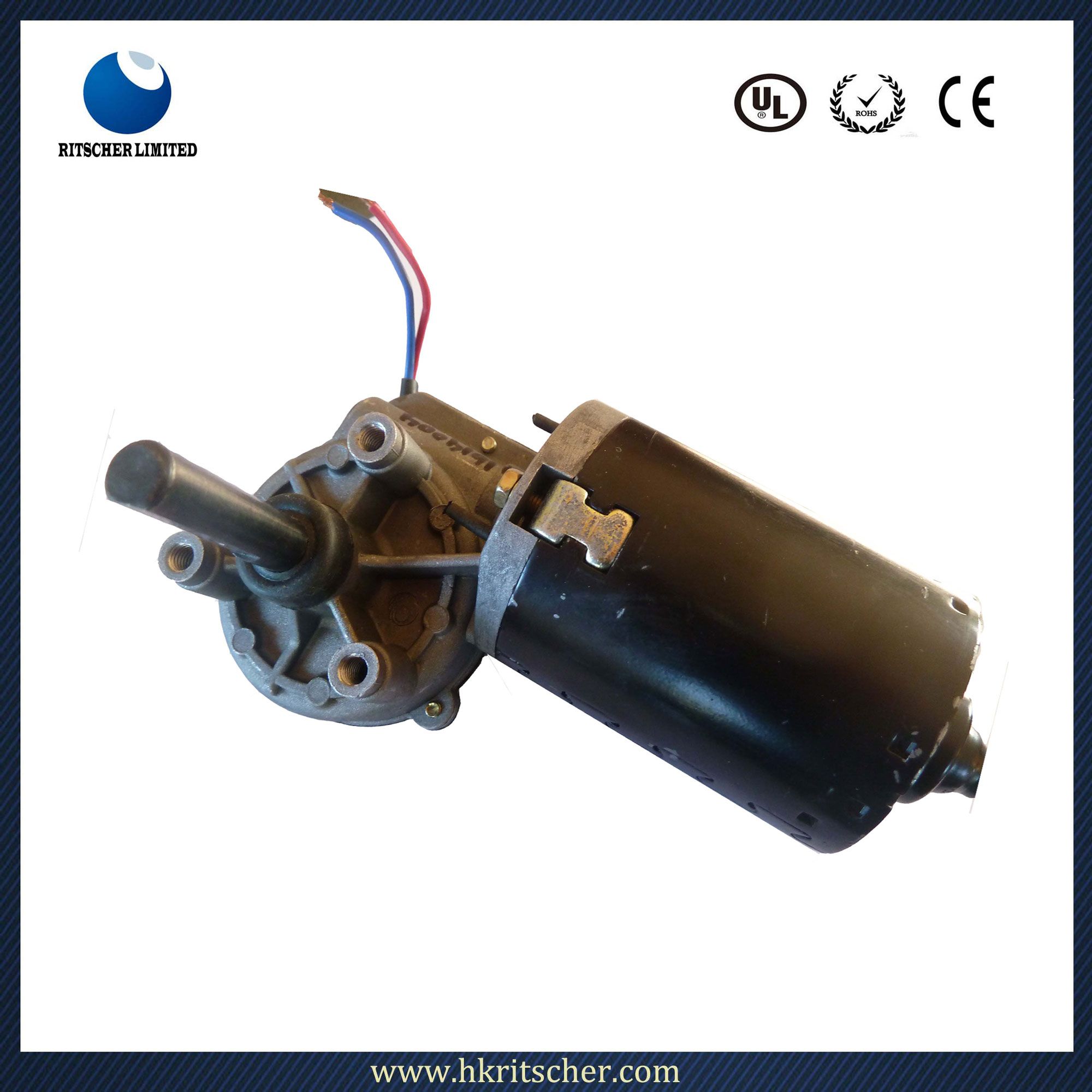

12-24V Gear Reduction Motor for Garage Door
| Price: |
US $ 3/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
D59 |
| Usage: |
Fan, Home Appliance |
| Construction: |
Permanent Magnet |
| Commutation: |
Brush |
| Volatge: |
6-240V |
| Speed Rated: |
1500-20000rpm |
| Input Power: |
10-350W |
| Application: |
Power Tools |
| Operating Speed: |
Adjust Speed |
| Excitation Mode: |
Excited |
| Structure And Working Principle: |
Brush |
| Certification: |
Ce |
| Brand: |
OEM |
Product Description
12-24V gear reduction motor for garage door| Motor characteristic | | | | | | | | | |
| Products code | Voltage(V) | Power(W) | No load | Load | Gear Ratio | Motor length(mm) |
| | | | Speed(RPM) | Current(A) | Speed(RPM) | Current(A) | Torque(N.M) | | |
| D59L/R-1230-15 | 12 | 30 | 15±5 | ≤1.2 | 12±2 | ≤4.5 | ≥4.0 | 1:70 | 80 |
| D59L/R-2430-15 | 24 | 30 | 15±5 | ≤1.2 | 12±2 | ≤4.5 | ≥4.0 | 1:70 | 80 |
| D59L/R-2450-36 | 24 | 30 | 36±5 | ≤1.2 | 32±2 | ≤6.5 | ≥8.0 | 1:70 | 80 |
| D59L/R-1230-65 | 12 | 30 | 65±3 | ≤1.2 | 60±3 | ≤5.5 | ≥6.0 | 1:56 | 80 |
| D59L/R-2430-65 | 24 | 30 | 65±3 | ≤1.2 | 60±3 | ≤5.5 | ≥6.0 | 1:56 | 80 |
| D59L/R-4830-65 | 48 | 30 | 65±3 | ≤1.2 | 60±3 | ≤5.5 | ≥6.0 | 1:56 | 80 |
| D59L/R-4230-130 | 42 | 30 | 130±5 | ≤1.5 | 100±5 | ≤6.5 | ≥4.0 | 1:28 | 80 |
| D59L/R-2430-150 | 24 | 30 | 150±5 | ≤1.0 | 130±5 | ≤6.5 | ≥4.0 | 1:28 | 80 |
| D59L/R-2430-180 | 24 | 30 | 180±5 | ≤1.2 | 150±5 | ≤6.5 | ≥4.0 | 1:28 | 80 |
| D59L/R-2430-210 | 24 | 30 | 210±5 | ≤1.5 | 180±5 | ≤6.5 | ≥4.2 | 1:28 | 80 |
| Notice | The parameters of the motors above are for your reference, we can design and manufacture according to your |
| required like voltage,power,speed,torque and dimensions | | | | |
| Voltage:≤48VDC Power:≤60W Output Speed:≤180RPM | | | | |
| Speed sensor: hall sensor, encoder, opto sensor | | | | | |
| Application: welding machine,electrical household,diamond machiney,office intelligent enquipment,hotel leisure, |
| automated and so on. There are many kinds of gear ratio for your demand | | |
ABOUT US
Ritscher group was set up in 2006.we always focus on micro-motors for household electrical appliance and industry appliance since setting up.currently we have two professional micro-motor factories in China which severally located in Ningbo city and Foshan city.it has an area of 25,000 square meters plants and more than 300 employees, annual output is 3 million pcs and has 5 million pcs annual producing capacity.after several years development,we had built a great reputation in the market and got more and more customers' trust in the world.
We started from shaded pole motors at beginning, up to now,our product included of shaded pole motors,synchronous motors,stepping motors ,capacitor motors, BLDC motors, DC motors and compressors. Our product are widely used for making refrigerators, freezers, micro-wave ovens, air warmers, air exhausters, ventilators,ovens, air filter, massage machines and many other equipments.

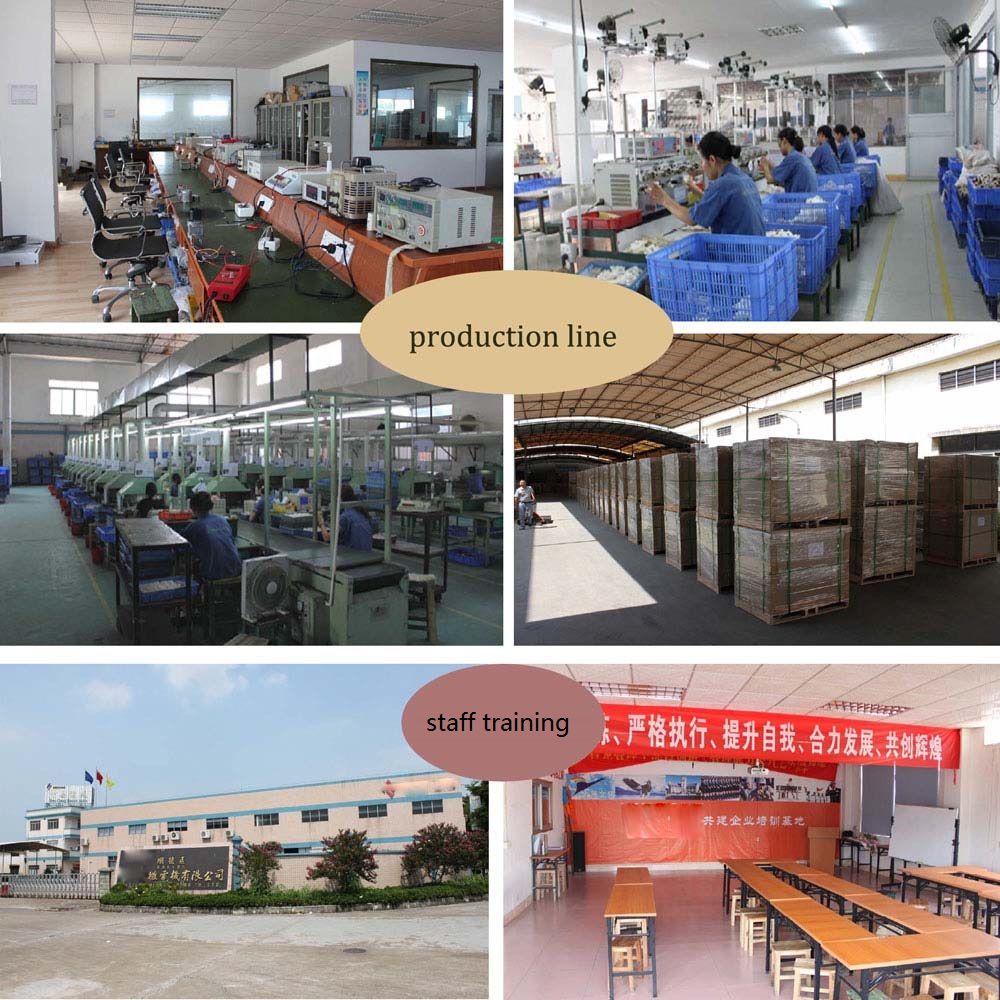

As a realiable quality guaranty,Ritscher has complete R&D departement,QC department,producing department,purchase department etc. has perfect producing equipment like Aluminum diecasting, Zinc diecasting, Sheet metal stamping, Plastic injection molding etc. also test/ detection device like multiplex temp measuring device, performance parameter inspection device, Phenol peptide solution pinhole tester,Anechoic room etc.
Endeavoring to provide the best product and service to customers,we always do the most effort to become an outstanding manufacturer of micro motors.
Ritscher is always willing to establish sincere business relationship with friends from all over the world.
Welcome contact with us!
Take ritscher ,enjoy modern life!
Our company FAQ for you
(1) Q: What kind motors you can provide?
A:For now,we mainly provide Kitchen Hood Motor,DC Motor,Gear Motor,Fan Motor Refrigerator Motor,Hair Dryer Motor Blender Motor Mixer Motor,
Shade Pole Motor,Capacitor Motor,BLDC Motor PMDC Motor,Synchronous Motor,Stepping Motor etc.
(2) Q: Is it possible to visit your factory
A: Sure. But please kindly keep us posted a few days in advance. We need to check our
schedule to see if we are available then.
(3) Q: Can I get some samples
A: It depends. If only a few samples for personal use or replacement, I am afraid it will
be difficult for us to provide, because all of our motors are custom made and no stock
available if there is no further needs. If just sample testing before the official order and
our MOQ, price and other terms are acceptable, we'd love to provide samples.
(4) Q: Is there a MOQ for your motors?
A: Yes. The MOQ is between 1000~10,000pcs for different models after sample approval.
But it's also okay for us to accept smaller lots like a few dozens, hundreds or thousands
For the initial 3 orders after sample approval.For samples, there is no MOQ requirement. But the less the better (like no more than 5pcs) on condition that the quantity is enough in case any changes needed after initial testing.
Ritscher group was established in 2006. We always focus on micro-motors for household and industrial electrical appliance. Currently, we have professional micro-motor factories separatlly located in Guangdong & Zhejiang province. It has 50, 000 square meters plants and more than 500 employees, annual output is 5 million PCS and has 10 million PCS annual producing capacity. After years development, we built a great reputation in the domestic and oversea market and have the trust from our global customers.
We started our business from shaded pole motors, after 10 years development, our products is enlarged to BLDC motors, capacitor motors, synchronous motors, stepping motors, servo motors, and PMDC motors. Our products are widely used for making refrigerators, freezers, micro-wave ovens, air warmers, air exhausters, ventilators, ovens, air filter, massage machines and many other equipments.
To design the latest technology motors and meet our customers requirments, we have the very capable R&D team, to ensure our products quality, we have very strict manage system for our production department & QC department, to make our cost lower, we have the very professional purchase department, We dedicate to make every details better than we could do.
To offer quick and better service to our customers in Australia and New Zeland, we set up branch office in Australia since 2017 with exprienced consultant to support the business, which will bring more customers to get know of us.
We will keep doing our job, move forward step by step to make our business area wider and brighter.
