| Prod Model: |
ROS120 |
| Model: |
Cluster Drill |
| Name: |
Jumbo Cluster Hammer |
| Model No: |
Atlas Copco Cluster Drill |
| Series: |
Super Jumbo Cluster Hammer Drill |
| Rocks: |
Drill for Hard Rock Conditions |
| Drilling: |
DTH Hammers Drilling |
| Use: |
Several DTH Hammers Work Together |
| Item: |
Single Jumbo Cluster Hammer |
| Machine Type: |
Drilling Tool |
| Item No: |
Drill Bit |
Product Description
We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Germany, China(joint-venture).
We have rich experience in this field of DTH hammers and bits for 60 years.
Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as US, Canada, France, Spain, Italy, South Africa, Iran, Malaysia, Australia, etc.
12" DTH hammer specifications:
Model: SD12, NUMA120, NUMA125
| | SD12 | NUMA120 | NUMA125 |
| Length(less bit) | 1880mm | 1880mm | 1880mm |
| Weight (less bit) | 487.0kg | 475.0kg | 470.00kg |
| External diameter | 275mm | 275mm | 275mm |
| Bits shank | SD12 | NUMA120 | NUMA125 |
| Bits diameter | 305-381mm
12" - 15" | 305-381mm
12" - 15" | 254-330mm
10" - 13" |
|
|
|
| Connection thread | API 6 5/8" Reg | API 6 5/8" Reg | API 6 5/8" Reg |
| Air pressure | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa |
ROSCHEN RC hammer technical data:
| ROSCHEN DTH Hammers Specifications |
| Hammer Size | Bit Shank | ROSCHEN Code | Connection Thread | Suitable bit | Working pressure | Air consumption |
|
| 2" | BR2 | ROS 11 ROS 22 | RD50 box | ¢70-¢90mm | 0.7-1.75Mpa | 0.7Mpa | 4.5m3/min |
| 1.0Mpa | 4m3/min |
| 1.4Mpa | 5m3/min |
| 3" | DHD3.5 | ROS 32 | API 2 3/8" Reg | ¢90-¢110mm | 1.0-1.5Mpa | 1.0Mpa | 4.5m3/min |
| COP32/COP34 |
| M30 | 1.5Mpa | 9m3/min |
| 4" | DHD340 | ROS 34 | API 2 3/8" Reg | ¢110-¢135mm | 1.0-2.5Mpa | 1.0Mpa | 6m3/min |
| COP44 |
| QL40 |
| SD4 | 1.8Mpa | 10m3/min |
| M40 | 2.4Mpa | 15m3/min |
| 5" | DHD350 | ROS 52 ROS 54 | API 2 3/8"Reg/API 3 1/2" Reg | ¢135-¢155mm | 1.0-2.5Mpa | 1.0Mpa | 9m3/min |
| COP54 |
| QL50 |
| SD5 | 1.8Mpa | 15m3/min |
| M50 | 2.4Mpa | 23m3/min |
| 6" | DHD360 | ROS 62 ROS 64 | API 3 1/2" Reg | ¢155-¢190mm | 1.0-2.5Mpa | 1.0Mpa | 10m3/min |
| COP64 |
| QL60 |
| SD6 | 1.8Mpa | 20m3/min |
| M60 | 2.4Mpa | 28.5m3/min |
| 8" | DHD380 | ROS 82 ROS 84 | API 4 1/2" Reg | ¢195-¢254mm | 1.0-2.5Mpa | 1.0Mpa | 15m3/min |
| COP84 |
| QL80 | 1.8Mpa | 26m3/min |
| SD8 | 2.4Mpa | 34m3/min |
| M80/M85 |
| 10" | SD10 | ROS 100 | API 6 5/8" Reg | ¢254-¢311mm | 1.0-2.5Mpa | 1.0Mpa | 22m3/min |
| Numa100 | 1.8Mpa | 40m3/min |
| ROS 100 | 2.4Mpa | 55m3/min |
| 12" | DHD1120 | ROS 120 | API 6 5/8" Reg | ¢305-¢445mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
| SD12 | 1.8Mpa | 56m3/min |
| Numa120 | 2.4Mpa | 78m3/min |
| Notes: |
| Metzke, Remet thread is available! |
| Any special typ shank of DTH Hammer will be available by requests. |
Other shank can be available:
3.5" hammer, shank: DHD3.5 / Bulroc BR3 / COP32 / QL30 / M30 /Mach303
4" hammer, IR DHD340A / SD4 / COP44 / QL40 / Bulroc BR4 / M40 / Mach44 shank
5" hammer, IR DHD350R / SD5 / COP54 / Bulroc BR5 / QL50 / M50 /Mach50 shank
6" hammer, IR DHD360 / SD6 / COP64 / Bulroc BR6 / QL60 / M60 shank
8" hammer, IR DHD380 / SD8 / COP84 /QL80 shank
10" hammer, SD10 / Numa100 shank
12" hammer, IR DHD1120 / SD12 / Numa120 / Numa125 shank
15" hammer, SD15 shank
We can also provide related products DTH button bits, ODEX, symmetric overburden systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc

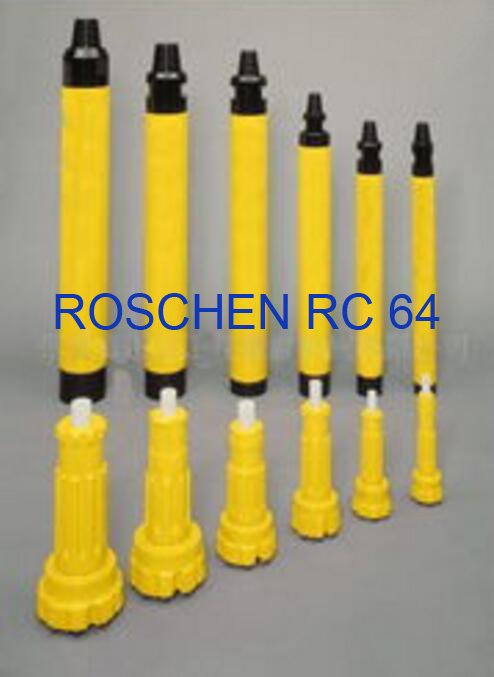

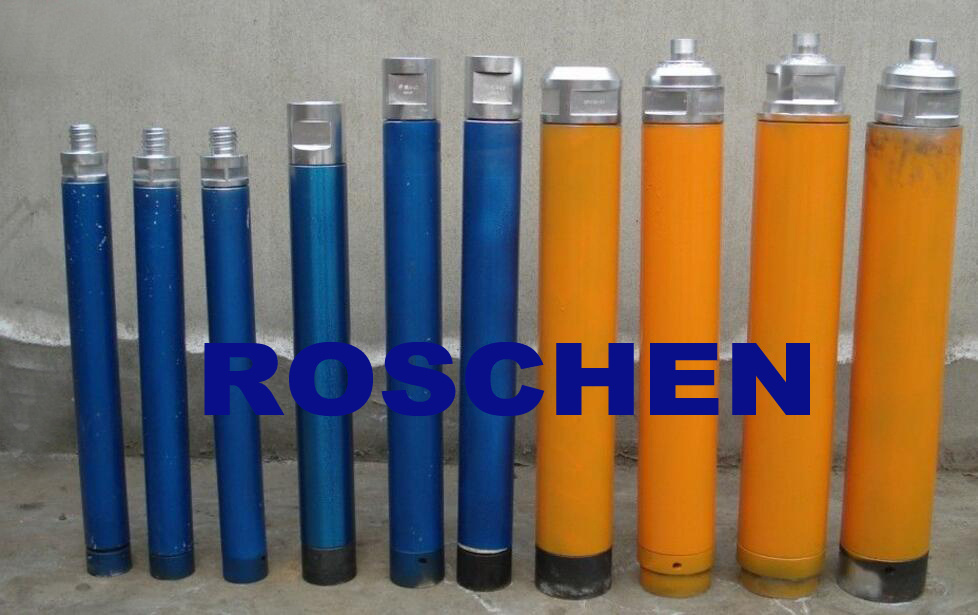

Product photos
Quality warranty:
Our hammers are made of high quality steel and all spares are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.
Package:
Using ply-wooden cases and pallet for exporting to protect products and avoid the damagement during transportation. Also we can customize package according to your special requests.
Production time:
Generally, Production time is 15 -25 days.
Transportation:
By air, By Express or By sea according to your requests.
