| Prod Model: |
XL-F12 |
| Rated Power: |
300W/8ohm |
| Frequency Response: |
55Hz-19.7kHz |
| Sensitivity: |
98dB |
| Max Spl: |
127dB |
| Connector: |
Speakon Pin1 Nl4 * 1 + 2 + / POS |
| Product Size: |
600*365*380 |
| N.G: |
24 Kg |
| Noise: |
<102dB |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
2.0 Channel |
| Speaker Material: |
Wood |
| Certification: |
FCC |
| THD: |
<0.005% |
| Application: |
Stage |
| Monitor: |
No |
Product Description
Features:★F series of speakers with its outstanding flexibility and extremely strong structure, to play a variety of sound reinforcement from the occasion of high-quality speakers;
★With a high smooth frequency response and exciting dynamic sound quality performance;
★Classic ergonomic box design, small, multi-angle, equipped with flexible, so that large-scale sound reinforcement system to build efficient and stable;
★Application areas: the main sound reinforcement of the hall sound reinforcement system;
★Theater, auditorium; club and DISCO main sound reinforcement and auxiliary speakers;
★Large - scale mobile performance of the main sound reinforcement, the stage back, side return, the former fill sound;
The main technical parameters:
Rated power: 300W;
Maximum input power: 600W;
Impedance: 8Ω;
Frequency response: 55Hz-19.7KHz;
System type: 12-inch two-way two full-range;
Tweeter: 44 core treble × 1;
Woofer: 12 inch bass × 1;
Standard coverage angle: 90 ° (H) x50 ° (V);
Maximum sound pressure level: 127dB;
Sensitivity (1W / 1m): 98dB / W (lm);
Connector: SPEAKON NL4 × 1 PIN1 + / 2 + POS. PIN1- / 2-NEG (positive and negative 4-pin security plug); hanging hardware: 8xM8 hanging point,
Material and surface treatment: plywood, environmentally friendly water-based paint;
Colour: Black;

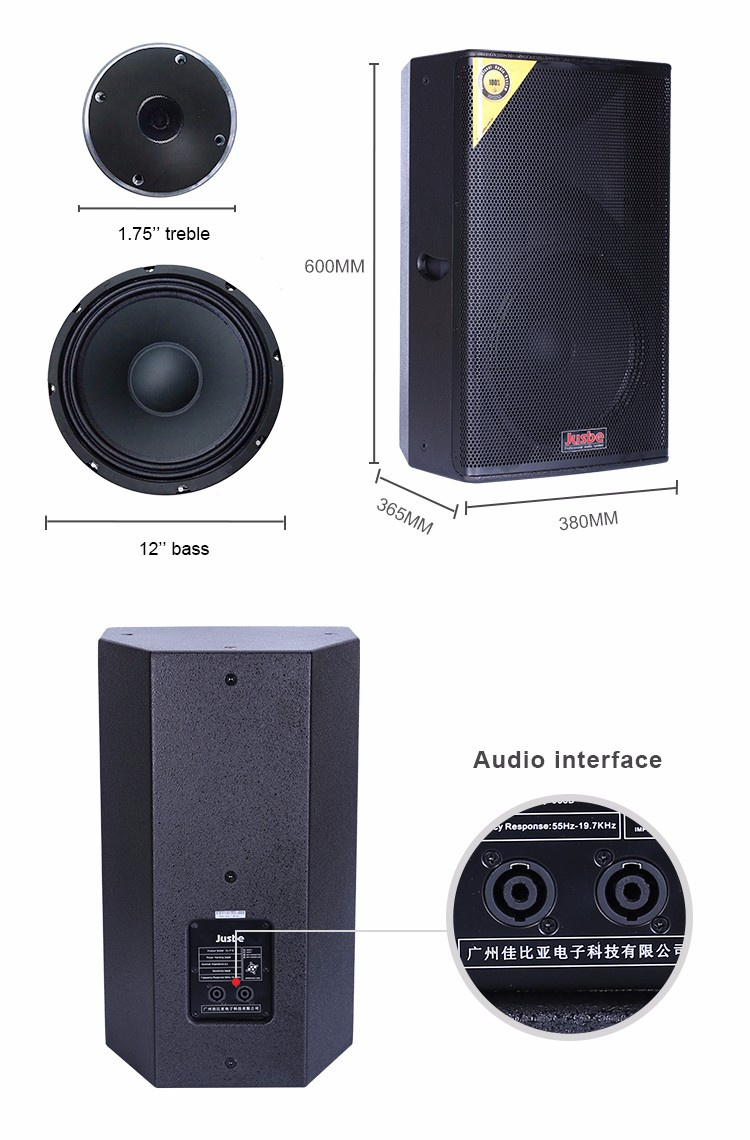

Packaging & Shipping★Product Size: 600 * 365 * 380 (unit: mm)
★Packing size: 720 * 470 *440 (unit: mm)
★Net Weight: 24kg / pcs.
★Gross Weight: 25kg / pcs
Payment termSmaple:T/T 100% deposit before delivery.
Mass production: T/T 30%deposit in advance
Delivery timeSample:3 days
Mass production:5-7 day,depand on quantity
| Product Name | Powerful 350w 1.75 inch tweeter full frequency PA sound system speaker club theater pc speaker |
| Item No. | XL-F10 | XL-F12 | XL-F15 | XL-GF15 |
| Raterd Power | 200W | 300W | 350W | 400W |
| Max Input Power | 400W | 600W | 700W | 800W |
| Impedance | 8Ω |
| Frequency Response | 50Hz-20KHz | 55Hz-19.7KHz | 45Hz-20KHz | 35Hz-19KHz |
| System Type | 10 inch, two channel, two unit, full-frequency | 12 inch, two channel, two unit, full-frequency | 15 inch, two channel, two unit, full-frequency | 15 inch, two channel, two unit, full-frequency |
| Tweeter Unit | 1.5 inch tweeter * 1 | 1.75 inch tweeter * 1 | 1.75 inch tweeter * 1 | 3 inch tweeter * 1 |
| Woofer Unit | 10 inch woofer* 1 | 12 inch woofer* 1 | 15 inch woofer* 1 | 15 inch woofer* 1 |
| Standard coverage angle | 90°(H) * 50°(W) |
| Max SPL | 125dB | 127dB | 129dB | 132dB |
| Sensitivity(1W/1m) | 96dB/W(1m) | 98dB/W(1m) | 99dB/W(1m) | 102dB/W(1m) |
| Connector | SPEAKON NL4*1 PIN1+/2+POS. PIN1-/2-NEG(plus/minus 4 cores plugs) |
| Suspension Hardware | 10*M8 suspension point, base |
| Material | plywood | 18mm plywood |
| Surface treatment | environmental protection water based paint |
| Color | Black |
| Product Size(mm/pc W*D*H ) | 330*330*530 | 380*365*600 | 430*450*670 | 430*450*670 |
| Net Weight | 18KG | 24KG | 30KG | 30KG |
