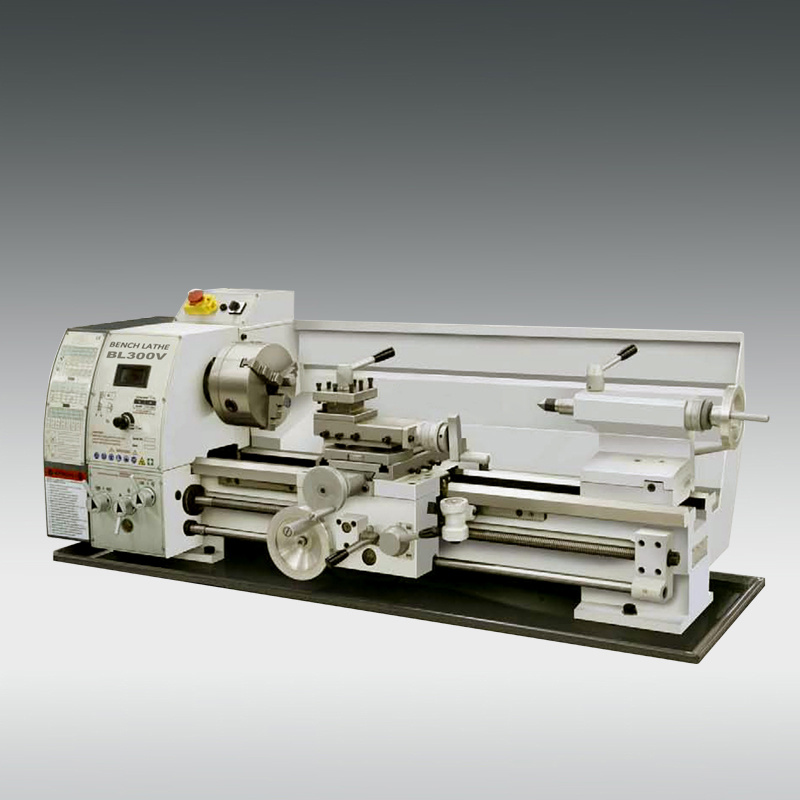

12" Precision Metal Working Bench Lathe
| Price: |
US $ 1200-1400/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal |
| Prod Model: |
BL300V |
| Type: |
Horizontal Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Table |
| Precision: |
High Precision |
| Processing Accessory: |
Metal Parts |
| Tool Holder: |
1 |
Product Description
| Model | BL300V |
| Swing over bed | 300 mm |
| Distance between centers | 700mm |
| Swing over carriage | 165 mm |
| Spindle bore | 38 mm |
| Spindle taper | MT.5# |
| Cross travel of compound slide | 140 mm |
| Longitudinal travel of tool post | 75 mm |
| Metric threads | 0.20~3.5 mm |
| Inch threads | 8~56tpi |
| Range of longitudinal feeds | 0.07~0.4 mm/r |
| Range of cross feeds | 0.02~0.28 mm/r |
| Travle of tailstock quill | 75 mm |
| Tailstock quill taper | MT3 |
| spindle speed | 50-1800rpm |
| Motor power | 1100W |
| Net weight | 250kg |
| Overall dimensions | 1400×700×700mm |
Standard Equipment - One Face Plate: 8"
- 8-pcs Change Gears
- 3-Jaw Chuck: approx 6-1/4" (160 mm)
- Dead Center: MT3
- Oil Gun
- Powder Coated Chip Tray
- Wrenches (8-10, 12-14, 17-19)
- Hex Wrenches (3, 4, 5, 6, 8)
- 2-pcs Screw Drivers: Phillip & Slotted
- Toolbox
OPTIONAL ACCESSORIES - 4-Jaw Chuck 160 mm
- Steady Rest
- Follow Rest
- Reduce Sleeve
ANHUI PANSINO MACHINE BUILDING Co., Ltd., established in 1996 in China.
PANSINO, 20 years development, over 40 years experienced senior technician team in respect of D&R, product field covering from Metal-working bench lathe machine, Precision gear head lathemachine, Heavy-duty lathe machine, Bench drill/mill machine, Multi-purpose machine, CNC machine and appreciated offering reliable services for the clients, the workshops, the wholesale trade firm and service stores.
Our company supplies lathe machines. We stick to the principle of "quality first, service first, continuous improvement and innovation to satisfy the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality and reasonable price.
