| Prod Model: |
121-OFM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
330CD/M2 |
| Inputs Signal: |
VGA,Audio,Video,S-Video(HDMI&DVI Optional) |
| Contrast Ratio: |
900:1 |
| Backlight: |
LED |

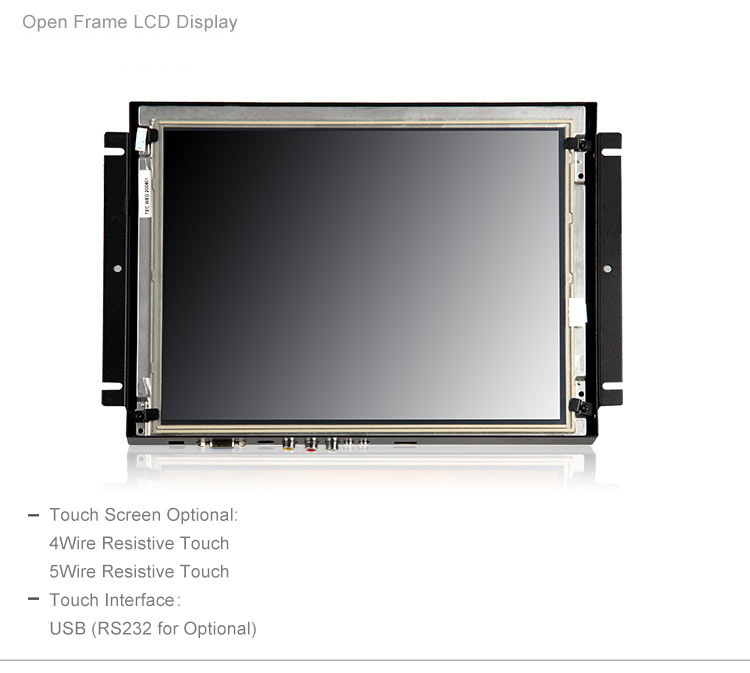

| Touch Screen: |
4-Wire Resistive |
| Touch Interface: |
USB |
| Application: |
Graphic Design |
| Aspect Ratio: |
4:3 |
| Feature: |
With Remote Control |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Response Time: |
10ms |
| 3D: |
Not 3D |
| Interface Type: |
HDMI |
| Screen Size: |
12.1 Inch |
| Optimum Resolution: |
800X600 |

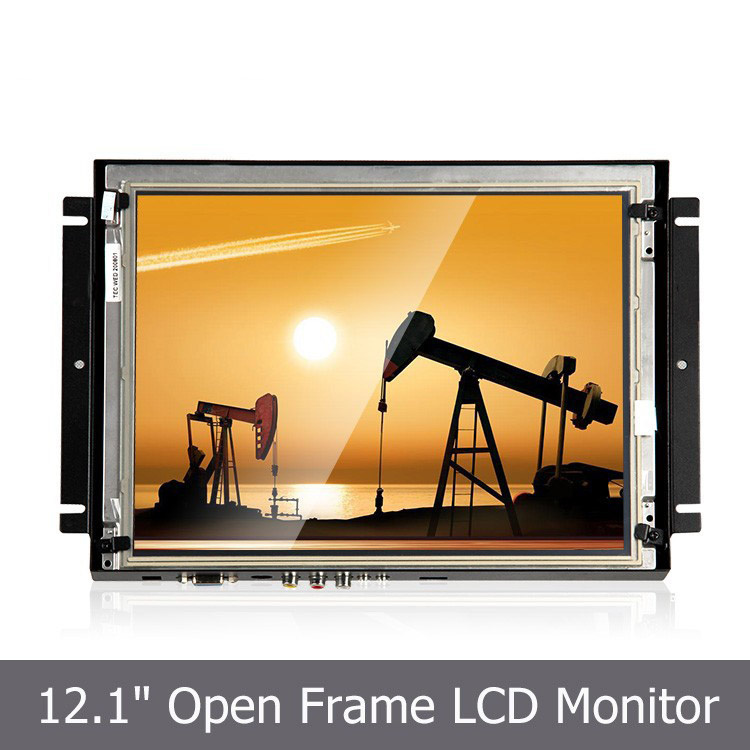

Product Description
AUKA Open Frame LCD display is designed for commercial and industrial applications , high brightness for sunlight readable application. Features wide operating temperature, high brightness, touch screen capable, and customized mechanical design; fulfill the demand for extreme environments. It offers the best visibility, performance and cost effective value. The high level of brightness together with fast response time and LED backlight technology, the monitor brings remarkable display quality. And guaranteeing product life cycle longevity, stability, and reliability. Perfectly suitable for kiosks, ATM, POS, marline, military, medical, transportation, Avionics, industrial automation, gaming, digital entertainment display and outdoor application.
Description: |
4:3 12.1" TFT LCD Metal Frame Monitor(Touchscreen Optional) |
|
Model: | 121-OFM |
| Brightness: | 330cd/m² |
| Dot Resolution: | 800x600 pixels (max to1920×1440) |
| Contrast Ratio: | 900:1 |
| Aspect Ratio: | 4:3 |
| Backlight: | LED |
| Viewing Angle: | 70°/70°(L/R) 50°/70°(U/D) |
| Input Voltage: | DC12V±15% |
| Input Signals: | VGA,Auido,Video,S-video(HDMI&DVI optional) /VGA,Video1,Video2,Audio,HDMI |
| Output Signals: | Audio |
| Power Consumption: | ≤23W |
| workingTemperature: | -20°C~60°C |
| storage Temperature: | -30°C~70°C |

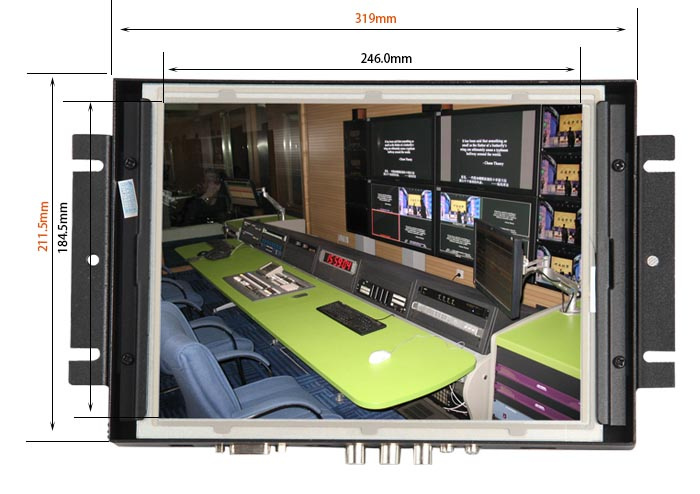

| Unit Size: | 319L × 211.5W × 33.3H (mm) |
| Unit Weight: | 2400g |
|

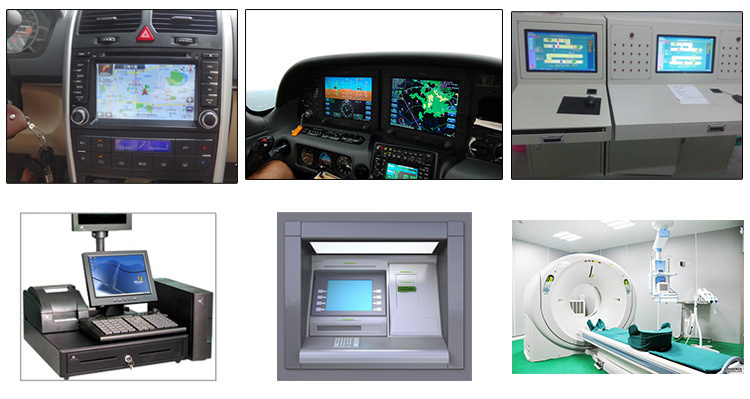

Application
Our open frame touch monitors are manufactured with steady performance and low power consumption.
They are mainly applied to various facilities.
Mainly Used in Closed-Circuit Surveillance Systems,
Car Video, Car navigation system,PC Operating Systems,
Vehicle Navigation Systems Supporting Display,
Can Also be Applied for Industrial Automation,
Industrial control system
Medical Machine Equipments,
Electric Power,
Petrification,
POS, ATM
Instrumentation Display Systems.

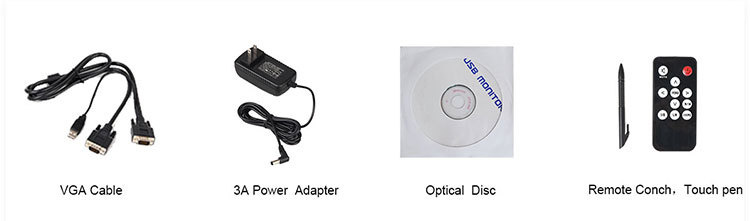

Accessories,OS Support and Packing:
Accessory | Optional Accessory | Packing |
| Home AC Adapter | HDMI cable | Box size | 36x31x7.1CM |
| Remote Controller | | Per box G.W. | 4kgs |
| Touch Drive Disc(for touch) | | Per Carton | 6pcs |
| Touch Pen(for touch) | | Carton Size | 48x44x36CM |
| VGA Cable | | N.W. | 18kgs/carton |
| USB cable(for touch) | | G.W. | 19kgs/carton |
Auka Industrial Limited is a high-tech enterprise specializing in TFT LCD Monitor, Touch Screen Monitor, Broadcast Camera Field Monitor, Embedded Computer, Industrial Panel PC, CCTV Monitor, USB Touch Monitor, Open Frame Monitor, LCD SKD Module, All in one POS, Transparent LCD, Sunlight Readable Monitor, FPV Monitor, Police Body Worn Camera and car DVR Recorder. And are widely used in the fields of security monitoring, traffic control center, broadcasting system, military, city square, shopping mall, bank, school and hospital, etc. Our monitors can be applied in devices like ATM, Self-service kiosk, Transportation, Automatic Vending Machine, Gaming Machine, POS, Medical Treatment, CNC Machine etc. We have set up a large customer network and gained praise since establishment in 2005 for preciseness, cordiality, powerful technology support and perfect market understanding. A factory with more than 8, 000 sq. M. As well as a team of well-trained employees. Our department of R&D, production, sales and after-service strictly abide by ISO9001 quality control system. Certified by CE, FCC, RoHS, CCC and E-MARK standard, the performance of our products meets or exceeds the advanced world standard. And our own-designed LCD Touch Monitor have became popular among many long- term customers and partners. Our products have been exported to America, Europe, Middle East, Australia and Southeast Asia.
We have yeares experience in OEM of VGA Touch screen, TFT LCD Module, Embedded Computer.
Welcome to our company for any OEM / ODM cooperation! Let' S go ahead hand in hand to embrace our prosperous tomorrow!
Professional, fast, and wonderful after-sales service is our mission. Customers' satisfaction is our final aim.
