| Prod Model: |
VT4888 |
| System: |
3-Way Full Range |
| Characteristic: |
Passive Speaker |
| Installation: |
Linear Suspension |
| Point: |
Line Array |
| Crossover Mode: |
External Frequency Division |
| Usage: |
Multifunction, Stadium, Churches, School |
| Customized: |
Accepted |
| Business Type: |
Factory |
| Driver: |
Lf: 12"*2, Mf: 5.5"*4, Hf:3"*2 |
| Rated Power: |
Lf: 800W, Mf: 240W, Hf: 200W |
| Noise: |
≥105dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
2.0 Channel |
| Speaker Material: |
Wood |
| Application: |
School, Multifuction Hall, Churches |
| Certification: |
SGS,ISO9001(2008) |
| THD: |
<0.005% |
| Monitor: |
None |
Product Description

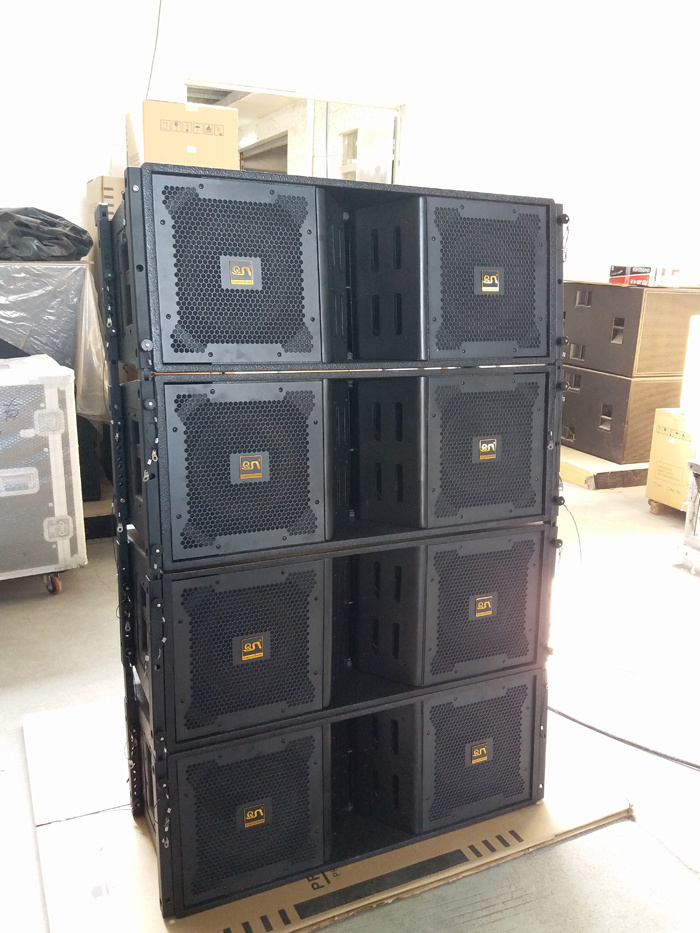

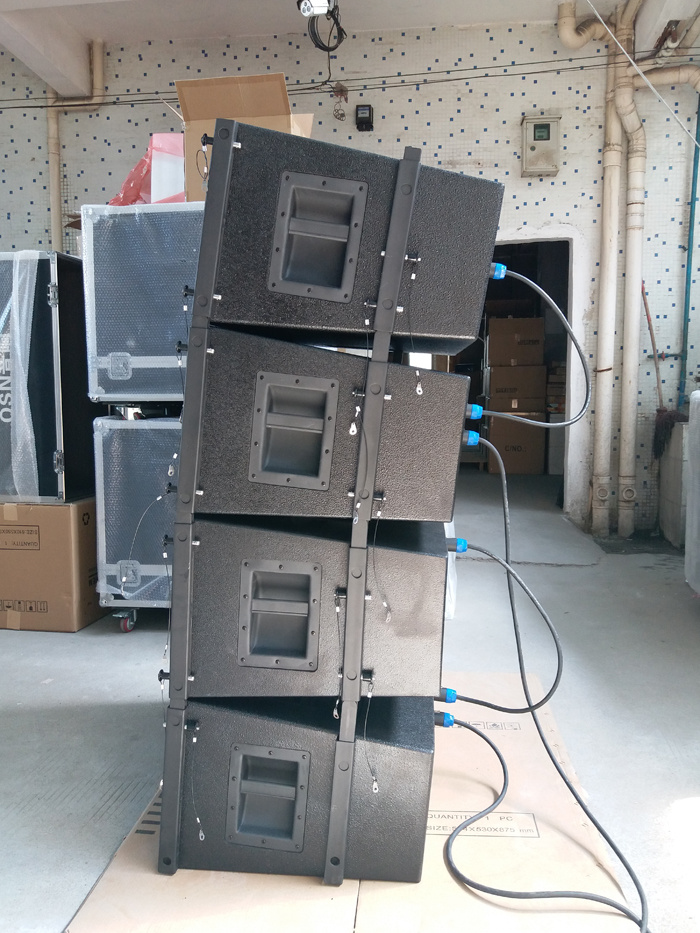

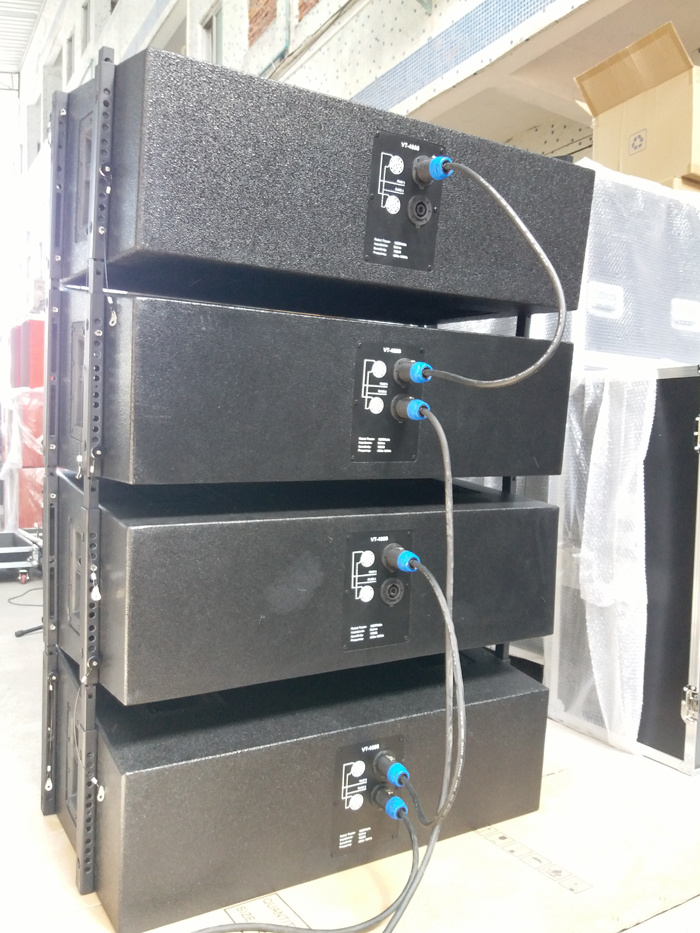

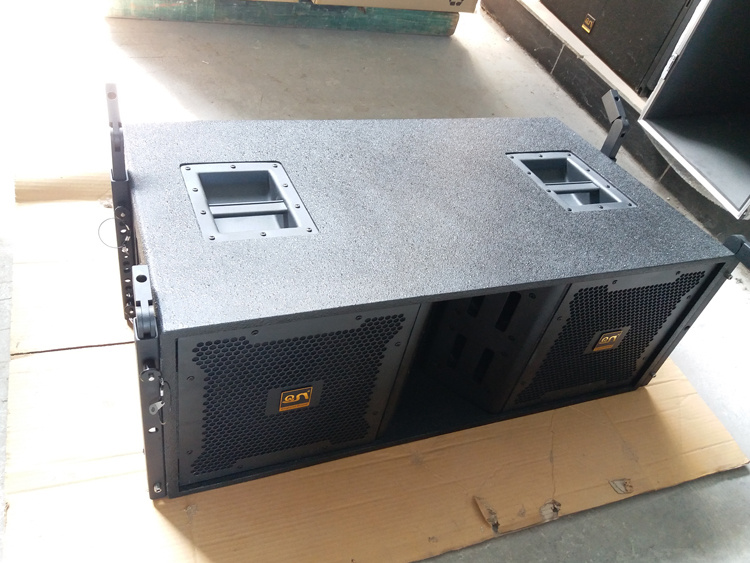

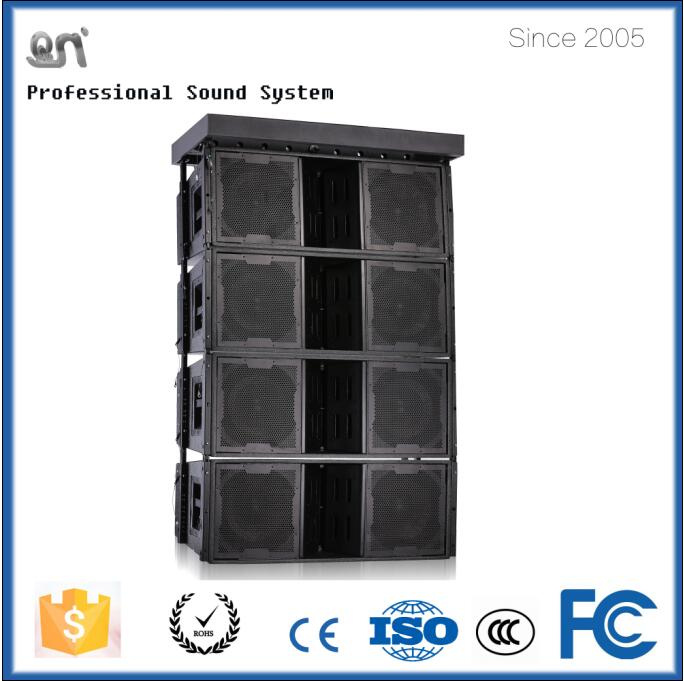

Name: 1200W Dual 12 inch Passive Line Array Speaker (VT4888)
Features
1.The material of case is high strength plywood.
2.Voice coil is adopted high quality material which can extremely high temperatures.
3.The driver has taken in enthusiast inductance and capacitor.
4.The bass is soft, clear and high penetrating.
5.Suitable for multi-functional hall, churches, school, stadium and outdoor performance, etc.
Parameters:
| System | 3-way full range |
| Frequency response | 45Hz-18KHz |
| Driver | LF:12"×2,MF:5.5"×4,HF:3"×2 |
| Rated lmpendance | LF/MF/HF:8Ω |
| System sensitivity | LF:104db, MF:105db, HF:112db |
| Rated power | LF:800W, MF:240W, HF:200W |
| Peak power | LF:3200W, MF:960W, HF:800W |
| Maximum SPL | LF:133db, MF:136db, HF:141db |
| Net weight | 67KGS |
| Product Size(W×D×H) | 1000×545×380mm |
| Packing Size(W×D×H) | 1068×628×462mm |
| Crossover mode | External frequency division |
| Suspension | Linear suspension |
How many days you could deliver?
For the sample order, we could send by Express upon receipt of this funds.You could receive them approx 3-5 days after we receive the deposit.
For the batch order, we will produce on the premise of guarantee quality as soon as possible.
What's mode of transportation?
For the sample order, we will deliver by Express, like DHL, Fedex, TNT and EMS.
Of course, it is more economical by sea for batch order.

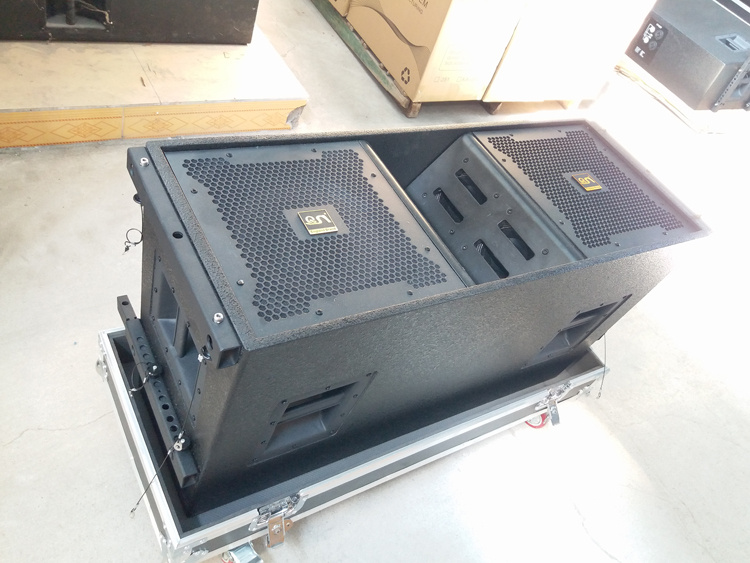

Packing: Box or flight case.
