125ton C-Type Fixed Table Stroke Adjustable Power Press

125ton C-Type Fixed Table Stroke Adjustable Power Press
Price: US $ 20000-30000SET
Min Order: 1SET
Pay Type: L/C,T/T
Prod Model: JL21-125a
Nominal Pressure: 125ton
Nominal Pressure Stroke: 5mm
Slide Stroke Length: 18.6-150mm
No.of Strokes Per Minute: 42-60spm
Max.Die Height: 400mm
Die Height Adjustment: 90mm
Size Of Table: 1100X630mm
Single Speed Motor Power: 15kw
Variable Motor Power: 11kw
Key Word: Stroke Adjustable Power Press
Controlling Mode: CNC
Power Source: Mechanical Drive
Precision: High Precision
Type: Stroke Adjustable Power Press
Automatic Grade: PLC Control ,Human-Machine Interface

Product Description

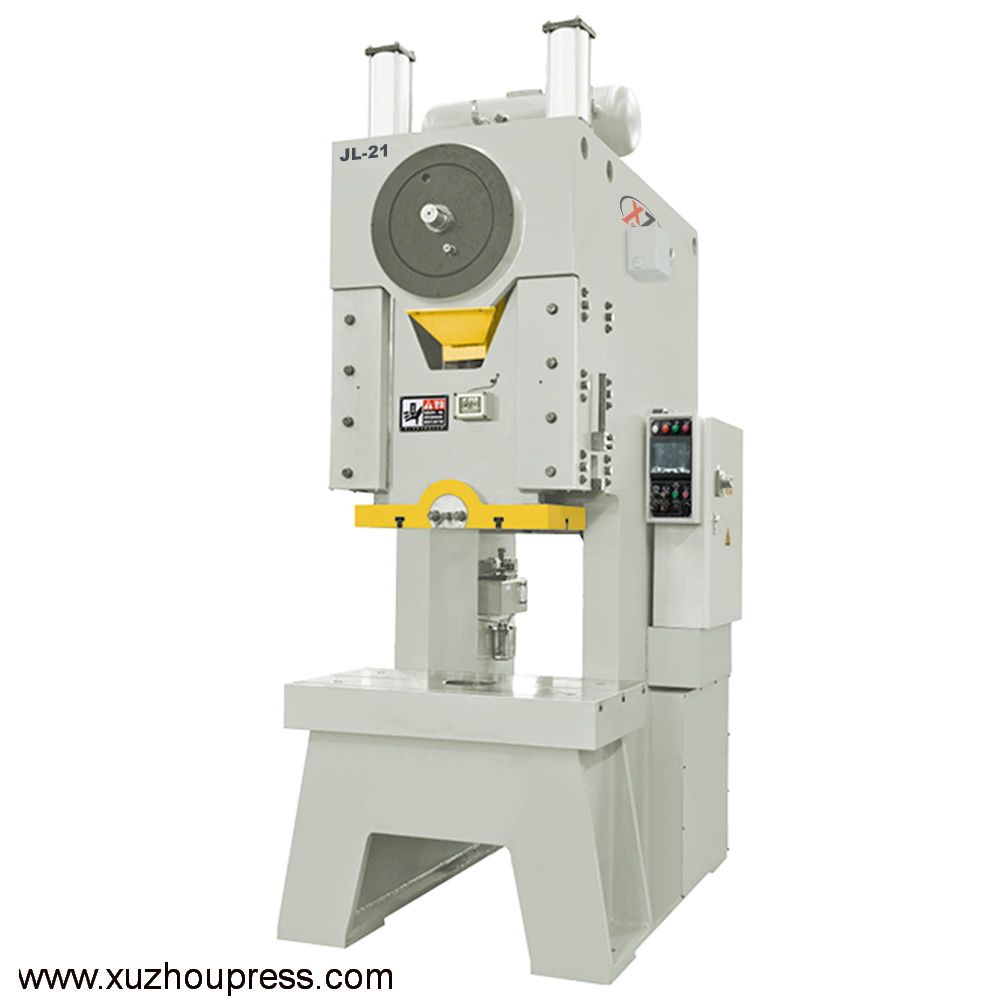

125ton C-Type Fixed Table  Stroke Adjustable Power Press

Manufacturing Precision Standards : Japanese JIS 1 Class

1. Parameters
Name UnitJL21-125A
Nominal PressurekN1250
Nominal Pressure Strokemm5
Slide Stroke Lengthmm18.6-150
No.of Strokes Per MinuteS.P.M42- 60
Max.Die Heightmm400
Die Height Adjustmentmm90
Throat Depthmm320
Distance Between Uprightsmm600
Bottom Size L-R mm700
Of SliderF-Bmm400
Hole For DiametermmΦ60
Punch ShankDepthmm80
Size Of TableL-R mm1100
F-Bmm630
Thicknessmm150
Size of DiametermmΦ140
Opening Table
Single Speed Motor PowerkW15
Variable Motor PowerkW11
Overall DimensionsL-R mm1300
F-Bmm2150
Heightmm3150









Xuzhou Metalfoming Precision Machinery Co., Ltd is a large-scale professional power press R&D and manufacturing enterprise, covered capacity 40ton~18000ton.

* Inherited more than 60 years of metalforming R&D and Manufacturing experiences, more than 20 patents.

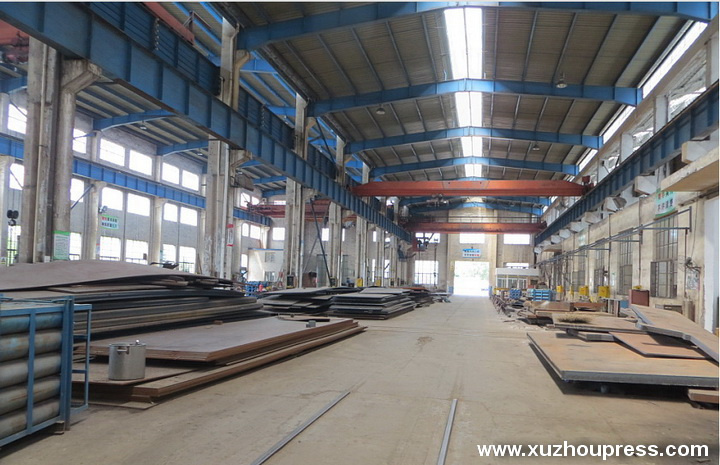

* Factory Area 200, 000.00 square meters.

* Staff of about 400 people

Main Products:

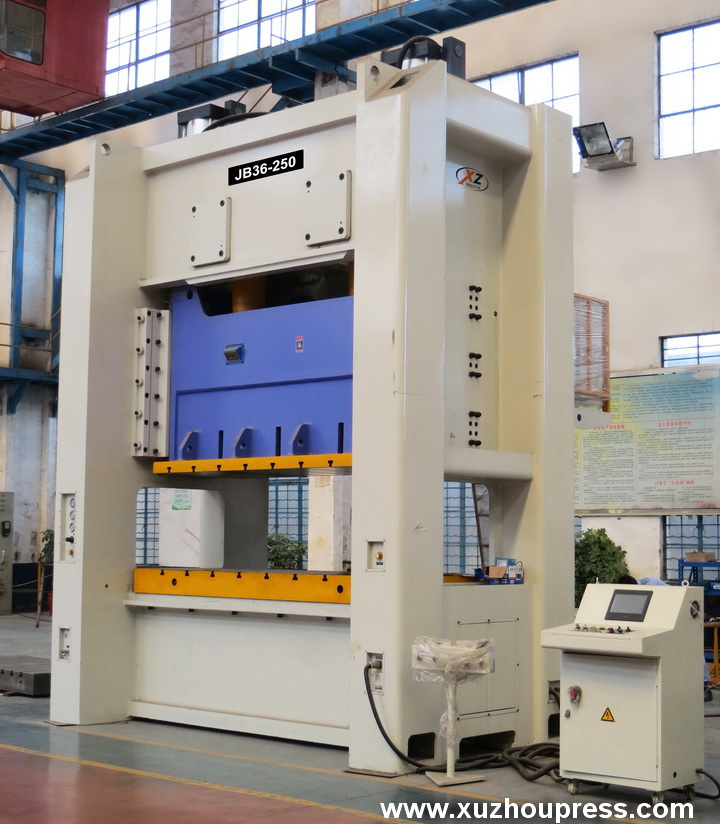

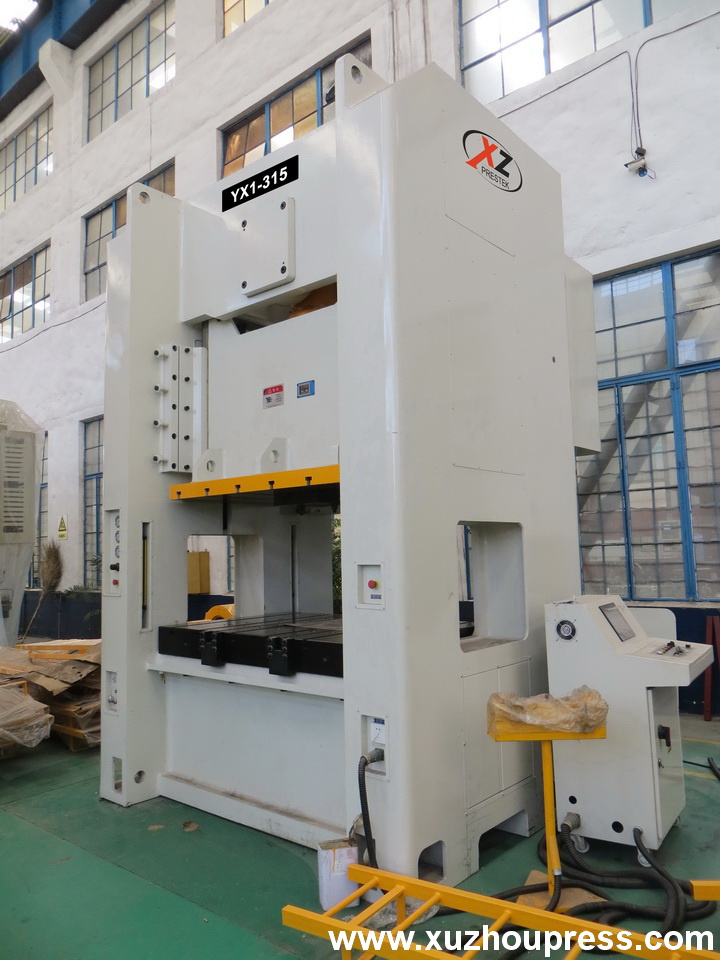

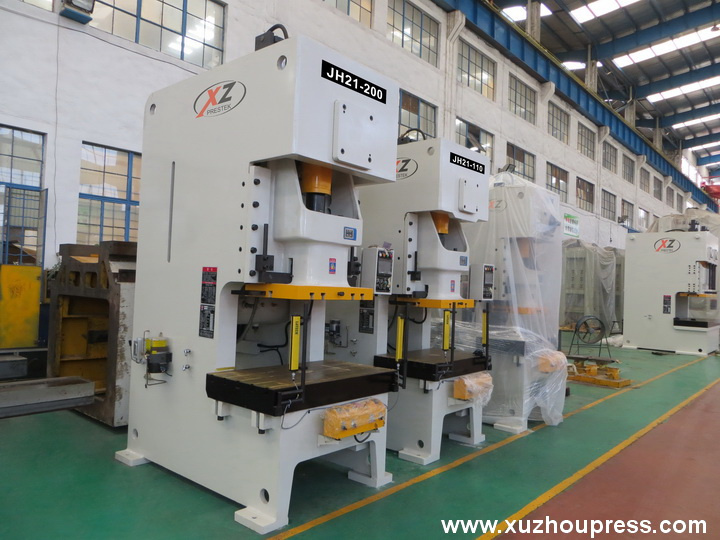

*Mechanical Press

* Coil Feeder

* Hydraulic Press

*Forging Hydraulic Press

* Special Purpose Customized Power Press.

Widely used in varieties of areas of aerospace, automobile manufacturing, shipbuilding, home appliances and others, popular for technologies of drawing, blanking, bending, Extrusion, Forging, SMG Composite molding, and etc.

Technology advantages:

* Inherited 60 years of hydraulic metalforming R&D and Manufacturing experiences, more than 20 patents.

* Take lead in technologies of proportional servo control, position digital control, synchronizing control, screen-touching and industry computer control, adopt three-dimension and module design technology, representing the highest level in the hydraulic press industry in China

Manufacturing Strength:

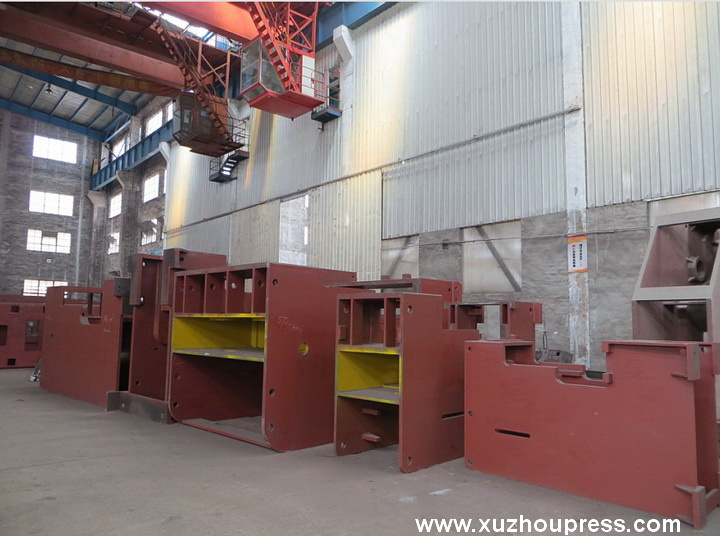

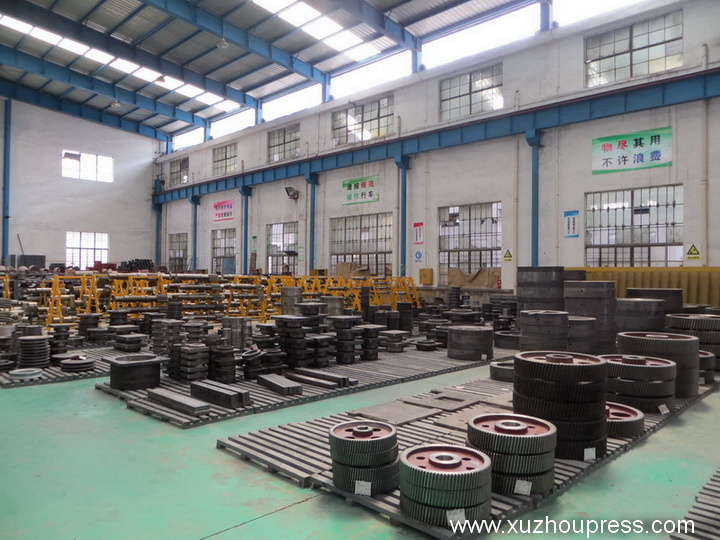

*The company have lots of large floor boring and milling machines, heavy lathes, milling machine planers and other key equipments, for varieties of machining.

*Also established new production base specially for heavy duty hydraulic press manufacturing more than 4000ton.

Marketing:

* As a result of good quality and reputation so that our products renowned at home and abroad, typical customers such as China CRRC, China CSR, China FAW, YTO, SINOPEC, CSIC, SHIFENG GROUP, LIFAN AUTO, BTE wheel, SUNRISE Wheel, FIAT, Bosch, Gree Air-conditioners, and etc.

*The presses already exported to over 20 countries and regions, such as Asia, Australia, America and Africa, and etc.
