| Prod Model: |
XJ3010 |
| Application: |
3D Printer |
| Current AMP: |
0.06-0.2 |
| Static Pressure: |
2.53-4.82 |
| Noise Level: |
24-30dB-a |
| Weight: |
8g |
| Connection: |
Lead Wires |
| Bearing Type: |
Ball&Sleeve |
| Function: |
Rd,Fg PWM |
| Rated Voltage: |
5V/12V/24V |
| Startup Voltage: |
3.5V/6V/12V |
| Blade Material: |
Plastic |
| Electric Current Type: |
DC |
| Certification: |
ISO9001 |
| Mounting: |
Screw Fixation |
Product Description
12v welding machine cooling fan 12v ip68 cooling tower fanProduct name :DC Axial fan
Brand name:Xinyujie

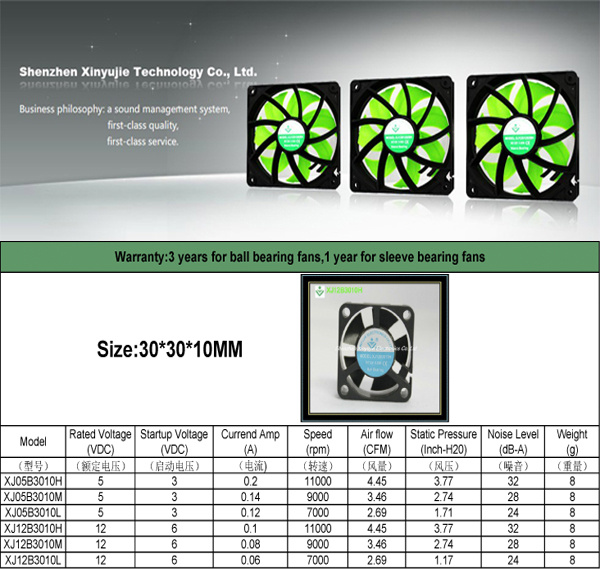

Dimension:30x30x10mm
Material:PBT plastic
Rated Voltage:5v/12v/24v
Current Amp:0.06-0.2A
Speed :7000/9000/10000RPM
Air flow:3.68-6.5CFM
Static pressure:2.53-4.82mmH2O
Noise Level:24-30dB-A
Weight:8g
Original country:China Shenzhen
Certification:CE,ROHS,UL

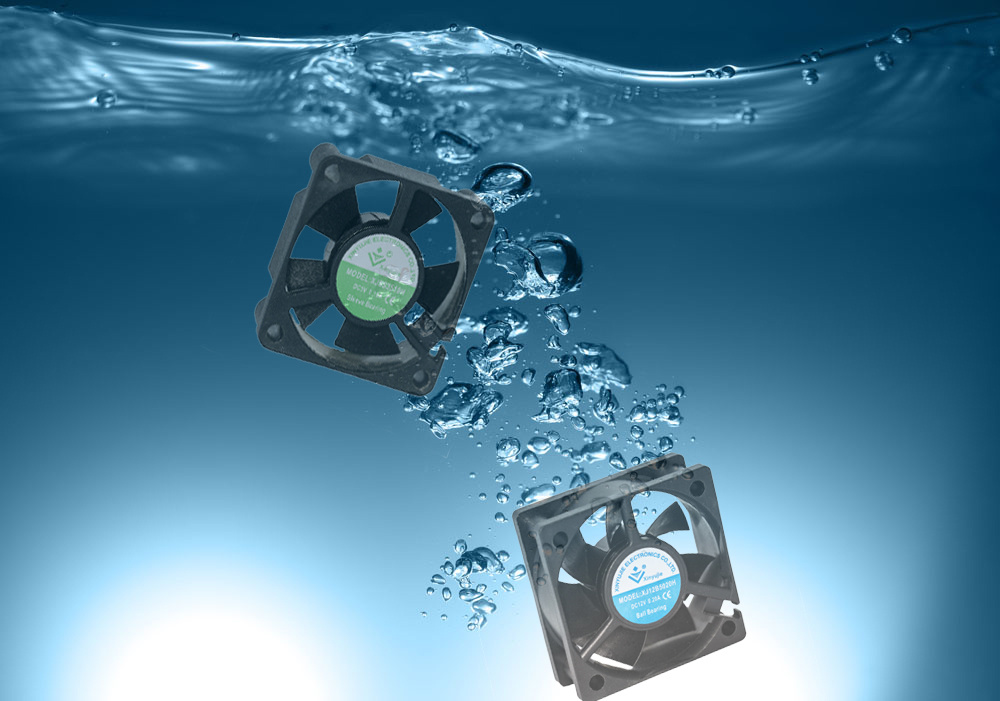

Function 1. Waterproof IP55 or IP67,can work in very wet environment,you can test the fans in the water. And also you can choose the salt-waterproof craft.
2. Wire leading:
2 wire(red wire:positive;black wire:negative)
3 wire(red wire:positive;black wire:negative;yellow wire:RD or FG)
4 wire(red:positive;black:negative;yellow:FG;green:Speed Control)
3. Optional function:
Auto-restart, Command velocity adjustment, Speed detection, Stopage Alarm, Waterfroof etc.

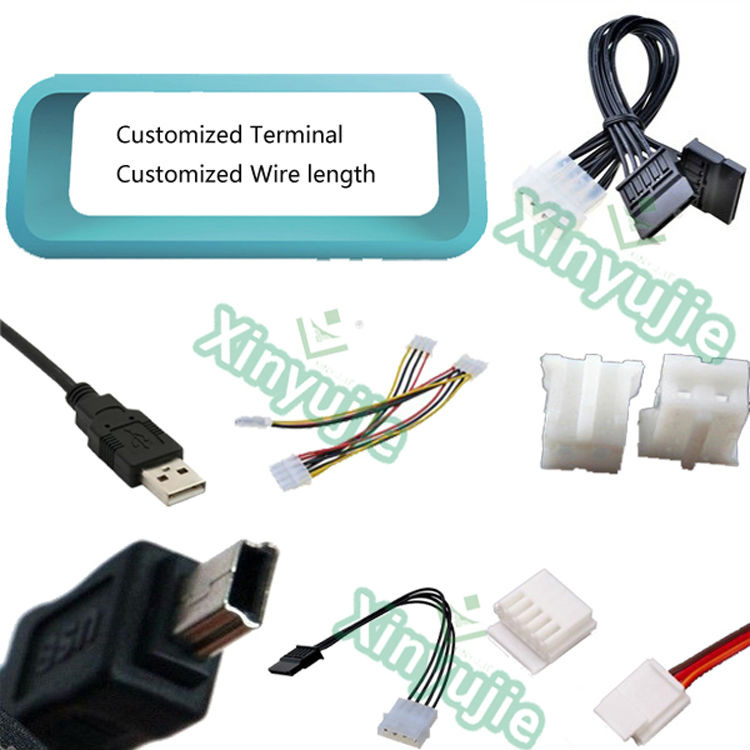

4.The wire length could be customized as your request. we just need the picture of connector and rank of wires for confirm.

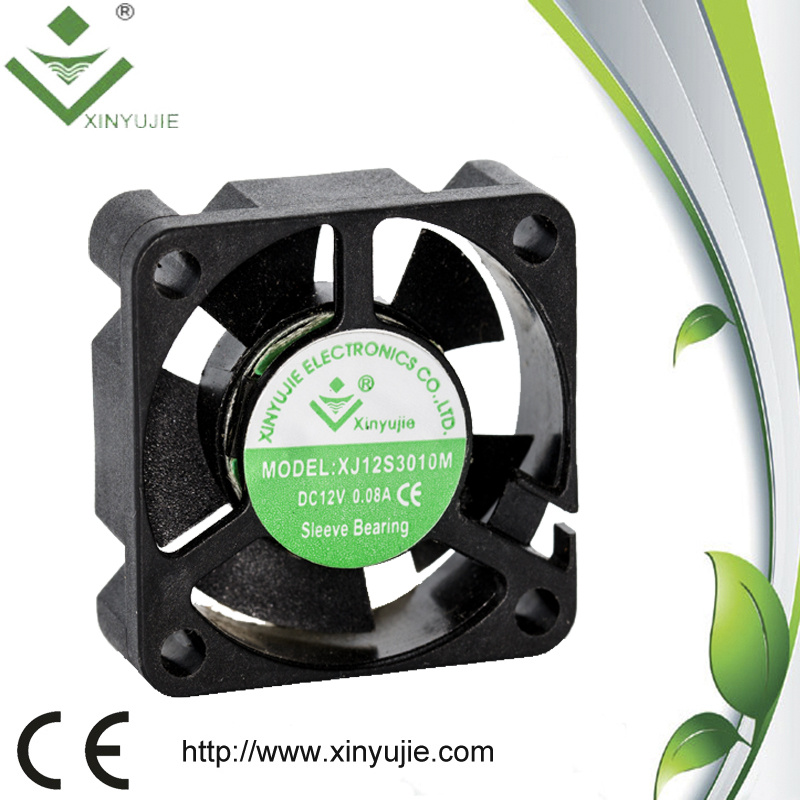

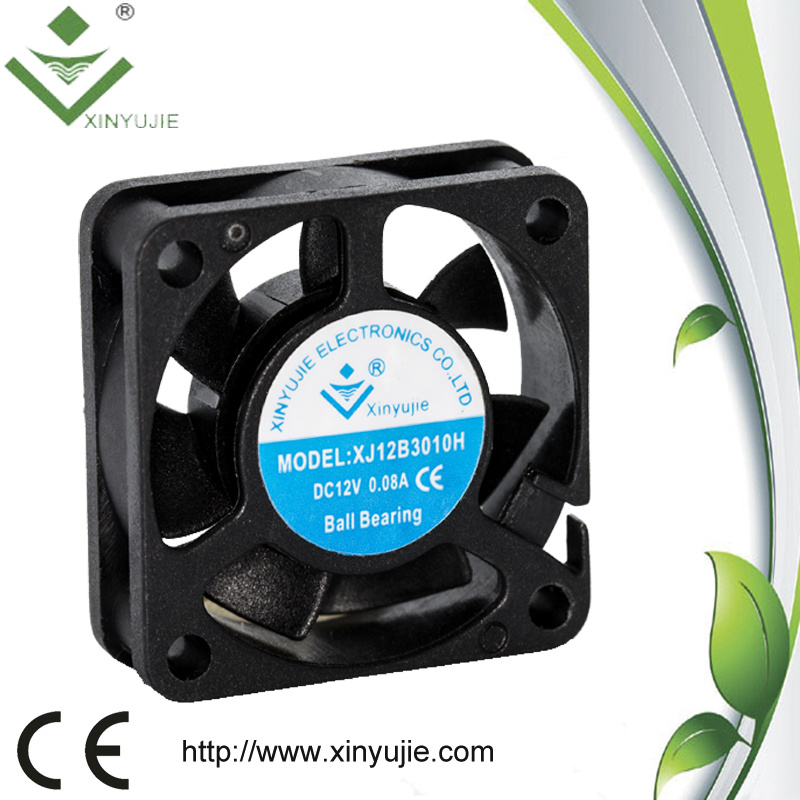

Our Services1.Optioanl Bearing types:
Sleeve bearing (low price): | Ball bearing (higher price ): |
- The sleeve was imported from Germany
| - We ues the NSK ball which is imported from Japan
|
| |
| - High quality ,long service life
|
| |
\ | |
- We warranty 1 year for sleeve fans
| - We warranty 3 years for ball fans
|
2.Our service :
- OEM service based on MOQ 1000 pcs
- Ordinary material and waterproof material optional
- Best quality cooling fans produced by ourselves
- Best service by our sales and engineers
- All can be customized
3.Guarantee :
- 3 years warranty for ball bearing fans
- 2 years warranty for hydraumatic bearing fans
- 1 year warranty for sleeve bearing fans
4. Motor Protection (Selective purchasing):
- Automatic Restart.
- Reverse Polarity Protected
- Water proof for IP55
- Ic function RD ,FG and PWM control
Product uses
1.Home appliance 2.Kitchen 3.Car industry 4.Telecom 5.Medical Equipment 6. UPS Power 7. LED Lighting 8.Computer 9.Safety Equipment 10.Office Electrics
Packaging & Shipping
1.Packaging details :
Two layer packaging ,PCS/CNT
2.Packaging size:
43*28*43CM
3.Lead time :
- Samples within 7 days
- Mass production within 15-20 days
- If do the waterproof fan need 1 week more
4.Express :
- DHL.EMS.Fedex.UPS.IATA.TNT.China AIR Express.Iceland express and so on
- 100% in advance for sample order
- 30% in advance and 70% before diapatch for mass order
Company Information

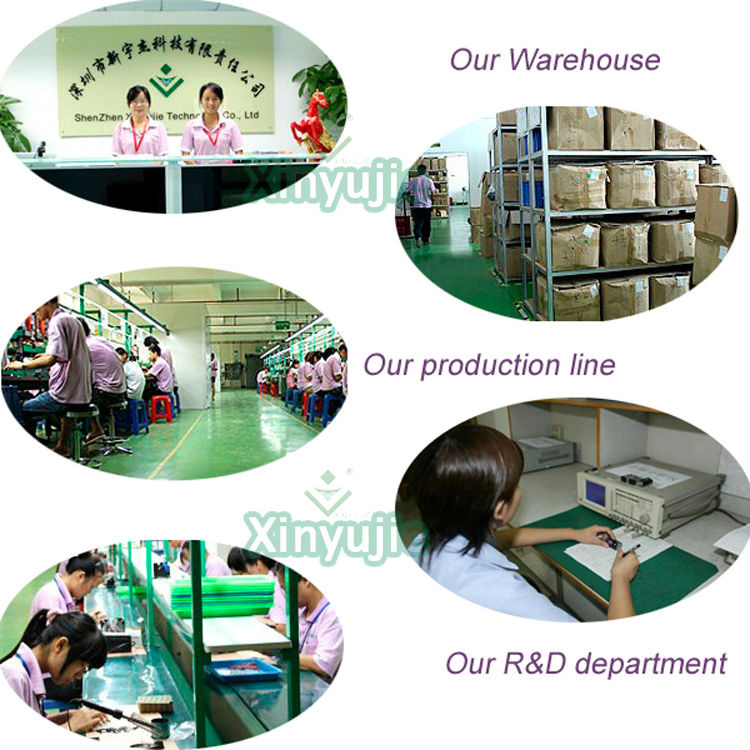

-We are an enterprise specialized in developing and producing AC/DC/EC cooling fans.
It is applies to armamentarium, communication device, big server machine, security and protection monitoring, professional power amplifier, indoor air ventilation, instrument and equipment etc.
-We have owned professional R&D department, and we have dozens of patents of utility model and designs.
-We have full series dimension ranging from 25*25*7mm to 172*172*51mm, including sleeve bearing, ball bearing, hydraulic bearing, and the current amp, rated voltage. Speed, air flow can all be customized.
-Our Tenets: others without I have, people have my superior.
We need detailed information from you to arange production for you :
- Fan dimension
- Rated voltage :5V/12V/24V/48V
- Current Amp or the Speed
- Sleeve or Ball bearing
- Lead wires length ?(Our default is 200mm )
- Two wire leading (black and red wire) or three /four wire leading ?
- Terminal :with terminal or not ?What kind of terminal ?
shenzhen xinyujie technology Co., Ltd was established in 2006. we specialized in developing and producing AC/DC/ec cooling fans. our products involving multiple fields such as armamentarium, communication device, big server machine, security and protection monitoring, professional air amplifier, indoor air ventilation, instrument and equipment etc.
our staff member adhere to the principle "the best quality, the best service", and won a good reputation among our industry, suppliers, customers...at present, we have two hundred employees, and the annual production is more than 20 million.
xinyujie fans have full series dimension ranging from 25X25X07mm to 172X172X51mm, including skeeve bearing, ball bearing, hydraulic bearing, and the current AMP, rated voltage, speed, air flow can all be customized. and our fans can be added additional function: auto restart, temperature control speed, speed detection(fg), stppage alarm(rd), waterproof etc.
xinyujie got an excellent R&D department, they developed several cooling fans collection-DC cooling fans, AC cooling fans, blower fans, chip cooling and cooling module for the solution of cooling system. we have dozens of patents of utility model and designs, for example: ec cooling fans module. it contains an isolaation type AC-DC converters can adjust the voltage from high to low based on the type of fans. the DC motor speed will change the wind power which can lead to higher speed and air flow. make the fan produces maximum air volume to reduce interntional heat resistance.
