1300/1300k Series Ring Cold Machine Self-Aligning Ball Bearing
| Price: |
US $ 1.1/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
1217,1316,1315,1314,1313,1312,1311,1310,1309,1308 |
| Rolling Body: |
Ball Bearings |
| The Number Of Rows: |
Single |
| Material: |
Bearing Steel |
| Load Direction: |
Thrust Bearing |
| Separated: |
Unseparated |
| Outer Dimension: |
35mm-240mm |
Product Description

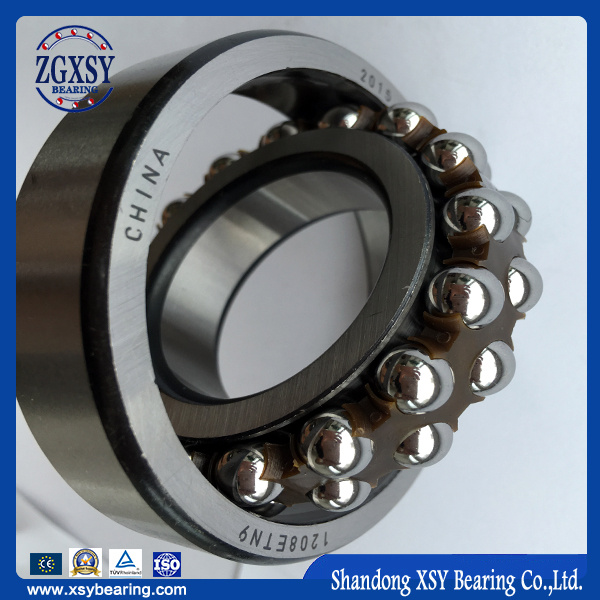

About Self-aligning Ball BearingSelf-aligning ball bearings have two rows of balls and a common sphered raceway in the outer ring. The bearings are insensitive to angular misalignment of the shaft relative to the housing.
Self-aligning ball bearings generate less friction than any other type of rolling bearing, which enables them to run cooler even at high speeds.
Self aligning ball bearings are non separable double-row radial bearings:
- Excellent alignment compensation due to the spherical outer ring raceway
- Suitable for low to medium radial loads and low thrust loads
- Available in open and sealed versions, as well as in tapered bore (suffix K)
- Standards: DIN 616, DIN 630
Series: 1200, 1300, 2200, 2300, 11200, 11300
Parameters| Bearing No. | Boundary dimensions | Mass |
| mm | kg |
| d | D | B | ≈ |
| 1300 | 10 | 35 | 11 | 0.058 |
| 1301 | 12 | 37 | 12 | 0.066 |
| 1302 | 15 | 42 | 13 | 0.092 |
| 1303 | 17 | 47 | 14 | 0.128 |
| 1304 | 20 | 52 | 15 | 0.16 |
| 1304K | 20 | 52 | 15 | 0.158 |
| 1305 | 25 | 62 | 17 | 0.255 |
| 1305K | 25 | 62 | 17 | 0.251 |
| 1306 | 30 | 72 | 19 | 0.383 |
| 1306K | 30 | 72 | 19 | 0.377 |
| 1307 | 35 | 80 | 21 | 0.5 |
| 1307K | 35 | 80 | 21 | 0.492 |
| 1308 | 40 | 90 | 23 | 0.709 |
| 1308K | 40 | 90 | 23 | 0.698 |
| 1309 | 45 | 100 | 25 | 0.953 |
| 1309K | 45 | 100 | 25 | 0.938 |
| 1310 | 50 | 110 | 27 | 1.2 |
| 1310K | 50 | 110 | 27 | 1.18 |
| 1311 | 55 | 120 | 29 | 1.58 |
| 1311K | 55 | 120 | 29 | 1.56 |
| 1312 | 60 | 130 | 31 | 1.96 |
| 1312K | 60 | 130 | 31 | 1.93 |
| 1313 | 65 | 140 | 33 | 2.42 |
| 1313K | 65 | 140 | 33 | 2.38 |
| 1314 | 70 | 150 | 35 | 2.99 |
| 1315 | 75 | 160 | 37 | 3.55 |
| 1315K | 75 | 160 | 37 | 3.5 |
| 1316 | 80 | 170 | 39 | 4.17 |
| 1316K | 80 | 170 | 39 | 4.11 |
| 1317 | 85 | 180 | 41 | 4.96 |
| 1317K | 85 | 180 | 41 | 4.89 |
| 1318 | 90 | 190 | 43 | 5.78 |
| 1318K | 90 | 190 | 43 | 5.69 |
| 1319 | 95 | 200 | 45 | 6.69 |
| 1319K | 95 | 200 | 45 | 6.59 |
| 1320 | 100 | 215 | 47 | 8.3 |
| 1320K | 100 | 215 | 47 | 8.19 |
| 1321 | 105 | 225 | 49 | 10 |
| 1322 | 110 | 240 | 50 | 11.8 |
| 1322K | 110 | 240 | 50 | 11.7 |
We also supply & produce | Ball Bearing | Deep Groove Ball Bearing | 60 **,618 ** (1008), 619**(1009),62 **, 63 **, 64 **, 160 **(70001 ) |
| Thrust Ball Bearing | 511 ** (81) ,512 **(82) ,513 (83) ,514 ** (84) series and Angular Contact Thrust all Bearings like: 5617 ** (1687) ,5691 ** (91681), 5692 ** (91682) series |
| Angular Contact Ball bearing | SN718 **(11068 ) ,70 ** 72 **,73 **, and B (66), C (36), AC (46) series ; otherwise include QJ and QJF series |
| Roller Bearing | Spherical Roller bearing | 239**, 230**,240**, 231**, 241**, 222**, 232**, 223**, 233**, 213**, 238**, 248**, 249**and special series include 26** i.e 2638 (3738), 2644 (3844) and so on |
| Taper Roller Bearing | 329**(20079),210**(71), 320**(20071),302**(72), 322**(75), 303**(73), 313**(273),323**(76), 3519**(10979), 3529**(20979),3510**(971), 3520**(20971),3511**(10977), 3521**(20977), 3522**(975), 319**(10076),3819**(10779),3829**(20779), 3810**(777,771), 3820**(20771), 3811**(10777,777) for example: 77752, 77788, 77779 and also include Inch series bearings such as 938/932 single and double row i.e M255410CD etc. |
| Thrust Roller Bearing | 292**(90392), 293**(90393),294**(90394),994**(90194), and 9069 series. |
| Cylindrical Roller Bearing | NU10**, NU2**,NU22**, NU3**,NU23**, NU4**, N, NJ ,NUP series as well as NB, NN, NNU series of big bearings, and we also have Split Bearings 412740, 422740 used in cement industry.And FC, FCD series used in steel Industry. |
Advantages and Features- XSY bearing Co., Ltd. has its own factory. We make sure to offer you the most competitive price.
- XSY bearing Co., Ltd. has a professional R&D team and an after-sale team, so what you buy is top-end, and what you use is quality & service guaranteed.
- XSY bearing Co., Ltd. is a bearing manufacturer since 1990. Rich experience makes us more professional.
- The bearing is long durability, high speed and low noise.
- OEM & ODM are available.
- All kinds of bearing simples are available.

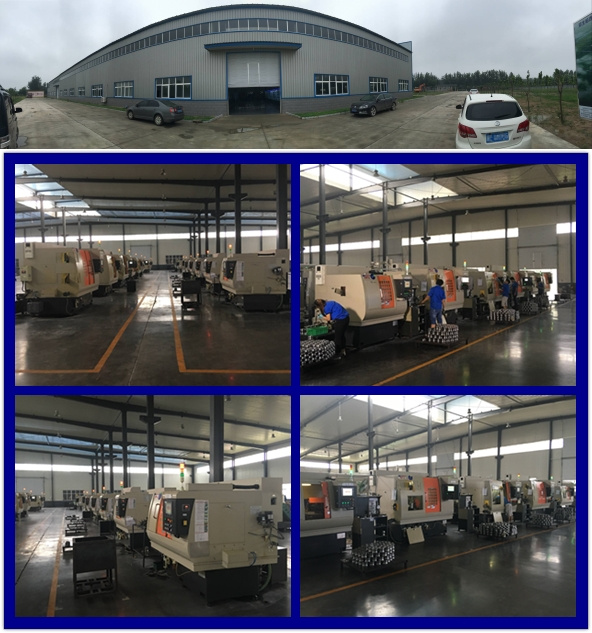

Aout usShandong XSY bearing Co., Ltd. is an enterprise majoring in the manufacturing of precision bearings. It has a integrate service chain of research, producing and sales. The bearings with brand trademark of "ZGXSY" win good quality reputation in domestic bearing market. The company is equipped with modern production facilities and advanced testing instruments, mainly specific to imported top-range products. We professionally produce precise bearings such as spherical roller bearings, thrust ball bearings, deep groove ball bearings, cylindrical roller bearings, tapered roller bearings, thrust spherical roller bearings and so on. The productions are widely used as auxiliary products in metallurgy, electrical machine, mine, petroleum, chemical, coal, cement, paper making, wind electricity, heavy machinery, engineering machinery, port machinery and other industries.Packaging & ShipmentsPackaging Details:
1.tube /plastic bag+box+cartons+pallets
2.plastic bag+single box+cartons+pallets
3.industrial packing+cartons+pallets
Delivery Details:
Less than 1000PCS, deliver within 5 days by Express or Airplane.
More than 1000PCS, deliver within 15 days by sea.

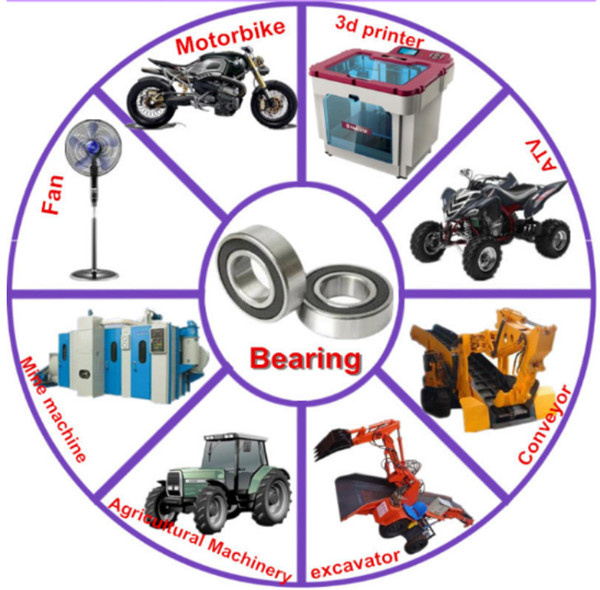

ApplicationAs their roller linearly come into contact with inner and outer ring with less coeffcient frictiion, these bearings have very good capacity of radial load, suitable for electric motors, automobiles, tasnsmission shafts, gear shafts and so on. Double row cylindrical roller bearings are good at the spindles of machine tools.
FAQ1. Are you a factory or a trading company? Shandong XSY Bearing Co., Ltd. is a professional manufacture of deep groove ball bearings and other bearings. 2. Is OEM available? Yes, OEM is available. We have professional designer to help your brand promotion. 3. Is the sample available? Yes, samples are available for you to test the quality. 4. Have the products been tested before shipping? Yes, all of our bearings have been tested before delivery. 5. How long is your delivery time? As mentioned above, there are different types of shipping for your order. We make sure to deliver goods once all products are produced and tested. 6. What is your terms of payment ? You can pay by T/T, L/C, Westunion, Paypal,etc., and it can be negotiated according to different orders with different amount. 7. Can we visit your factory ? Sure. Welcome to XSY Bearing Co., Ltd. and offer your kind suggestions.
Contact us
Shandong XSY Bearing Co., Ltd. is a professional manufacturer of bearings, base on R & D, producing and sales of precision bearings with more than 25 years experiences. Our own bearing brand is "ZGXSY", including Taper Roller Bearing, Deep Groove Ball Bearing, Thrust Ball Bearing, Thrust Roller Bearing, Spherical Roller Bearing, Angular Contact Ball Bearing, Self-aligning Ball Bearing and Cylindrical Roller Bearing. The inside diameter is from 50mm to 1000mm with CE ISO TUV certificate, besides we also offer the Bearings Accessories, such as Bearing Housings, Adapter Sleeve, Withdrawal Sleeve, Lock nut, Cage, Roller and Ball.
Our "ZGXSY" Bearings are widely used in metallurgy, electrical, mining, petroleum, chemical, coal, cement, paper, wind power, heavy machinery, engineering machinery, port machinery and other industries supporting products, which have been exported to DuBai, Mexico, Iran, Southeast Asia, Russia, Africa etc, and enjoy a high reputation on the domestic and overseas market.
About the products, we have self-developed team to design and improve the bearings to meet different customers' need, so the OEM and ODM are available. We have completed quality inspection system and professional after-sale team to make sure each product that customer get is perfect. XSY will offer our best products and service with most reasonable price for you.
We always adhere to the business philosophy "research &develop attentively, offer service sincerely, make products meticulously, set brand strategy ", with integrity and fairness in cooperation with domestic and foreign customers. We believe XSY will be your best partner in bearing area.
