13mm Pet and PP Ribbon Manual Strapping Tool
| Price: |
US $ 21.5-30/Set |
| Min Order: |
10/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
ZL 13 |
| Applicable Belt Width: |
13mm 16mm 19mm |
| Applicable Belt Thickness: |
0.6mm 0.8mm 0.9mm 1.0mm |
| Weight Of Tensioner: |
1.3kg |
| Weight Of Sealer: |
1.8kg |
| Max Tightening Force: |
100kg |
| Suitable Strap Type: |
PP and Pet Strap |
| Using Method: |
Buckle |
| Contains: |
Tensioner and Sealer |
| Unit: |
One Set |
| Strapping Material: |
Plastic Tape |
| Packaging Type: |
Cartons |
| Automatic Grade: |
Manual |
| Strapping Mode: |
Buckling Type |
| Driven Type: |
Manual |
| Structure: |
Hand Strapping |
| Species: |
Manual Strapping Tool |
| Application: |
Package |
Product Description

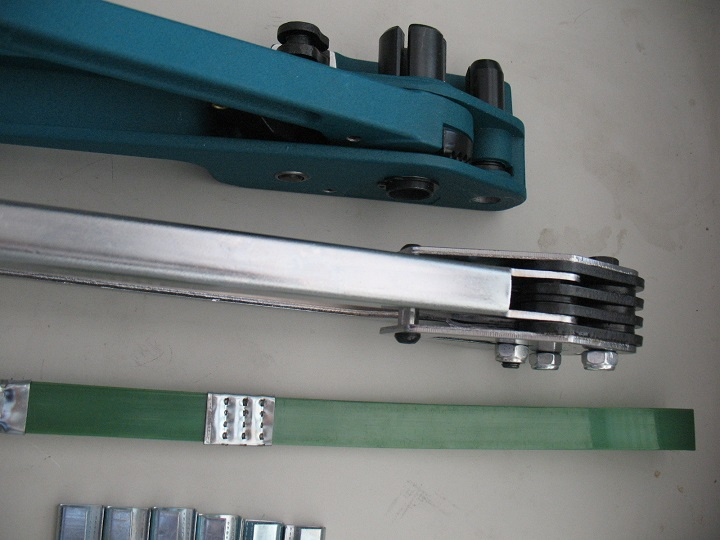

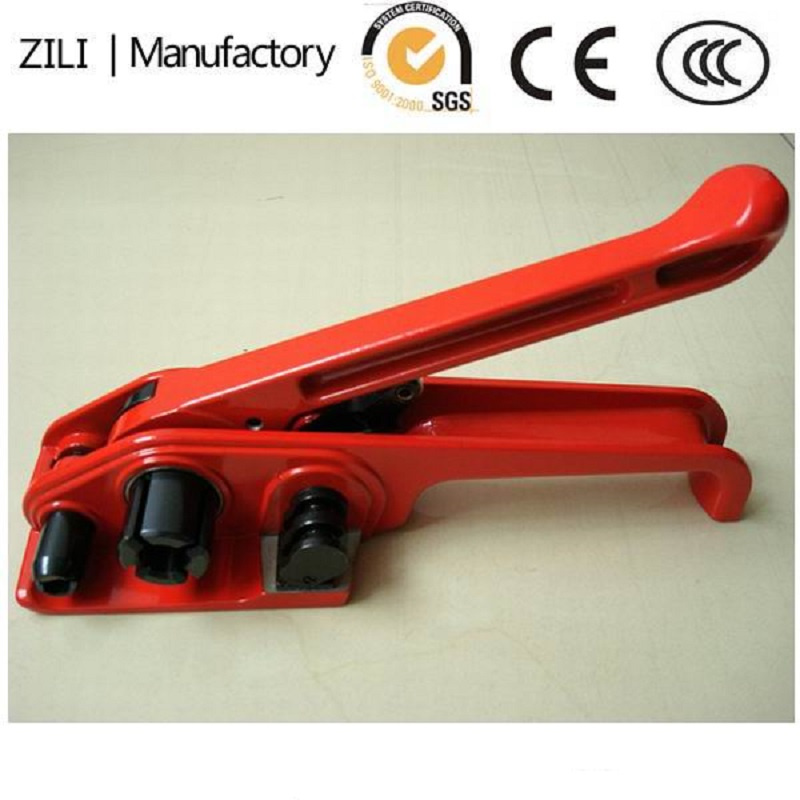

1. Manual Strapping Tool DescriptionManual packing tool ,one set with one tensioner and one Sealer.
The tensioner is for plastic strap tensioning only, and the sealer is to clamp the seal buckle.
2 Manual Strapping Tool Technical Data | Type: | ZL 13 / ZL16 / ZL19 |
| Packing strap width | 13,16,19mm (1/2",5/8",3/4") (one machine suit for one size strap) |
| Packing strap thickness | 0.6mm,0.8mm,1.0mm (one machine suit for one size strap) |
| Tool dimension | 505*122*45mm (sealer)
280*150*75mm( tensioner ) |
| Tool Weight | 1.85kg ( tensioner )+1.3kg (sealer) |
| Suitable strap type | PET / PP |
| Automatic grade | Manual |
| Strapping mode | Buckling type |
| Maximum tightening force | 100kg |
3 Manual Packing Tool FeaturesSuitable for all kinds of PET/PP strap
Hand tighten, seal notch, cut, easy to operate
Simple structure, low failure rate
The most suitable for small objects in packing
Portable,cheap,suitable for hard working conditions
low quality requirement for production workers.
Using spin to tighten the way to achieve greater tighten force.

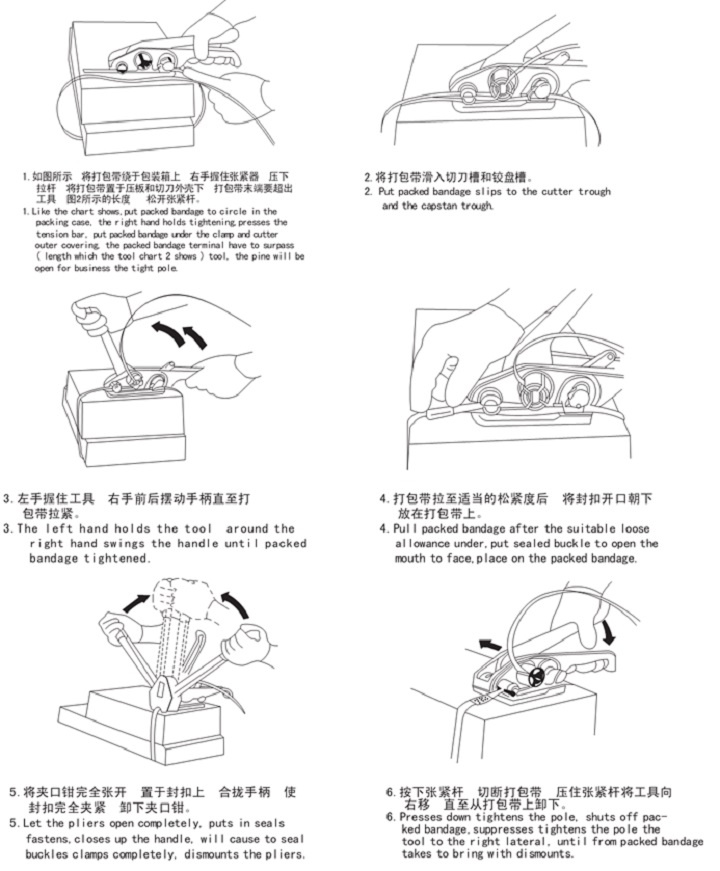

Simple package for heavy goods4 Manual Packing Tool Operation Instruction

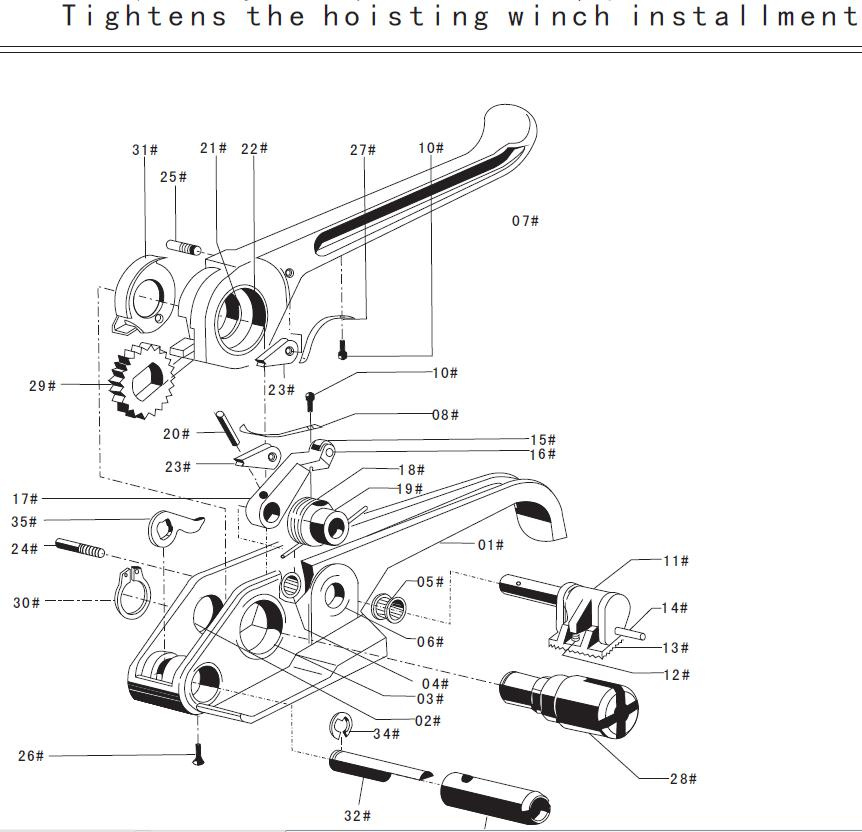

5 Detail of Tensioner
6 FAQ
6.1 What does the tool work for?
It is a packing tool,working on the plastic straps, for example, pp strap, pet strap. strap bale the carton, wooden case,pallet, or round steel coil. But, it is only for strap tensioning, no, sealing. you need the seal and the sealer to work together.
6.2 What size of the strap does the tool apply for?
Strap width:13mm,16mm,19mm. thickness:0.6mm to 1.0mm. And remember it is plastic strap, not the steel strap.
6.3 What else could we supply?
Our company also supply seal buckle to match this set of manual packing tool.
6.4 How about Zili Company?
We are 11 years professional manufacturer and trading company, have advanced machines, professional team, efficient organization, well-deserved reputation. OEM and free sample are available.
6.5 How to order
Please contact directly to order the products ,there is no minimal order volume required. The price depends on the order volume.
6.6 Payment Method
we accept T/T, Western Union, MoneyGram,Paypal, Escrow, or customized if it is acceptable.
6.7 Shipping Condition
Once we received the payment, we will ship the samples in 1-3 days by air/, and ship the formal order in 15~30 days by air or ocean. 7 ContactWe are willing to support you a perfect packing solution.
