| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | JDKKL2016003 |
|---|---|
| Quality: | Super,Normal and Economic |

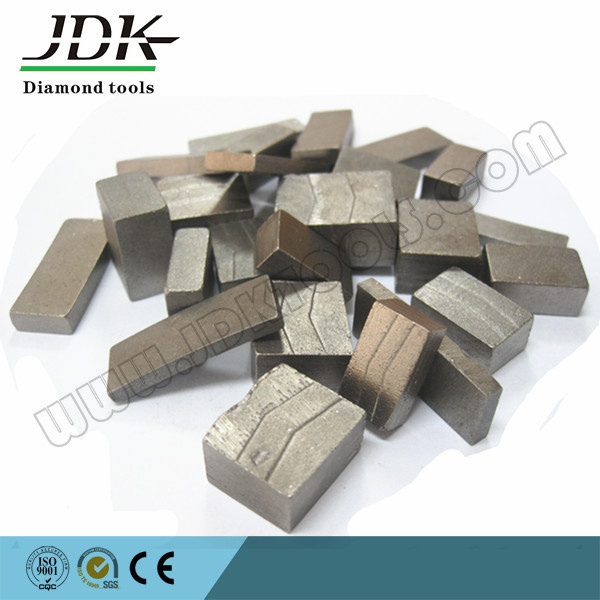

| Name: | Single Blade Diamond Segment |
| Manufacturing Arts: | Welding |
| Kind: | Diamond Segment for Granite |
| Saw Blade External Diameter: | 300-3500mm |
| Type: | Sandwich and Multilayer |
| Bonding Agent: | Hard,Medium and Soft |
| Sharpness: | Good |
| Lifespan: | Long |
| Diameter | Thickness mm | Spec. mm | Segment No. | Hard Granite | Mid-Hard Granite | ||||
| Cutting Speed ft/min | Cutting Depth inch | Cutting life ft² | Cutting Speed ft/min | Cutting Depth inch | Cutting life ft² | ||||
| 14" | 2.4 | 40*3.4(3.6)*12(15)(16)(20) | 24 | 9.84-13.12 | 0.8"-1.2" | 15000-18000 | 13.12-16.4 | 1.2"-2" | 17000-20000 |
| 2.5 | 40*3.4(3.6)*12(15)(16)(20) | ||||||||
| 16" | 2.6 | 40*3.6(3.8)*12(15)(16)(20) | 28 | 9.84-13.12 | 0.8"-1.6" | 15000-18000 | 13.12-16.4 | 1.2"-2" | 18000-20000 |
| 2.8 | 40*3.8(4.0)*12(15)(16)(20) | ||||||||
| 18" | 3.0 | 40*4.0(4.2)*12(15)(16)(20) | 32 | 9.84-13.12 | 0.8"-1.6" | 18000-20000 | 13.12-16.4 | 1.2"-2" | 20000-22000 |
| 3.2 | 40*4.2(4.4)*12(15)(16)(20) | ||||||||
| 20" | 3.2 | 40*4.2(4.4)*12(15)(16)(20) | 36 | 9.84-13.12 | 0.8"-1.6" | 18000-20000 | 13.12-16.4 | 1.2"-2" | 20000-23000 |
| 3.4 | 40*4.4(4.6)*12(15)(16)(20) | ||||||||
| 22" | 3.4 | 40*4.4(4.6)*12(15)(16)(20) | 38 | 9.84-13.12 | 0.8"-1.2" | 20000-22000 | 13.12-16.4 | 0.8"-1.2" | 22000-25000 |
| 3.6 | 40*4.6(4.8)*12(15)(16)(20) | ||||||||
| 24" | 3.6 | 40*4.6(4.8)*12(15)(16)(20) | 42 | 9.84-13.12 | 0.8"-1.2" | 22000-25000 | 13.12-16.4 | 0.8"-1.2" | 25000-28000 |
| 3.8 | 40*4.8(5.0)*12(15)(16)(20) | ||||||||
| 28" | 4.0 | 40*5.0(5.2)*12(15)(16)(20) | 50 | 9.84-13.12 | 0.4"-0.8" | 25000-28000 | 13.12-16.4 | 0.8"-1.2" | 27000-30000 |
| 4.2 | 40*5.2(5.4)*12(15)(16)(20) | ||||||||
| 32" | 4.5 | 40*5.5(5.7)*12(15)(16)(20) | 57 | 9.84-13.12 | 0.4"-0.8" | 28000-30000 | 13.12-16.4 | 0.8"-1.2" | 30000-35000 |
| 4.8 | 40*5.8(6.0)*12(15)(16)(20) | ||||||||
| 36" | 5.0 | 24*6.2/7.2*14/15(19/20) | 64 | 13.12-19.68 | 0.8"-1.2" | 800-1500 | 16.4-22.96 | 1.2"-1.6" | 1000-1500 |
| 5.5 | 24*6.8/7.8*14/15(19/20) | ||||||||
| 40" | 5.0 | 24*6.4/7.4*14/15(19/20) | 70 | 13.12-19.68 | 0.8"-1.2" | 1000-1700 | 16.4-22.96 | 1.2"-1.6" | 1500-2000 |
| 5.5 | 24*6.4/7.4*14/15(19/20) | ||||||||
| 48" | 5.5 | 24*6.5/7.5*14/15(19/20) | 80 | 9.84-13.12 | 0.8"-1.2" | 1200-2000 | 16.4-22.96 | 1.2"-1.6" | 2000-2500 |
| 6.0 | 24*7.5/8.5*14/15(19/20) | ||||||||
| 54" | 6.0 | 24*7.5/8.5*14/15(19/20) | 88 | 13.12-19.68 | 0.8"-1.2" | 1500-2200 | 16.4-22.96 | 1.2"-1.6" | 2500-3000 |
| 6.5 | 24*8.0/9.0*14/15(19/20) | ||||||||
| 64" | 6.5 | 24*8.0/9.0*14/15(19/20) | 108 | 9.84-13.12 | 0.8"-1.2" | 1700-2500 | 13.12-19.68 | 1.2"-1.6" | 3000-4000 |
| 7.0 | 24*8.2/9.2*14/15(19/20) | ||||||||
| 80" | 8.0 | 24*9.8/10.6*14/15(19/20) | 128 | 9.84-13.12 | 0.8"-1.2" | 2000-3000 | 13.12-19.68 | 1.2"-1.6" | 4000-5000 |
| 8.5 | 24*10.0/11.0*14/15(19/20) | ||||||||
| 88" | 8.0 | 24*9.8/10.6*14/15(19/20) | 132 | 9.84-13.12 | 0.6"-1" | 3000-4000 | 13.12-19.68 | 1.2"-1.6" | 5000-6000 |
| 8.5 | 24*10.2/11.2*14/15(19/20) | ||||||||
| 100" | 8.5" | 24*10.4/11.4*14/15(19/20) | 140 | 9.84-13.12 | 0.4"-0.8" | 4000-5000 | 13.12-16.4 | 1.2"-2" | 6000-7000 |
| 9.0 | 24*10.8/11.8*14/15(19/20) | ||||||||
| 120" | 9.0 | 24*11.0/12.0*14/15(19/20) | 160 | 9.84-13.12 | 0.4"-0.8" | 7000-8000 | 13.12-16.4 | 1.2"-2" | 8000-10000 |
| 10.0 | 24*11.5/12.5*14/15(19/20) | ||||||||
| 140" | 9.0 | 24*11.5/12.5*14/15(19/20) | 180 | 9.84-13.12 | 0.4"-0.8" | 8000-10000 | 13.12-16.4 | 1.2"-2" | 9000-11000 |
| 10.0 | 24*12.5/13.5*14/15(19/20) | ||||||||
Why Choose Us?

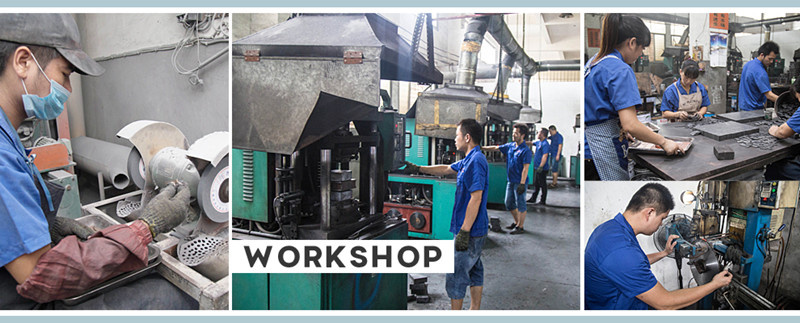

1.Rich experience technician team and trained workers.
2.20 Years Experience in diamond tools manufacturing.
3.Products have been exported to more than 60 countries and area.
4.Sample will be supplied in only 5 days after receive the payment.
5.Free sample or special discount will be offered if the test fail.
