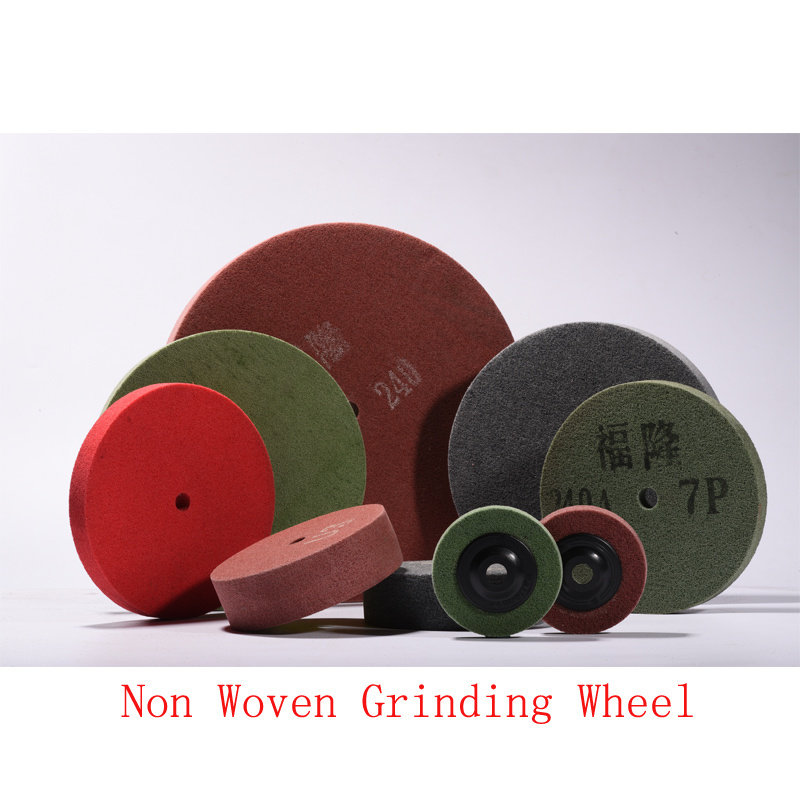

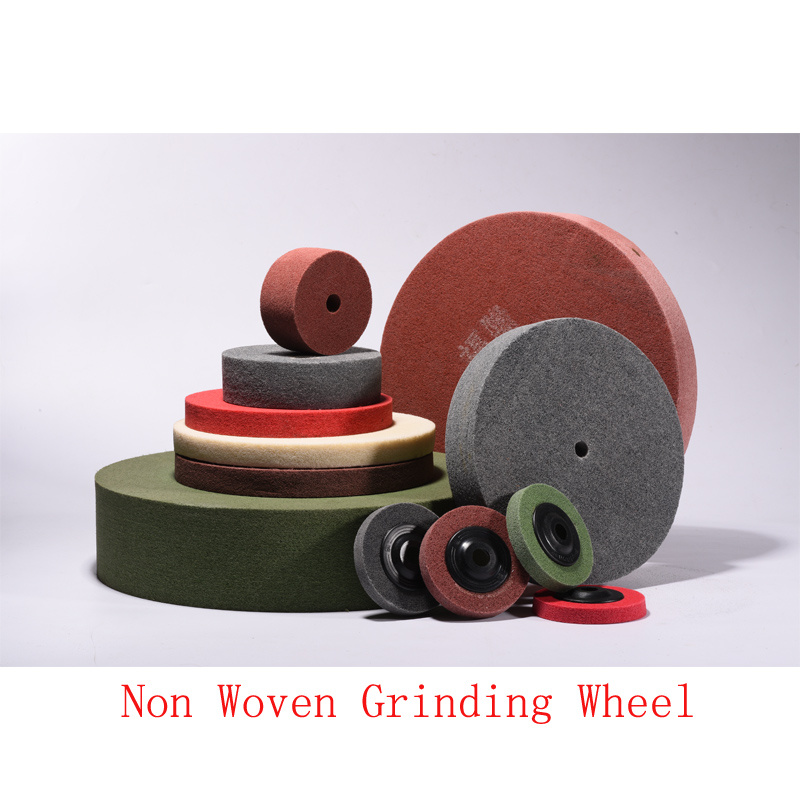

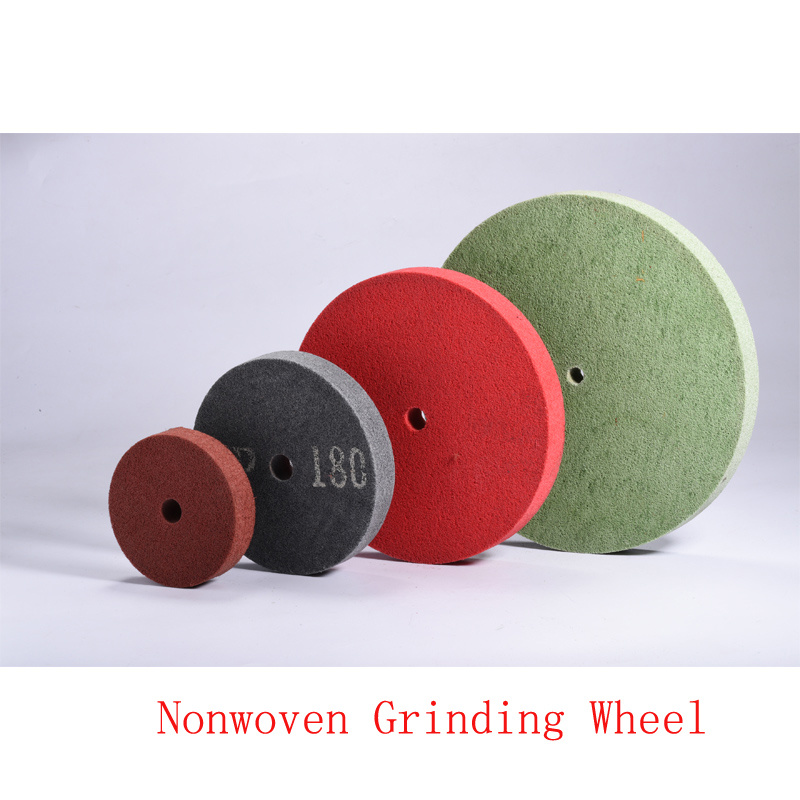

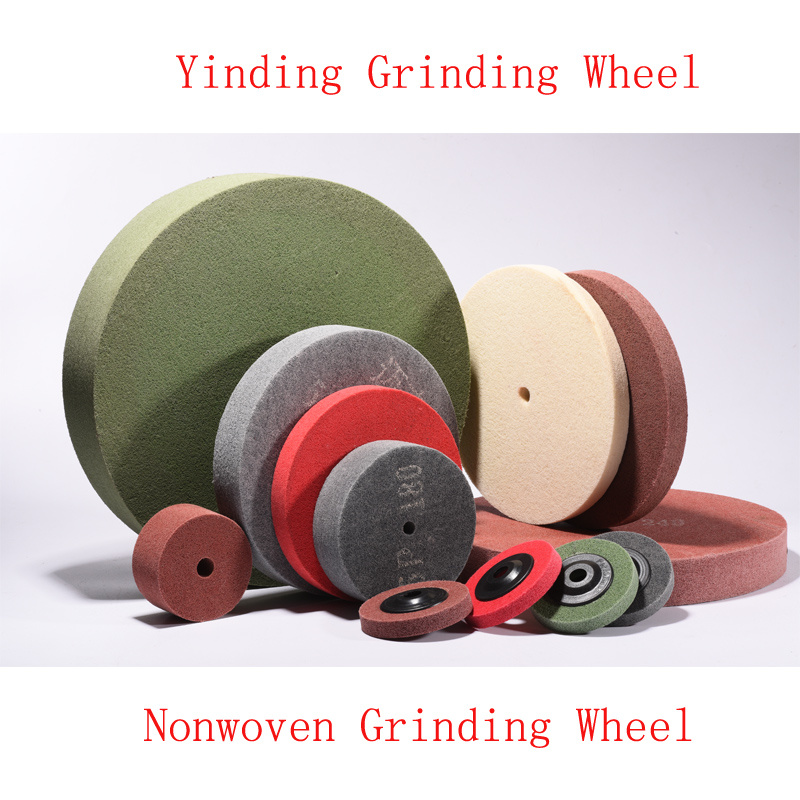

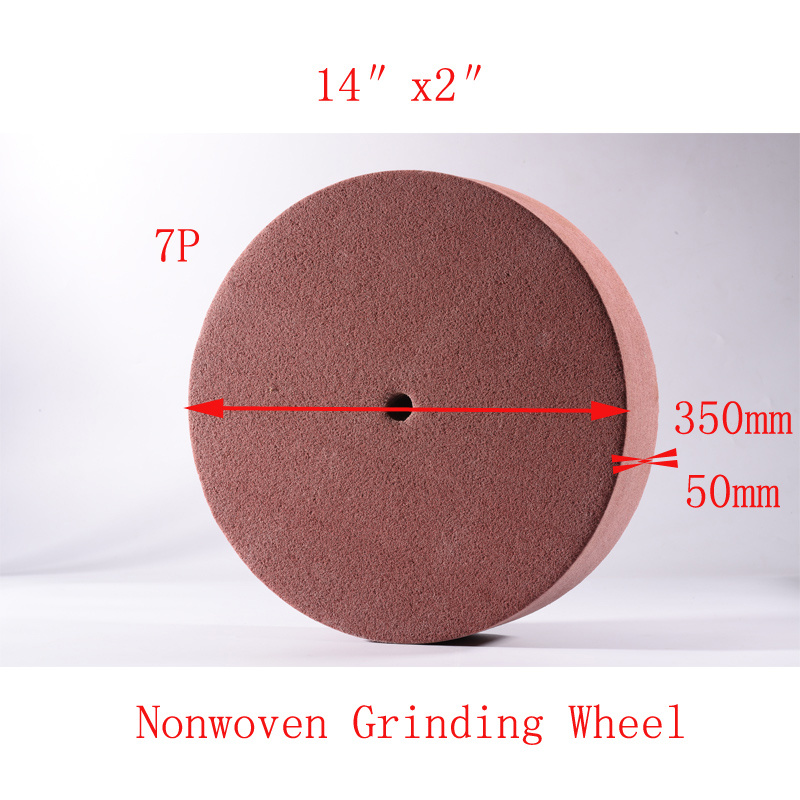

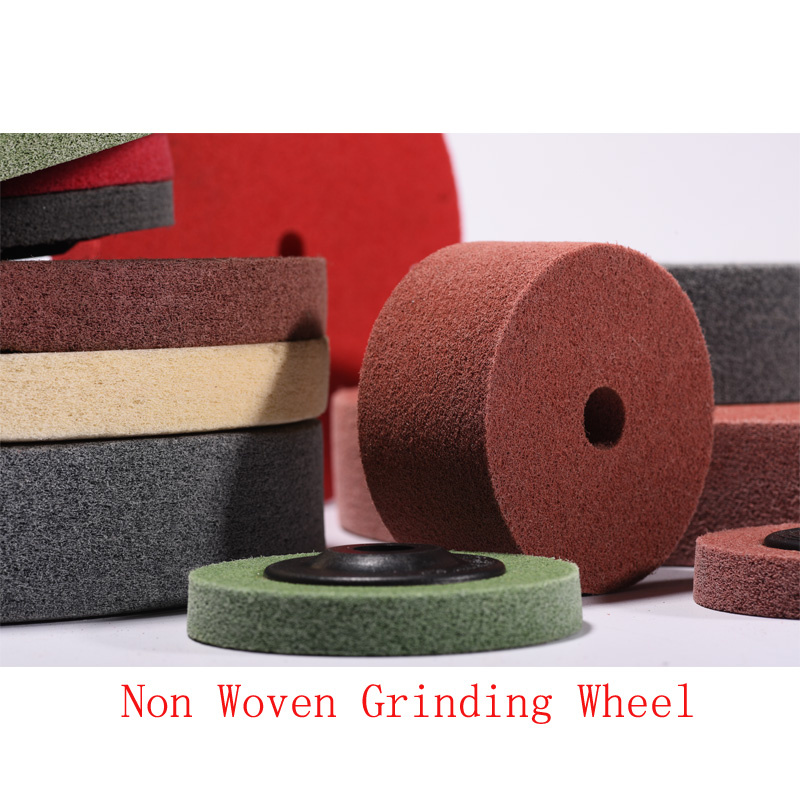

14"X2" 7p Non Woven Grinding Disc Polishing Wheel

Price:	US $ 9.85-9.89/Piece
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Yongkang Yinding Grinding Tools Factory

Showroom Product Company Profile

Prod Model:	14"x2" 7P
Abrasive:	Non Woven Cloth

Product Description

1.Technological Paramter:

Colour: Brown, gray(black), white, red, green
Size: 4"-20"
Width: 1"-3"
Density: 3P-12P
Grit: 120#-320#
Abrasive: Aluminium oxide, green/black silicon carbide, white aluminium oxide

2.Feature

(1). Brown
Abrasive: Aluminium oxide
Cutting power for aluminum castings, hand tools, knives, stainless steel iron products, such as the modification of metal workpieces and grinding, metal cleaning rust, welding point of the clean-up, modification of a variety of castings, cast grinding, the edges to remove the castings excellent results.

(2). Gray/ black
Abrasive: Silicon carbide
Cutting power for aluminum castings, hand tools, knives, stainless steel iron products, such as the modification of metal workpieces and grinding, metal cleaning rust, welding point of the clean-up, modification of a variety of castings, cast grinding, the edges to remove the castings excellent results.

(3). Red/white
Abrasive: White aluminium oxide
Workpiece for electroplating metal wire drawing processing, drawing fast, the Silk Road clear, effective, no residue, no black. Of zinc alloy, chrome-plated hard texture of the workpiece, such as the very strong performance. For copper wire drawing parts, need to select the soft round of the drawing, so as not to pull the bad parts; Nickel workpieces for wire drawing, the general hardness is usually the drawing round 5P; And chose thicker coating hardness for the drawing round 7P better (mainly for the lock-type). The edge of the drawing tool may be the hardness of sand for the 5P or 7P No. 240 # round the drawing. For aluminum products, recommend the use of pre-plated hardness of sand 7P No. 180 # -320 # for drawing the round.

(4). Green
Abrasive: Green silicon carbide
For applications that require precise and meticulous work, grinding does not produce smooth and left because of high-pressure spots, reduce defects, does not change the original weight of the workpiece, for stainless steel, titanium and other materials, such as insulating glass, cutlery, knives, first-class golf can play a very good effect. After grinding parabolic excellent brightness, it is to meet foreign requirements for the product brightness.

Size	Density	Grit	Single weight	QTY	Export Carton Size			CBM	GW	NW
Size	Density	Grit	G/pc		Length	width	highth	CBM	kgs	kgs
14"x2"	12P	80#-320#	2552	20	0.7	0.36	0.51	0.1285	52	51
14"x2"	9P	80#-320#	2042	20	0.7	0.36	0.51	0.1285	42	41
14"x2"	7P	80#-320#	1701	20	0.7	0.36	0.51	0.1285	35	34
14"x2"	5P	80#-320#	1225	20	0.7	0.36	0.51	0.1285	26	24.5
12"x2"	12P	80#-320#	1875	20	0.62	0.32	0.51	0.1012	39	37.5
12"x2"	9P	80#-320#	1500	20	0.62	0.32	0.51	0.1012	31	30
12"x2"	7P	80#-320#	1250	20	0.62	0.32	0.51	0.1012	26	25
12"x2"	5P	80#-320#	900	20	0.62	0.32	0.51	0.1012	19	18
10"x2"	12P	80#-320#	1302	20	0.52	0.26	0.51	0.069	27	26
10"x2"	9P	80#-320#	1041	20	0.52	0.26	0.51	0.069	22	21
10"x2"	7P	80#-320#	868	20	0.52	0.26	0.51	0.069	18.5	17.5
10"x2"	5P	80#-320#	625	20	0.52	0.26	0.51	0.069	13.5	12.5
8"x2"	12P	80#-320#	833	20	0.42	0.22	0.51	0.0471	18	17
8"x2"	9P	80#-320#	667	20	0.42	0.22	0.51	0.0471	14.5	13.5
8"x2"	7P	80#-320#	556	20	0.42	0.22	0.51	0.0471	12.5	11.5
8"x2"	5P	80#-320#	400	20	0.42	0.22	0.51	0.0471	9	8
6"x2"	12P	80#-320#	469	30	0.47	0.165	0.51	0.0396	15	14
6"x2"	9P	80#-320#	375	30	0.47	0.165	0.51	0.0396	12.5	11.5
6"x2"	7P	80#-320#	313	30	0.47	0.165	0.51	0.0396	10.5	9.5
6"x2"	5P	80#-320#	225	30	0.47	0.165	0.51	0.0396	8	7
4"x2"	12P	80#-320#	208	40	0.22	0.22	0.51	0.0247	9.5	8.5
4"x2"	9P	80#-320#	167	40	0.22	0.22	0.51	0.0247	7.7	6.7
4"x2"	7P	80#-320#	139	40	0.22	0.22	0.51	0.0247	6.5	5.56
4"x2"	5P	80#-320#	100	40	0.22	0.22	0.51	0.0247	5	4
100*15	12P	80#-320#	0.073	320	0.43	0.43	0.36	0.0666	24.5	23.5
100*15	9P	80#-320#	0.06	320	0.43	0.43	0.36	0.0666	20	19
100*15	7P	80#-320#	0.052	320	0.43	0.43	0.36	0.0666	17.8	16.8
100*15	5P	80#-320#	0.04	320	0.43	0.43	0.36	0.0666	13.8	12.8

YONKANG YINDING GRIDING TOOLS FACTORY is located at the capital of Chinese Hareware City-YONGKANG the Floor space is 2000 square Meter, area of strucure is 6000 square meter, More than 15 years old. The Main products: Non-woven surface wheels, Non-woven cloth polishing wheels, air compressors, chipper shredders and so on. Wheels mainly use for ironware, electronic, table ware, electroplating, handicarft article, woodwork, die-casting ect. Air compressors use for Air nailer, air screw, spray paint, tire inflation, blowing dust, bubble machine ect. Our products is with high quality and favorable price. The Annual Value of production is more than USD6000, 000. Clients cover South Asia, Middle East, Europe, will go to all over the world. We're pleased to get your Inquiry and we will come back to you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. Welcome to visit us!
