| Prod Model: |
LMEMD1500E |
| Technique: |
Full Color TFT-LCD |
| Color: |
16.7m (Based on Measure of Display) |
| Visual Angle: |
Horizontal 150ºVertical 130° |
| Operating Power: |
AC220V/50Hz |
| Power Consumption: |
<25W |
| Pixel Format: |
1024×768 Pixel (Based on Measure of Display) |
| Life Time Of Backlight: |
45, 000h |
| Background: |
Can Be Edited, Stored, Transmitted. |
| Internet News: |
Internet News |
| Video File: |
Play DVD Sdvd, MPEG, AVI etc. |
| Usage: |
Monitor LCM |
| Digital LCD Module Type: |
Counting Module |
| Type: |
Color |
| Response Time: |
5ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
TFT |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Customized |
Product Description
1.Overview:

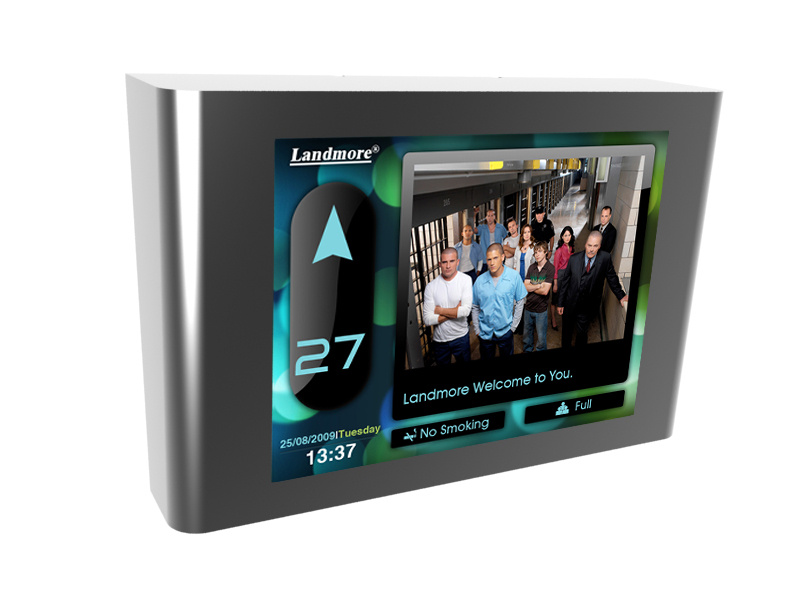

- LMEMD Serial Elevator Media Display is high-tech product used in elevator field, it is developed independently by Landmore Technology Co., Ltd..
- LMEMD including software and hardware, it can display lift messages(position,travel direction, service messages), Internet info.video file,floor guide,picture , etc.
- Only with internet input and lift control info. input,LMEMD can display network news,weather forecast and lift info, you can change background(picture), video file, music, text file by moving disk or online .
- LMEMD helps realize the real e-era elevator display.
2.Specification:
- Technique: Full color TFT-LCD
- Pixel format:1024×768 pixel (Based on measure of display, the format will difference.)
- Color: 16.7M (Based on measure of display, the color will difference.)
- Visual Angle: Horizontal 150º,vertical 130°
- Luminance: 260cd/m2
- Contrast: 450:1
- Active View: 15″: 306.0(W)×230.0(H)mm
12.1″: 244.0(W)×184.0(H)mm
10.4″: 215.0(W)×160.0(H)mm - Operating Power: AC220V/50HZ
- Power Consumption: <25W
- Life Time of Backlight: 45,000h
3.Usage:
- Car display
- Hall display

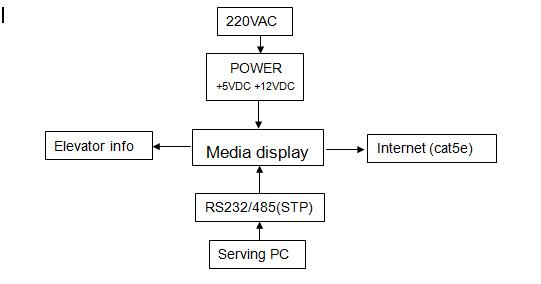

4.Connecting:

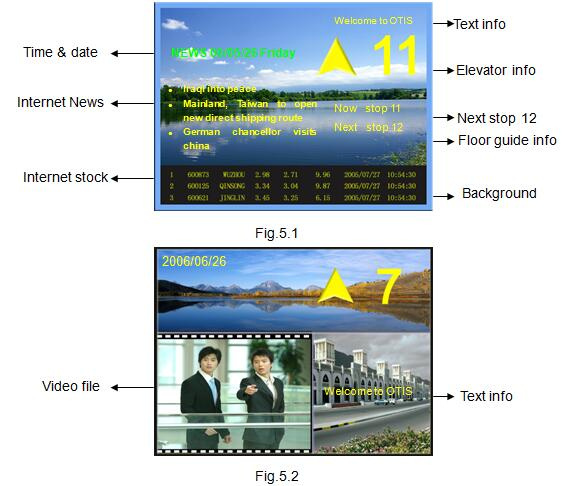

5.Interface:
v Text info: Text advertisements, text notice, text message etc. it can be inputted by special software. Communication by STP(RS232- 485).
v Elevator info: Floor, direction, service messages (overload, out of service, fire, etc.) connecting with Elevator control system.
v Transmitting methods: serial communication and Gray code.
v Floor guide display: Different Floor information guide .
v Background: Can be edited , stored, transmitted.
v Time, date, temperature.
v Internet news: Automatically update.
v Video file: Play DVD SDVD,MPEG,AVI etc.
6.Type and function:

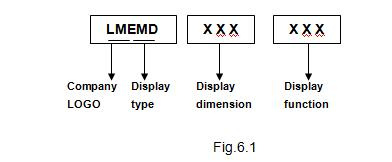

6.1 Type description:
6.2 Type

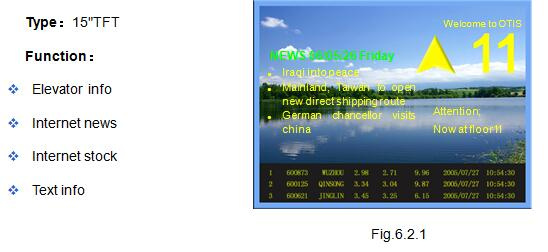

6.2.1 LMEMD150YWE

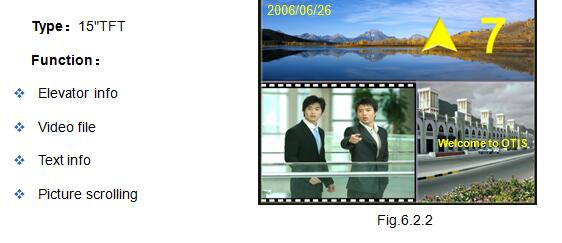

6.2.2 LMEMD150ZNE
6.2.3 LMEMD150YNE
