150lb/300lb/400lb/600lb/900lb/1500lb Forged Steel Fully Welded Ball Valve (GAQ61/7PPL)
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
GAQ61PPL, Q67PPL, Q367PPL, Q367Y |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dn10 to Dn600 |
| Pressure: |
Class 150lb-900lb |
| Working Medium: |
Natural Gas, Oil, Heating System, Chemical Pipelin |
| Connection Form: |
Welding |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
| Application: |
Industrial Usage |
| Material: |
CS, Ss, as |
| Driving Mode: |
Manual, Gear, Pneumatic, Electric |
Product Description
Application:
City Gas:gas outlet pipe,supply pipe for main line and all brach lines etc.
District heat supply:Outlet pipe,main line and brach line for large heat supply equipment.
Heat exchanger:on-off of pipe and all loops.
Steel plant:various fluid pipes,discharging pipe for exaust gas,supply pipe for gas,thermal power and fuel.
Various industrial equipment:various heat treatment pipes,pipe for all kinds of industrial gas and thermal power.
Features:
- Outer leakage won't occur for welded ball valve.
Valve seat consists of teflon sealing ring strengthened by carbon fiber and belleville spring,so it can adjust well to change on pressure and temperature without any leakage risk within marked pressure and temperature range.- The whole process of sphere is tracked and detected with advanced computer and detector,so the process precision is very high,operation is very simple and easy,no bad interference.
- Body material is same as material of pipe,when vehicles pass through the groud or even earthquake happens,the stress is evenly distributed without any deformation risk.
- Sealing ring is made of PTFE containling 20% carbon,Ensure no leakage will happen.
- Buried ground fully welded ball valve can be installed in small and shallow well being set on ground rather than large valve well,so the construction cost and project time can be saved a lot.
- The length of valve body and height of stem can be designed in accordance with the requirement of project.
- The service life can be more than 15 years when used at normal operational and using conditions.

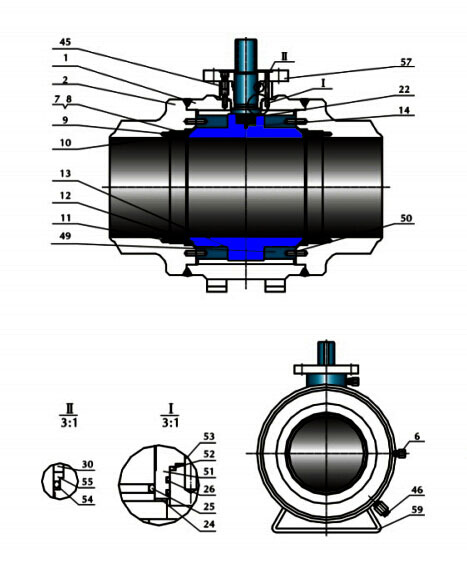

Main Parts and Materials and Dimensions.  | No | Part Name | Carbon steel | Stainless steel | Low temp.steel |
| 1 | Body | ASTM A105 | ASTM A182 F316 | ASTM A350 LF2 |
| 2 | Bonnet | ASTM A105 | ASTM A182 F316 | ASTM A350 LF2 |
| 6 | Inject valve | ANSI A1045 | A276-316 | ASTM A1045 |
| 7 | O-ring | Viton | Viton | Viton |
| 8 | O-ring | Viton | Viton | Viton |
| 9 | Seat retainer | ASTM A105 | ASTM A182 F316 | ASTM A350 LF2+ENP |
| 10 | Ring | RPTFE | RPTFE | RPTFE |
| 11 | Spring | Inconel X-750 | Inconel X-750 | Inconel X-750 |
| 12 | Ball | ASTM A105+ENP | ASTM A182 F316 | ASTM A350 LF2+ENP |
| 13 | Sliding bearing | 304+PTFE | 316+PTFE | 304+PTFE |
| 14 | Stalic spring | A276-316 | A276-316 | A276-316 |
| 22 | Stem | A182 F6A | ASTM A182 F316 | A182 F6A |
| 24 | Gasket | 304+PTFE | 316+PTFE | 304+PTFE |
| 25 | O-ring | Viton | Viton | Viton |
| 26 | O-ring | Viton | Viton | Viton |
| 30 | Packing | Graphite | Graphite | Graphite |
| 45 | Screw | ASTM A193-B7/B7M | ASTM A193-B8 | ASTM A193-B7M |
| 46 | Waste valve | ANSI 1045 | ASTM A182 F316 | ANSI 1045 |
| 49 | Backing | ASTM A105 | ASTM A182 F316 | ASTM A350 LF2+ENP |
| 50 | Backing pin | ANSI 1045 | ASTM A182 F316 | ASTM A350 LF2+ENP |
| 51 | Upper bushing | ASTM A105 | ASTM A182 F316 | ASTM A350 LF2+ENP |
| 52 | Gasket | 304+Graphite | 316+Graphite | 304+Graphite |
| 53 | Positioning pin | ANSI 1045 | A276-316 | ANSI 1045 |
| 54 | O-ring | Viton | Viton | Viton |
| 55 | Packing seat | ASTM A182 F6A | ASTM A182 F316 | ASTM A182 F6A |
| 57 | Coupling plate | ASTM A105 | ASTM A182 F316 | ASTM A350 LF2 |
| 59 | Base frame | ANSI 1025 | A276-316 | ANSI 1025 |

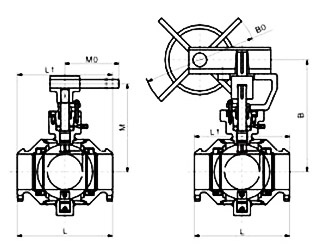

Main External Dimensions.
150LB
| Size | L1 | M | MO | B | BO |
| NPS | DN |
| 2 | 50 | 216 | 107 | 230 | / | / |
| 2 1/2 | 65 | 241 | 125 | 400 | / | / |
| 3 | 80 | 283 | 152 | 400 | / | / |
| 4 | 100 | 305 | 178 | 650 | / | / |
| 5 | 125 | 381 | 300 | 1050 | / | / |
| 6 | 150 | 457 | 330 | 1050 | / | / |
| 8 | 200 | 521 | / | / | 400 | 600 |
| 10 | 250 | 559 | / | / | 495 | 600 |
| 12 | 300 | 635 | / | / | 580 | 800 |
| 14 | 350 | 762 | / | / | 625 | 800 |
| 16 | 400 | 838 | / | / | 670 | 800 |
| 18 | 450 | 914 | / | / | 698 | 800 |
| 20 | 500 | 991 | / | / | 840 | 800 |
| 24 | 600 | 1143 | / | / | 1050 | 800 |
| 28 | 700 | 1346 | / | / | 1100 | 800 |
| 32 | 800 | 1524 | / | / | 1150 | 800 |
| 36 | 900 | 1727 | / | / | 1230 | 800 |
| 40 | 1000 | 1930 | / | / | 1320 | 800 |
300LB
| Size | L1 | M | MO | B | BO |
| NPS | DN |
| 2 | 50 | 216 | 107 | 230 | / | / |
| 2 1/2 | 65 | 241 | 125 | 400 | / | / |
| 3 | 80 | 283 | 152 | 400 | / | / |
| 4 | 100 | 305 | 178 | 650 | / | / |
| 5 | 125 | 381 | 300 | 1050 | / | / |
| 6 | 150 | 403 | 330 | 1050 | / | / |
| 8 | 200 | 521 | / | / | 280 | 600 |
| 10 | 250 | 559 | / | / | 375 | 600 |
| 12 | 300 | 635 | / | / | 460 | 800 |
| 14 | 350 | 762 | / | / | 465 | 800 |
| 16 | 400 | 838 | / | / | 510 | 800 |
| 18 | 450 | 914 | / | / | 540 | 800 |
| 20 | 500 | 991 | / | / | 585 | 800 |
| 24 | 600 | 1143 | / | / | 665 | 800 |
| 28 | 700 | 1346 | / | / | 730 | 800 |
| 32 | 800 | 1524 | / | / | 930 | 800 |
| 36 | 900 | 1727 | / | / | 990 | 800 |
| 40 | 1000 | 2083 | / | / | 1070 | 800 |
400LB
| Size | L1 | M | MO | B | BO |
| NPS | DN |
| 2 | 50 | 292 | 110 | 230 | / | / |
| 2 1/2 | 65 | 330 | 155 | 400 | / | / |
| 3 | 80 | 356 | 200 | 400 | / | / |
| 4 | 100 | 406 | / | / | 245 | 600 |
| 6 | 150 | 495 | / | / | 305 | 600 |
| 8 | 200 | 597 | / | / | 345 | 800 |
| 10 | 250 | 673 | / | / | 385 | 800 |
| 12 | 300 | 762 | / | / | 420 | 800 |
| 14 | 350 | 826 | / | / | 460 | 800 |
| 16 | 400 | 902 | / | / | 560 | 800 |
| 18 | 450 | 978 | / | / | 600 | 800 |
| 20 | 500 | 1054 | / | / | 630 | 800 |
| 24 | 600 | 1232 | / | / | 760 | 800 |
| 28 | 700 | 1397 | / | / | 840 | 800 |
| 32 | 800 | 1651 | / | / | 915 | 800 |
| 36 | 900 | 1880 | / | / | 990 | 800 |
| 40 | 1000 | 2300 | / | / | 1215 | 800 |
600LB
| Size | L1 | M | MO | B | BO |
| NPS | DN |
| 2 | 50 | 292 | 110 | 650 | / | / |
| 2 1/2 | 65 | 330 | 155 | 650 | / | / |
| 3 | 80 | 356 | 200 | 650 | / | / |
| 4 | 100 | 432 | / | / | 245 | 600 |
| 6 | 150 | 559 | / | / | 310 | 600 |
| 8 | 200 | 660 | / | / | 365 | 800 |
| 10 | 250 | 787 | / | / | 415 | 800 |
| 12 | 300 | 838 | / | / | 475 | 800 |
| 14 | 350 | 889 | / | / | 505 | 800 |
| 16 | 400 | 991 | / | / | 535 | 800 |
| 18 | 450 | 1092 | / | / | 640 | 800 |
| 20 | 500 | 1194 | / | / | 675 | 800 |
| 24 | 600 | 1397 | / | / | 760 | 800 |
| 28 | 700 | 1549 | / | / | 840 | 800 |
| 32 | 800 | 1778 | / | / | 915 | 800 |
| 36 | 900 | 2083 | / | / | 990 | 800 |
| 40 | 1000 | 2337 | / | / | 1215 | 800 |
900LB
| Size | L1 | M | MO | B | BO |
| NPS | DN |
| 2 | 50 | 368 | 220 | 650 | / | / |
| 2 1/2 | 65 | 419 | 240 | 650 | / | / |
| 3 | 80 | 381 | 260 | 650 | / | / |
| 4 | 100 | 457 | / | / | 270 | 600 |
| 6 | 150 | 610 | / | / | 385 | 800 |
| 8 | 200 | 737 | / | / | 435 | 800 |
| 10 | 250 | 838 | / | / | 520 | 800 |
| 12 | 300 | 965 | / | / | 660 | 800 |
| 14 | 350 | 1029 | / | / | 695 | 800 |
| 16 | 400 | 1130 | / | / | 765 | 800 |
| 18 | 450 | 1219 | / | / | 870 | 800 |
| 20 | 500 | 1321 | / | / | 895 | 800 |
| 24 | 600 | 1549 | / | / | 960 | 800 |
| 28 | 700 | 1700 | / | / | 1160 | 800 |
| 32 | 800 | 1780 | / | / | 1240 | 800 |
1500LB
| Size | L1 | M | MO | B | BO |
| NPS | DN |
| 2 | 50 | 368 | 220 | 650 | 175 | 400 |
| 2 1/2 | 65 | 419 | 245 | 650 | 195 | 400 |
| 3 | 80 | 470 | 260 | 650 | 220 | 600 |
| 4 | 100 | 546 | / | / | 250 | 600 |
| 6 | 150 | 705 | / | / | 330 | 800 |
| 8 | 200 | 832 | / | / | 395 | 800 |
| 10 | 250 | 991 | / | / | 430 | 800 |
| 12 | 300 | 1130 | / | / | 640 | 800 |
| 14 | 350 | 1257 | / | / | 670 | 800 |
| 16 | 400 | 1384 | / | / | 700 | 800 |
