150lbs Singale Sphere Viton Rubber Expansion Joint
Price: |
US $ 5-100/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
100/Piece |
Pay Type: |
L/C,T/T,D/P |
Prod Model: |
SKPP003 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
1/2"-24" |
Connection: |
Flange |
Kind: |
Corrugated Compensator |
Head Code: |
Round |
Material: |
Carbon Steel |
Surface Treatment: |
Galvanized |
Customized: |
Customized |
Warranty: |
12 Months |
Application: |
Building |
Type: |
Axial & Horizontal |
Certification: |
ANSI,JIS,BS,DN |

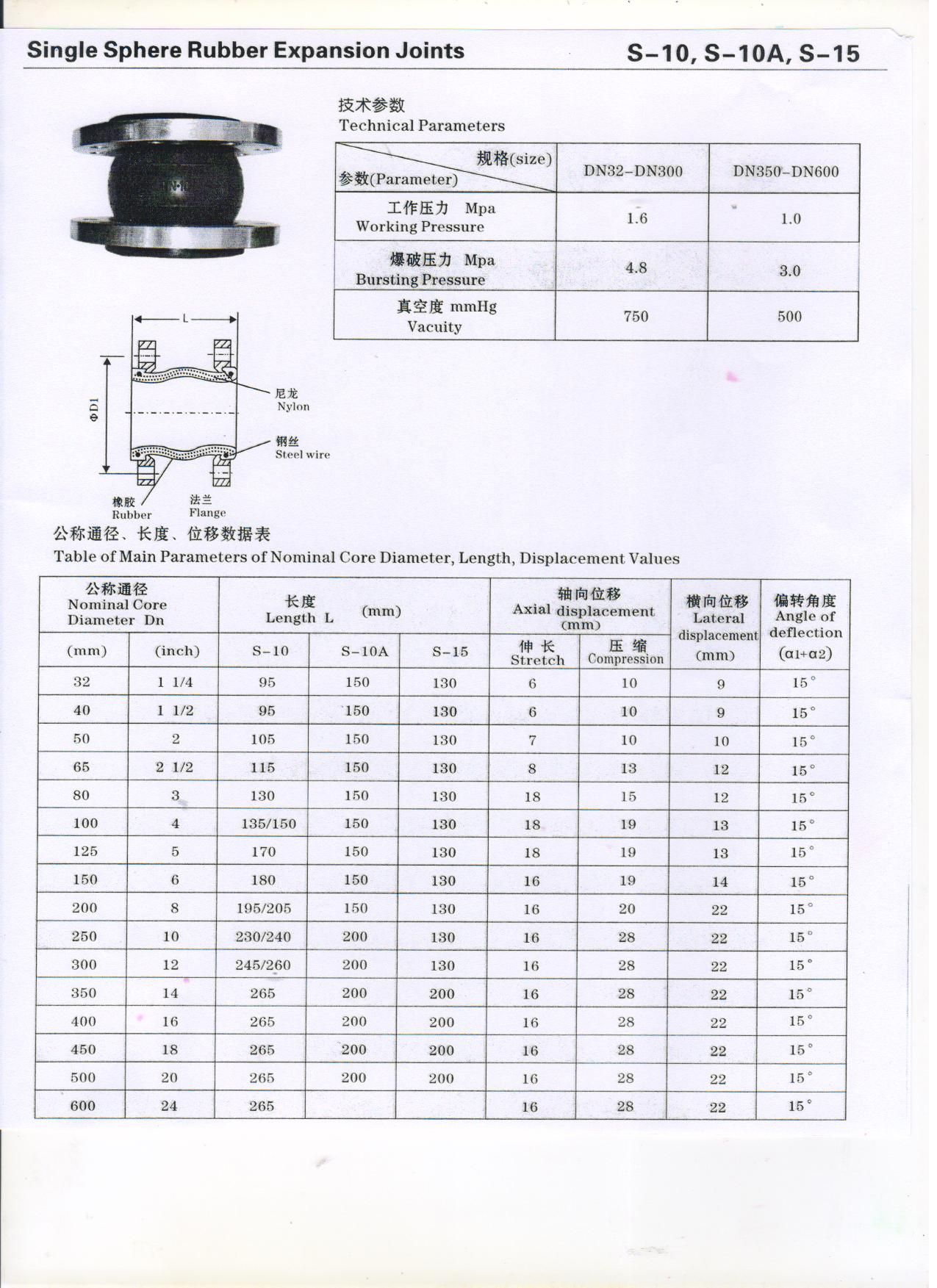

Product Description
Rubber Expansion joint, Rubber Flexible Joint, Rubber bellow
Certificate:ISO
Type:with control rod,without control rod
Bellow Type:single sphere,double sphere
End:Flanges & union
Working pressure:0.35MPa-1.4Mpa
Working temperature:80Deg-110 Deg
Bursting Pressure:3.0-4.8Mpa
Flanges standatd:ANSI,JIS,BS,DN
Bellow materials:EPDM,Neopresne,
Nature rubber,Nitrile,Hypalon
Size:11/4"-24"
Usage:The rubber joints have been supplied to every aspect of industry and builing,They are designed to compensate for axial,lateral,angular movements and vibrations in piping systems and equipment,which operate at varying conditions of pressure and temperature.
Packing:cartons then in poly-wooden cases.
Payment:LC.DP.TT
Market:European,Usa,south America,Aisa.etc
Pressure/Temp Correction Factor |
|
|
|
|
|
Working Temperature | 80D | 85D | 90D | 95D | 100D | 105D | 110D |
Working Pressure | 0.97 | 0.92 | 0.83 | 0.75 | 0.67 | 0.6 | 0.55 |
We are one of the biggest manufacturers and exporters of Pipeline products in China. We supply butt-welding pipe fittings, stainless steel screwed pipe fittings, forged steel flanges, cast iron valves, cast steel valves, stainless steel valves, balance valves rubber expansion joint, and much more. With many years of effort and support from our valuable customers, these products have obtained a big marker share in the world. At present our products have been export to Asia(Singapore, Tailand, Saudi Arabia, Bahrain, Yemenm, Jordan)Europe(Gemany, Italy, Spain, France, Portudal, Poland)Africa(Egypt, , Camaroon, Morocco)America(USA, Chile, Peru, Panama, Brazil, Paraguary Mexico)
Our business policy is noted for four "F":
Quality First Reputation First.
Customer First Price Fair.
Friends, traders and manufacturers all over the world are welcome to join us establishing and developing business relations on the basis of equality and mutual benefit under the principle of "Provide The World Market With High Quality Goods And Best Service".
Any information, samples and drawing s that you can provide will facilitate us to make the correct supply to meet your special requirement.
