| Price: | US $ 28000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | PE16-110 |
|---|---|
| Pipe Material: | PE Pipe |
| Extruder: | Single Screw Extruder |
| Screw Diameter: | 75mm |
| Screw Barrel Material: | 38crmoala |
| Heater: | Aluminum Casting |
| Motor: | Xi'an Xima |
| Temperature Controller: | Omron |
| Inverter: | ABB |
| Feeder: | Vacuum Feeder |
| Dryer: | Hopper Dryer |
| Product Type: | PE Pipe |
| Automation: | Automatic |
| Computerized: | Non-Computerized |
| Certification: | ISO9001:2008 |

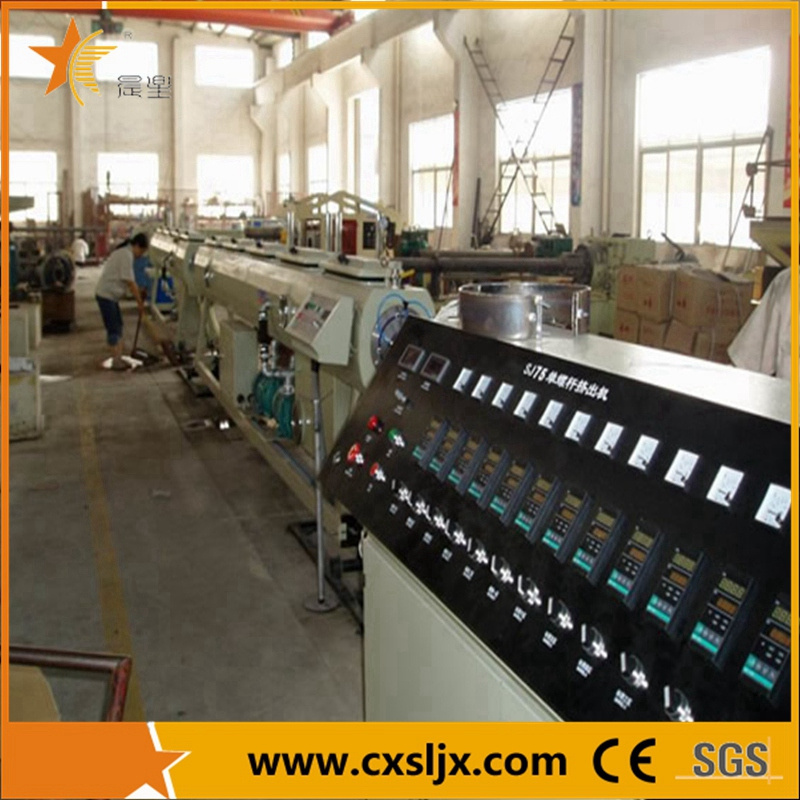

This pipe production line is mainly used for producing large diameter HDPE/LDPE/PE pipe. The pipe has some excellent features such as heating resistant, aging resistant, high mechanical strength, environmental stress cracks resistant, good creep resistant, etc. It is a preferred gas conduit for ductwork systems between city and its suburb, water supply in city.
Features:
High efficiency extruder is designed for HDPE pipe, equipped with reducer which is high speed and low noise, feeding section with cooling unit and reversing spiral groove, different pitch undulant screw which allows great output, lower melting temperature, and lower energy consumption.
Constituent of plastic making machine:
1. Distributed spiral composite extrusion die-head ensures the melting pressure and flux even and stable, the surface of pipe smooth and glossy;
2. Vacuum calibration and spray water cooling tank made of stainless steel ensures precise calibration and fast cooling;
3. Adopts multi claws haul-off unit, speed adjusted by frequency inverter;
4. Equipped with planetary cutter. Be able to cut large diameter and thick wall pipe;
5. Equipped with pipe-making line;
6. Small diameter use winding machine. Large dimaeter pipe used stacker.
Main technical parameters:
| Extruder model | Pipe diameter | Extruder | Output | Power | Extruder Power |
| SJ45 | 16~32mm | SJ45/30 SJ25/25 | 30~60kg/h | 40kw | 22kw |
| SJ65 | 20~75mm | SJ65/33 SJ25/25 | 80~120kg/h | 65kw | 37kw |
| SJ75 | 50~160mm | SJ75/33 SJ25/25 | 80~150kg/h | 150kw | 75kw |
| SJ90 | 75~250mm | SJ90/33 SJ25/25 | 280~350kg/h | 200kw | 110kw |
| SJ120 | 160~315mm | SJ120/33 SJ30/25 | 300~450kg/h | 280kw | 185kw |
| SJ150 | 315~630mm | SJ150/33 SJ30/25 | 550~800kg/h | 420kw | 285kw |
