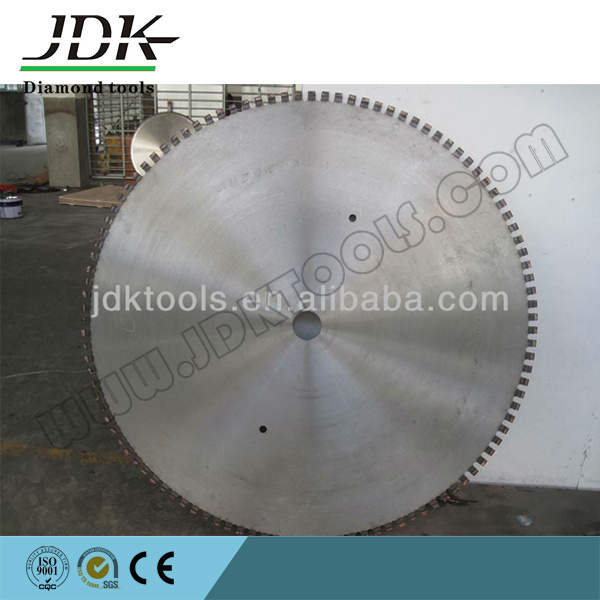

| Prod Model: |
DSB-3 |
| Diameter: |
1600mm |
| Segment Dimension: |
24*9.2/8.4*15 |
| Arbor: |
100mm |
| Core Thickness: |
7.2mm |
| Working Condition: |
Wet |
| Blade Material: |
Alloy Steel |
| Supply Type: |
Manufacturer |
| ODM/OEM: |
Yes |
| Delivery Time: |
7 Days After Payment |
| Segment Type: |
Sandwich/Grooved |
Product Description
Description:1.JDK has been engaged in manufacturing and exporting worldwide quality diamond tools since 1995.We produce different diamond tools suitable for quarrying, squaring, cutting,
grinding,profiling and polishing on various kinds of stones.
2.Our technical team had been to many countries to get local stones and had made different fomulas of diamond for cutting,grinding,profiling,drilling and polishing these stones.
The developing team are exploring new formulas to service for our customer.
3.Market approved quality,all of our products have been strictly tested before access to market.
Specification:
| Product Name | Specification | Core Thickness | Segment Dimension | Segment Number | Application |
| JDK Block Cutting Segment | Φ900 | 5.0 | 24x7.0/6.2x 15(20) | 64 | Granite |
| Φ1000 | 5.0 | 24x7.0/6.2x 15(20) | 70 |
| Φ1200 | 5.5 | 24x7.4/6.6x 15(20) | 80 |
| Φ1400 | 6.0 | 24x8.0/7.2x 15(20) | 92 |
| Φ1400 | 6.5 | 24x8.4/7.6x 15(20) | 92 |
| Φ1600 | 7.2 | 24x9.2/8.4x 15(20) | 104/108 |
| Φ1800 | 7.5 | 24x10.0/9.2x 15(20) | 120 |
| Φ2000 | 8.0 | 24x10.6/9.8x 15(20) | 128/132 |
| Φ2200 | 9.0 | 24x11.0/10.2x15(20) | 132/136 |
| Φ2500 | 9.0 | 24x11.5/10.5x15(20) | 140 |
| Φ2700 | 9.0 | 24x12.5/11.5x15(20) | 140 |
| Φ3000 | 9.3 | 24x13/12x 20 | 160 |
| Φ3500 | 9.5 | 24x13.5/13.0/12.2x30 | 180 |
Packing&Shipping: Packing:The inner packaging is carton box .The outer packaging is carton box Or woodencase.
(If by air ,carton box will reduce the weight, if by sea, we suggest woodenbox for waterproof.)
Shipping: 1. Trail order with light weight(<45kgs), we recommend Express Service.
2. Normal order weighting over 45kgs, we recommend Air Cargo.
3.As for the large size or heavy weight, JDK recommends Sea Cargo.
Our Advantages:Factory = Our Own Exporting License
Manufacturer = Competitive Price
Own Technology = OEM
Our Service:1.Profesion:Provided all diamond tools for stone processing.
2.Customized Design:We can produce according to your request.
3.OMD/OME service
4. Logo printing
5. MOQ:Any quantity you need is welcomed.
Quanzhou JDK Diamond Tools Co., Ltd. is one professional manufacturer of diamond tools in China, specially for the stone working industry. The main products are stone cutting Diamond Saw Blades, Kinds of Diamond Segments, Diamond Abrasives, etc...For over 12 years development with the support of JDK's Customers, suppliers and Staffs, now JDK is supplying big range stone cutting, Grinding & Polishing tools to the world.
JDK was established in 1995, initially JDK was producing and selling diamond tools products to China domestic market. Since 2000 year JDK is aiming at the world market and started to design and produce superior performance diamond tools to meet kinds of requirements of customers from all over the world. with these years export experiences now JDK is exporting his diamond tools products to over 30 countries which is in Europe, Middle East, Asia, America, etc...

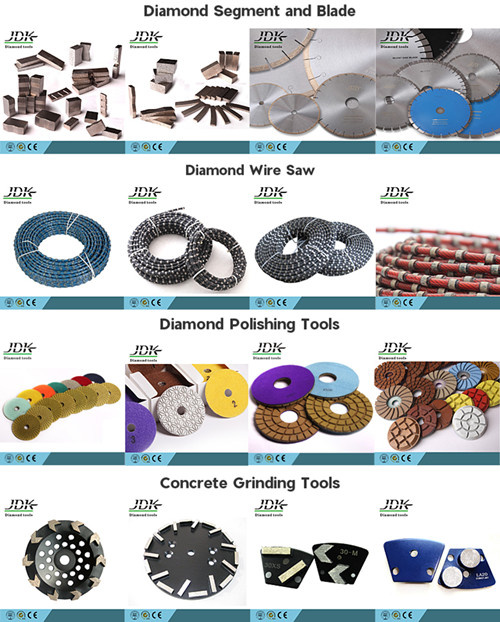

JDK's experienced Engineer and R&D team are providing customers quality stone tools for cutting, grinding, polishing, milling, drilling, such as diamond saw blade, diamond segments, Diamond Wire Saw, Diamond abrasives, Flexible Polishing Pads, Grinding Cup Wheels, Core Drill Bits, ...
Always, JDK's target: Offer you most satisfied products and service, developing together.
