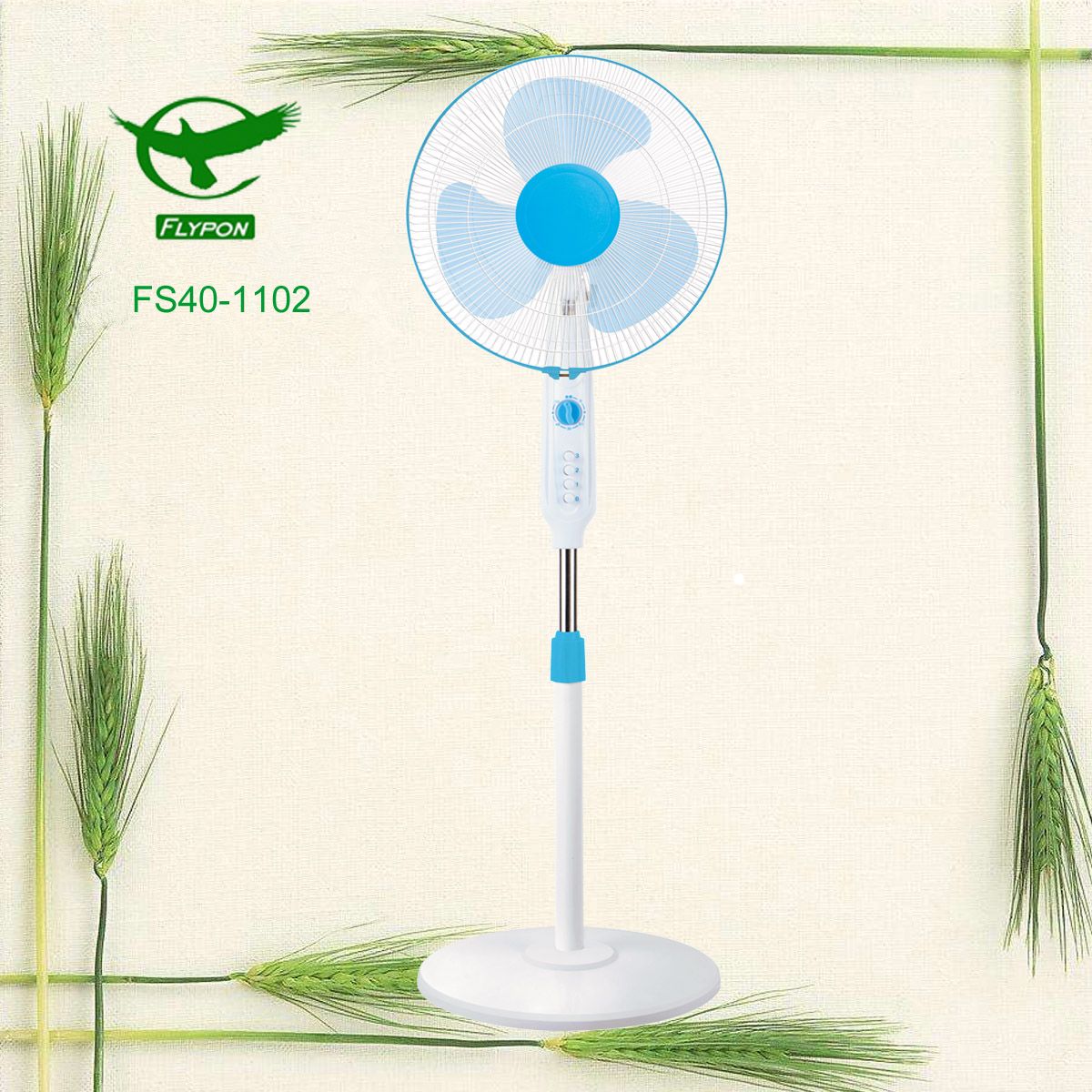

16inch Electric Cooling Standing Fan for Home Office
| Price: |
US $ 9.7-9.8/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
FS40-1102 |
| Color: |
Blue or According The Request |
| Shipping: |
40hq Container |
| Quantity: |
2000PCS/ 40hq |
| Base: |
2.3kg Round Base |
| Grill: |
Line Grill |
| Blades: |
3 PP Blades |
| Speed: |
3 Speed |
Product Description
16inch Round Base Stand Fan Descrition: | Product Name: | 16inch stand fan |
| Model No: | FS40-1102 |
| Voltage: | 220V |
| Frequency: | 50Hz |
| Power: | 40W |
| Motor: | 66*14 Aluminum Motor or Copper Motor |
| Grill: | Line Grill |
| Blades: | 3 pp blades |
| Plug: | two round Plug |
| Color: | Blue or according the order |
| Base: | 2.3KG Round Base |
| Body: | New PP material |
| Height: | 130cm |
ASSEMBLY INSTRUCTIONS
BASE AND PILLAR ASSMBLY
1.Take our base and pillar part from the carton.
2.Revolve the height adjustor anti-clock wisely out,draw the steel tube out of the pillar.Then revolve the height adjustor clock-wisely to fasten it.
3.Locate the pillar proper into the base,take the screw nut from the plastic bag and fit if to the pillar from the bottom of the base and fasten it.
4.Adjust the height adjustor to meet you requirement of the height of the wind sending.
FAN BODY AND COLUMN ASSEMBLEUnscrew the fixing knob on the back of the bottom of fan body,emptied the hole in the bottom of fan body,put extension column into the hole of the fan body,then tighten the fixing knob.BLADE AND GRILLES ASSEMBLY1.Remove the spinner and the plastic nut from the front side of the motor shaft then tighten the plastic nut.2.Discard PVC sleeve on shaft.Insert the blade into shaft,made sure the stopper pin is clipped in to the groove of the blade.Screw the spinner counter clockwise to tighten the blades.3.Hold the front guard to make sure that the trade mark is level and that the front guard are centered over the rear guard.Then push all the safety clips firmly into place.OPERATION INSTRUCTIONSpeed control please use "speed "switch to turn on/off the fan and adjust the speed by push the swich to number indicating. 0-off 1-low 2-medium 3-highOSCILIATION CONTROLTo make the fan oscillating,pres the oscillation knob located on the top of the motor housing.To get the directional airflow,press the oscillating knob.TILTING CONTROLUnscrew the tilting knob,adjust the fan head to the desirable angle by holding the fan head,then tighten the knob.MAINTENANCE INSTRUCTIONSThe fan requires little maintenance.Do not try to fix it by yourself,refer it to qualified service personnel if service is required.1.Before cleaning and assembling,do not plug the pins into the socket.2.To ensure adequate air circulation to the motor,keep vents at the rear of the motor housing room dust,fluff and etc,A vacuum cleaner can not be used to clean these vents before unplug.Do not disassemble the fan to remove fluff.3.Please wipe the exterior ports with a soft cloth soaking a mild detergent.Do not use any abrasive detergent or solvents to avoid scratching the surface.4.Do not allow water or any other liquid in to the motor housing or interior parts.5.If the power cord is damaged,it is strongly recommended to request a specialist to handle.MOTORWe choose the best motor to use!!

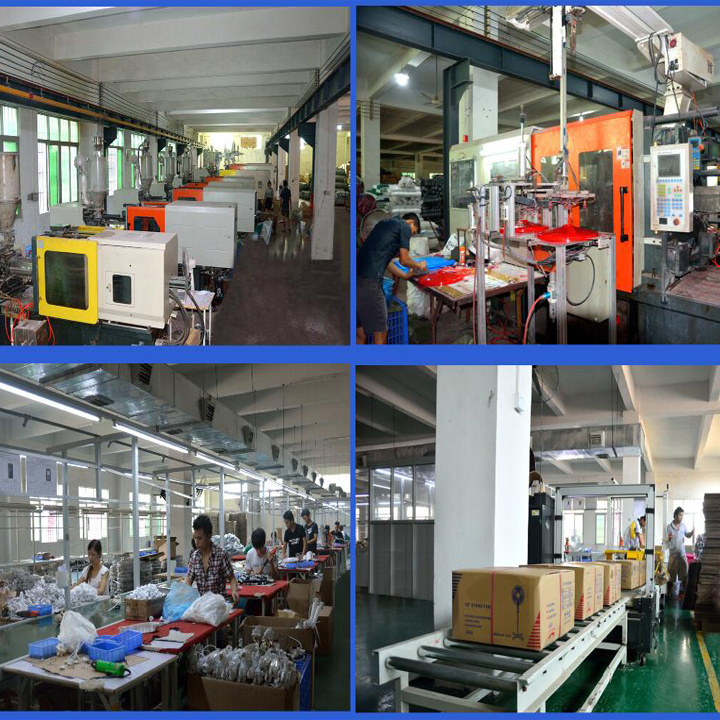

Workshop

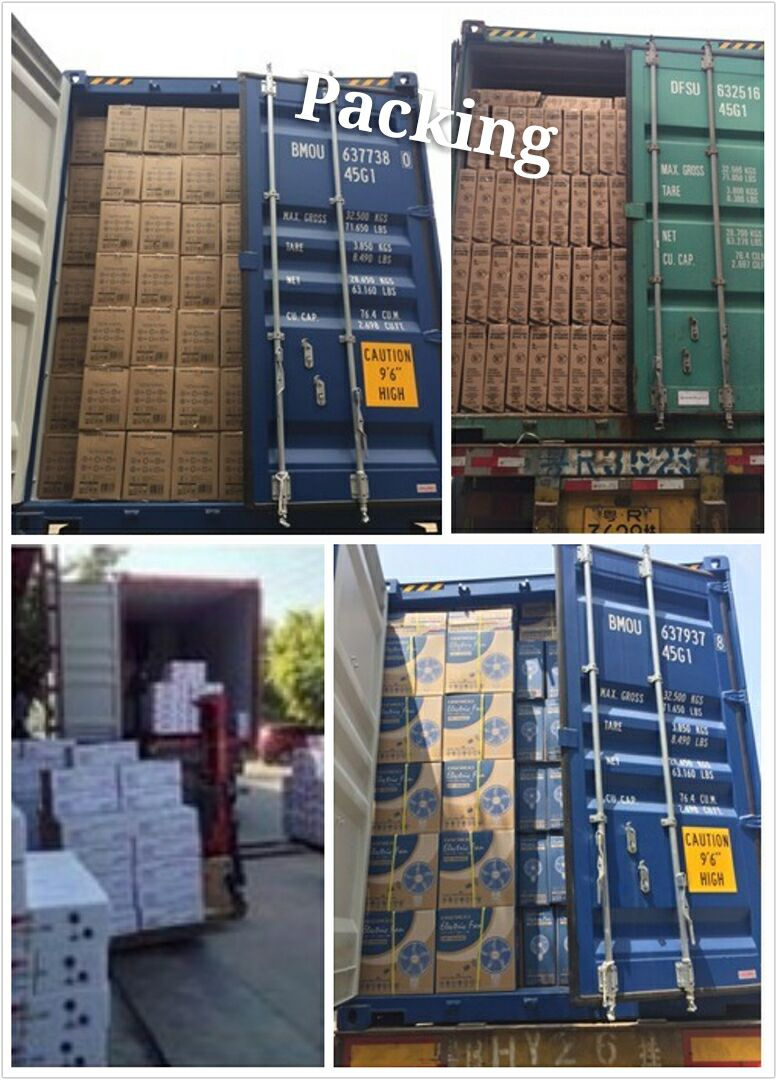

Packing| Carton | 1pcs/color/white/brown carton |
| Size | 49*13*54 |
| Container | 40hq |
| Quantity | 2000pcs/40hq |
Our ServicesHigh quality because of attention to detail

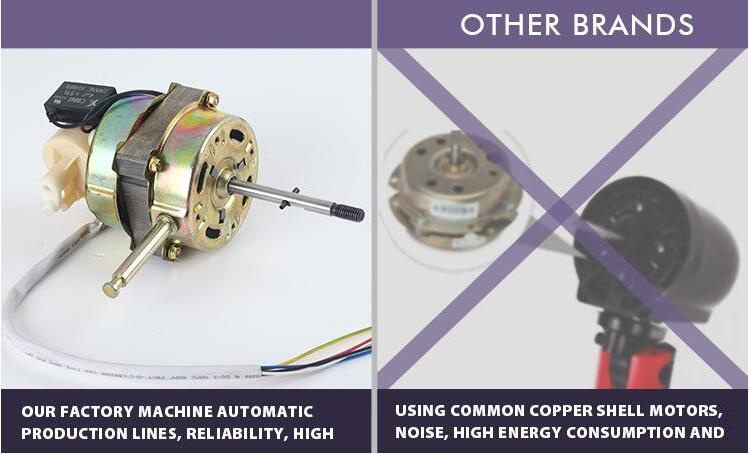

1* Our factory machine using automatic production lines, the motors are more reliability and high-quality .
2* Low heat during operation, silent for a long time overload running, not hot, put an end to rust.
3* Compact design,beautiful shape and artful design,and also easy to take with.
4* Strong wind ,big motor,faster speed and 3 speed natural wind grade choices.
5* Security smart,safty switch and over temperature protection keep it more safty.
6* Low power ,environment friendly.

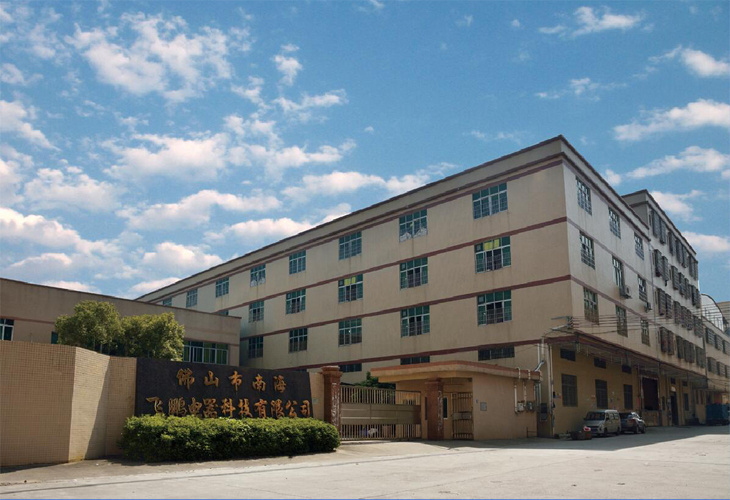

Company InformationFoshan Nanhai Feipeng Electrical Technology Co., LTD. is located in Foshan Guangdong China,which is specialized in R & D , production and operation in the line of electric fan , DC fan, heater and other household appliances. Sorts of the products have CB and CE approval certificated.
Lingfei covers an area of more than 30,000 square meters, has a spacious workshop, advanced testing equipment, as well as a team of professional engineers , technical personnel. Through ISO9001: 2000 management system and strict quality control system,IQC,PQC and FQC testing ensures that our products are defect free.
Ascribed to excellent quality and competivtive price, prompt delivery, our products have won a good reputation both at home and abroad.
"Products derived from technology", its the aim that we are always strive for, which make our products occupy the worldwide market rapidly.
If you are interested in our products,please do not hesitate to contact us.We assure that our abundant experiences in OEM and ODM can lead to mutual benefit in the near future.
FAQQ:How to contact us?
A: Sanjia Industrial Area, Xilian, Jinsha, Nanhai Area, Foshan, Guangdong, China (Mainland)Postcode:528200
tel:(86) 13425923808
Foshan Nanhai Feipeng Electrical Technology Co., Ltd is located in Foshan, Guangdong, occupies a total area of 10000 square meters, which is specialized in R&D, production and operation in the line of electric fan, heater, fan mist machine and other household appliance. Sorts of the products have GS CE CB and RoHS approval certificated.
Something has beed done for promoting green and healthy new life to whole society b the concept of quality achieve excellence, feipeng has attracted numerous product development and quality construction person, invested millions of dollars on product developmeng to be more and more professional on development.
Worldwide sales network and successful expansion of Asia, Europe, South America, Middle East market has witnessed the entrepreneurship spirit of feipeng group.
Feipeng group will continue to carry forward the spirit of Ecploration, Innovation, Hard work&progressive, will win much bright future with unremitting efforts and tireless pursuit.
