1. Manual Strapping Tool Description Manual packing tool ,one set with one tensioner and one Sealer. The tensioner is for plastic strap tensioning only, and the sealer is to clamp the seal buckle.
2 Manual Strapping Tool Technical Data
Type:
ZL 13 / ZL16 / ZL19
Packing strap width
13,16,19mm (1/2",5/8",3/4") (one machine suit for one size strap)
Packing strap thickness
0.6mm,0.8mm,1.0mm (one machine suit for one size strap)
Tool dimension
505*122*45mm (sealer) 280*150*75mm( tensioner )
Tool Weight
1.85kg ( tensioner )+1.3kg (sealer)
Suitable strap type
PET / PP
Automatic grade
Manual
Strapping mode
Buckling type
Maximum tightening force
100kg
3 Manual Packing Tool Features Suitable for all kinds of PET/PP strap Hand tighten, seal notch, cut, easy to operate Simple structure, low failure rate The most suitable for small objects in packing Portable,cheap,suitable for hard working conditions low quality requirement for production workers. Using spin to tighten the way to achieve greater tighten force. Simple package for heavy goods

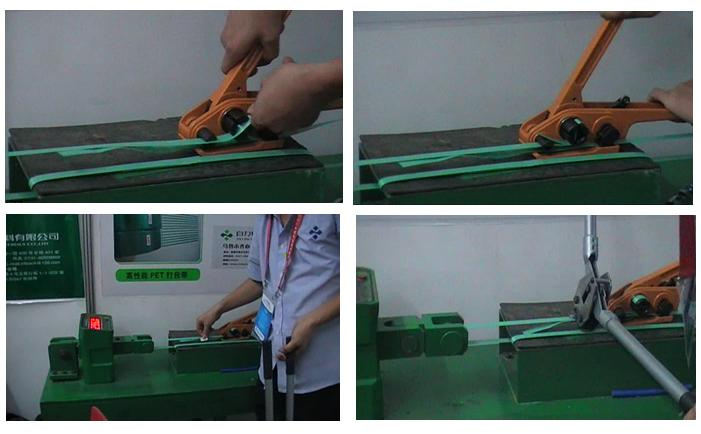

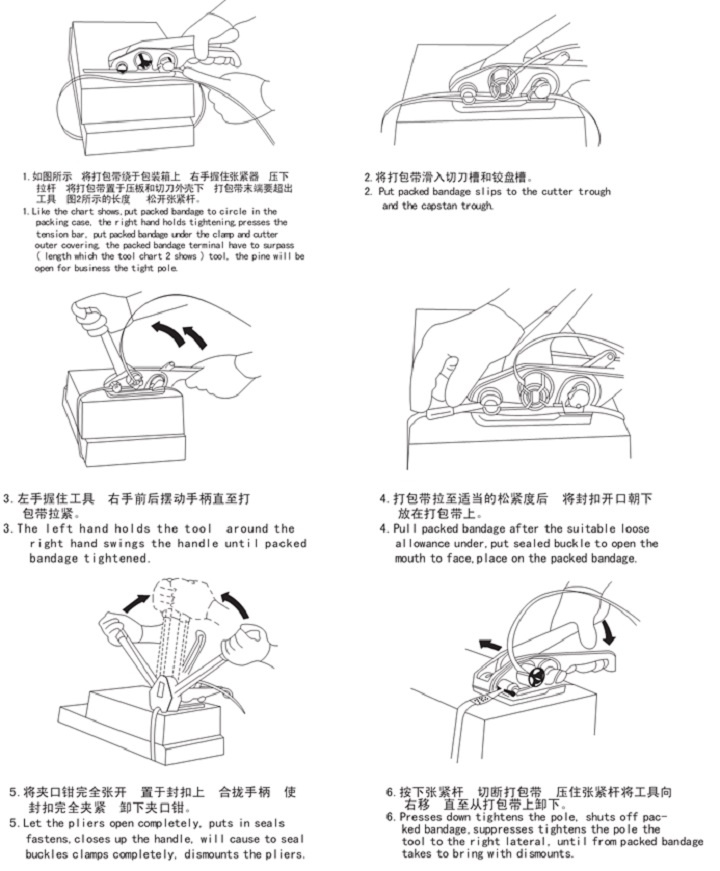

4 Manual Packing Tool Operation Instruction

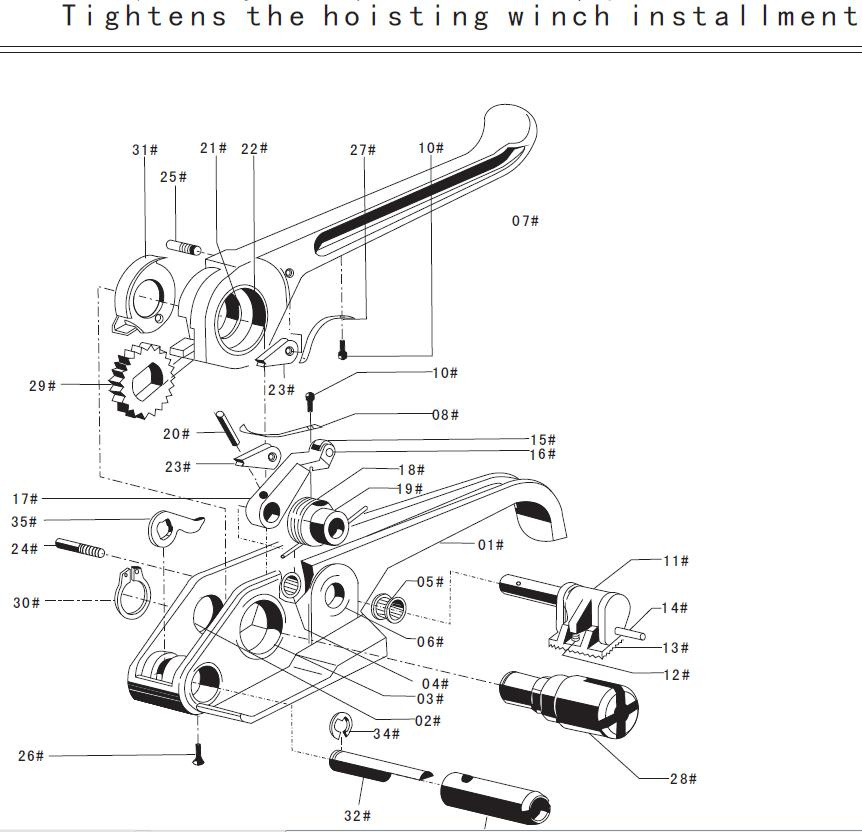

5 Detail of Tensioner
6 FAQ
6.1 What does the tool work for? It is a packing tool,working on the plastic straps, for example, pp strap, pet strap. strap bale the carton, wooden case,pallet, or round steel coil. But, it is only for strap tensioning, no, sealing. you need the seal and the sealer to work together. 6.2 What size of the strap does the tool apply for? Strap width:13mm,16mm,19mm. thickness:0.6mm to 1.0mm. And remember it is plastic strap, not the steel strap. 6.3 What else could we supply? Our company also supply seal buckle to match this set of manual packing tool. 6.4 How about Zili Company? We are 11 years professional manufacturer and trading company, have advanced machines, professional team, efficient organization, well-deserved reputation. OEM and free sample are available. 6.5 How to order Please contact directly to order the products ,there is no minimal order volume required. The price depends on the order volume. 6.6 Payment Method we accept T/T, Western Union, MoneyGram,Paypal, Escrow, or customized if it is acceptable. 6.7 Shipping Condition Once we received the payment, we will ship the samples in 1-3 days by air/, and ship the formal order in 15~30 days by air or ocean.
7 Contact We are willing to support you a perfect packing solution.
Changsha Zili Packing Materials Co., Ltd.Is an ISO certificated high-tech enterprises specialized in production, researching and developing pet strap and pet strapping machines used for industrial products packing during transportation.With more than 20 years developing, we now have a annual production capacity with 10, 000 tons PET.Meanwhile we focus on integrating the world famous packing machine and advanced packing technology to big scale enterprise with professional and efficient packing solution.
We have much experience together with wide service net work to provide those enterprises such as cotton packing transportation and storage, steel industry, construction materials industry paper manufacture glass manufacture and ceramic manufacturers a set of solution on packing.
We provide our customer with one-stop service and high efficient packing solution.Being one of the biggest packing companies in south middle of China our packing materials and packing service has well known with domestic markets and oversea market such as Southeast Asia, Egypt, USA, Austrialia, UK.
