| Prod Model: |
M233 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3"-26" |
| Condition: |
Brand New |
| Brand: |
Lockheed |
| Weight: |
5kg-810kg |
| Application Condition: |
Soft to Hard Formation |
| Colour: |
Golden |
| Guarantee Period: |
3-4 Years |
| Processing Type: |
Forging |
| Type: |
Petroleum Drilling Tool & Accessory |
| Usage: |
Oil (',Gas) Production Machinery |
| Certification: |
API |
Product Description
2. About the PDC bit

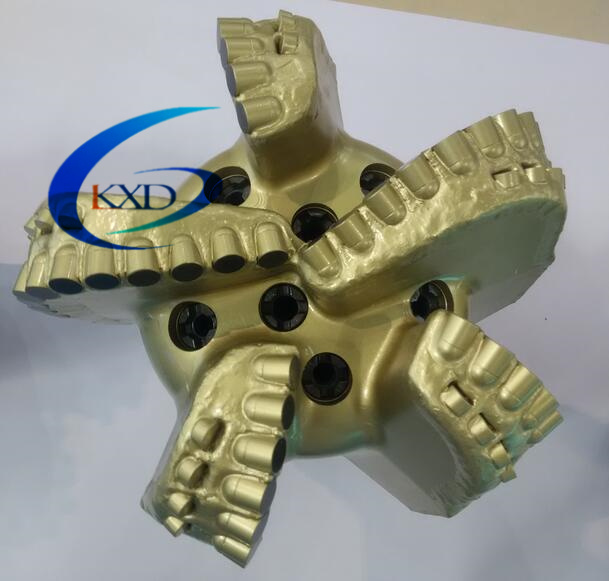

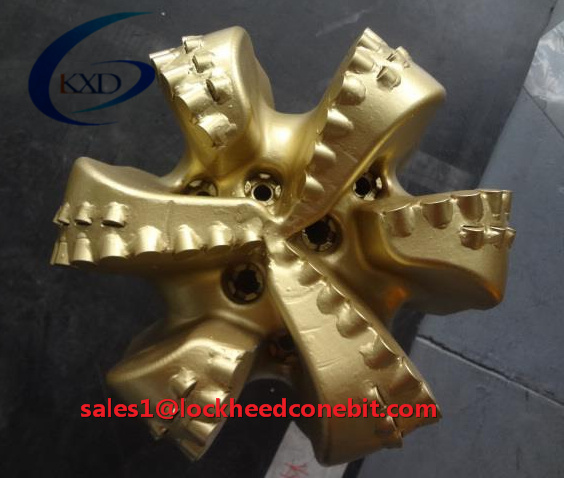

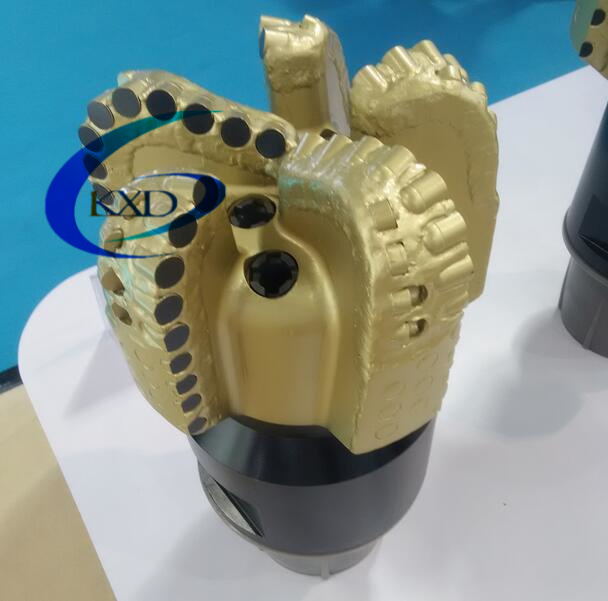

PDC bits for well drilling
Feature: Improved support and retention.
Advantage: Manage the magnitude cutter loading and bit torque.
Benefit: Improved bit duoability and directional responsiveness.
Advantage: Higher nozzle counts and/or fixed ports to best serve cleaning cooling and cuttings evacuation requirements with available hydraulic flows.
Benefit: Optimized ROP and bit life. Longer drilling intervals without need for tripping.
Feature: Diamonds are impregnated in the matrix behind the PDC cutters.
Benefit: Increased footage drilled in abrasive applications.
Feature: Larger than standard TFA.
3. Packing:
Wooden box, steel box or as your requirements
4. Payment Terms
T/T and L/C are acceptable(30% advanced payment after sign the contract,
Then 70% advanced payment after see the B/L)
PDC BIT WITH Matrix & steel Body |
| Formation | Lithology | IADC |
| Very soft | Clay | M121 |
| Mudstone | M222 |
| Marl | M222 |
| soft | Marl | M223 |
| Rock salt | M232 |
| Gypsum | M232 |
| Sandstone | M232 |
Medium
soft | Shale | M322 |
| Sandstone | M322 |
Cretaceous
rocks | M323,M332 |
| Medium | Shale | M323 |
| Mudstone | M323 |
| Sandstone | M323 |
| Limestone | M323 |
Medium
hard | Shale | M422 |
| Mudstone | M333 |
| Sandstone | M422 |
| Limestone | M423 |
| Anhydrites | M432 |
| hard | Dolomite | M432 |
| Siltstone | M433 |
| Limestone | M433 |
| Dolomite | M433 |
| Quartzite | |
Very
hard | Quartzite | |
| Basalt | |
| Flint |
Established in 1998, Cangzhou Lockheed Petroleum Machinery Co., Ltd. is a professional technology-oriented enterprise specialized in the production drilling equipments
And tools, which is one of the leading corporations of drilling tools and workover
Fishing tool manufacturing industry. Including three series with full model types, as
Follows:
Drilling Bit series: Rock roller bit, tricone bit, PDC drill bit, single bit, cone bit and hole opener;
Drilling Equipment Parts series: Downhole motor, manual tong, elevator, slips,
Stabilizer;
Workover Fishing Tool series: Releasing spear, junk basket, overshot, reversing
Sub, die collar, fishing tap etc.
Cangzhou Lockheed Petroleum Machinery Co., Ltd. is located at the center of Beijing-Tianjin-Hebei-Shandong-Henan-Region which is adjacent to National Expressway
No. 106, 166km away from Beijing, 110km away from Tianjin and 35km away from
Baiyangdian, the Pearl of Huabei Area. More convenient transport, faster delivery,
And more trustful enterprise is your best choice. Come on, join us.
Our goal: Strive for Perfection and Win by Quality.
