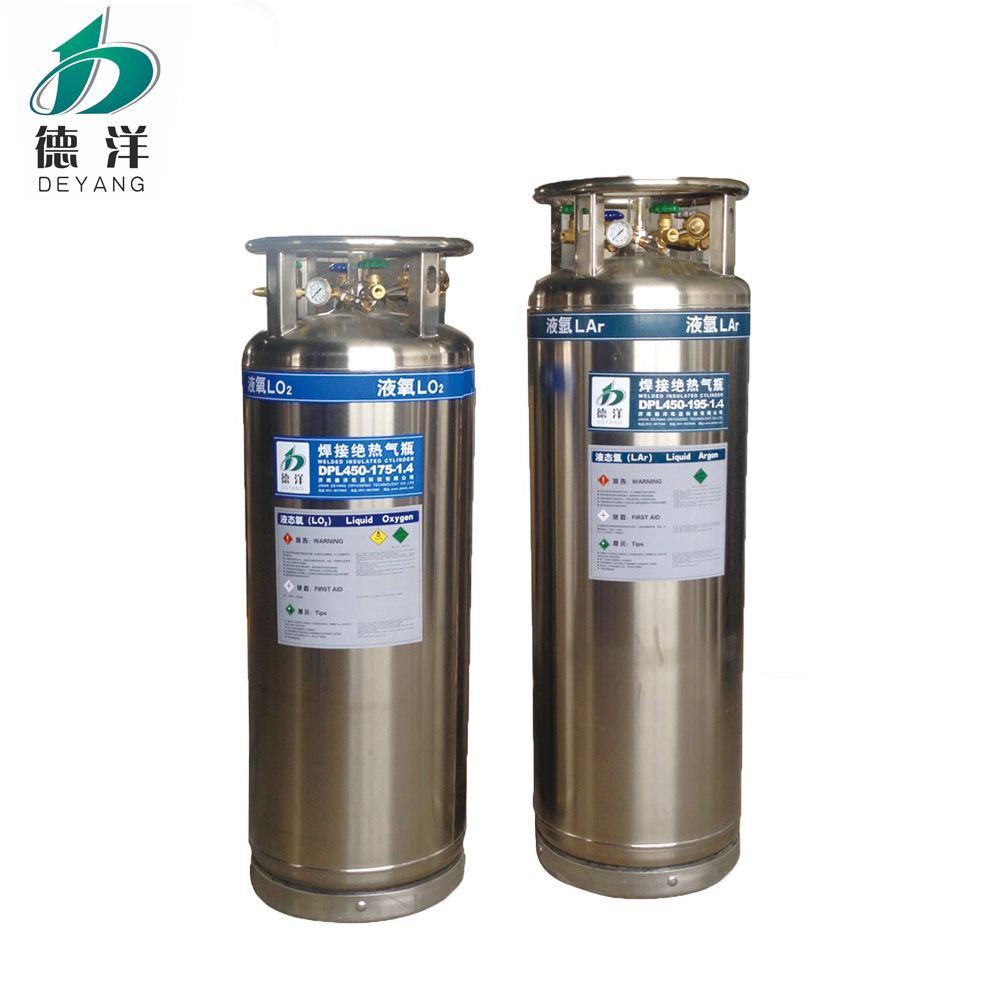

Prod Model: |
DPl450-175-1.4 |
Product Description
Jinan Deyang cryogenic technology Co., LTD. specialized in the R&D and production of cryogenic insulated cylinders, cryogenic equipment. Our crogenic insulated cylinders (
Dewar Flask) has the property of low evaporation rate, long vacuum guarantee period, high vaporization rate, etc. And have good effect and feedback in the industry of biological pharmaceutical, medical and health care, machinery manufacturing, energy, electronic industries, and had won high praise from the customers in domestic and the asian market.
The cryogenic cylinders mianly used for the storage and transport of liquid argon/liquid oxyge/liquid nitrogen/liquid carbon dioxide/LNG etc. * Used for the storage and transport of liquid argon/liquid oxyge/liquid nitrogen/liquid carbon dioxide/LNG etc.

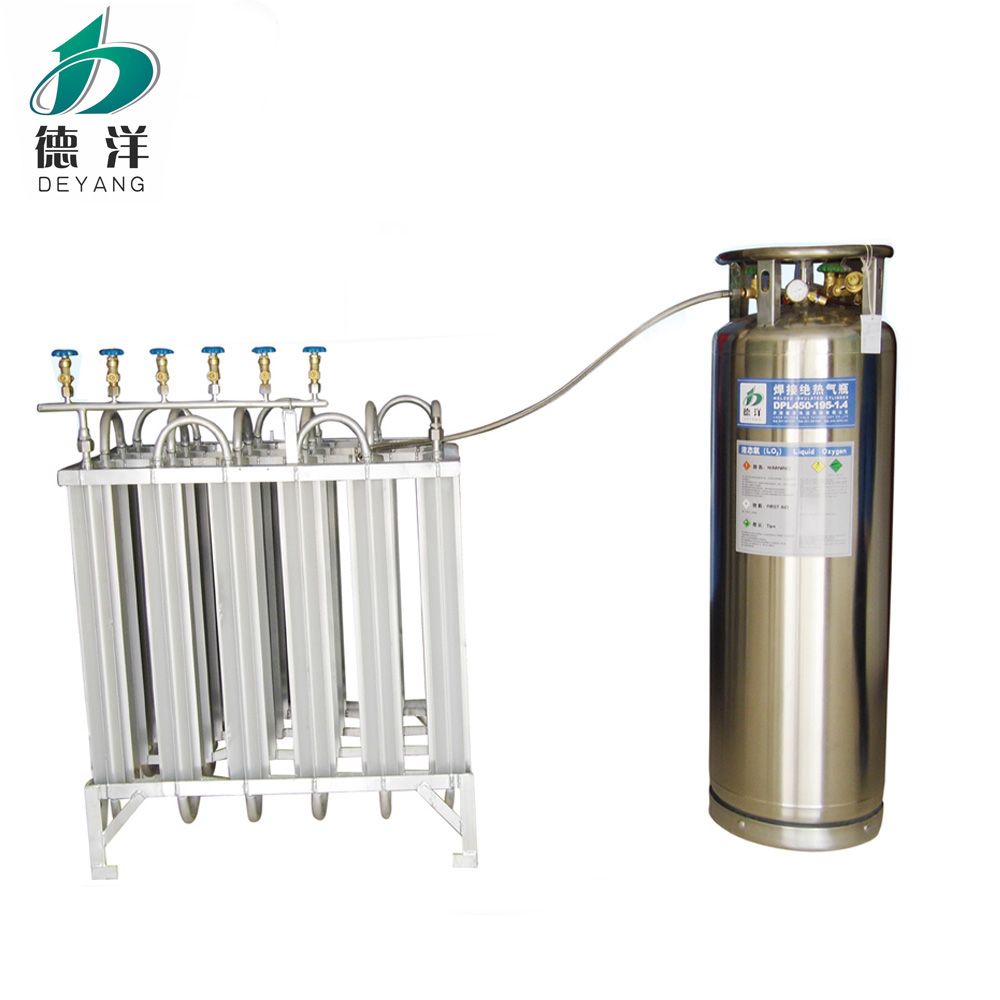

* Equip the vaporzer inside,provide 10m3/h continuous gas supply.

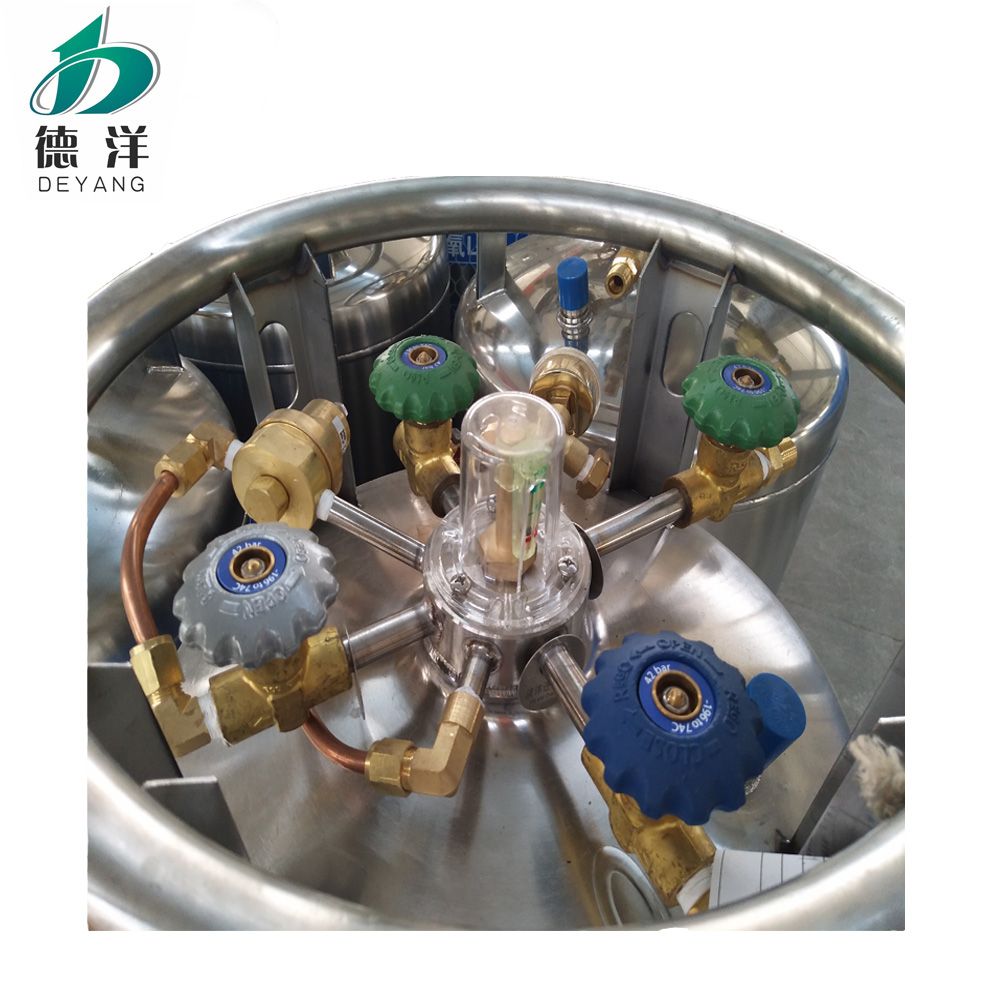

* Adopt the international standard connectors, all valves are imported brands.Also can customize according to the customers.* Damping ring design to make sure the tranportation safely* Are widely used in the industries of Chemical /machinery /shipbuilding/ hospital /electronic /medical /material /energy /research. Model | | DPL450-175-1,4 | DPL450-175-2.3 | DPL450-175-2.88 |
Nominal capacity | Liters | 175 | 175 | 175 |
Effective capacity | Liters | 166 | 166 | 166 |
Dimension(Diameter*Height) | mm | Φ506*1506 | Φ506*1506 | Φ506*1506 |
Empty weight | Kg | 126 | 137 | 157 |
Working pressure | Barg | 14 | 23 | 28,8 |
Safety valve setting pressure | Barg | 16 | 24 (LNG: 26) | 34 |
Bursting disk setting pressure | Barg | 26 | 36 | 52 |
Evaporation rate of LN2 | M³/hour | ≤2.1 | ≤2.0 | 2,1 |
Gas flow rate | M³/hour | 9,2 | 9,2 | 9,2 |
Min working temperature | ºC | -196 | -196 | -196 |
Hydraulic test pressure | Barg | 28 | 46 | 57,6 |
Leakage test pressure | Barg | 14 | 23 | 28,8 |
Filling weight of LO2 | Kg | 180 | 180 | 180 |
Filling weight of LN2 | Kg | 125 | 125 | 125 |
Filling weight of LAr | Kg | 220 | 220 | 220 |
Filling weight of CO2 | Kg | 185 | 185 | 185 |
Filling weight of LNG | Kg | 67 | 67 | 67 |
Jinan Deyang Cryogenic Technology Co., Ltd, since 2011, specialized in the R&D and production of DPL DPW series cryogenic liquid cylinders, which is widely Used for the storage and transport of liquid argon LAr/liquid oxyge LO2/liquid nitrogen LN2/liquid carbon dioxide LCO2/LNG etc.
