Product Description
Product Description

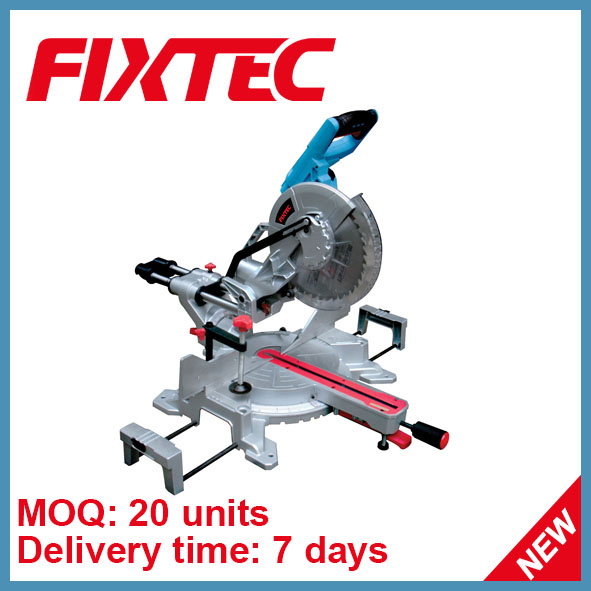

FIXTEC 1800W 255mm Mini Sliding Compound Miter Saw
Whether you're cutting baseboards or crown molding, the FIXTEC 255mm double-bevel sliding
Compound miter saw provides quick, accurate cuts to complete the job. Thanks to a powerful
Motor, an easy-to-adjust cam-lock miter handle, convenient miter and bevel stops, plus a tall fence for accomodating
Oversized moldings, this saw is ready for a range of crosscutting and miter cutting applications.
Smart, Powerful Design for Quick, Accurate Cuts
The FIXTEC double-bevel sliding compound miter saw's 255mm blade is backed by a powerful and
Dependable 1800W motor. Offering a no-load speed of 5, 000 RPM, it makes quick work of cutting
Framing or molding, as well as other crosscutting and miter-cutting jobs.
This sturdy saw is designed to deliver precise cuts, allowing for the versatile setups required for
Miter applications. The precise miter system's adjustable stainless steel miter detent plate features
9 positive stops for easy setup and improved efficiency. An easy-to-adjust cam-lock miter handle delivers quick and accurate miter angles, and features a convenient
Detent override, which allows you to adjust the miter setting without the saw slipping into the miter
Detents.
Tall Fencing and Compact Sliding Rails
The fence slides out of the way easily when it's time to make bevel cuts. This saw stays compact
Thanks to its sliding saw dual horizontal steel rails, which feature an innovative clamping mechanism
And linear ball bearings for increased accuracy and durability.
Increased Bevel Capacity and Convenient Stops
This saw is designed to deliver quick, accurate bevel cuts. You can easily set up for bevel cuts that
Measure between 0 and 45 degrees to the left and to the right. This handy setup provides increased
Capacity for big jobs and allows you to flip the saw instead of the material. Plus, with several bevel stops,
It makes finding and setting the bevel angles a quick, easy process.
Ideal for a range of applications, the saw's unique back fence design allows it to deliver clean, 45-degree
Bevel cuts through dimensional lumber.
Portable and Compatible with the Laser System
This lightweight sliding compound miter saw weighs just 16.5Kg and features a built-in carry handle, so
You can move it around the jobsite easily and lift it comfortably when it comes time to stow the saw at the
End of the day.
Packing details
A. Selling unit packing
FIXTEC Angle Grinder FMS25502
Is packed in a color box
What's in the box?
1.1pc dust bag
2.1pc 255mm blade
3.2pcs extension wing
4.1pc work clamp
5.1pc hex key
6.1 set carbon brush
7.1 instruction manual
About us
FIXTEC, a unique brand of power tools and accessories, is developed to make professional tools more affordable. FIXTEC team is based in China to support global marketing and we are looking for local distributors as our long term partners instead of setting up our own sales team to save the cost and maximize the benefits of our partners. Through continuous innovation and improvement, we will provide exceptional value to our partners. FIXTEC, better tool, better life.
Quality control
We know what quality means, so we always focus on quality control.
Customer questions & answers
Q: What's your MOQ?
A: Our MOQ is 20 units per model for FIXTEC brand.
Q: What's your payment terms?
A: We could accept L/C sight, T/T and Paypal.
Q: What's the delivery time?
A: We could deliver the goods within 7 days after order confirmed. Just like purchase from your local distributor, but with more cometitive prices.
Q: Can I get free samples?
A: Yes, we could provide free samples and deliver with freight collected.
Model Number |
FMS25502 |
Voltage |
220-240V ~ 50-60Hz |
Rated power |
1800W |
No load speed |
5000rpm |
Dimension of saw blade |
255mm |
Mitre table angles |
-50 0 /-31.6 0 /-22.5 0 /-15 0
0 0 /15 0 /22.5 0 /31.6 0 /50 0 |
Bevel angles |
L eft 0-45 0 / right 0-45 0 |
Laser output |
<5 mW |
Cutting capacity, |
|
c ross cut at 0° mitre, 0° bevel |
90 x 305 mm |
mitre cut at 45° mitre, 0° bevel |
90 x 21 5mm |
compound cut at 45° mitre, 45° bevel |
38 x 21 5mm |
bevel at 0° mitre, 45° bevel, right & left |
38 x 305 mm |
Weight |
16.5Kg |
Protection class |
II |
