| Prod Model: |
SCY-1800E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Orange |
| Weight: |
25kgs |
| Structure: |
Vertical Drilling Machine |
| Layout: |
Vertical |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Precision: |
Precision |
Product Description
Product Category: Diamond Drill Series>Velocity adjustable diamond drill series

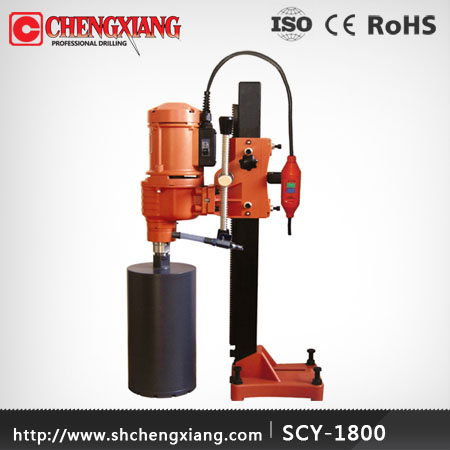

Product Name: SCY-1800E
Drilling range: θ 15-180mm
Rated voltage: 110/220V
Rated frequency: 50-60Hz
Rated input power: 3800W
No-load speed: 0-750r/min
Diamond drill, also called concrete drill is a new type of tool which can drill on RC, brick and stone, rock, China and fireproof materials. It is hold such characteristics as working without dust, high efficiency, smooth wall of hole and accurate size. It is available in many fields of construction, quality-checking, airfield runway, tunnel of road, railroad and railroad bridge.
The velocity-adjustable diamond core drilling machine have function of soft-starting, constant power, overloading protection and steoless speed-regulating, etc.
| Product Model | SCY-1800 | SCY-2050 | SCY-2350 | SCY-2550 |
| Max Drill Range | 180MM | 205MM | 235MM | 255MM |
| Rated Voltage | 110/220V | 110/220V | 110/220V | 110/220V |
| Rated Frequency | 50-60HZ | 50-60HZ | 50-60HZ | 50-60HZ |
| Rared Input Power | 3800W | 4000W | 4180W | 4350W |
| No-Load Speed |
750RPM |
700RPM | 600RPM | 580RPM |
| Spindle | 1 1/4''-7 UNC | 1 1/4''-7 UNC | 1 1/4''-7 UNC | 1 1/4''7UNC |
| Max Stroke | 500mm | 500mm | 500mm | 500mm |
| WEIGHT: | 22KGS | 22KGS | 23KGS | 25KGS |
Shanghai Chengxiang Electromechanical Equipment Co., Ltd. is a high-tech enterprise which boasts of scientific research, manufacture and sale. Our products include industrial drills, such as diamond drills, wall cutting machines and magnetic drills.
Our independent R&D products are very popular at home and abroad, such as multifunctional diamond drills, wall cutting machines and cutting and detaching machines, as well as multi-functional magnetic drills.
Chengxiang keeps up with what clients need, with an international and unique view. Here what we provide is not only fully-ranged, innovative and professional products, but also professional services in a highly efficient and swift way.
