| Prod Model: |
BL48-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
12V ~ 48V DC |
| Rated Power: |
300W-700W |
| No Load Speed: |
10000 Rpm-25000 Rpm |
| Efficiency: |
> 80% |
| Control Rotor Position: |
with a Hall |
| Shaft Diameter: |
6mm (Customization) |
| Application: |
Power Tools |
| Operating Speed: |
High Speed |
| Excitation Mode: |
Excited |
| Structure And Working Principle: |
Brushless |
| Type: |
Bl48-a Series High Speed,High Efficiency BLDC |
| Brand: |
Rongde |
Product Description

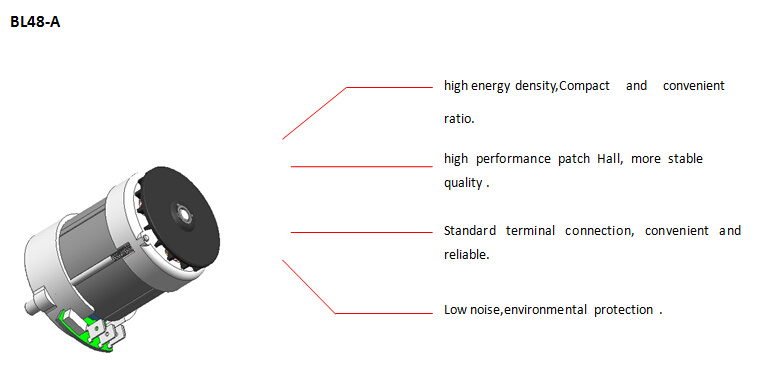

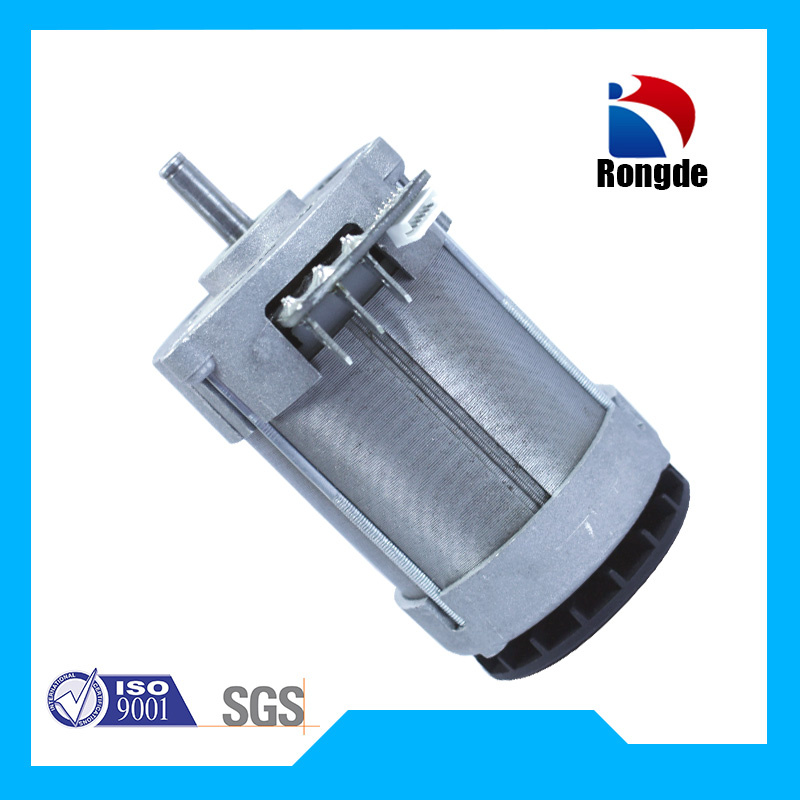

φ48 High speed high Efficiency BLDC
Rated voltage:12V ~ 48V DC
Rated power:300W-700W
No load speed : 10000 rpm-25000 rpm
Rated efficiency > 80%
Control rotor position:With a hall
Shaft diameter: 6mm (customization)
Characteristic for BL48 Series

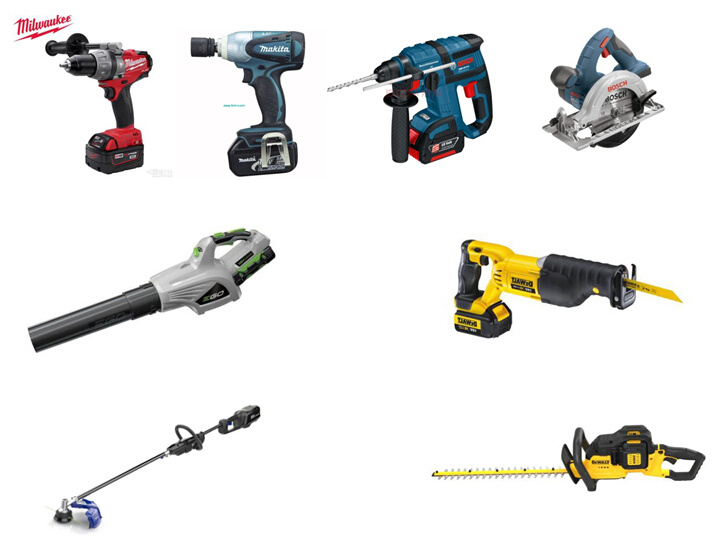

Widely uses for DC wireless power tools and garden tools as high efficiency powerful power system.such as screw batch,impact drill,electric wrench,electric hammer,hair dryer,electric chain saw, pruning scissors,grass cutting machine. The series motor has ultra longtime, which can reach 500-50,000 working hours according to different loading.
