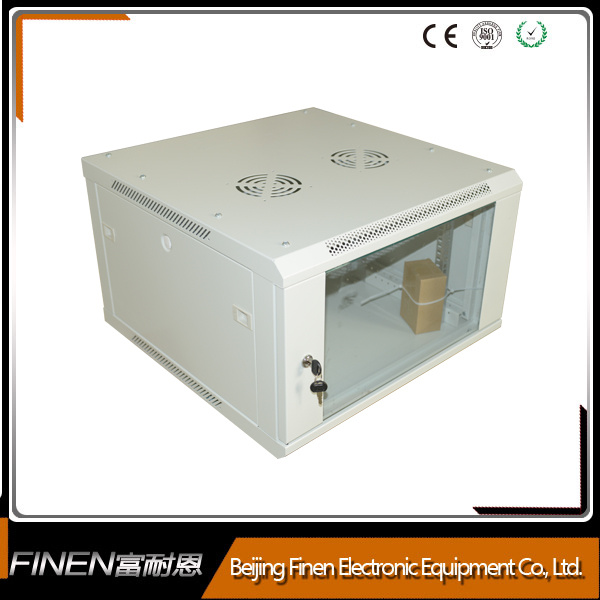

19 Inch Home Using Wall Mounted Network Data Cabinet 6u 9u 12u 15u 18u
| Price: |
US $ 26/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Model No.: |
Wl |
| Product Name: |
Server Cabinet |
| Installation Type: |
Vertical |
| Optional Color: |
Black,Gray,White |
| Feature: |
Wall Mounted Cabinet |
| Width: |
550,600mm |
| Depth: |
450mm |
| Surface Finish: |
Powder Coating |
| Material: |
SPCC Cold Rolled Steel |
| Type: |
Network Cabinet |
| Usage: |
Network Integration System |
| Installation: |
Wall-Mounted Cabinet |
| Certification: |
RoHS |
| Condition: |
New |
| Fan Number: |
Optional |
| Capacity: |
4u-18u |
Product Description
19 inch Home using wall mounted network data cabinet 4U 6u 9u 12u 15u 18U
Specification:| Basic Information |
| 1) Standard | Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7,GB/T3047.2-92, ETSI Standard |
| 2) Material | SPCC high-quality cold rolled steel |
| 3) Thickness | Mounting profile 2.0mm
Others 1.0mm |
| 4) Surface Finish | Degreasing, Pickling, Phosphating, Powder coating |
| 5) Protection Degree | IP20 |
| 6) Loading Capacity | 60kgs(=132lbs) |
| 7) Color | Optional: Black(RAL9004) White(RAL7035) Grey(RAL7032) |

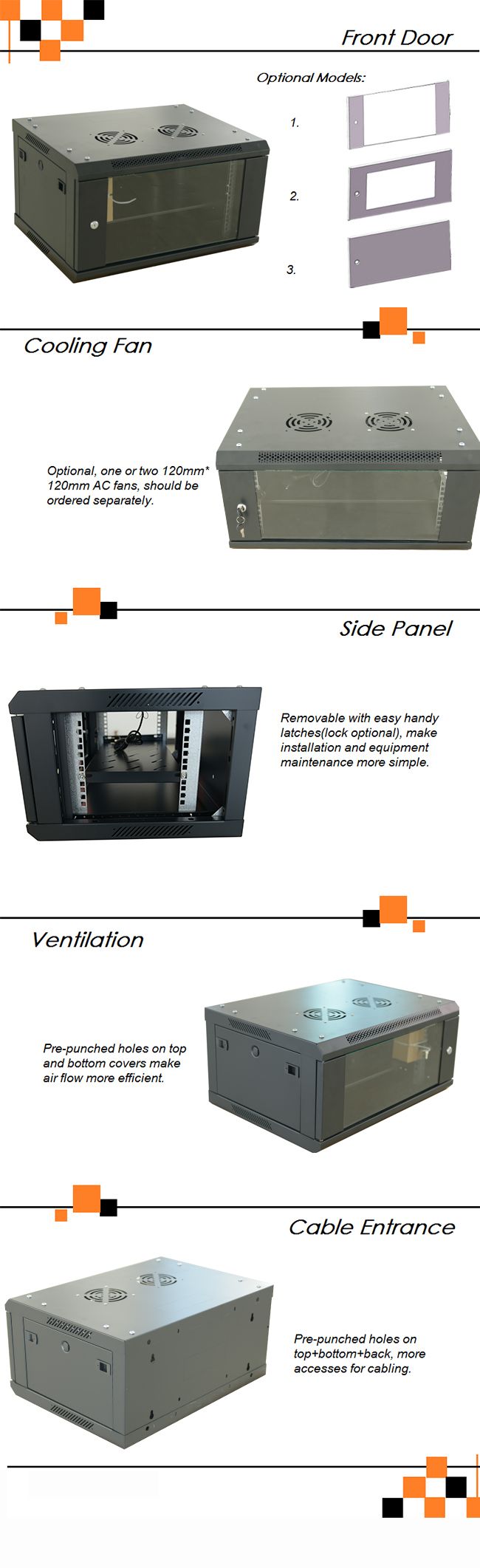

| Features |
2 Sets of adjustable mounting rails(Zinc Plated)
Cage nut style mounting rails
Removable/lockable side panels
Top and Bottom removable cable slots
Glass front door/Vented Rear door
Specifications
Width - 21.65 Inches (550mm) 23.62 Inches (600mm),
Depth - 17.72 Inches (450mm) ,23.62 Inches (600mm)
Rail Width - 19 inch EIA Compliant
Advantage
1.Secure,firm and reliable
2. Easy to maintain equipment
3. Two Packing Ways:
1).Assembly packing to save labour cost, ready to resell or use
2).Disassembly packing to save space and transport cost, easy to assemble
4.Certification: ISO 9001:2000
5. OEM/ODM service available
Recommended options
Fan assembly kit
PDU
Racks Screws,Cage nuts
Plastic/Metal Cable management
Shelves |
| Width(mm) | Depth(mm) | Capacity(U) | Height(mm) | Order Number |
| 600 | 450 | 4 | 280 | WM6404 |
| 6 | 368 | WM6406 |
| 9 | 501 | WM6409 |
| 12 | 635 | WM6412 |
| 15 | 769 | WM6415 |
| 18 | 901 | WM6418 |
| 600 | 4 | 280 | WM6604 |
| 6 | 368 | WM6606 |
| 9 | 501 | WM6609 |
| 12 | 635 | WM6612 |
| 15 | 769 | WM6615 |
| 18 | 901 | WM6618 |

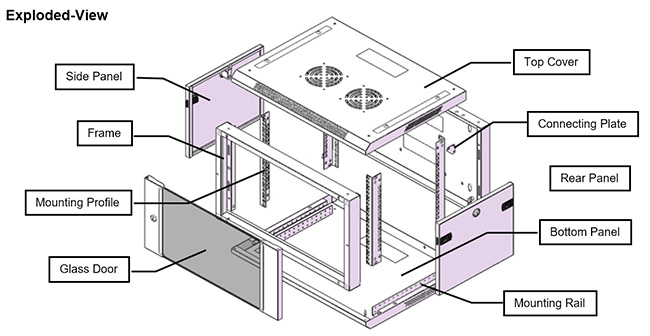

Cabinet Structure
Cabinet Details
Specification
