| Prod Model: |
JCF2-95/35 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard: |
GB |
| Material: |
Stainless Steel |
| Connection: |
Female |
Product Description

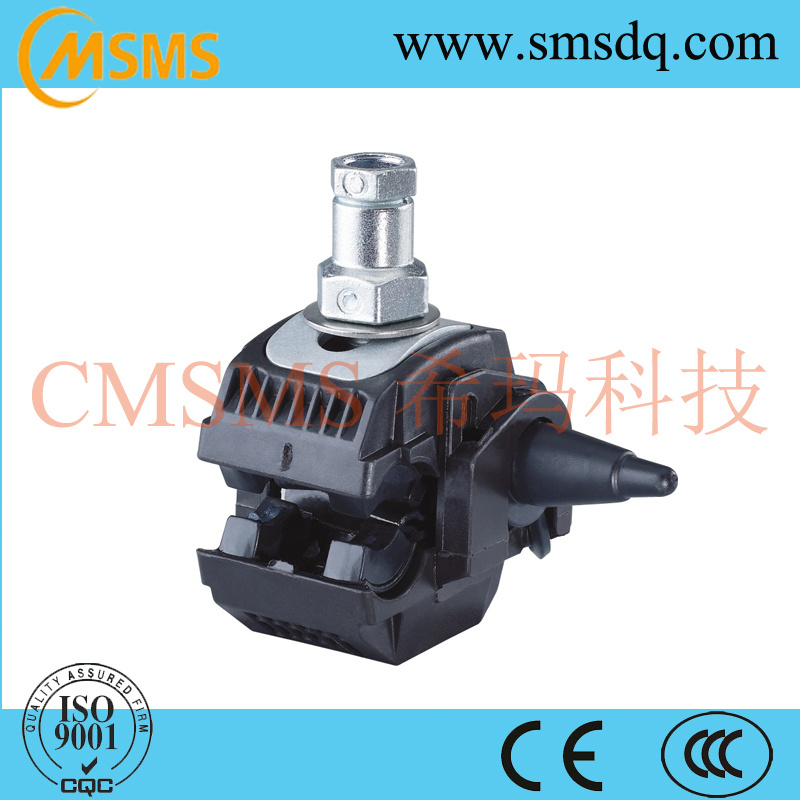

Insulated Piercing Connector
GB/T 2317.1, 4-2000, DL/T 765.1, 3-2004, NFC 33 020
Perfect for isolated connections involving copper and aluminum wires and cables under the combinations Aluminum - Aluminum, Aluminum - Copper and Copper - Copper. It has a shear-off nut to guarantee application quality.

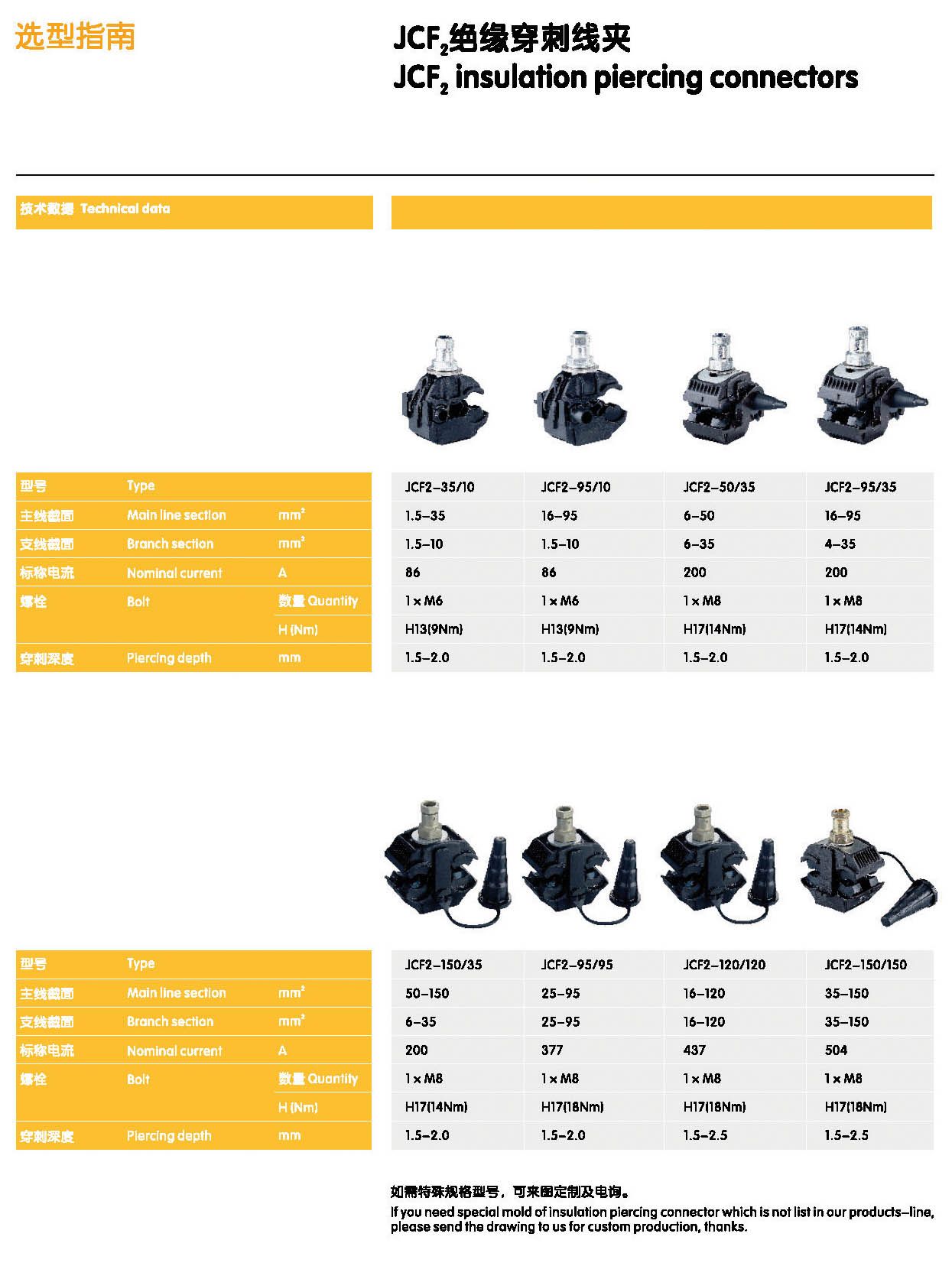

| Type | Main line section
(mm²) | Branch
section(mm²) | Norminal current(A) | Bolt | Piercing depth |
| mm² | mm² | Quantity | H(Nm) |
|
| JCF2-35/10 | 1.5-35 | 1.5-10 | 86 | 1XM6 | H13(9Nm) | 1.5-2.0 |
| JCF2-95/10 | 4-35 | 1.5-10 | 86 | 1XM6 | H13(9Nm) | 1.5-2.0 |
| JCF2-50-35 | 6-35 | 1.5-10 | 200 | 1XM8 | H17(14Nm) | 1.5-2.0 |
| JCF2-95/35 | 16-95 | 1.5-10 | 200 | 1XM8 | H17(14Nm) | 1.5-2.0 |

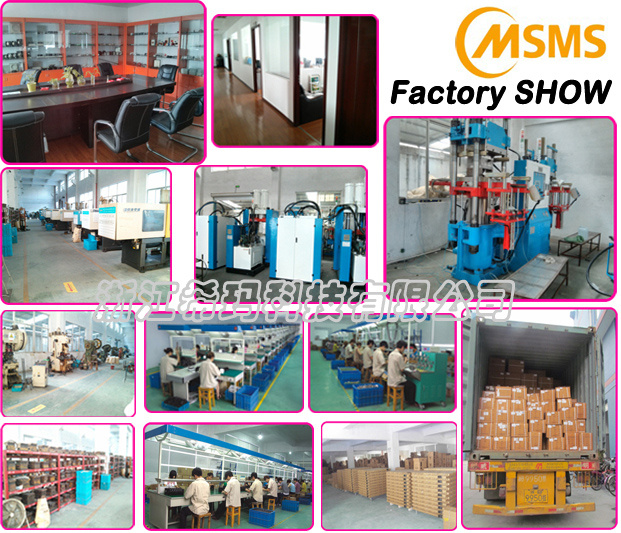

Zhejiang SMS Technology Co., Ltd is a professional manufacturer of solar mounting system, Electric connection & relative products. Our main products are Terminal block, Piercing connector, Connection box, DIN rail, Fan and Ventilate filter, etc. For passed ISO9000 many years, we always concentrate to manufactures of Electric connection and relative products, energetically explore potential markets worldwide. Mostly of our products are approved by CE, RoHS, CCC, UL, etc...And enter to international markets.
At the beginning we enter the electric connection industry, we keep our eye on produce High quality products and offer More competitive products to our customers.
We adopt advanced technologies and high quality material to offer more than 20 series products in electric distribution system, power control system and cable connection, etc...Including SKJ series terminal block, ST1 series spring connector, Insulation piercing connector, DIN rail, Fan & ventilate filter, electric metering box, multipurpose terminal block and relative accessories & tools.
Our products are widely applied in electric & electronic industry, electric equipment, Industrial automation, street lighting and power control system in traffic and transportation, posts & telecommunication, petrol chemical industry, industrial building machine-building, etc.
Zhejiang SMS technology Co., Ltd. Established more than 40 agents and service parters all round China and keep expanding international market. We accept OEM/ODM order from oversea customers. We believe our products and believe customers will chosen our products as their best choice in electric connection field.
