1PC Flanged End 150lbs Ball Valve

1PC Flanged End 150lbs Ball Valve
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 50/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: LN-Q1AFL
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 1/2"-12"
Material: Stainless Steel
Connection Form: Flange
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Application: Industrial Usage

Product Description

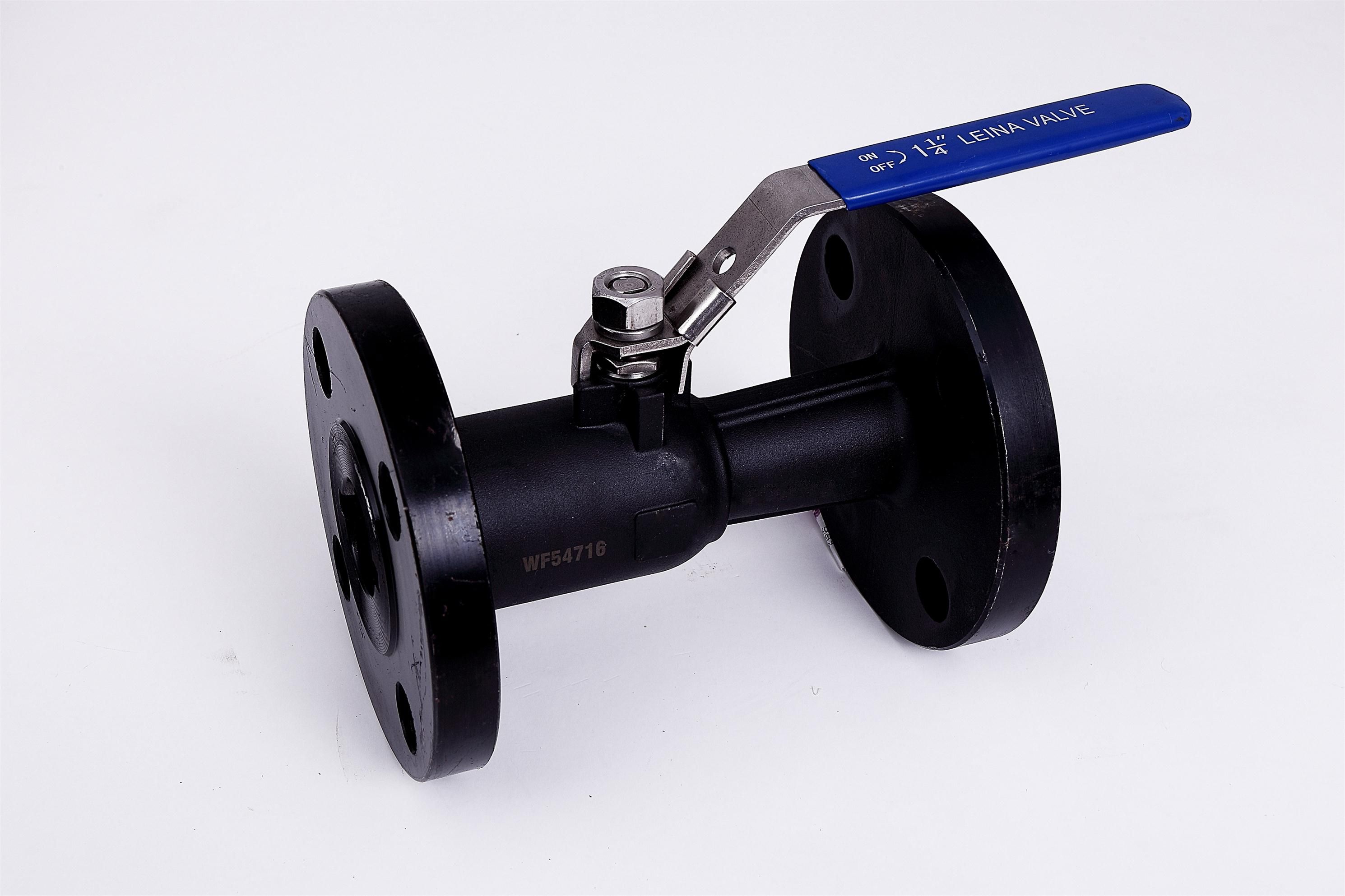

1PC Ball Valve Flanged End 150LBS

Features

Anti-Static Devices For Ball- Stem- Body

Blow-out Proof Stem

Pressure Balance Hole in Ball Slot

Using dewaxing precision casting

Product standard

Design:ASME B16.34

Wall Thickness:ASME B16.34

Fire Safe:API 607 ISO 10497

Face to Face:JIS B2002

End Flange:JIS B2220

Inspection & Testing:JIS B2003
Parts nameMaterial
       ANSI/JIS/DINANSI/JIS/DINANSI/JIS/DIN
BodyA351-CF8M/SCS14A/1.4408A351-CF8/SCS13A/1.4308A216-WCB/SCPH2/1.0619
CapA351-CF8M/SCS14A/1.4408A351-CF8/SCS13A/1.4308A216-WCB/SCPH2/1.0619
BallSUS316 SUS304
Hexagon nutA194-8
Elastic gasketSUS304
Cap gasketPTFE/VITON
Ball seatPTFE/RPTFE/PPL
StemSUS316 SUS304
Thrust washerPTFE/RPTFE
Stem packingPTFE/GRAFOIL
WasherSUS304
Postion HandleSUS201
Elastic gasketSUS304
Hexagon nutA194-8
Plastic PinSUS304
Locking DeviceSUS304
BoltA193-B8

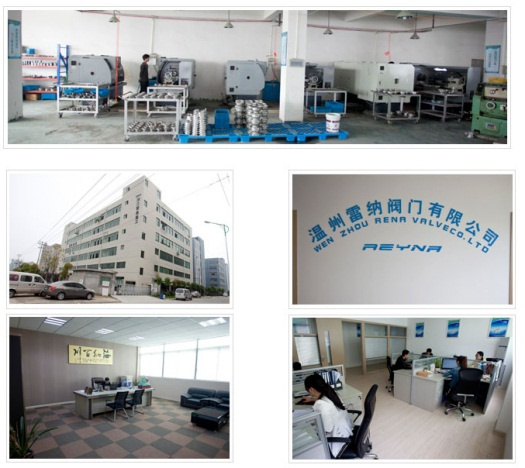

Wenzhou Leina Co., Ltd. is a Professional Factory That Specializes in The Research & Development, Manufacture and Sale of Various Valves. Located at Wenzhou Binhai Economic & Technological Development Area, The Company Has a Total Workshop Area of 3000 Sq. Meters. The Company's Main Products Include a Great Variety of Ball Valves, Gate Valves, Globe Valves, Check Valves and Special Valves (Connected by Internal and External Thread, Welding and Flange), Which Have Been Widely Used in Water, Electricity, Chemical Engineering, Metallurgy, Food, Pharmaceutical, Building and Other Sectors.

Quality Products Always Have a Ready Market and New Technologies Lead to a Bright Future. Since Establishment, Leina Valve Has Given High Priority to Technological Innovation in Its Strategic Development. In Addition to Developing Products by Using CAD, Three-Dimensional Mapping, Finite Element Analysis and Other Design Software, The Company Is Equipped with a Total of More Than 50 Modern Nc Lathes, Machining Centers, Boring Mills, Milling Machines, Drilling Machines as Well as Professional Testing Devices. Designed and Produced in Accordance with GB, ANSI, API, DIN, BS, JIS and Other Advanced Criteria Both at Home and Abroad, All Our Valves Are Made of Stainless Steel, Carbon Steel and Alloy Steel. Our Valves Also Conform to Such Technical Parameters as: Maximum Caliber: 20"(Dn500); Maximum Pressure: 2500lb (Pn420); Highest Temperature: 450; Lowest Temperature: -120. With Continuous Technical Innovation and Upgrading, Our Products Are Comparable to Imported Products of Similar Types in Terms of Structure, Performance and Quality, Which Have Won Universal Approval From Users Both Home and Abroad. Presently Our Products Have Been Exported to Europe, America, Southeast Asia, Middle East, Africa and Other Countries and Regions.

Full-Fledged Quality Management System and United Work Team Ensure Our Product Performance, Quality and Delivery, Which Further Win Us High Prestige and Good Graces From Customers. Adhering to a Market-Oriented Strategy, Raynor Valve Will Spare No Effort to Offer Excellent Products and Service to Our Customers.
