| Price: | US $ 51400-51500/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | LK95 |
|---|---|

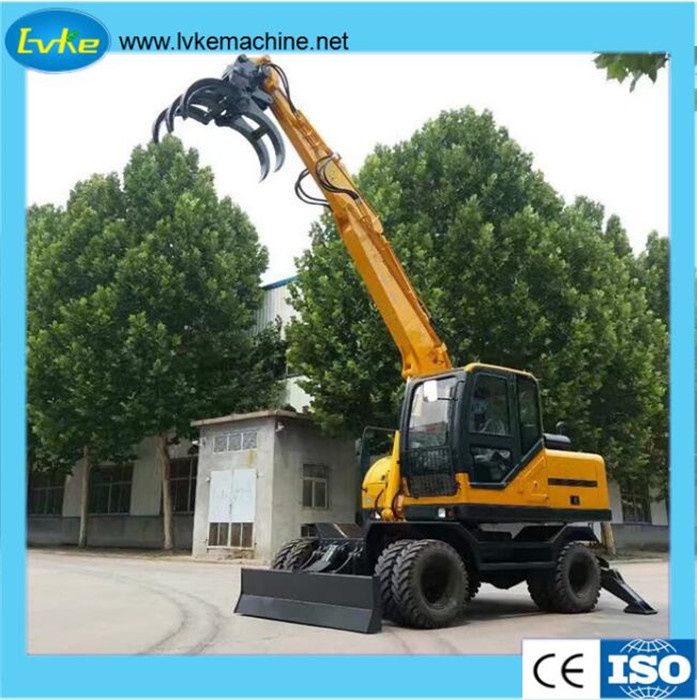

| Type: | Wheel Excavator |
| Size: | Small-Scale |
| Certification: | ISO9001: 2000 |
| Condition: | New |
| Bucket Capacity: | Graspping Catching Wood, Sugarcane, Bamboo |
| Bucket: | Graspping Catching Wood, Sugarcane, Bamboo |
| Usage: | Graspping Catching Wood, Sugarcane, Bamboo |
| Overall dimensions | |
| Overall Length | 6369mm |
| Overall Height ( to top of cab) | 2710mm |
| Overall Width | 2030mm |
| Grad opening size | 1240mm |
| Grad weight | 330kg |
| Wheel base | 1650m |
| Min. Ground clearance | 280mm |
| Length of movable arm | 3600mm |
| Length of bucket arm | 2000mm |
| Plow width | 2020 |
| Plow height | 490 |
| Working ranges | |
| Max. Loading range | 7964mm |
| Loading height | 6000-7000mm |
| Max. dumping height | 5100mm |
| Max. Loading weight | 1T |
| Technical specifications | |
| Operating weight | 8.5T |
| Bucket capacity | 0.3m3 |
| Engine model | Yuchai engine with 60KW |
| Type | 4 cylinders water cooling DI |
| Certified capacity | 2*25ml/r |
| Power output | 60kw |
| Travel speed | 0-30km/h |
| Grade ability | 300 |
| Main pump type | Axial variable piston pump |
| Wheel type | 8 wheel, type 825-16 |
| Swing speed | 12rpm/min |

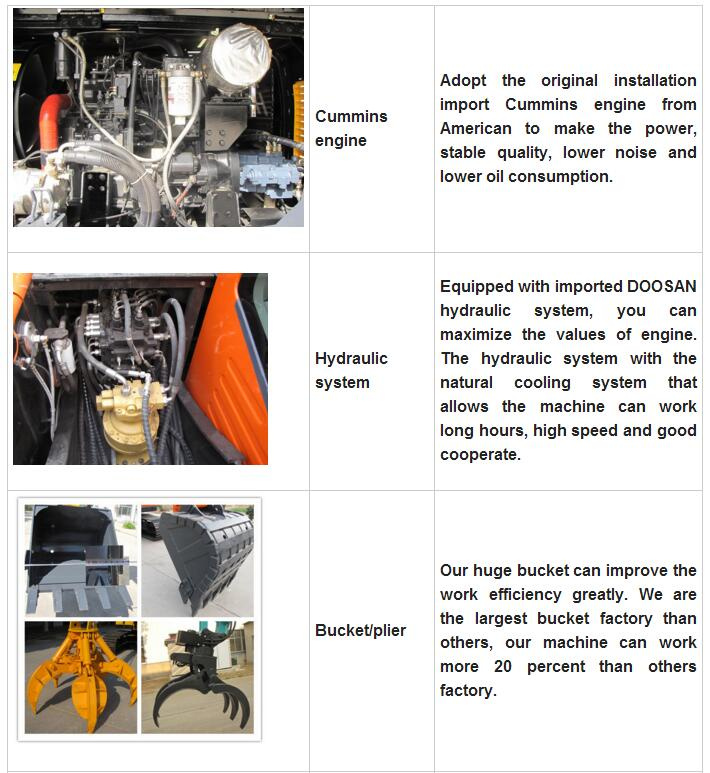

| American Cummins main pump |
| Japanese KYB valve,tracking motor |
| South Korean valve ,pilot control lever |
* Inquiry and consulting support.
* Sample testing support.

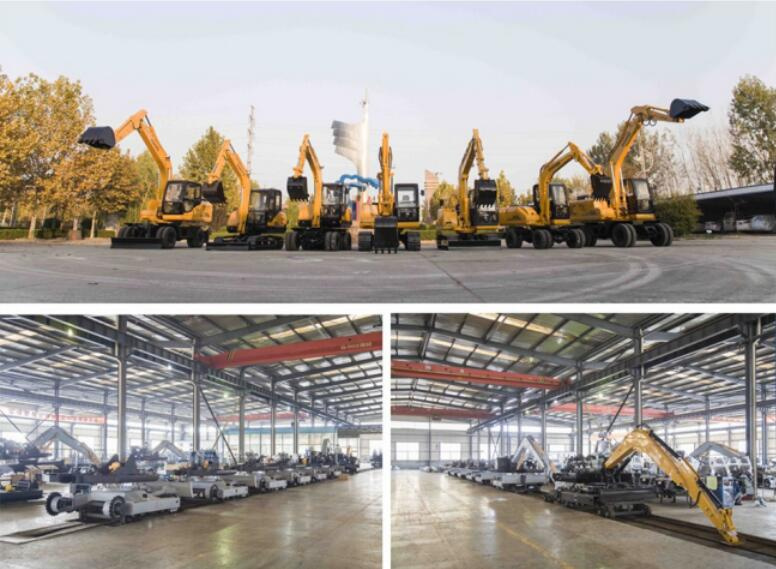

* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ
1.What are your advantages compared with other suppliers and manufacturers?
High quality: As a professional and reliable supplier, we are experienced in the Quality Inspection and Control. Every product will be strictly inspected before it is delivered to our customers.
Competitive price: We are so glad to provide the most favorable prices for our customers. And the prices are negotiable by which a win-win result could be achieved.
2. Which payment terms are available us ?
T/T terms or other. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment.
3. How long with the delivery?
Normally it takes about 20 days.
4. How about service?
24 hours online, and skype/QQ/wechat/whatsapp so on.
5. What is the warranty of our quotation?
1000 working hours or a year whichever comes first.
Contact us
Any questions , please do not hesitate to contact with us !
