| Prod Model: |
CKT028M056MQN-A2 |
| Screen Diagonal: |
2.8 " |
| Module Area (W*H*T): |
50.00X69.20X2.4 mm |
| Active Area (W*H): |
43.2X57.6 mm |
| Pixel Pitch (W*H): |
0.18*0.18 mm |
| Resolution: |
240xrgbx320 |
| Driver IC: |
Ili9341V |
| Recommended Viewing Direction: |
6:00 |
| Interface Type: |
16 Bitmcu |
| Colors: |
65K |
| Backlight Type: |
1X4LED |
| Usage: |
Smart Home |
| Digital LCD Module Type: |
Metering Module |
| Touch Screen Type: |
Infrared |
| Type: |
LCM |
| Response Time: |
25ms |
| Display Technology: |
TFT |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column Control Type |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Viewing Angle: |
All O'clock |
| Customized: |
Custom Service Available |
Product Description
RODUCT PREVIEW:

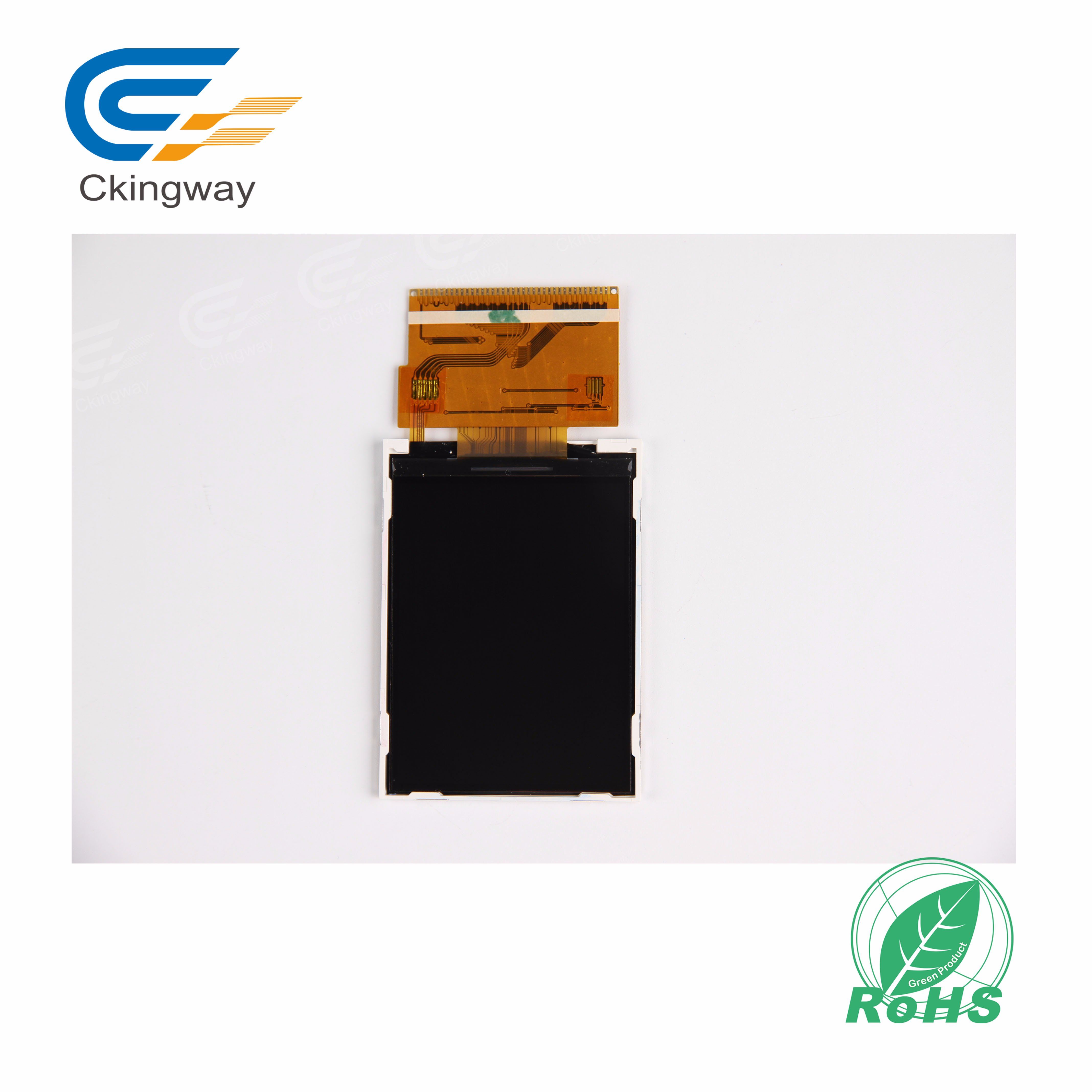

Small Size TFT, The CKT028M056MQN-A2 , is a small-size 2.8" TFT with High brightness. All our color display products can be modified to be sunlight-readable, and touch panels can added or removed. upon request (there may or may not be tooling associated with sunlightreadability or touch-panel changes).
| Model | CKT028M056MQN-A2 |
| Size | 2.8" |
| Moudle Area(W*H*T) | 50.00X69.20X2.40 mm |
| Active Area(W*H) | 43.2X57.6 mm |
| Pixel Pitch(W*H) | 0.180*0.180mm |
| Contrast | 300 CR |
| brightness | 200 cd/m2 |
| Resolution | 240xRGBx320 |
| Driver IC | ILI9341V |
| Viewing Direction | 6 O'CLOCK |
| Interface Type | 16 BITMCU |
| Colors | 65K |
| Backlight Type | 1X4 LED |

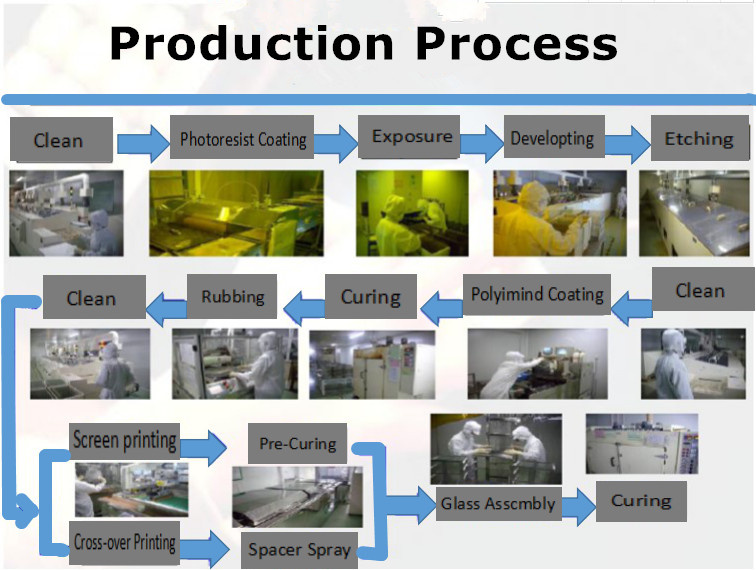

Product Process
Our Company
Shenzhen Ckingway's Introduction
Hello guys.,
Enjoy your working time with me!
I'm a manufacturer,my name is Shenzhen Ckingway Technology Co.Ltd. I specialize in producing TFT LCD/Touch screen/Mono LCD,the detail as below:
Touch Panel, Size: 1.44"~32.0"
Graphic character LCD Module, Size: 24.1×9.0 mm~153.0×103 mm
LCM (Liquid Crystal Display Module), Size: 0.96"~15.6"
Maybe you want to know if my reach your standard?
I approved the ISO9000 quality management system
I approved the ISO14000 environmental management system
I fully comply with the ROHS requirements
So,welcome to visit my home and take me to your home with confidence.
If you have other doubt please do not ask my master anytime.
Sincerely blessing you full of happiness and love everyday.
Package

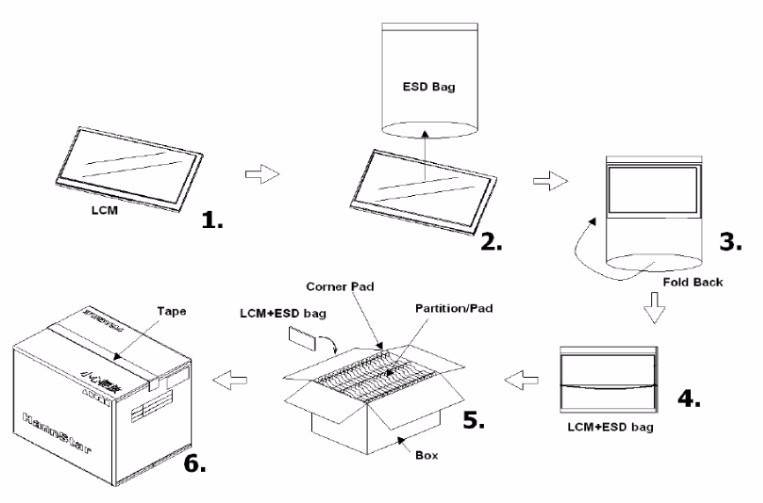

Packing Details for volume production order:
(1) Packed the LCM into ESD bag
(2) Packed the LCM+ESD bag in air bubble bag/film
(3) Put the above together into foam box
(4) Packed the foam box into a carton box to protect the LCM during transportation.
(5) Seal the carton by tape
Delivery
Delivery Details:
Normal order we will ship the goods within 3-7 working days after we get the payment, the bulk order need about 5 -35 working days, any delay we will inform you at once.
Shipping Details:
1) Can Ship by express such as DHL, FEDEX, EMS, TNT, UPS, or by Sea, by air, it's depends on your requirement.(The express shipping time is about 3 - 7 working days.)
2) The tracking number will be informed after 1-3 working days the package delivered.
3) We will follow the shipment info after delivering. If you can't receive the goods on time, please contact with us, we will assist to find the solution as soon as possible.
