| Price: | US $ 5.99-7/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union,Paypal |
| Prod Model: | TFT072A |
|---|---|

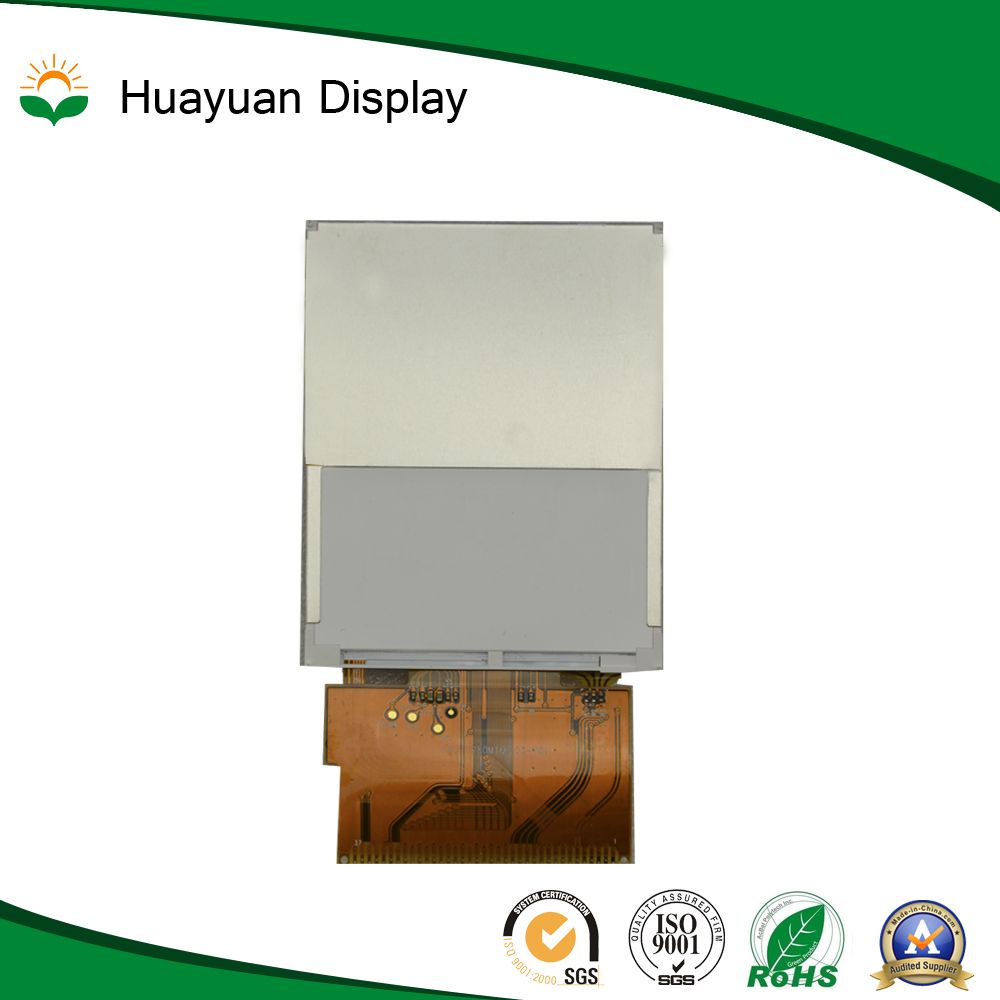

| Size: | 2.8inch TFT Touch Display |
| Resolution: | 240X320 |
| FPC Cable: | 37 Pin |
| IC: | Driving IC:Ili9341 TFT Controller & Drive |
| Display Color: | 262K |
| Active Area: | 43.2X57.6 mm |
| Screen Size: | ≤17" |
| Application: | Graphic Design |
| Aspect Ratio: | 4:3 |
| Feature: | With Remote Control |
| Type: | TFT |
| Widescreen: | Not Widescreen |
| Response Time: | 12ms |
| 3D: | Not 3D |
| Interface Type: | RGB |
| Optimum Resolution: | 240X320 |
| Product Data Sheet | |
| ITEM | CONTENTS |
| LCD Type | TFT Transmissive |
| Display Color | 262K |
| Viewing Direction | 12 O'Clock |
| Operating Temperature | -20~+70ºC |
| Storage Temperature | -30~+80ºC |
| Active Area | 43.2x57.6 mm |
| Module Size(W*H*T) | 50x69.2x4.2 mm |
| Number of Dots | 240x(RGB)x320 dots |
| Driver IC | ILI9341 |
| Weight | TBD gram |
| Driver Element | ILI9341 |
| Backlight | LED White |
| Interface | 16 BITS 8080 parallel |
| Color Configuration | RGB stripe |
| Dot Pitch | 0.18(H)x0.18(V) |
| Logic Voltage | 2.8V |
| Frequently Asked Questions(FAQ) |
| Q1:Are you a manufacturer or trading company? |
| A1:We are a professional TFT LCD Module manufacturer for about 10 years. |
| Our main products are Monochrome,TFT LCD Display,TN/STN Customized LCD,Backlight. |
| Q2:Where is your factory located? How can i visit there? |
| A2:Our factory is located in Zhuzhou Hunan Province China. |
| Welcome to visit our factory. We will pick you up at Changsha Huanghua Airport or High-speed train Station in Zhuzhou Xi. |
| Q3:How can i get some sample? |
| A3:We do not provide free sample,but we will minus the extra price when you reorder with the suitable quantity. And you will get 3% discount if possible. |
| Q4:How about your quality control? |
| A4:All of our products must be inspected strictly by our company quality department. And we had gained ISO9001,ROHS,SGS certifications. |
| Q5:What is your cooperated supplier? |
| A5:Our cooperated suppliers are CPT,BOE,HSD,Chi mei,Tianma,Innolux,Samsung,Varitronix,etc. |
| Q6:What is your applications for your LCD Display? |
| A6:Auto electronics, 3D&Shutter, Meters&Instrument, Telecommunication, Domestic electrical appliance(Household appliance), Fuel dispensers, Office equipment, Medical &health equipment, Business related facility, Education electronics |
| Q7:What is your related Products? |
| A7:1.Character LCD(8X1,8X2,16X1,16x4, 20x2, 20x4, etc) 2.Graphic LCD(122x32, 128x64, 192x64, 240x128, 320x240, etc) 3.TFT LCD(1.44", 1.77", 2", 2.2", 2.4", 2.8", 3", 3.2", 3.5", 4", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7", 10.1", 10.2", 10.4", 17",etc) 4.TN/STN/HSTN/VA Segment customized LCD 5.Back Light 6.HMI and Advertising Display |
| Q8:Contact Us: Send inquiry to us to get newest price and information. |
| Tel: +86-731-28668968 |
